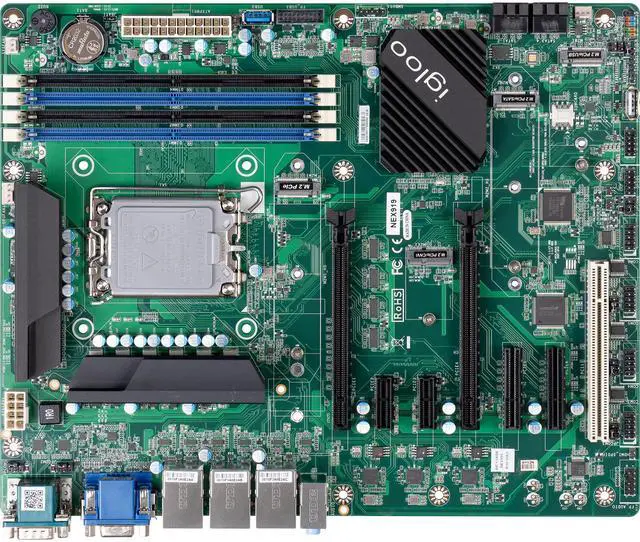

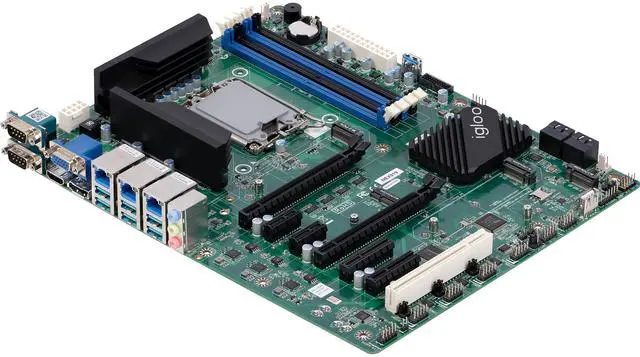

NEX 919
- Intel® LGA1700 socket supports 14th/13th/12th Gen Intel® Core processor (max 125W)
- Intel® Q670E express chipset
- 4 x DDR5 4800MHz up to 128GB
- 1 x Intel® i226-LM 2.5GbE, 2 x Intel® i226-V 2.5GbE

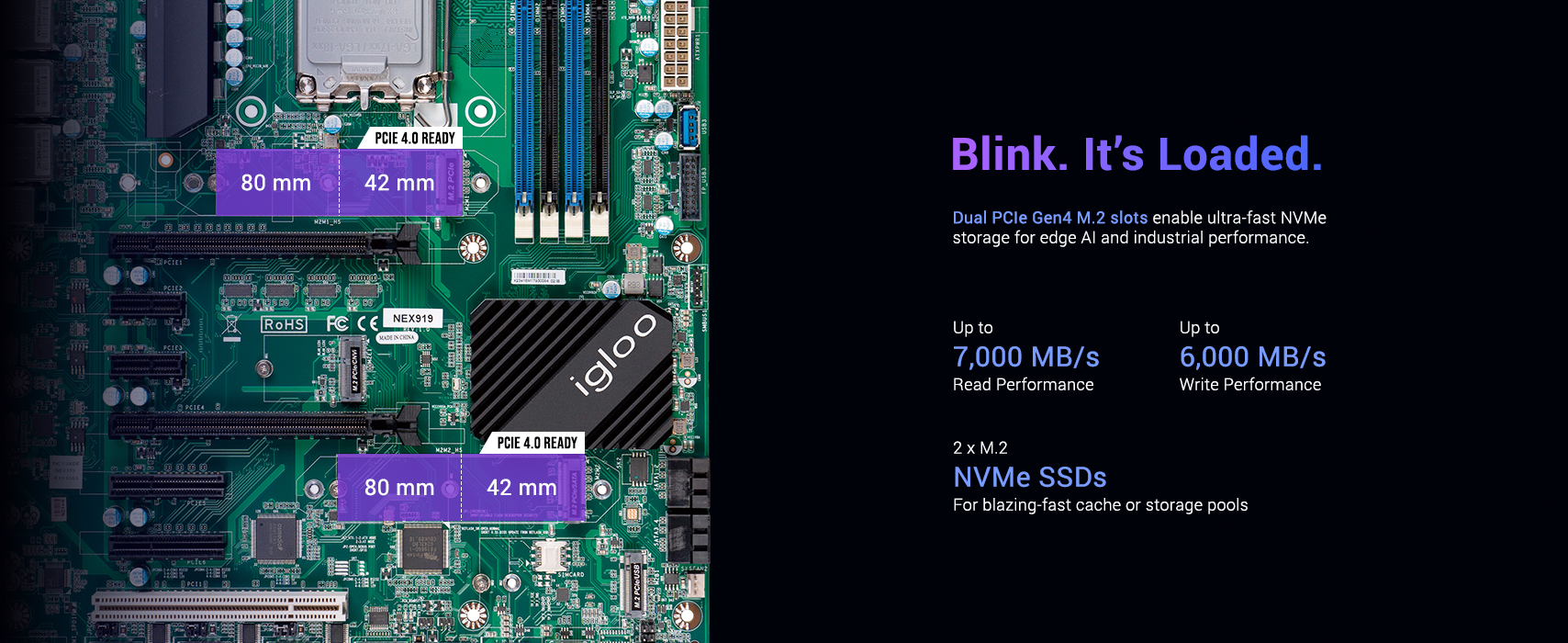

- 2 x M.2 slot (Key M), 1 x M.2 slot (Key E), 1 x M.2 slot (Key B)
- 4 x SATA 3.0 (6Gb/s), support Raid 0/1/5/10
- 1 x VGA, 1 x HDMI®, 1 x DP
- 6 x COM (COM1/2 support RS232/422/485;COM1/2/3/4 support 5V/12V TTL)
- 2 x PCIe x16, 2 x PCIe x4 , 2 x PCIe x1, 1 x PCI slots
- 24 + 8-pin ATX power input
- ATX form factor (305 x 244mm)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The NEX 919 is an ATX board. It is equipped with the 14th/13th/12th Gen Intel® Core processors to support up to a maximum of 125W max and Intel® Q670E chipset. It comes with 4 x DDR5 4800MHz DIMM sockets up to 128GB with non-ECC, un-buffered memory, dual-channel memory architecture and an integrated HD graphic controller. With Intel® Q670E PCH, the NEX 919 provides high performance and rich expansions. The SATA 3.0 ports with RAID 0,1, 5, and 10, helps to provide quick access to data files and data protection. Furthermore, it also features an integrated Intel® AMT 12 for easier maintenance. NEX 919 is a high-performance system and PCIe x16 Gen 4 is suitable for IOT, AI, AOI, AI vision, and logistics, etc.
