NEXCOM NIO 51 Grants Manageable Industrial Wi-Fi Mesh and Modbus to Communicate AMRs Seamlessly

AMR(Autonomous Mobile Robot)/AGV(Automated Guided Vehicle) Controller for warehouse sysytem

NEXCOM’s industrial Wi-Fi gateway NIO 51 attains a robust wireless connectivity and manageability for automated guided vehicles (AMRs). The NIO 51 delivers Wi-Fi mesh support, ease of remote monitoring, data acquisition, and industrial-grade durability to achieve automation in factories communicating AMRs over a highly reliable network.

KEY_TAB

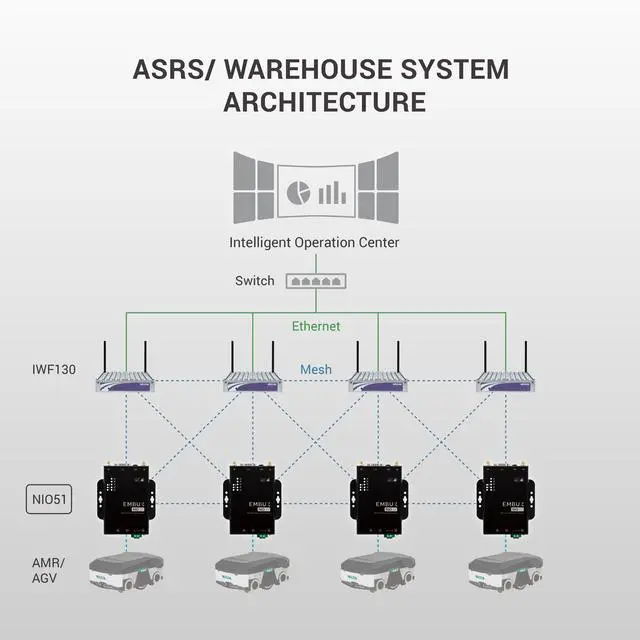

The NEXCOM NIO 51, with dual-band 2.4GHz/5GHz, supports the EZ Mesh technology enabling a stable and reliable wireless ad hoc network for AMRs. Unconstrained by wiring and setup complexity, the EZ Mesh configuration with self-forming ability dynamically finds the most optimal mesh path with the best signal strength. In industrial environments where strong connections are challenging, AMRs equipped with the industrial Wi-Fi gateway NEXCOM NIO 51 behave as mobile access points to create multi-paths that can self-heal to ensure uninterrupted data communication with low packet loss, expanding network coverage in factories and warehouses.

KEY_TAB

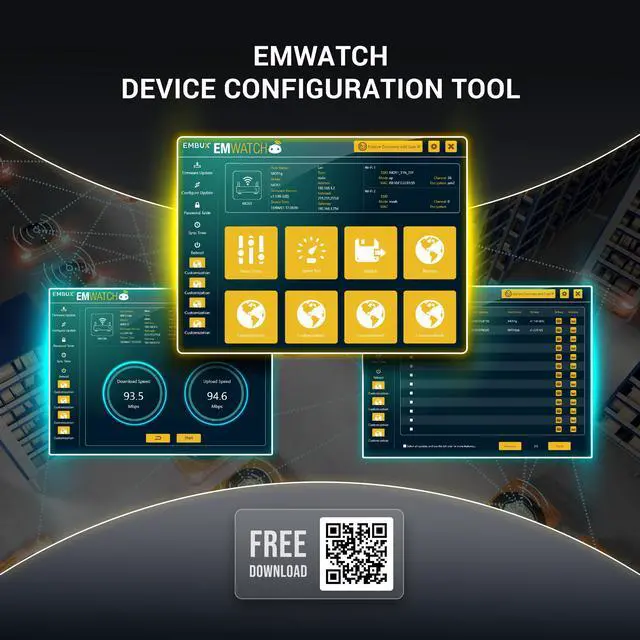

AIoT Software free download https://www.aiotcloud.dev/en/community-version

Specifications

KEY_TAB

i-Fi Radio

• IEEE802.11a/b/g/n , MIMO 2 x 2

KEY_TAB

Serial Interface

• RS232/422/485 with isolation
  - Data bits: 8
  - Stop bits: 1
  - Parity: none, even, odd
  - Baud rate: 300bps~921.6Kbps

KEY_TAB

Ethernet Interface

• 10/100 Mbps

KEY_TAB

Power Requirements

• Input voltage: 12~48VDC, 2-pin removable terminal block


• Input current: 1.67A@12VDC

KEY_TAB

LED Indicator

• 1 x Power/status


• 1 x Serial status


• 3 x RSSI indicator


• 1 x Wi-Fi 2.4/5GHz indicator


• 1 x Link/Act indicator


• 1 x Extension module

KEY_TAB

Factory Default/Reset Button

• Press reset button 10 seconds for factory default

KEY_TAB

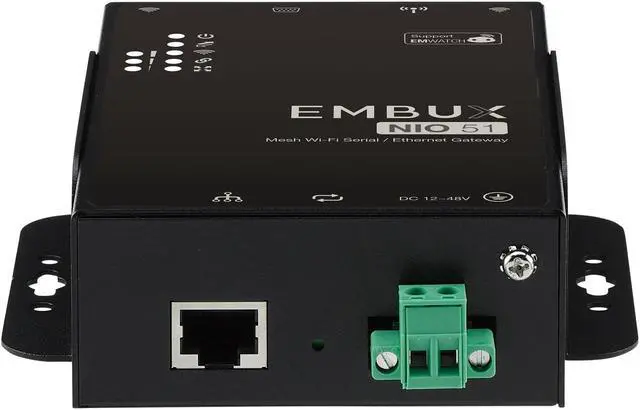

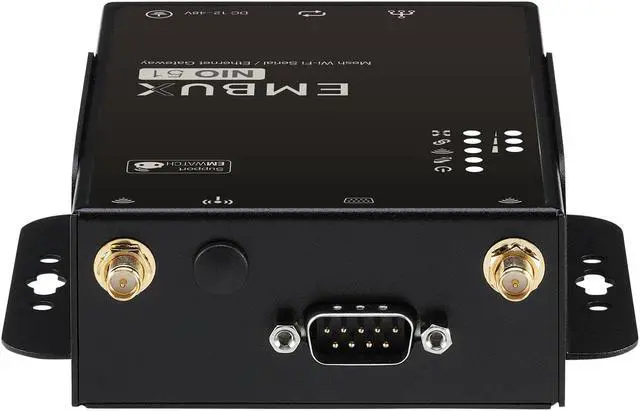

Connector type

• DC input: Phoenix contact terminal block


• Ethernet: RJ-45 connector


• Serial signal: DB9

KEY_TAB

Wi-Fi Operating Mode

• EZ Mesh


• Client router

KEY_TAB

Wi-Fi Security (Client Mode)

• WEP (64/128)


• WPA/WPA2 mixed


• WPA2-personal (PSK+CCMP/AES), WPA2-enterprise

KEY_TAB

Protocol

• Modbus TCP


• Modbus RTU


• Transparent mode for Serial to Wi-Fi/Ethernet

KEY_TAB

Serial Port Characteristics

• Flow control: XON/XOFF, RTS/CTS


• Serial data log: 64KB


• Offline port buffering: 20MB


• Min. concurrent TCP client number: 10

KEY_TAB

Software Watchdog

• Yes

KEY_TAB

Dimension

• 81.4 mm x 122.6 mm x 35 mm

KEY_TAB

Weight

• 450g

KEY_TAB

Mounting

• Wall mounting


• DIN mounting

KEY_TAB

Construction

• SGCC chassis with fanless design

KEY_TAB

Construction

• EMI: FCC, CE Class ARF
  - FCC: Part 15C
  - CE: EN300328, EN301893Safety
  - EN 62368-1EMC
  - EN301 489-1/17, FCC Part 15 subpart B, EN55032/55024
  - IEC61000-4-2: level 4
  - EC61000-4-4: level 4
  - EC61000-4-5 Surge: level 3

KEY_TAB

Environment

• Operating temp: -40°C to 70°CStorage temp: -40°C to 85°CRelative humidity: operating: 5%~95%, non-condensingRoHS compliantVibration
  - Random: 2Grms @ 5~500 Hz, IEC60068-2-64
  - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6Shock: 50G, half sine, 11ms, IEC60068-27
