Noctua Cooling Solutions

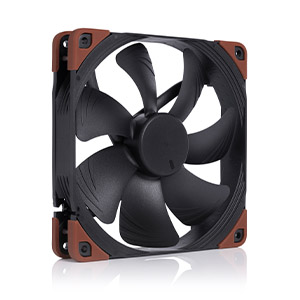

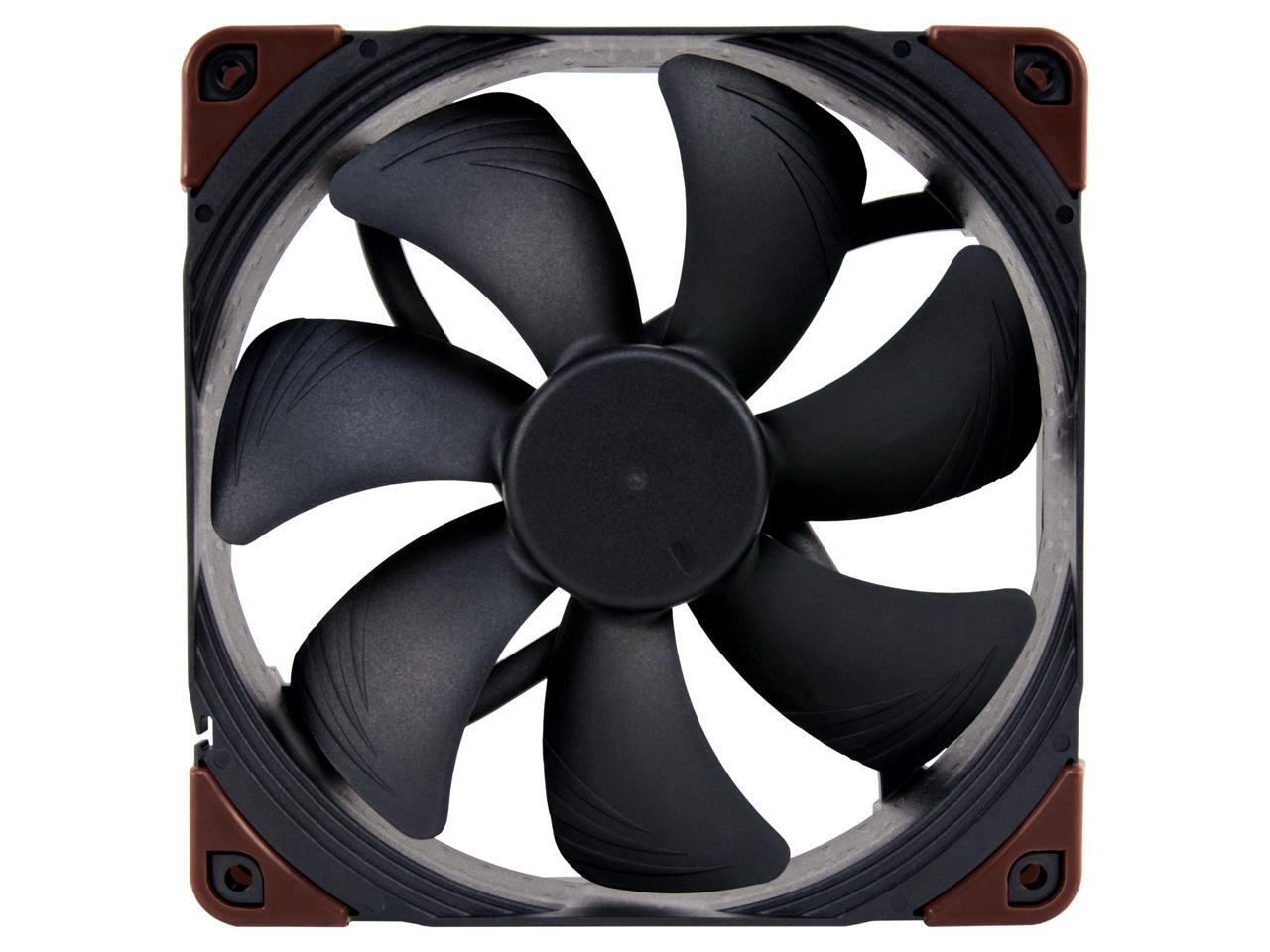

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology ensures an MTTF of over 150.000hrs. Topped off with Noctua's trusted reliability, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

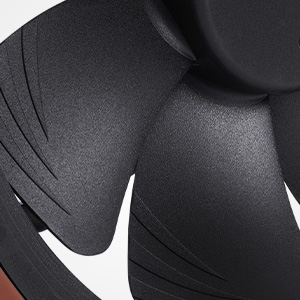

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

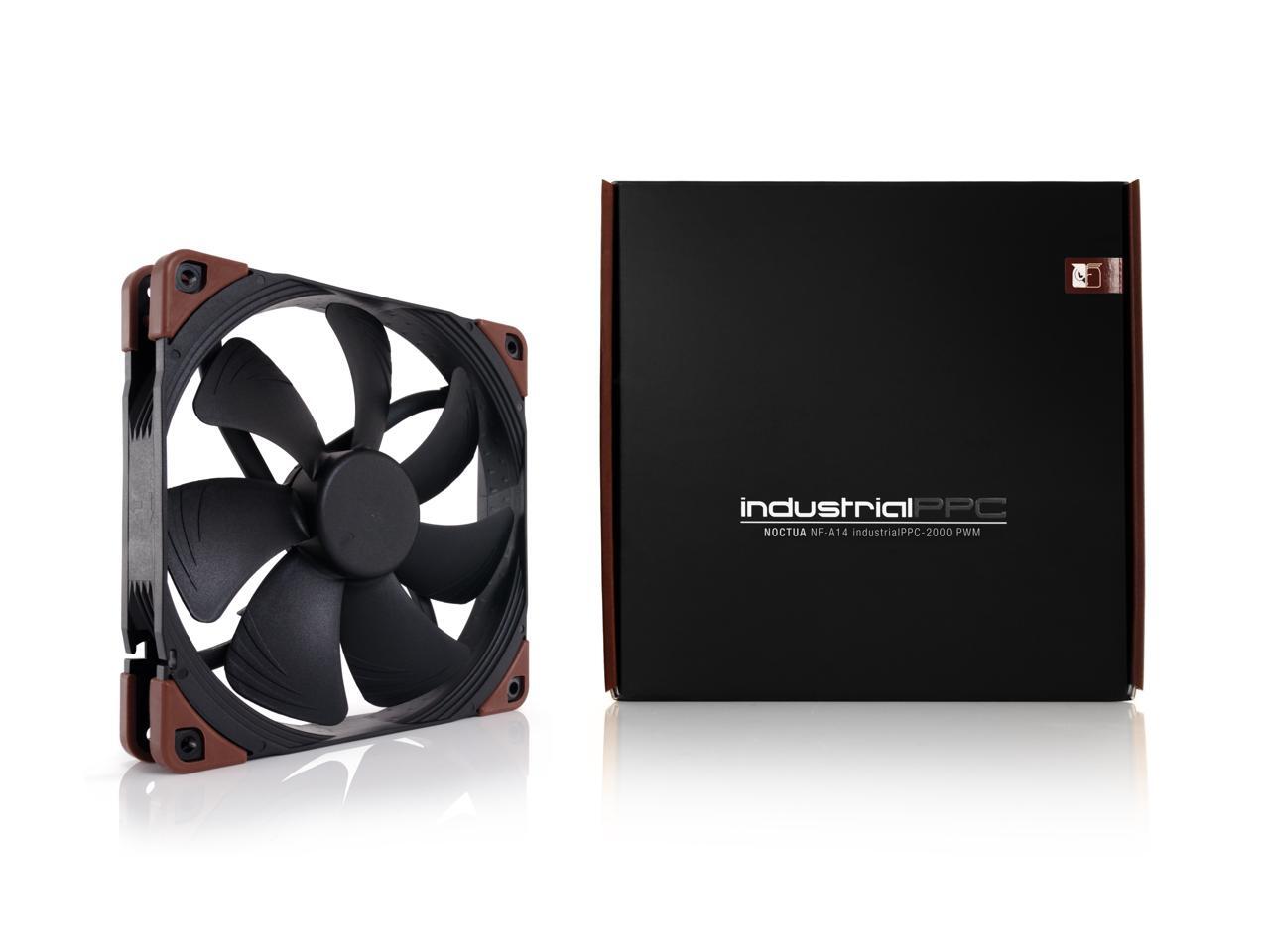

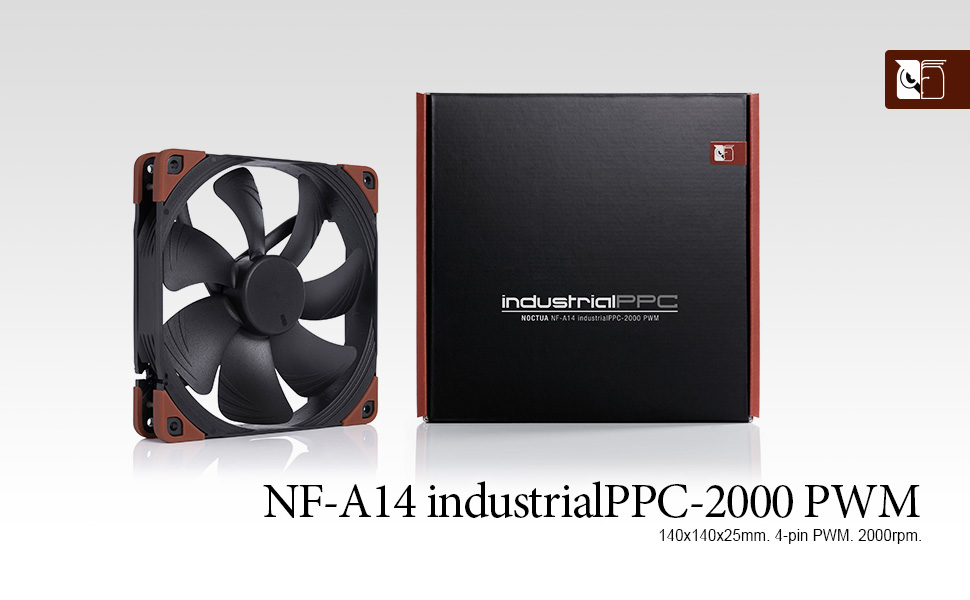

| Thanks to its elevated 2000rpm top speed, the NF-A14 industrialPPC-2000 provides a significant performance boost over the 1500rpm retail version. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications. |
| While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency. |

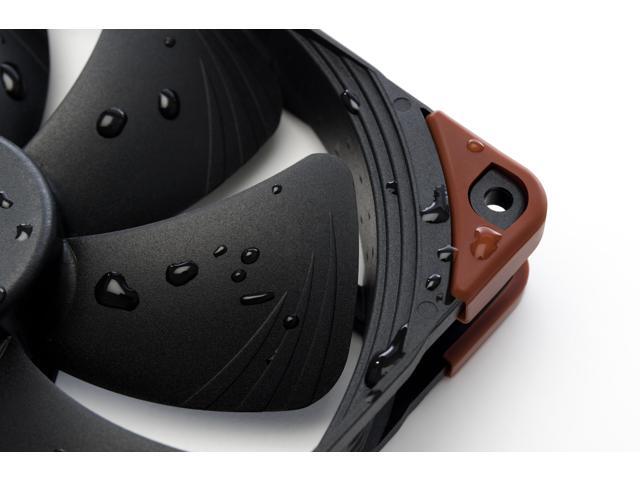

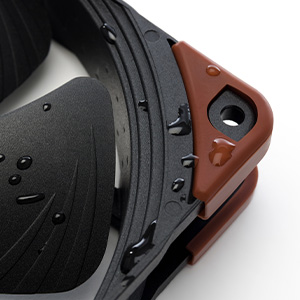

| Thanks to a special varnish coating that covers the motor and PCB, the NF-A14 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute. |
Both the impeller and the frame of Noctua's industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua's standard fibre-glass reinforced PBT fans.
| Products | ||||||
|---|---|---|---|---|---|---|

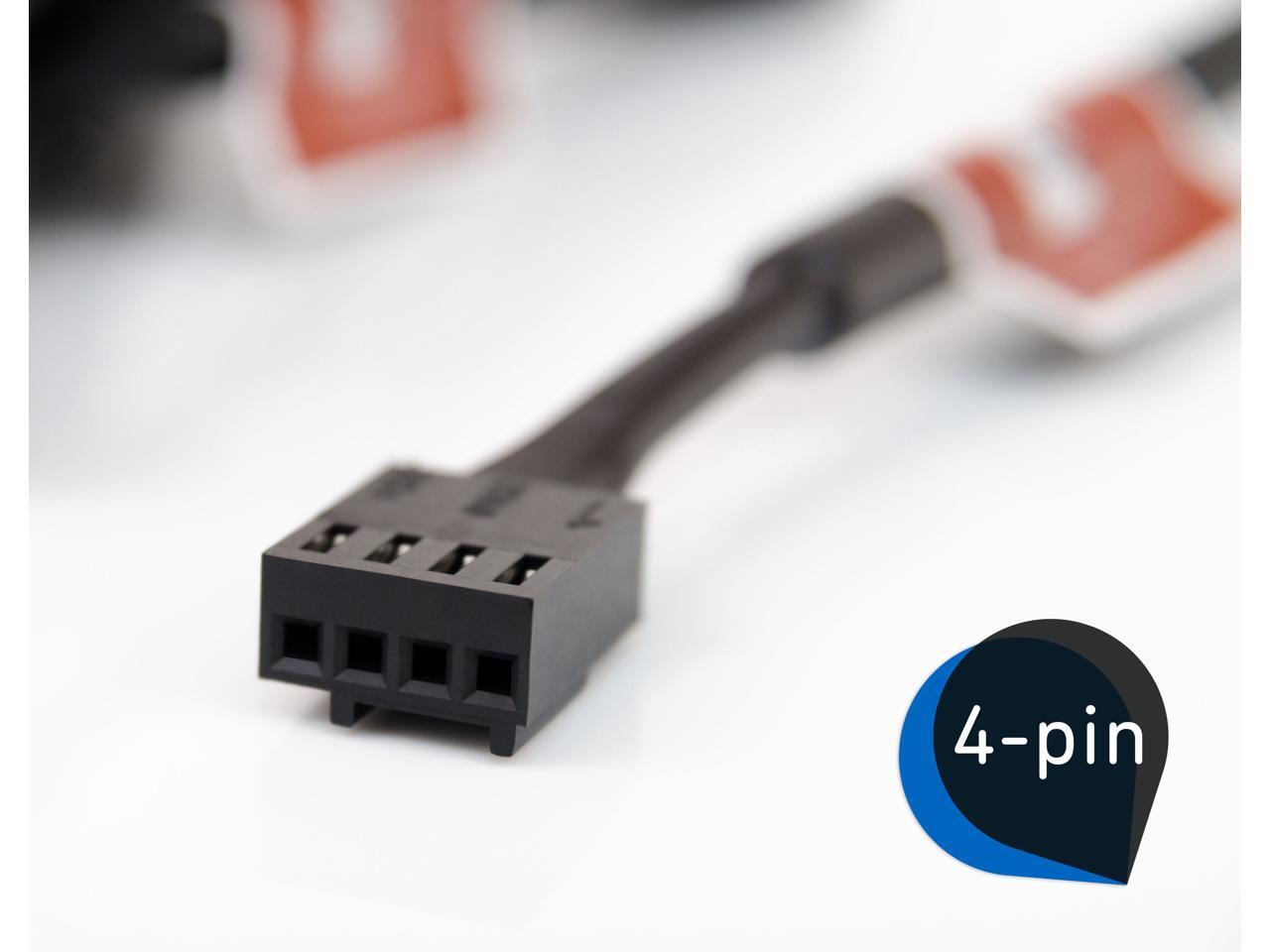

| Connector | 3-Pin | 4-Pin PWM | 4-Pin PWM | 4-Pin PWM | 4-Pin PWM | 4-Pin PWM |
| Voltage | 12V | 12V | 12V | 12V | 24V | 24V |
| RPM | 2000 | Max: 2000 / Min: 500 | Max: 2000 / Min: 500 | Max: 3000 / Min: 800 | Max: 2000 / Min: 500 | Max: 3000 / Min: 800 |
| Acoustical Noise | 31,5 dB(A) | 31,5 dB(A) | 31,5 dB(A) | 41,3 dB(A) | 31,5 dB(A) | 41,3 dB(A) |
| Static pressure | 4,18 mm H2O | 4,18 mm H2O | 4,18 mm H2O | 6,58 mm H2O | 4,18 mm H2O | 6,58 mm H2O |
| Airflow | 182,5 m³/h | 182,5 m³/h | 182,5 m³/h | 269,3 m³/h | 182,5 m³/h | 269,3 m³/h |
| Ingress Protection Rating | IP52 | IP52 | IP67 | IP52 | IP67 | IP67 |
| Size | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm |
