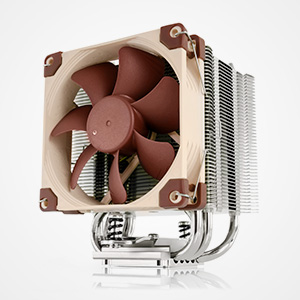

Continuing the renowned legacy of Noctua's NH-U9 series, the NH-U9S is a premium quality quiet CPU cooler in classic 9cm size. Its asymmetrical design with 5 heatpipes not only provides even better cooling performance than the previous generation but also improves compatibility: Thanks to its 95x95mm footprint, the NH-U9S clears the RAM and PCIe slots on all Intel and most AMD based mainboards, including µATX and ITX. Combined with its 125mm height, this makes the NH-U9S a highly versatile solution with excellent case, RAM and PCIe compatibility. The included NF-A9 premium fan supports automatic speed control via PWM for outstanding quietness of operation and a second, optional NF-A9 fan can be added for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system and Noctua's proven NT-H1 thermal compound, the NH-U9S is a deluxe choice through and through.
| Like its bigger brothers NH-U12S and NH-U14S, the NH-U9S features a revised, slimmer layout: Whereas the NH-U9B SE2 was 120mm deep with its two stock fans, the NH-U9S is asymmetrically built and measures only 95mm with its single, more efficient NF-A9 fan, thus providing better performance and compatibility at the same time. |

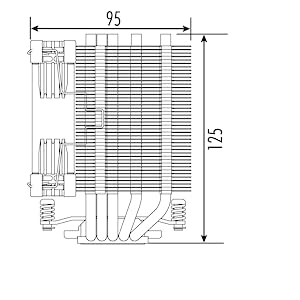

| With its 95x95mm footprint, the NH-U9S does not overhang the RAM slots on current Intel and most AMD mainboards. This gives the user full access to the memory modules and guarantees 100% compatibility with tall heatspreaders or optional memory fans. |

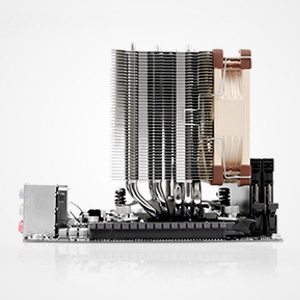

| Many Intel LGA115x based mini-ITX mainboards have the PCIe slot sitting right next to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95xmm sized NH-U9S provides full compatibility with PCIe cards, be it on ATX, microATX or ITX. |
| Noctua's much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds. |

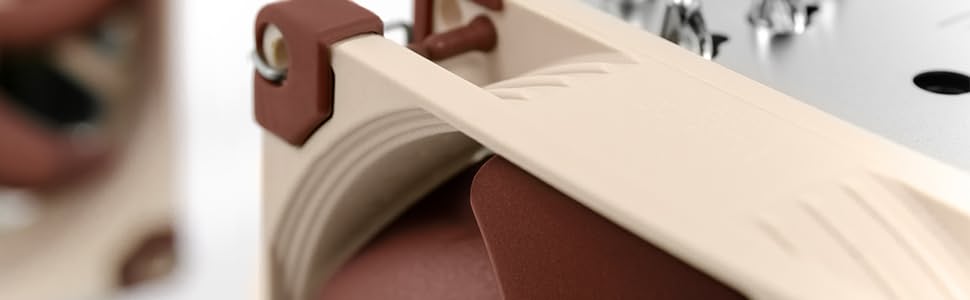

- NF-A9 PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A)
- NT-H1 high-grade thermal compound
- SecuFirm2 mounting kit
- Fan-clips for second NF-A9
- Noctua Metal Case-Badge
92x92x25 mm
| Products | ||||
|---|---|---|---|---|
| LGA2066, LGA2011-0 & LGA2011-3 | - | - | ||
| LGA1700 | - | - | ||
| LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) | - | - | ||
| LGA775 & LGA1366 | with NM-I3 | - | - | with NM-I3 |
| Xeon LGA2011 Narrow ILM / Xeon LGA1366 & LGA1356 | - | - | - | |
| Xeon LGA3647 | - | - | - | - |
| Xeon LGA4189 | - | with NM-i4189 | - | |
| AM5 | - | - | ||
| AM4 | - | - | ||
| sTRx4, sWRX8, TR4, SP3 | - | - | - |
