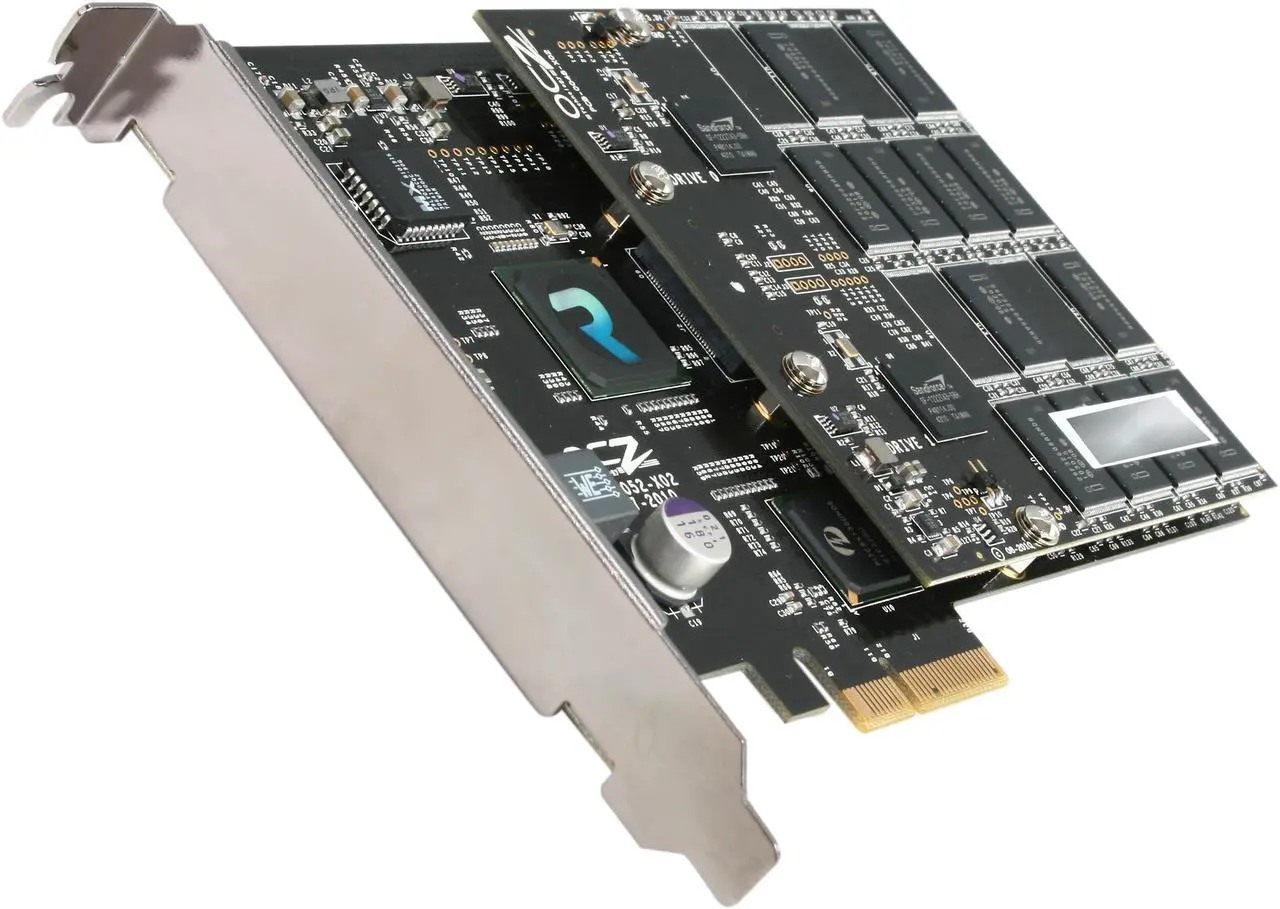

Building off the award-winning RevoDrive, the OCZ RevoDrive X2 takes performance to new heights while doubling the storage capacity for the ultimate PC experience. With a proprietary four-way RAID 0 design, the RevoDrive X2 enhances data access and maximizes bandwidth with superior data rates up to 740MB/s and up to 120,000 IOPS, nearly triple the throughput of other consumer SSDs. Unlike competing PCIe solutions, the RevoDrive X2 is bootable ensuring quicker boot-ups in addition to snappier application loading and file management. The RevoDrive X2 can accommodate a wide range of computing environments such as video-editing and other multi-media creation and management, all while providing the superior durability and reliability of SSDs.
Building off the award-winning RevoDrive, the OCZ RevoDrive X2 takes performance to new heights while doubling the storage capacity for the ultimate PC experience. With a proprietary four-way RAID 0 design, the RevoDrive X2 enhances data access and maximizes bandwidth with superior data rates up to 740MB/s and up to 120,000 IOPS, nearly triple the throughput of other consumer SSDs. Unlike competing PCIe solutions, the RevoDrive X2 is bootable ensuring quicker boot-ups in addition to snappier application loading and file management. The RevoDrive X2 can accommodate a wide range of computing environments such as video-editing and other multi-media creation and management, all while providing the superior durability and reliability of SSDs.
SSD Storage TechnologyUnlike traditional hard disk drives, SSDs have no moving parts, resulting in a quiet, cool, highly reliable storage solution that also offers faster application loading and system responsiveness. And for laptops and netbooks, the lower power needs of SSDs translate to extended battery life. Higher performance with more durability means you can be truly mobile with confidence.
Incredibly Fast PerformanceThe RevoDrive X2 family gets its edge by employing a PCIe x4 interface (1GB/s bandwidth as opposed to 3Gb/s of SATA II) and four SandForce-1200 controllers in RAID 0 design to maximize data access and bandwidth. Therefore the RevoDrive X2 SSDs (100GB-160GB) feature up to 740 MB/s read & 690 MB/s write speeds, up to 550 MB/s sustained write speed, and incredible random write up to 100,000 IOPS (4KB Aligned).
BootableThe RevoDrive X2 is powered by the PCI-Express bus and OS bootable allowing for use as the primary boot drive and super-fast system startup. (Motherboard supporting boot over PCI-E is required.)
Learn more about the OCZ Storage Solutions OCZSSDPX-1RVDX0160
Model
Brand
OCZ
Series
RevoDrive X2
Model
OCZSSDPX-1RVDX0160
Device Type
Internal Solid State Drive (SSD)
Used For
Consumer
Details
Form Factor
PCI-E
Capacity
160GB
Memory Components
MLC
Interface
PCI-Express x4
Controller
SandForce
Performance
Sustained Sequential Read
Up to 740MBps
Sustained Sequential Write
Up to 690MBps
MTBF
2,000,000 hours
Features
Features
Sustained Write: upto 550 MB/s
4KB Random Write: 100,000 IOPS
Seek Time: 0.1 ms
Onboard RAID 0
ECC:27 bytes of redundancy per 512bytes data. Up to twelve 9-bit symbols correctable
PCI-Express: Fully compliant with the PCIe ElectromechanicalSpecification Rev. 1.1, and with thePCI-Express Base Specification Rev. 1.1
Environmental
Power Consumption (Idle)
4.3W
Power Consumption (Active)
8.3W
Max Shock Resistance
1500G
Dimensions & Weight
Height
21.59mm
Width
181.07mm
Depth
126.39mm
Weight
171g
Additional Information
Date First Available
November 09, 2010
