- Specifications
- Compatible: 2.5" and 3.5" SATA HDD/SSD
- Support: Daisy Chain Series-Connection (up to 3 devices, Total 240TB)
- Output Interface: USB3.1 Gen2 Type-C x2
- Transmission rate: 10Gbps Max
- Support capacity: 16TB Single Bay,Max 80TB
- Power Supply: 150W Built-in Power Adapter
- Support system: Windows / Mac / Linux
NOTE:
Total 240TB = 16TB/bay * 5 bay *3 devices
USB3.1 Gen2 (Main interface): Connect to computer port or uplink to a 3549C3 / 3559C3 HUB interface.
USB3.1 Gen2 (HUB interface): Downlink two 3549C3 / 3559C3 or other Type-C devices.
USB 3.1 Gen2 Type-C 10Gbps fast and reliable data transfer speed which is 2 x faster than USB 3.0, Reversible USB Type C connection.
Built-in dual-core chips Main Control system, with 150 W Internal Power Supply to provide sufficient power to ensure Data storage and Transferring's Safety and Stability.
Automatic enter sleep mode after 10 minutes without operation, Power-saving, effectively reduce hard drive wastage, prolong it's service life.
The LED indicator monitoring the working status of the hard disk, the blue light is always on when the power is on, and the blue light flashes when reading data.

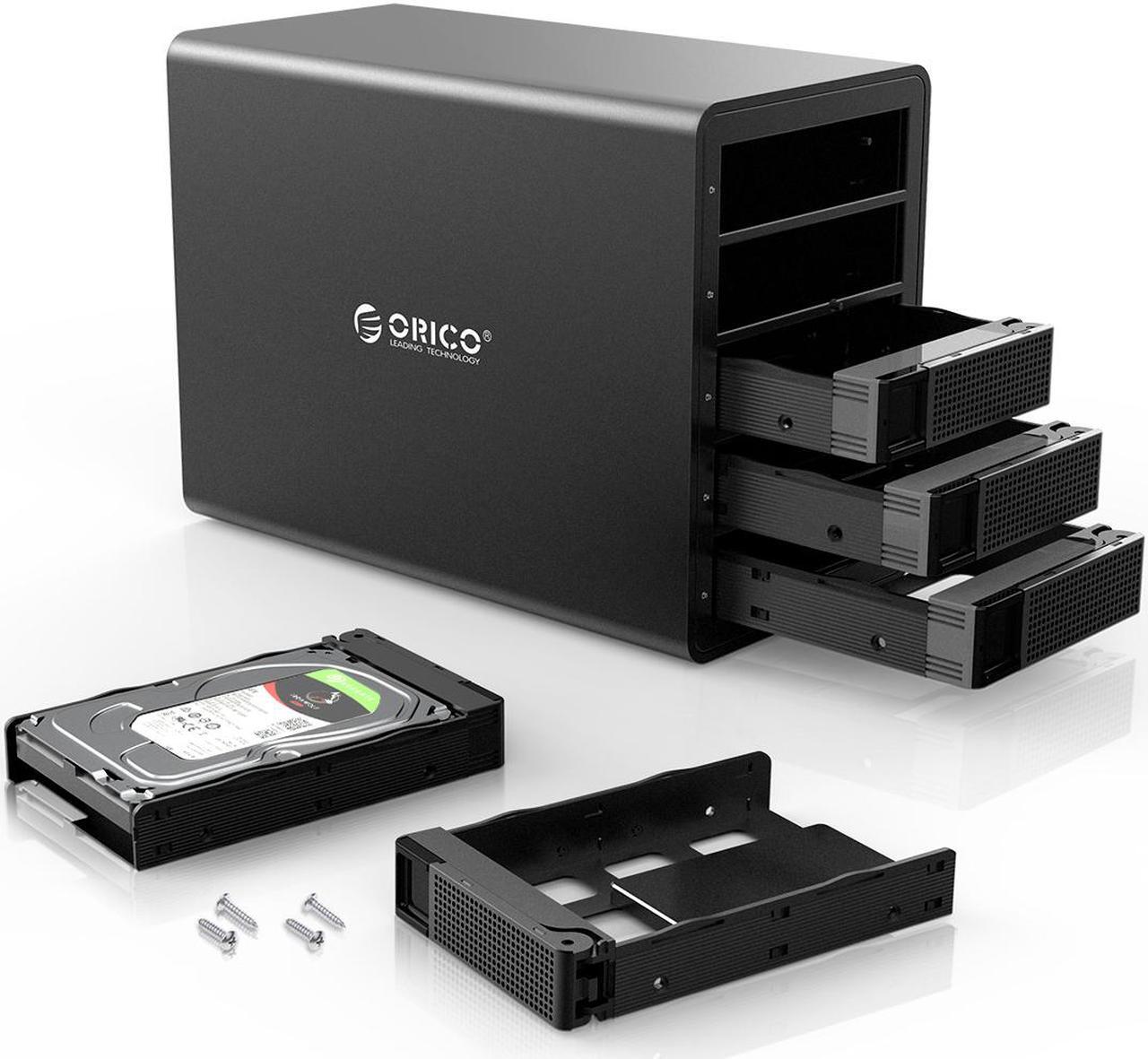

Compatible with 2.5/3.5 inch SATA HDD or SSD, with Independent BRACKET for each drive, fix hard drives through screws, Solid and Stable.
1x ORICO Daisy Chain Hard Drive Enclosure
1x C to C Cable; 1x C to A Cable
1x Power Cord; 1x User Manual
Open the disk bay by pulling buckle to the left
Pull the tray out, Open the disk bay by pulling buckle to the left
Insert hard disk into the tray and fix it by screwing
Close it and it can be normally used
