Dual-channel PCIe Gen3 interface (M.2 M-KEY), compliant with PCI Express 3.0 standards, designed for M.2 SSDs.
Six ports, each supporting 6Gbps, theoretically offering a total of 36Gbps bandwidth. The mentioned 16Gbps may refer to bandwidth under specific configurations.
Plug-and-play capability without the need for driver installation, supports AHCI mode for system booting, enhancing user convenience.
LED indicator for real-time monitoring of hard disk working status.
Supports soft RAID formation via built-in system RAID tools, catering to different storage needs and ideal for expanding built-in multi-bay SATA mass storage.
Broad compatibility, supporting SATA interface mechanical hard drives, SSDs, optical drives, etc., and compatible with Windows, Mac OS, Linux, FreeNAS, Synology, and other NAS operating systems.
+
+
Overview
Specs
Reviews (15)
Any questions? Our AI beta will help you find out quickly.
Try me now

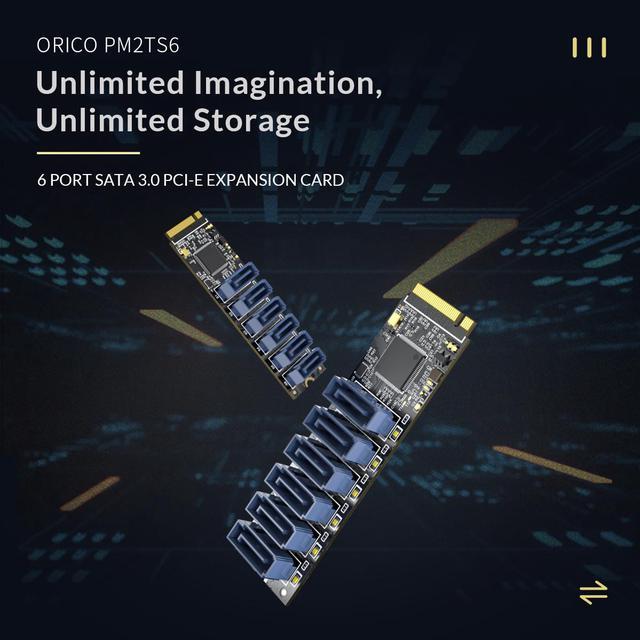

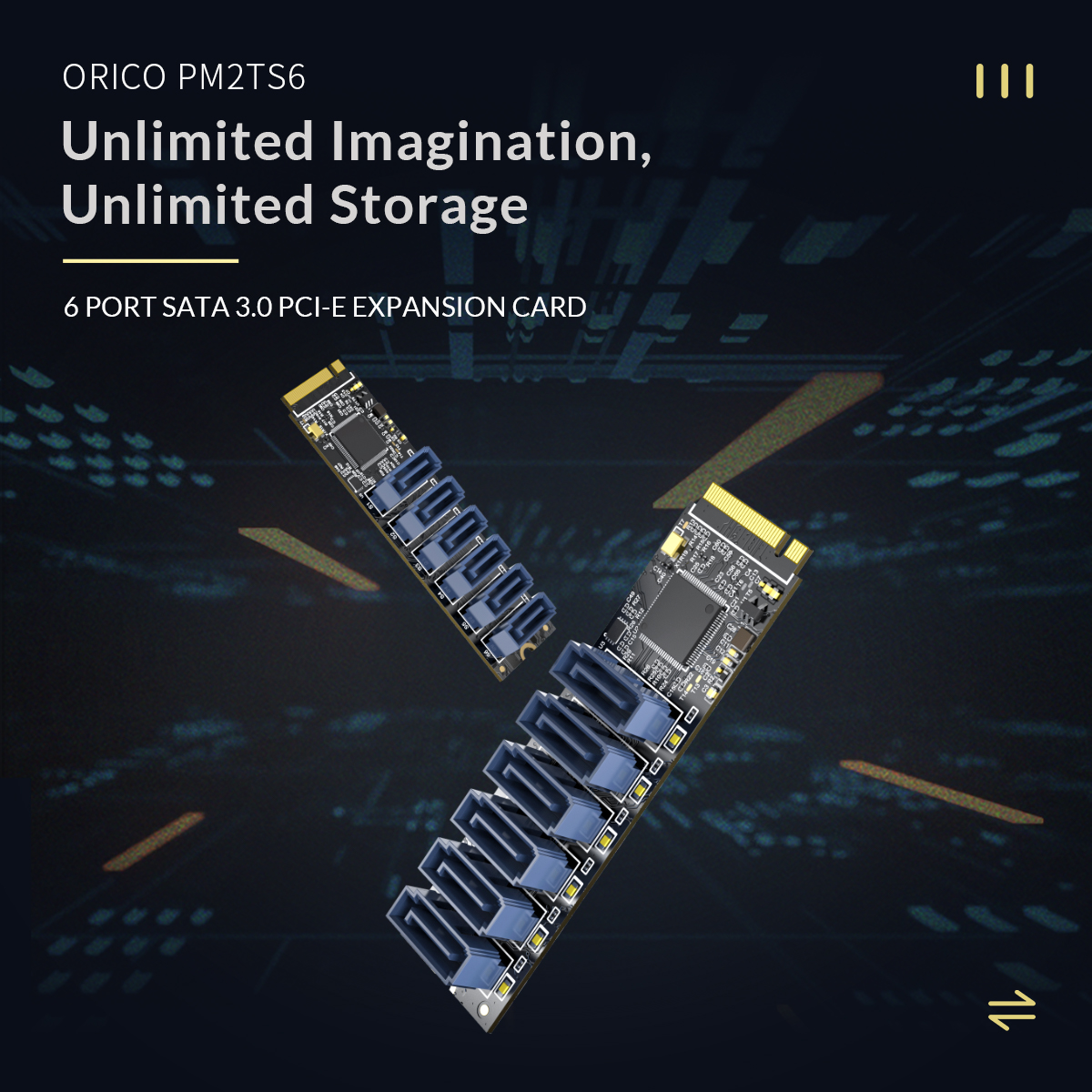

Description: 1. 6 Port SATA 3.0 PCI-E Expansion Card, using the ASM1166 chip solution, high-speed transmission and stable performance, in line with M. 2 M Key standard.

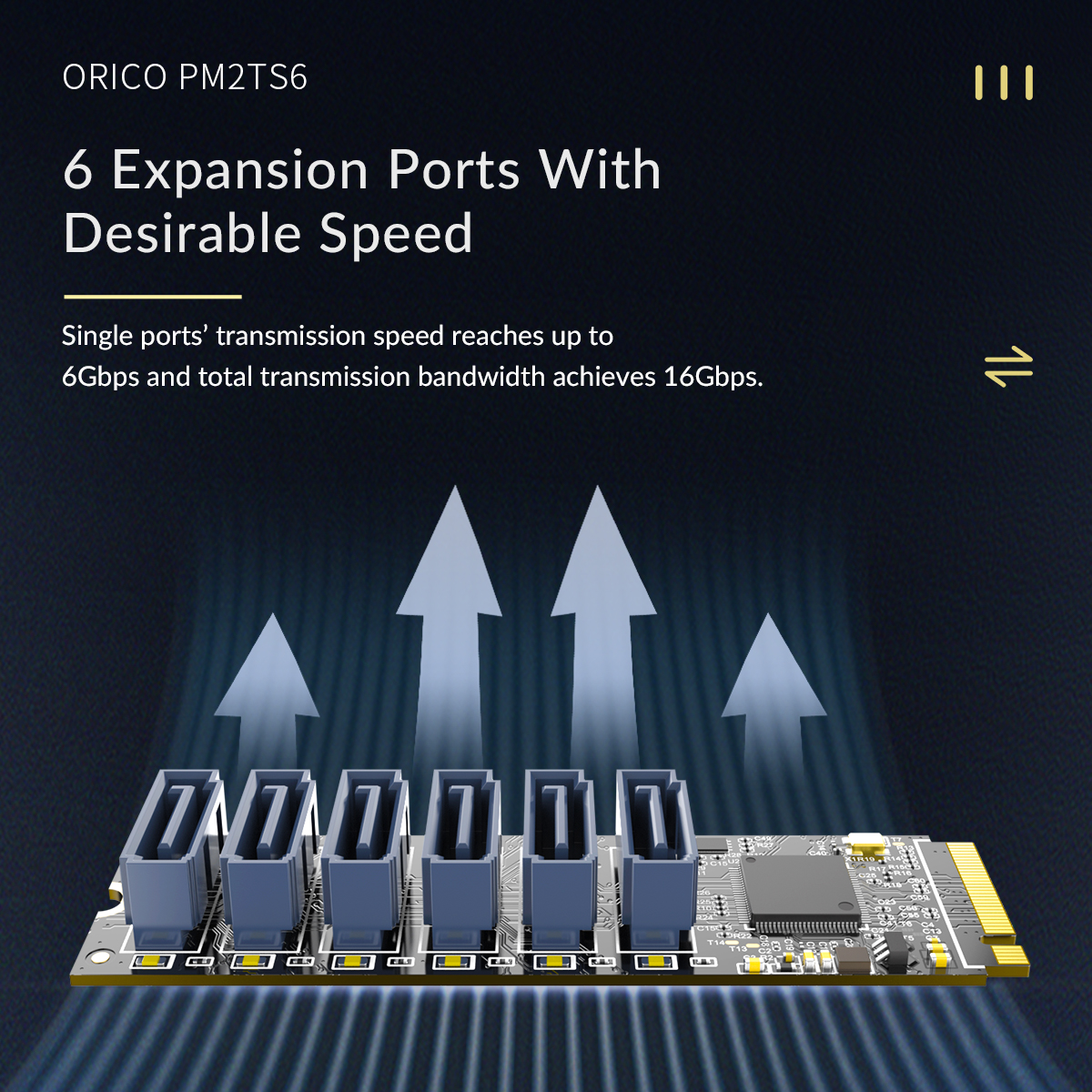

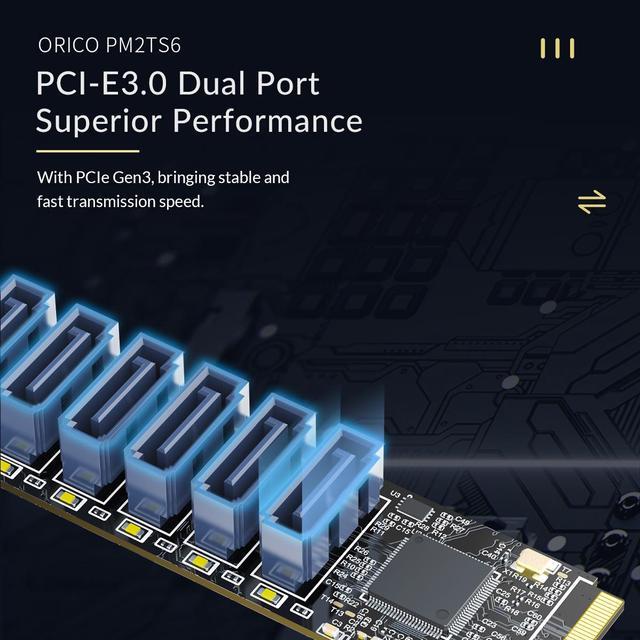

2. Realize the PCI Express Gen 3x2 line bandwidth, with six SATA ports extending from the PC host to the M. 2 Key M slot. Single ports transmission speed reaches up to 6Gbps and total transmission bandwidth achieves 16Gbps. 3. PCI-E 3.0 Dual Port Superior Performance, With PCIe Gen3, bringing stable and fast transmission speed.
4. Support PCI Express link layer energy saving mode
5. Support command-based and FIS-based port multiplier
6. Support AHCI mode and IDE programming interface
7. Support local command queue (NCQ)
8. Support SATA plug-in detection function
9. Support drive power control and interleaved rotation
10. Support SATA Partial / Slumber power management status
11. Complies with PCI Express Basic Specification Revision 3.1 a, SATA Specification Revision 3.2
12. Plug and play, no other software installation or setting required

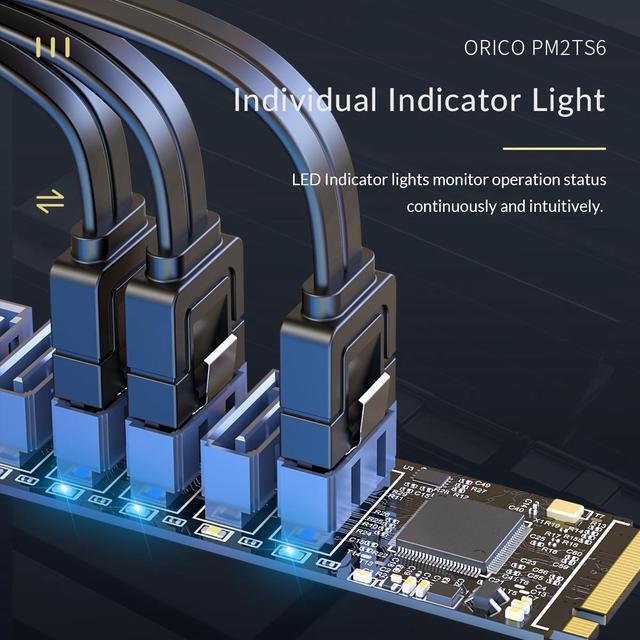

13. Indicator Light: Light on: Connected; Light off: Not Connected; Flashing Light: Reading or Writing mode

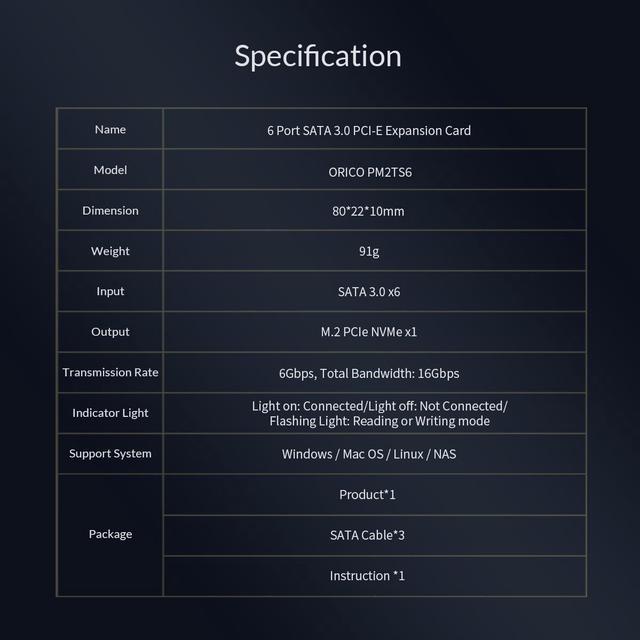

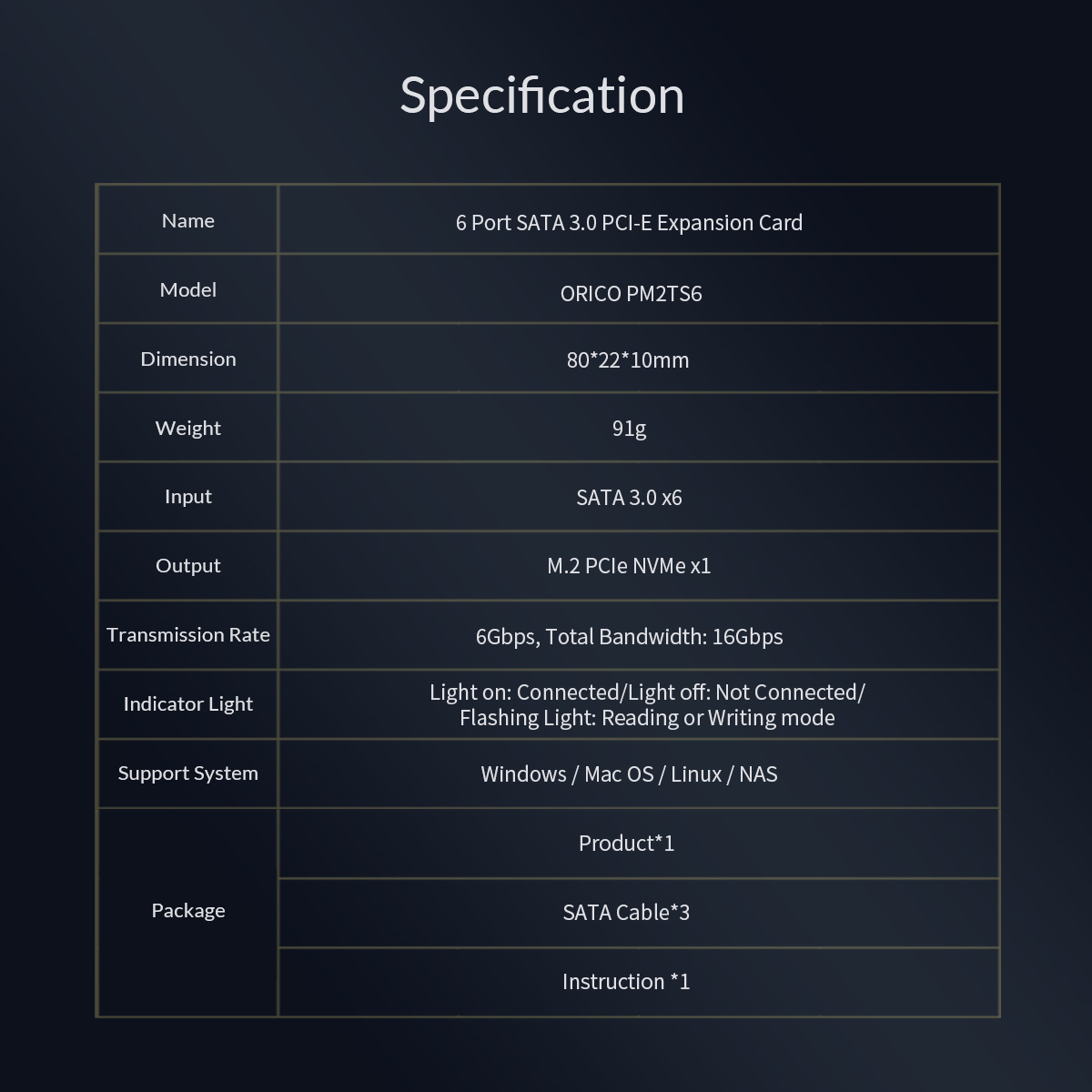

Specification: Name: 6 Port SATA 3.0 PCI-E Expansion Card Chip set: ASM1166 Transmission protocol: PCIe Gen3 X2 Input Interface: 6 Ports SATA 3.0 Output Interface: M. 2 PCIe NVMe Transmission rate: 6Gbps, Total Bandwidth 16Gbps Management functions: SATA plug-in detection, SATA Link power saving mode (partial and hibernation) Operating system: Linux, Win 7 / Win 8 / Win 8.1 / win 10, 32 & 64bit Color: black Material: ABS + metal Size: 80*22*10mm
Dual-Channel PCIe Gen3 Interface (M.2 M-KEY)
This indicates that the device uses a dual-channel PCIe Generation 3 interface for M.2 M-KEY SSDs. PCIe Gen3 x4 lanes can theoretically provide bandwidth up to 32Gbps (8Gbps per lane x 4 lanes), but the dual-channel configuration here suggests a focus on redundancy or increased compatibility rather than purely maximizing bandwidth.
Theoretical Support for a Total of 16Gbps Transmission Bandwidth
There are a total of 6 ports, each of which supports 6Gbps, theoretically supporting a total of 16Gbps transmission bandwidth.
6 Ports Supporting 6Gbps Each
The device has a total of six ports, each capable of 6Gbps, which aligns with the SATA III standard. This is typical for devices designed to accommodate SATA-based storage devices, including mechanical hard drives and SSDs.
Support for Soft RAID via System Tools
The device supports the creation of software RAID configurations using the system's built-in RAID tools. This allows for various RAID setups (e.g., RAID 0, RAID 1) to enhance performance or data redundancy.
