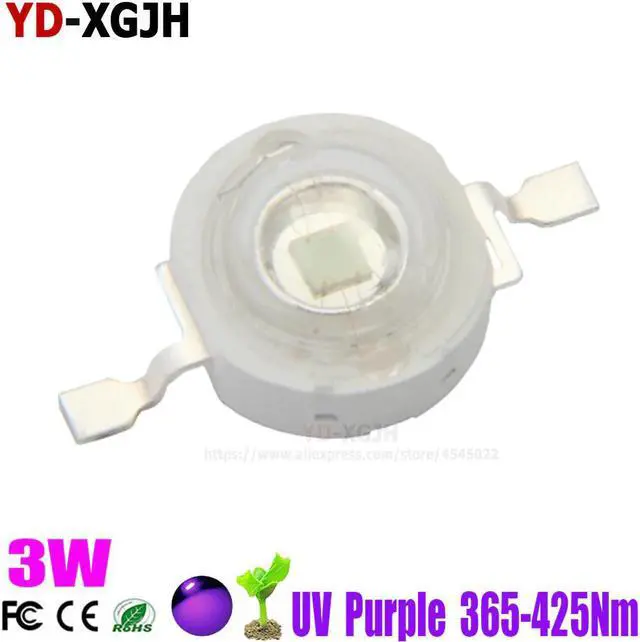

Power UV Purple LED Chips 365-367nm 370-375nm 380-385nm 385-390nm 390-395nm 400nm 410nm 420nm COB Ultraviolet Lights 3W

Production details:

1.Type: Power LED UV

2.Chip:Epileps/45Mil

3.Power:3W

4.Material:2 Gold Wires and Copper Brackets

5.Function:Curing, Detect, Disinfection, Scanning, Printer

Portable money detector flashlight and nail light

Medical lights, beauty lights, mosquito traps, trap lights, Other

anti-static

Static electricity or voltage can damage the lamp bead. When using the lamp bead, it is recommended to wear anti-static ring or anti-static gloves.

When soldering iron, the machine is grounded; all drive equipment should be grounded to ensure that the lamp voltage is within the normal range.

Heat dissipation

When the lamp is energized, the er the current, the greater the heat generated by the lamp bead; the excessively temperature will damage the lamp bead and the current needs to be controlled properly.

Need to add heat sink and heat sink, the ambient temperature is controlled at 40~60°C

Take the lamp beads

When taking the lamp beads, it is recommended to use tools such as tweezers.

Try to avoid touching the surface of the lamp with your hands to prevent contamination of the lamp beads and affect the optical effect.

Please take the lamp beads on the side

Enjoy Shopping

Thank you very much!
