with Lock Heavy Duty Drawer Slides 12 14 16 18 20 22 24 26 28 30 32 34 36 40 44 48 52 56 60 Inch 500 Lbs Side Mount Full Extension Ball Bearing Rails Rail Tool Box Runner-W:76mm 12 Inch

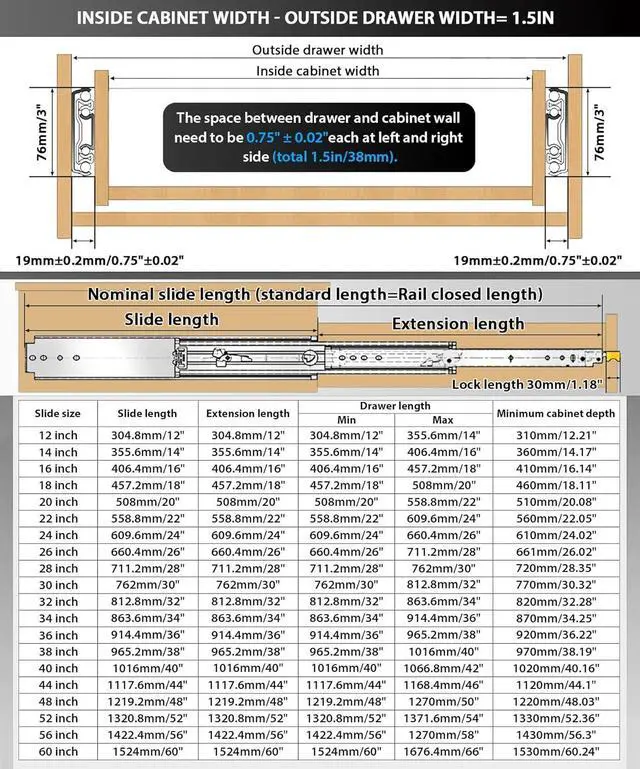

Installation noteSuitable for 12-14 inch drawers. The space between drawer and cabinet wall need to be 0.75 in each at left and right side total 1.5 in ( inside cabinet width - outside drawer width= 1.5 in )
Note: without mounting screws included you can purchase different M6 screws according to your specific installation scene.

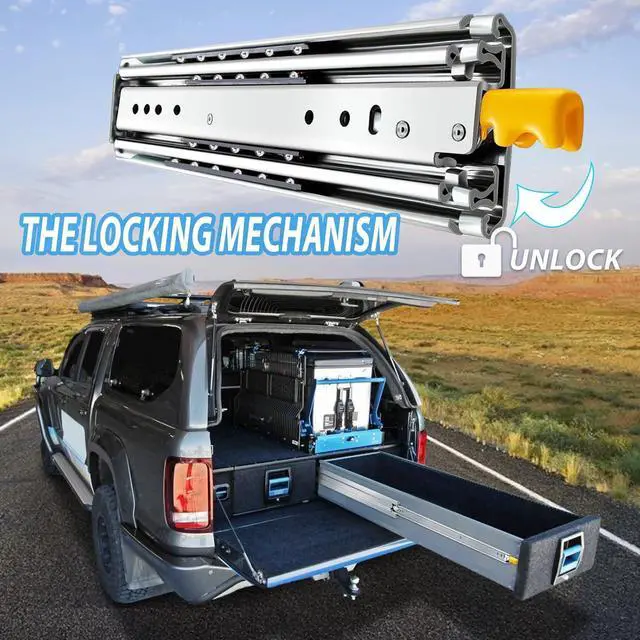

Load Capacity: 500 lbMade of Q235 steel plate thickness 2.5 mm with high density and high strength the carrying capacity is 5 times more stronger than that of ordinary ones. It will keep your drawers stable and safe even carrying up to 500 lb heavy weight items which take opening and closing test 800 000 times under full loaded without damage. With hold-still lockThere is a yellow handle to lock and unlock. When it is fully extension or fully closed simultaneously press the yellow handles on either side to lock and unlock the drawer. which can prevent from sliding casually and keep your drawer stable and safe. Press the lock handle on both sides of the pair of slides at the same time gently it's unlocked and get back in free sliding. ( length of yellow lock: 1.18 /30mm)3-fold full extension

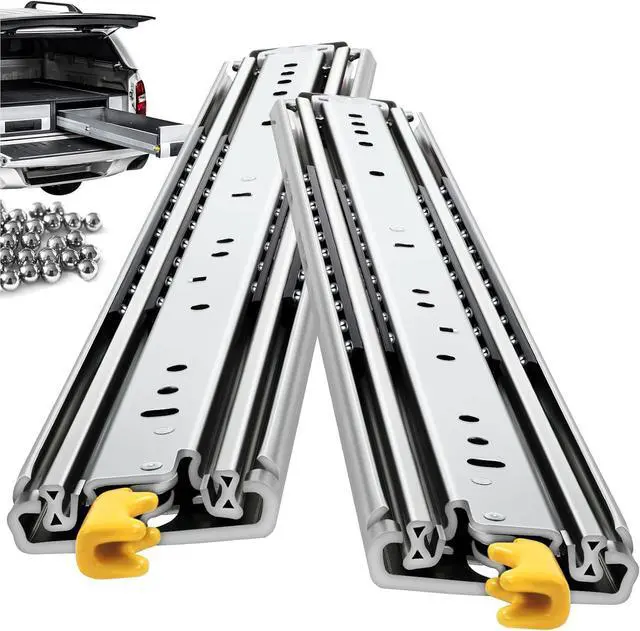

Slides Width: 3
(76mm) --length: 12 (not including lock length) --Fully extended length: 24
(609mm) ---Maximum load-bearing: 500 lb. The 3-fold full extensionenable the slides to fully extend so the drawer can be pulled out completely which allows for the entire drawer's storage to be accessed easily;

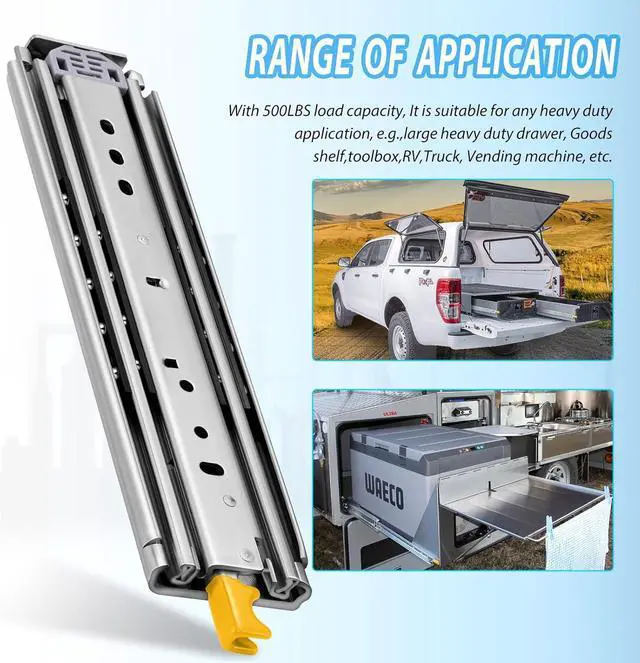

Application range: Goods shelf Industrial drawers Mechanical Cabinets RV Truck Vending machine safety drawers exhibition drawers heavy truck drawers etc.
Installation NOTE: One set includes a pair of slides without mounting screws included you can purchase different M6 screws according to your specific installation scene. The 3rd section of the slides is unable to be disassembled for sake of safety because this slides usually be used to carry up industrial grade heavy weight items. please refer to the video for the installation method. The shorter the slide the heavier the weight load.
