Thermal Master T2S Pro Thermal Imaging Camera 15X Zoom 256×192 IR Resolution 8mm T2s Pro For IOS

Attention: The product package does not include a rangefinder.
System: Pay attention to system differentiation, Android is not compatible with iOS 15 and above

Features

8mm Temperature MasterThermal imager T2s Pro has an 8mm macro lens that can be manually focused.
Unique Tech can accurately capture minute temperature changes on circuit boards, assisting engineers
in quickly detecting overheating components like processors or capacitors during smartphone or computer repairs.

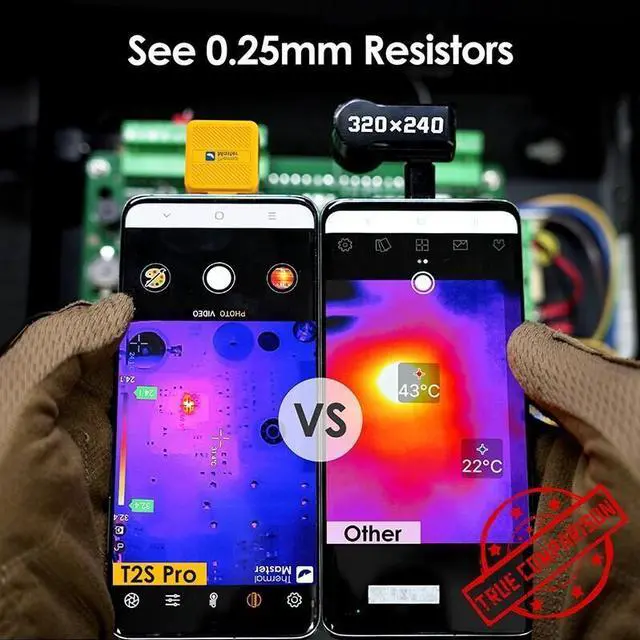

With its powerful macro lens, it can even detect faults in components as small as 0.25 mm resistors.
15X ZoomT2s Pro features "Razor X" Ultra Clear Image Algorithm to support 15X digital zoom,
making it easy to zoom in and out with the touch of two fingers. The 40mk high sensitivity ensures that
magnified objects are still clearly to see. It helps you daily to check the status of solar panels and perform car repair.

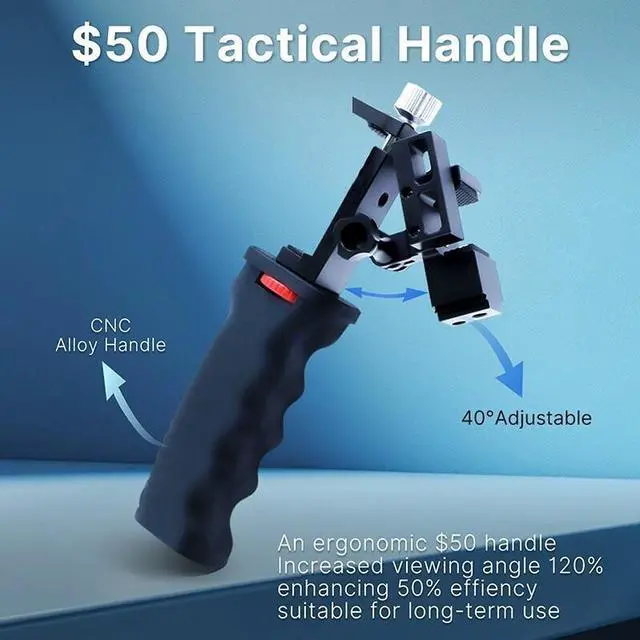

Tactical HandleThe only phone thermal camera with a tactical ergonomic handle.
It's a $50 value and is made of CNC aluminium alloy. The adjustable phone back clip increases the viewing angle by 120%,
improves 50% efficiency, and is better suited for longer use, but won't make you dizzy.
HD Ultra ClearT2s Pro infrared camera is equipped with Thermal Master's high sensitivity core
with 256x192 resolution and special HD function. When the HD is switched on, with IR Resolution 512×384,
images are clearer and sharper, helping to view a wealth of detail. With T2s Pro you can easily find
the heat loss of your house and leakage of water pipes, thus saving energy and practicing low-carbon environmental protection.
Free Analyse ReportT2s Pro supports to generate free temperature reports that record the values
of important temperature points. The photos can be edited twice, including changing palettes, re-measuring points, lines and rectangles temperatures, and adding text notes.

Specifications

Model: T2s Pro Android| T2s Pro IOS
IR Resolution: 256×192 @12m
Circuit Board Testing: Observe 0.25 mm resistor
Temperature accuracy: ±2 PCB Accuracy
Measurement Range: -20~450
Object Distance: min. 8mm
Focusing Mode: Manual Focusing
HD: Ultra clear images
Zoom: 15X Zoom
NETD: 40mK@25, F# 1.0
Accessories: Tactical Handle and extension cable
phone battery power hours: 300~480
minutes (Eg: Samsung Galaxy S23+ 4700mAh batarry life 367 minutes)
Frame Rate: 25Hz
Palette: 7 Palettes (White-hot/ Black-hot/ Iron Red/ Red-hot /Iron Grey/ Rainbow/Rainbow_HC)
Colorbar Tech: Highlight temperature target
Temperature Correction: Emissivity, Distance, Environmental temperature
Free Prof Analysis: Secondary point/ line/ plane data analysis
Adaptation Method: Smartphone/Tablet/Computer
Application Scenarios: Electrical/ HVAC/Solar Panels/ Automotive Inspections
Image Algorithm:
IQ+ Precision Temperature Measurement Algorithm
"Razor X" Ultra Clear Image Algorithm
Infrared chips: "Thermal Master" High-Sensitivity Core
Power Consumption: 0.35 mW
FOV: 42.0 °x 32.1 °
Weight: 19.5 g
Video Storage: Photo and video saving function
Dimension (with lens): 26mm×32mm×23mm
Operating Temperature: -10~55
Storage Temperature: -40~85
Support System: Android 6.0 and above / iPhone 8 & iOS 13 above system
