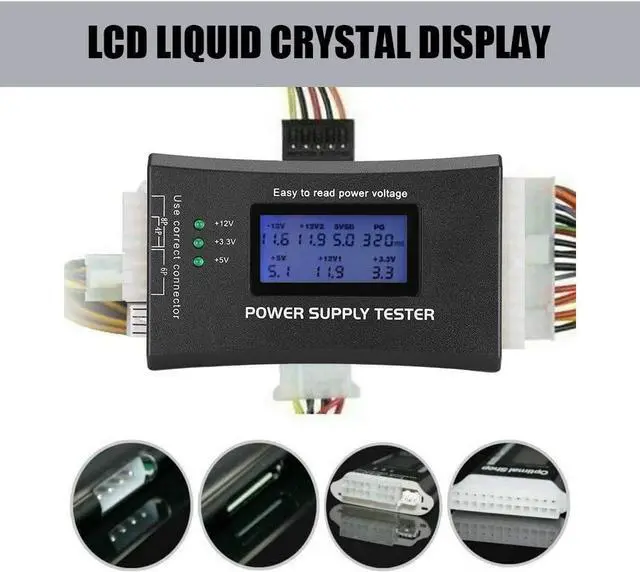

    Digital LCD PC Computer Power Supply Tester 20/24 Pin 4 PSU ATX SATA HDD Testers

    Be the first to review this product...
    • Compatible with: ATX, BTX, ITX.
    • Voltage source: 20/24 pin ( ATX - connector ).
    • Voltage test: +12V, -12V, +5V, -5V, + 3.3V, +5V Stand by (SB) 12V power Good ( PG ).

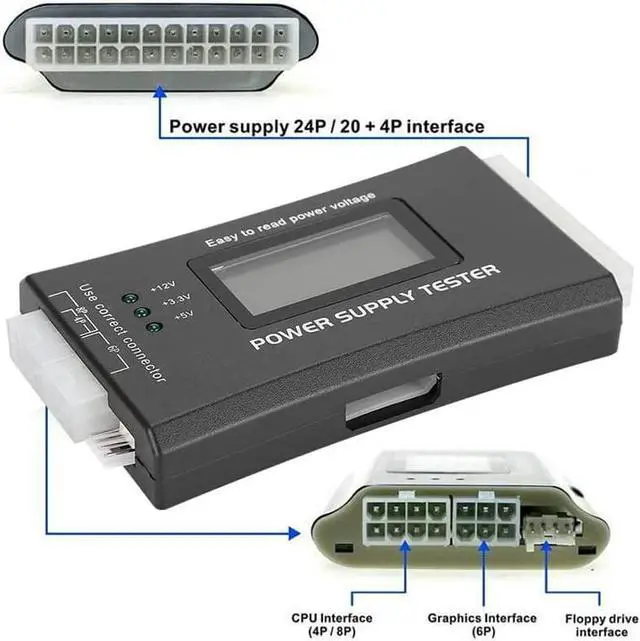

    • Connector: Floppy, HDD, CDROM, SATA, 4pin ( P4 ), 8pin ( Dual-CPU ), 6pin ( PCI-Express ).
    • Dimension: 3.8" L x 2.5" W x 0.8" H ( 97.7 x 63.3 x 20.4 mm).
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1, Plug power supply 24 PIN and P4, P6, or P8 into the corresponding jack of the power test suite. 2, Power on the device, you will hear a "DuDu" sounding ring, if there is no flickering with the device, then the power supply output voltage is normal. 3, If a certain voltage signal was not detected, or the detected voltage value is over the normal, you will hear a "DuDu" long buzzer; if the corresponding voltage value or PG flickers as well, then the power has failed.




    Specifications

    Device Type: Power supply tester.
    Compatible with: ATX, BTX, ITX.
    Voltage source: 20/24 pin ( ATX - connector ).
    Voltage test: +12V, -12V, +5V, -5V, + 3.3V, +5V Stand by (SB) 12V power Good ( PG ).
    Connector: Floppy, HDD, CDROM, SATA, 4pin ( P4 ), 8pin ( Dual-CPU ), 6pin ( PCI-Express ).
    Dimension: 3.8" L x 2.5" W x 0.8" H ( 97.7 x 63.3 x 20.4 mm).
    Weight: 3.1 oz (87 g).
    Package Included 1 x Power supply tester.
