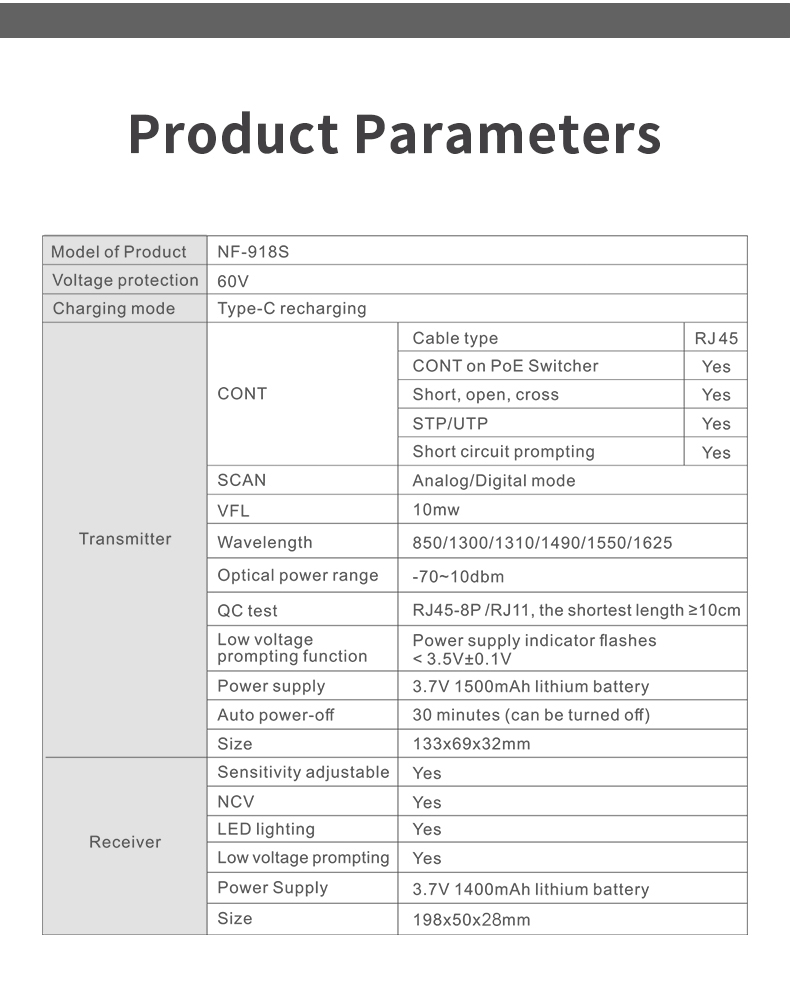

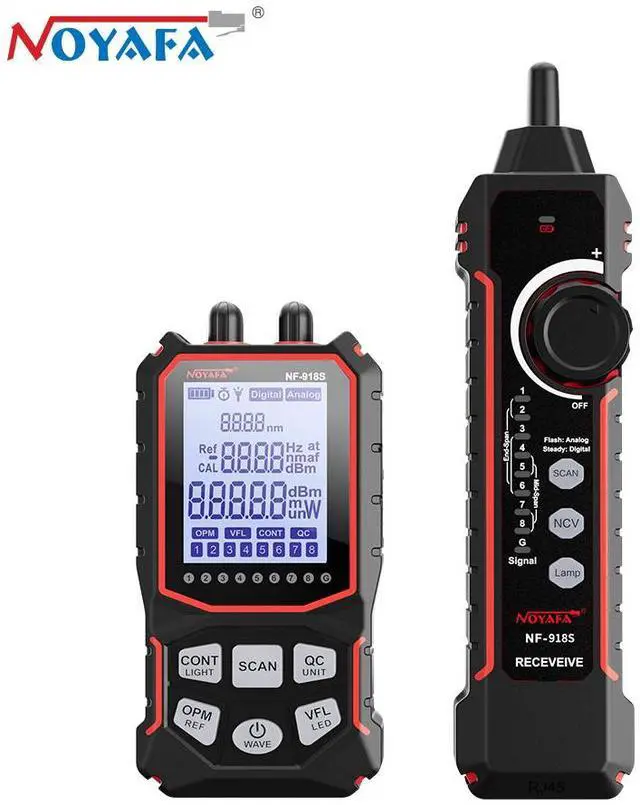

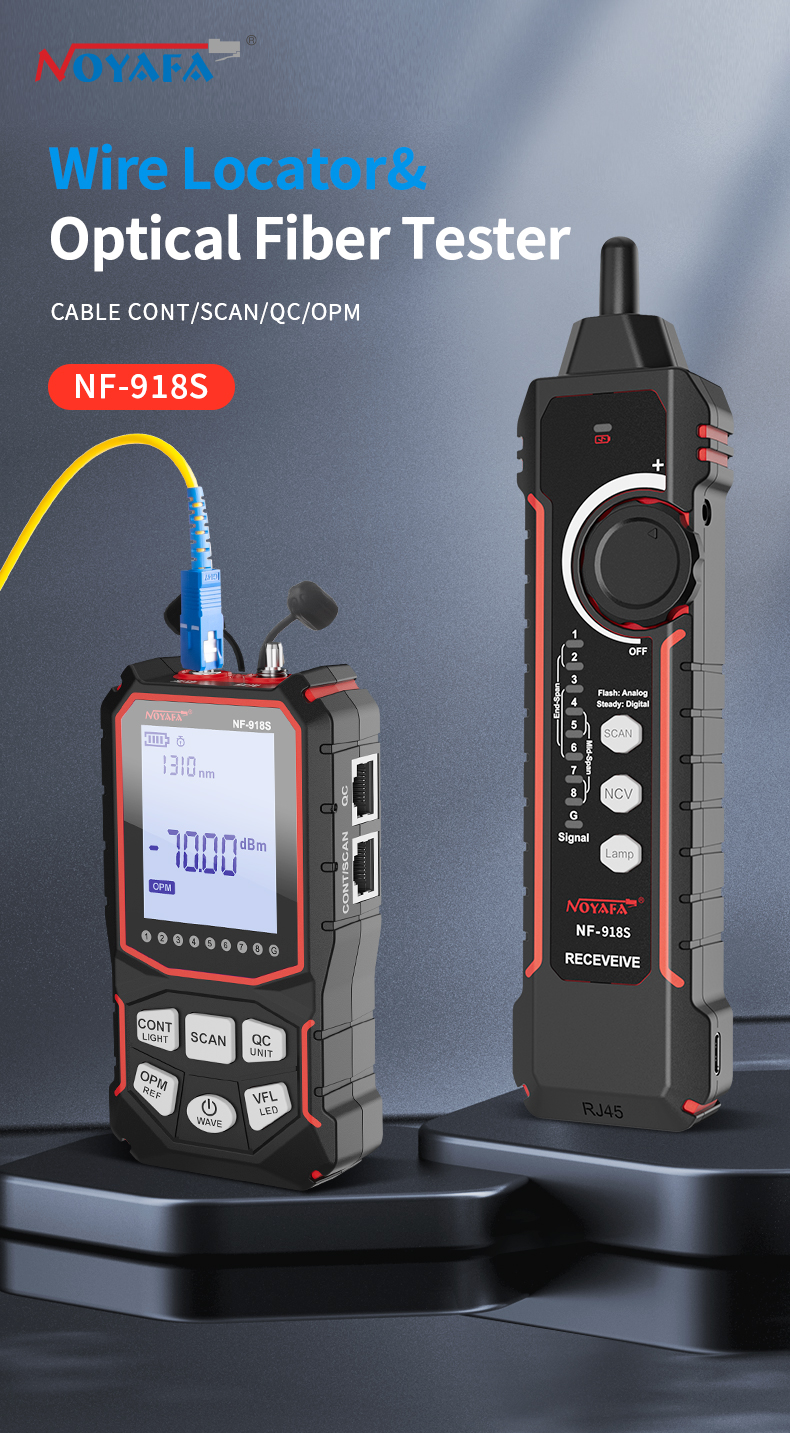

Product Name: Optical Power Meter
Type: NF-918S

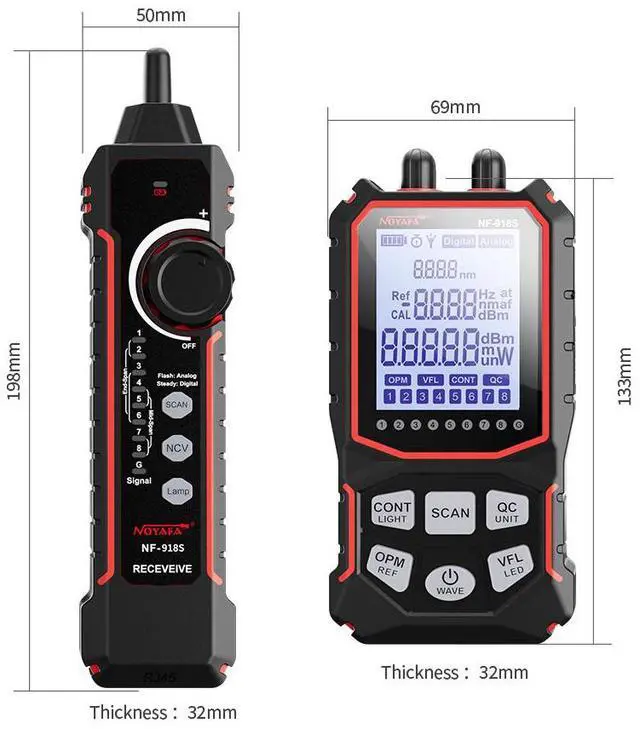

Dimension(LxWxD): Maintester: 133x69x32mm; Receiver: 198x50x32mm
Cable Type: CAT5, CAT6
Interface withstand voltage: 60V
Optical power measurement range: -70~10dbm
Red Light Pen Test:10mw
Charging method: Type-C charging, 3.7V 1400mAh polymer battery

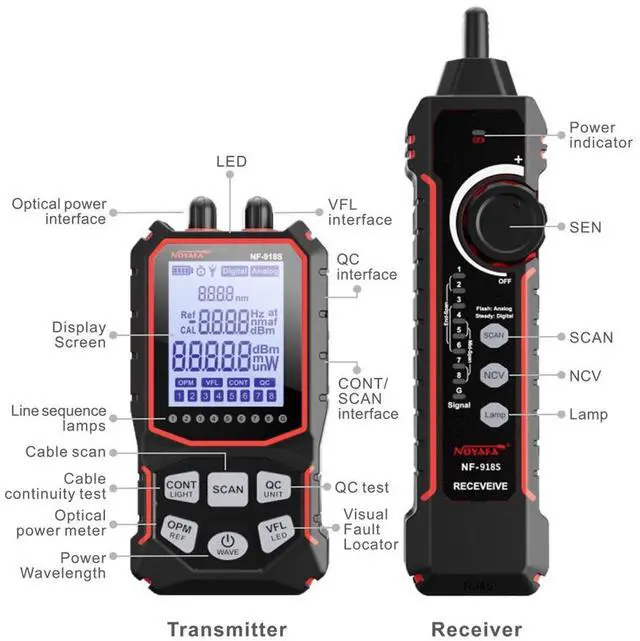

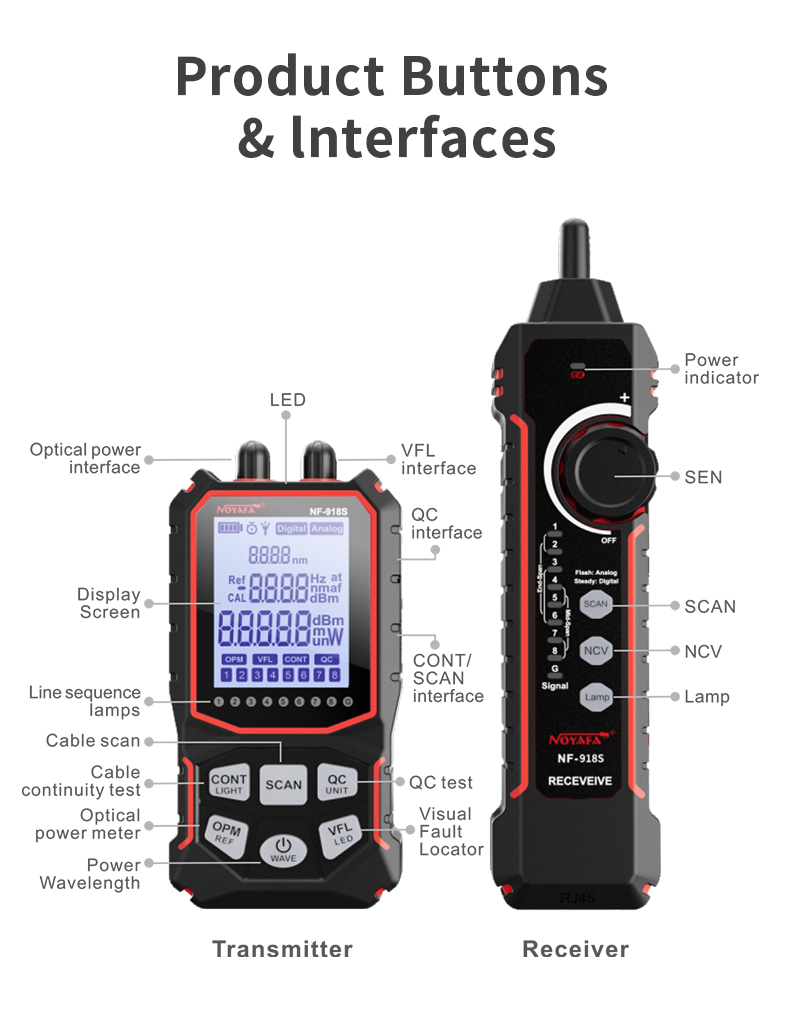

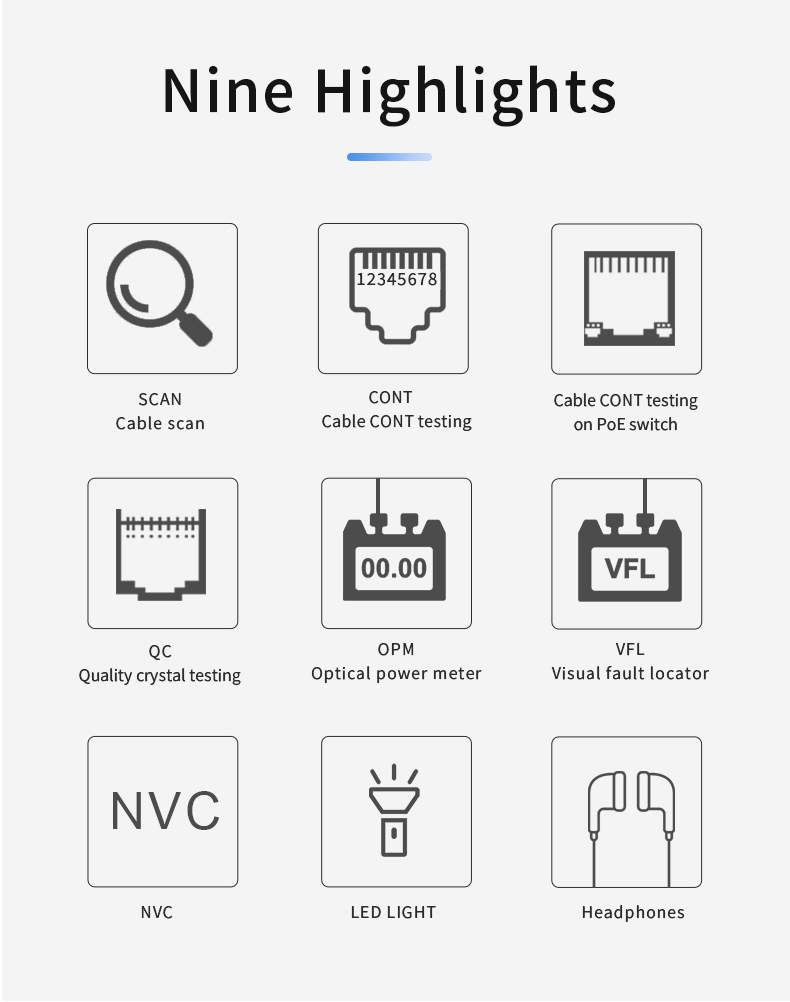

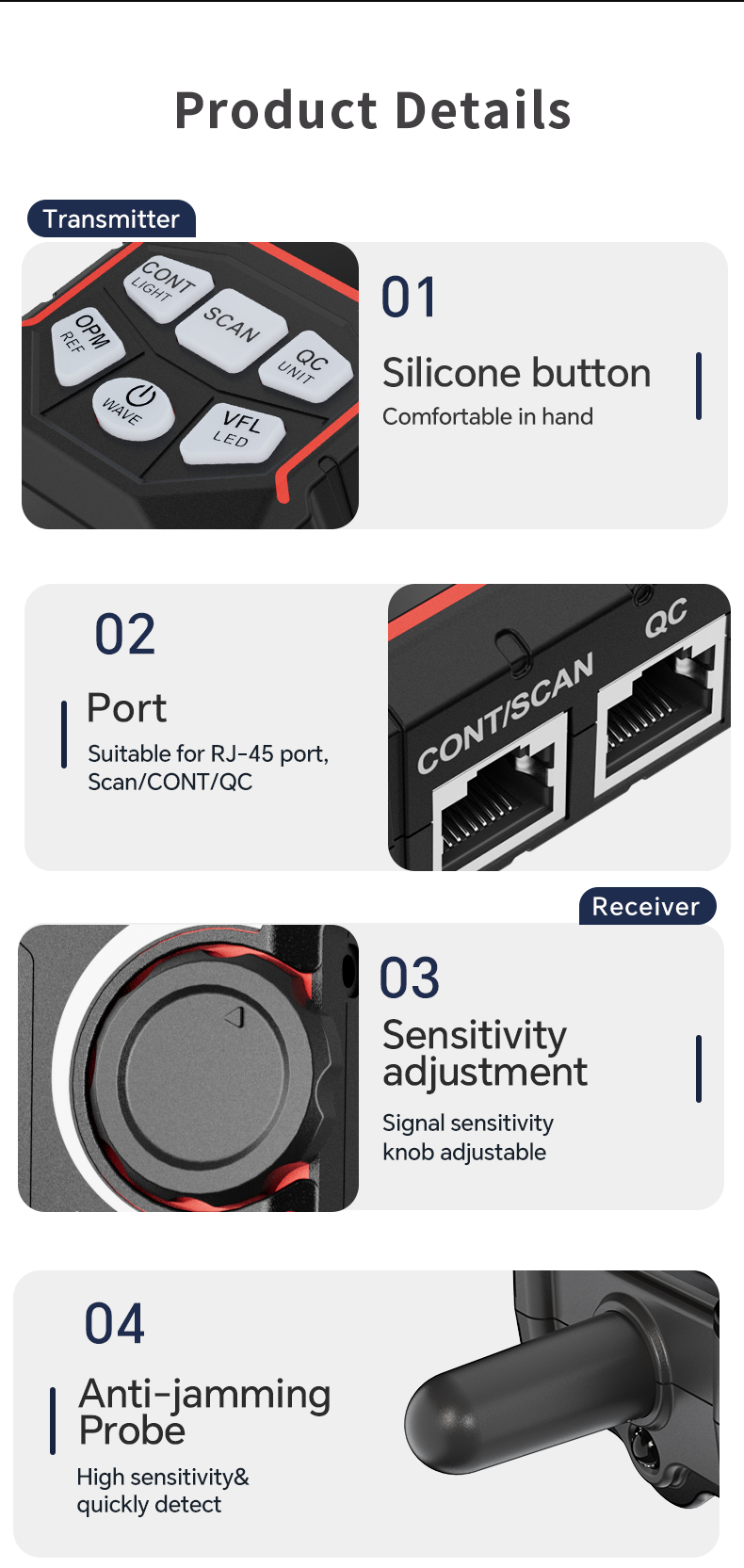

Product Features:

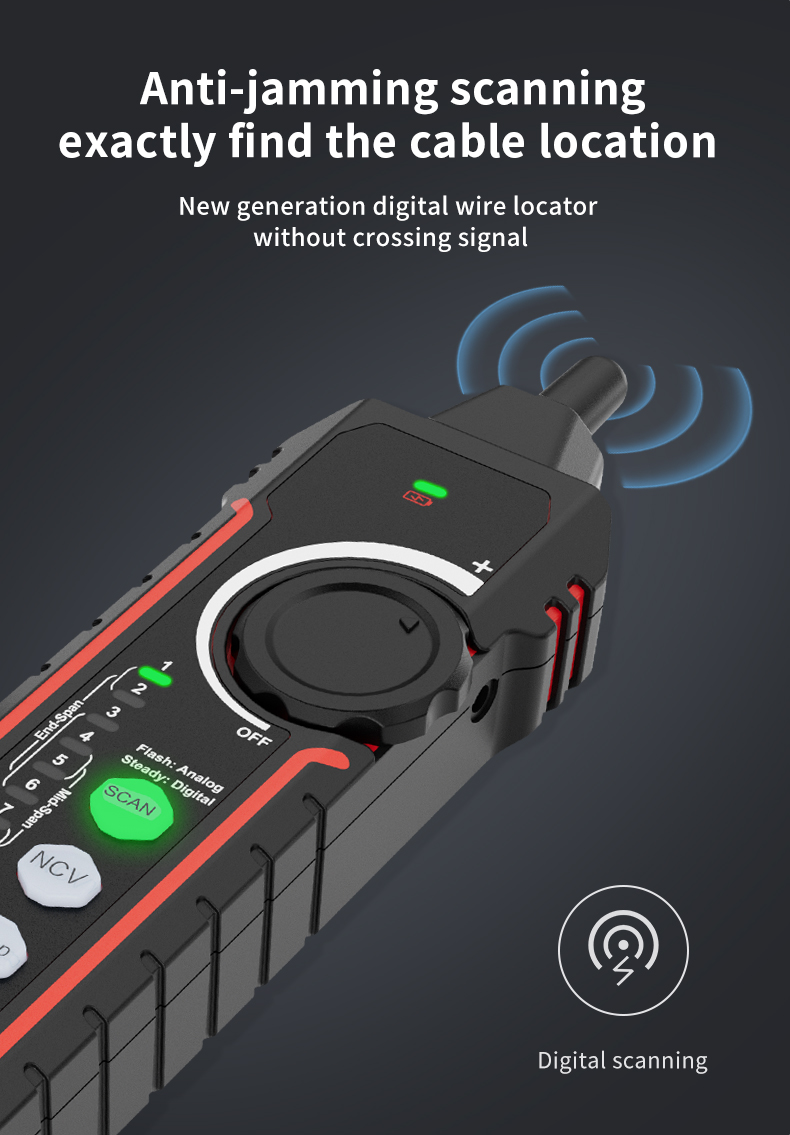

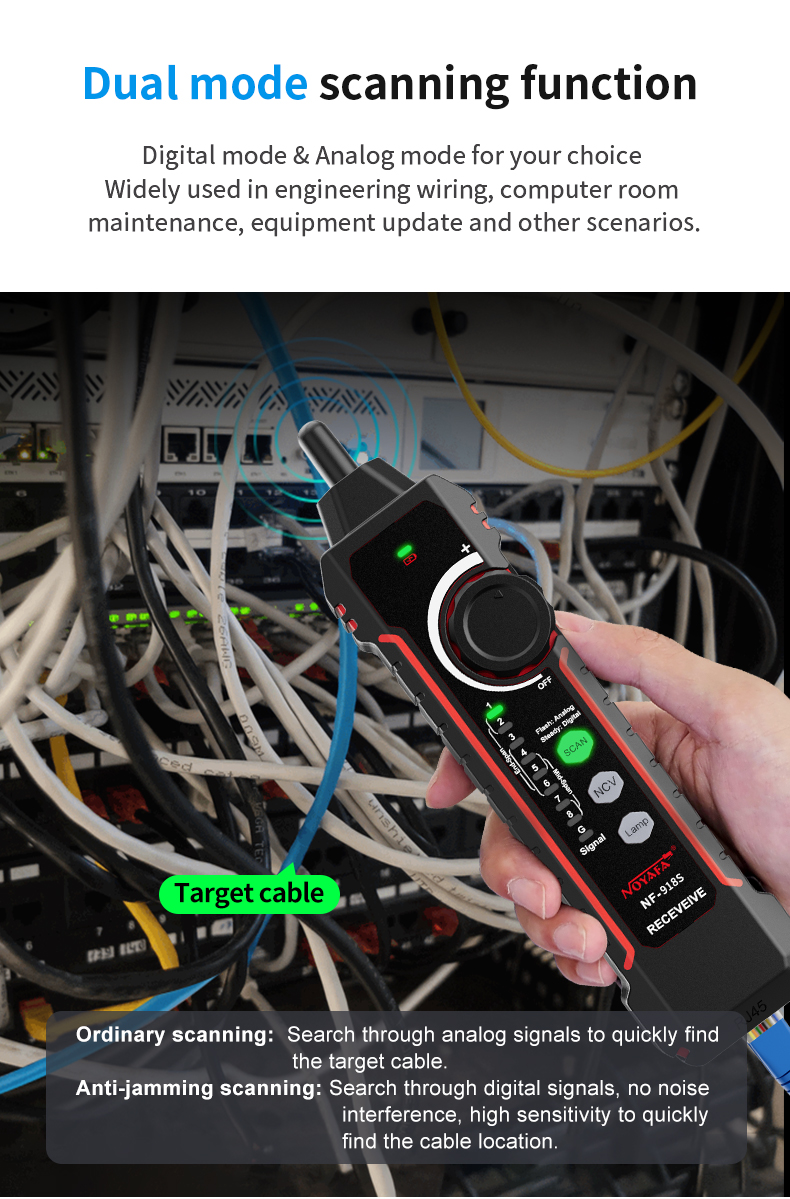

1. Two Scan Modes Selectable Normal Mode/ Anti-jamming Mode. Locate the target network cable among many network cables.

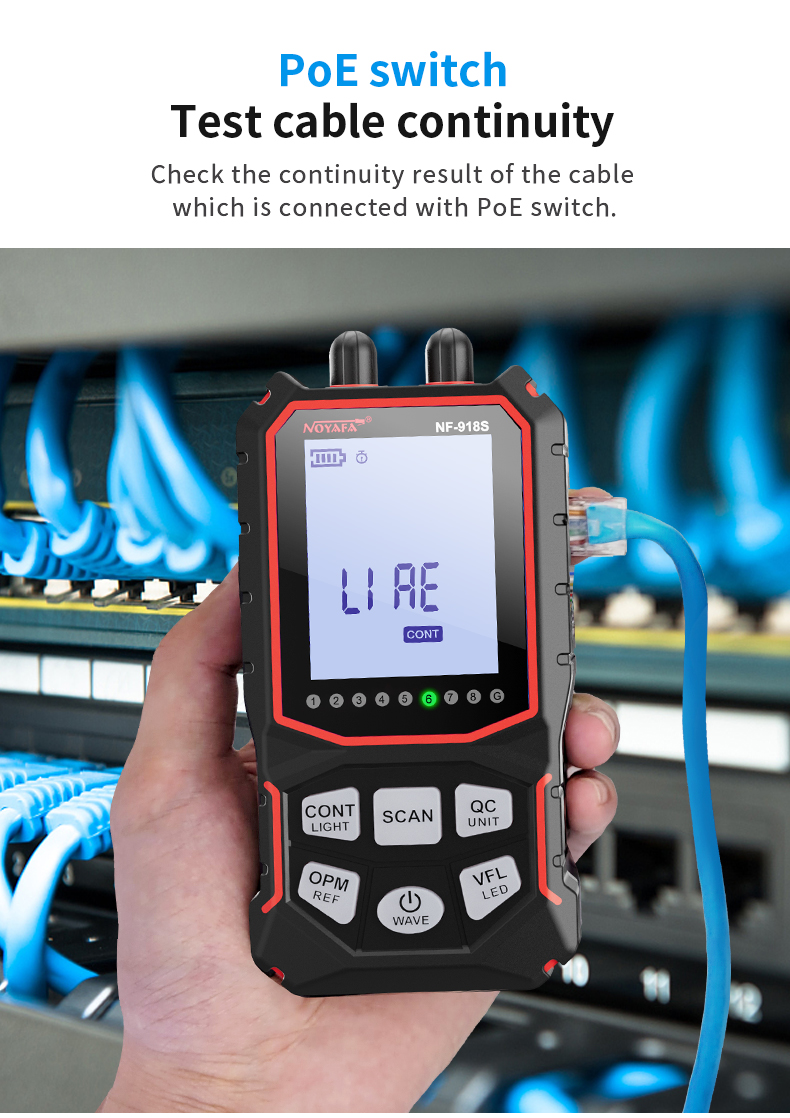

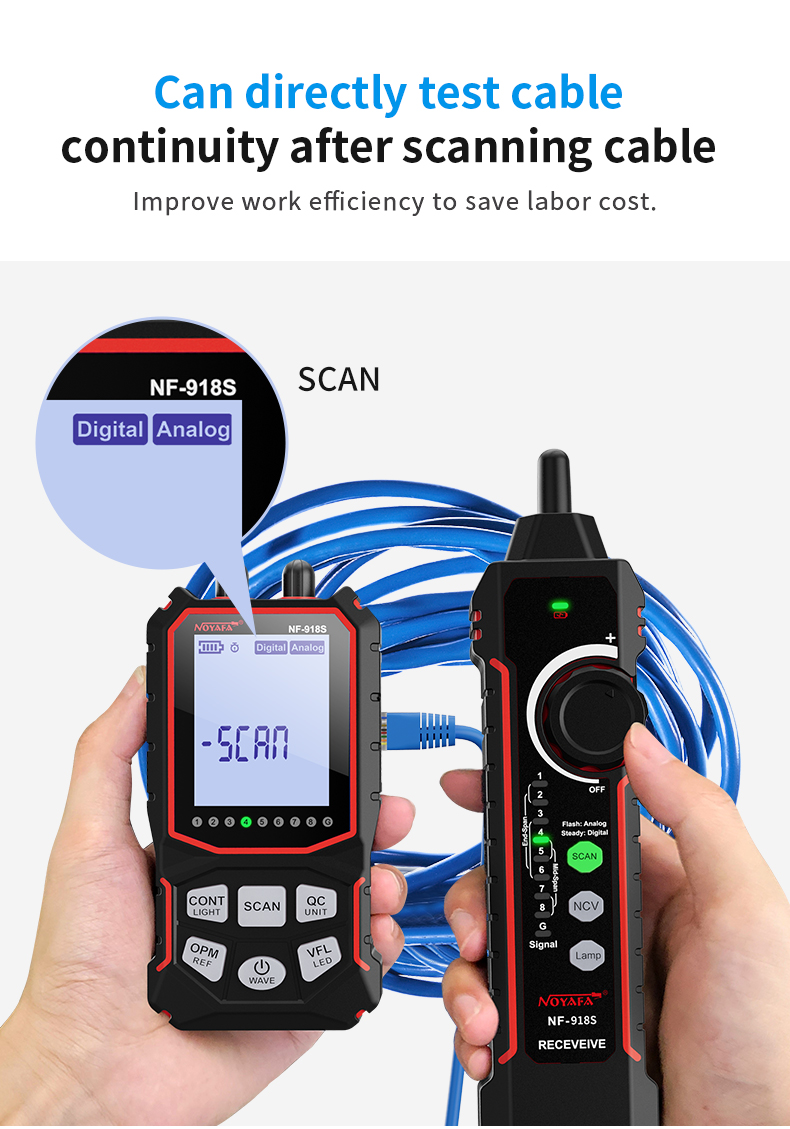

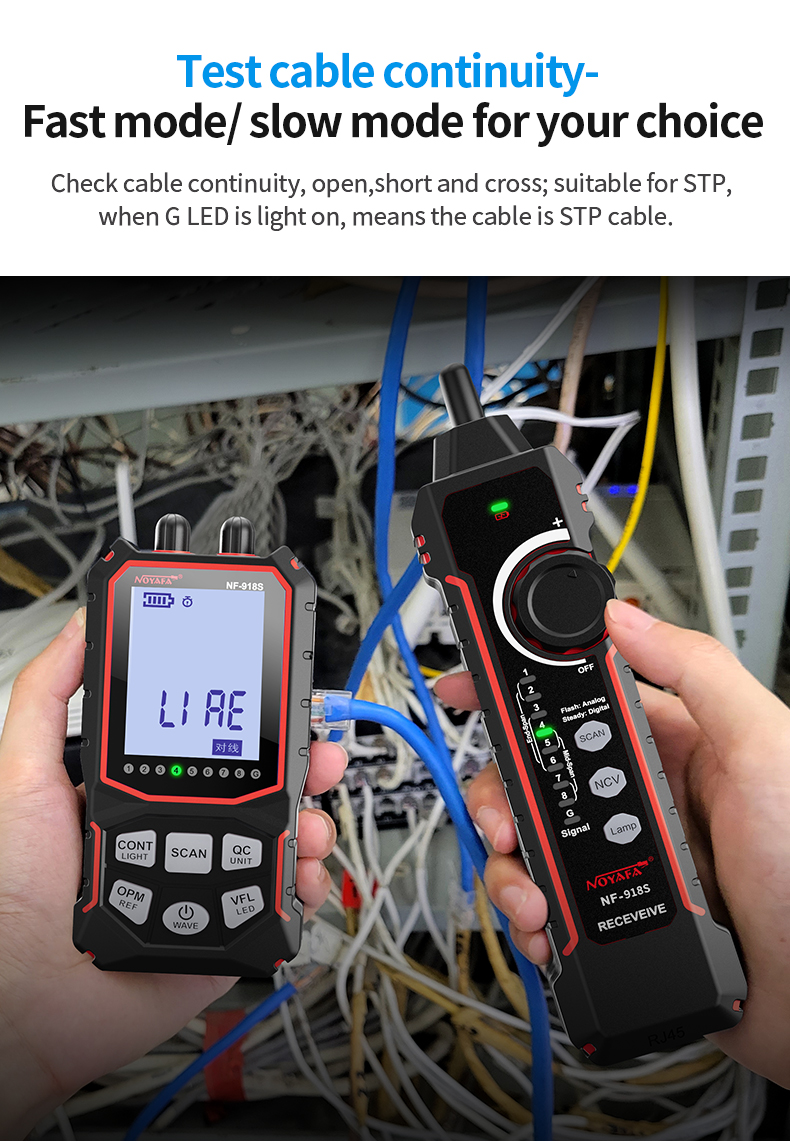

2. Cable Continuity Testing Used to detect line sequence, short circuit, open circuit, crossover, etc. of network cables, and display the results in the form of line sequence lights.

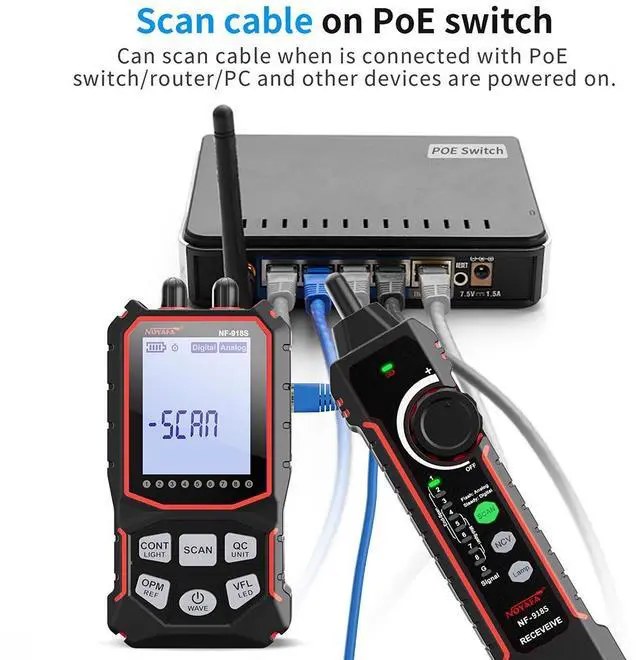

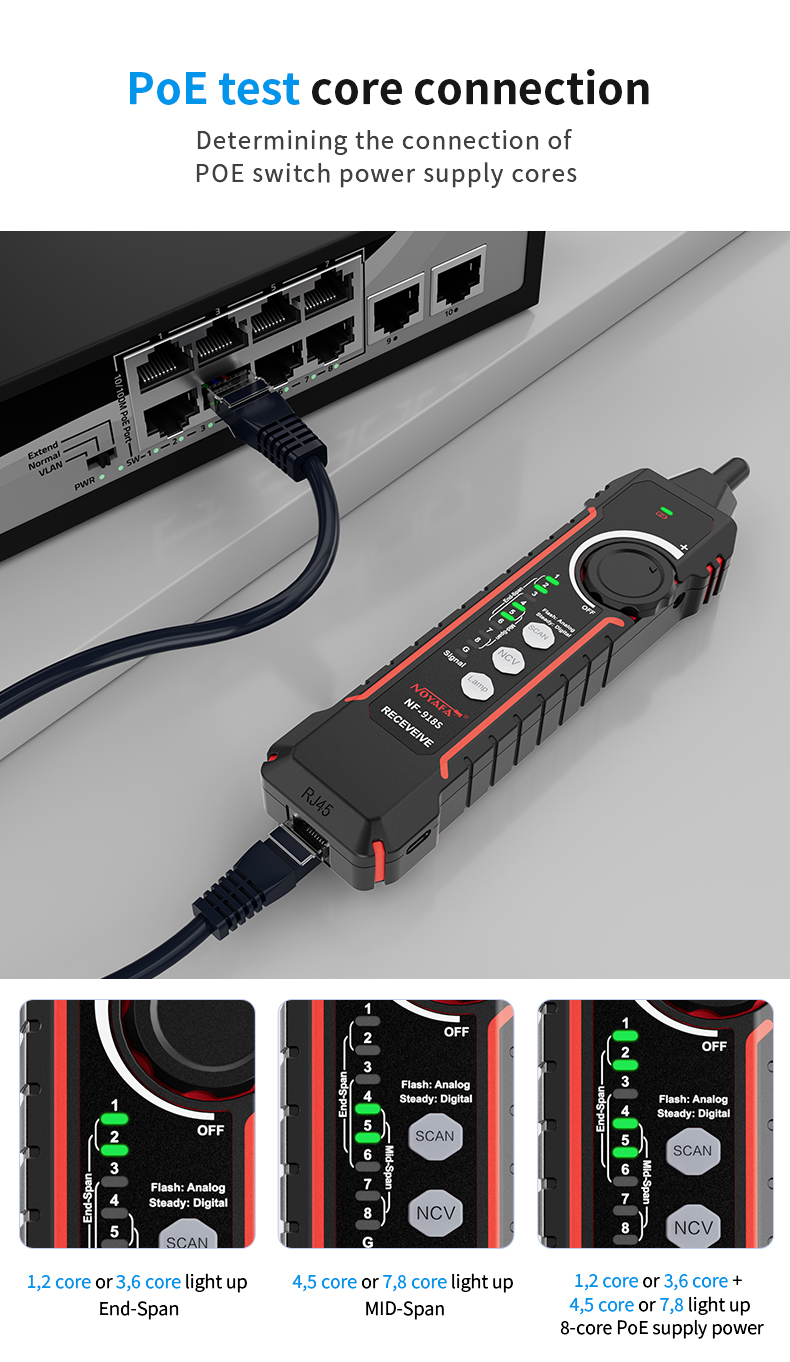

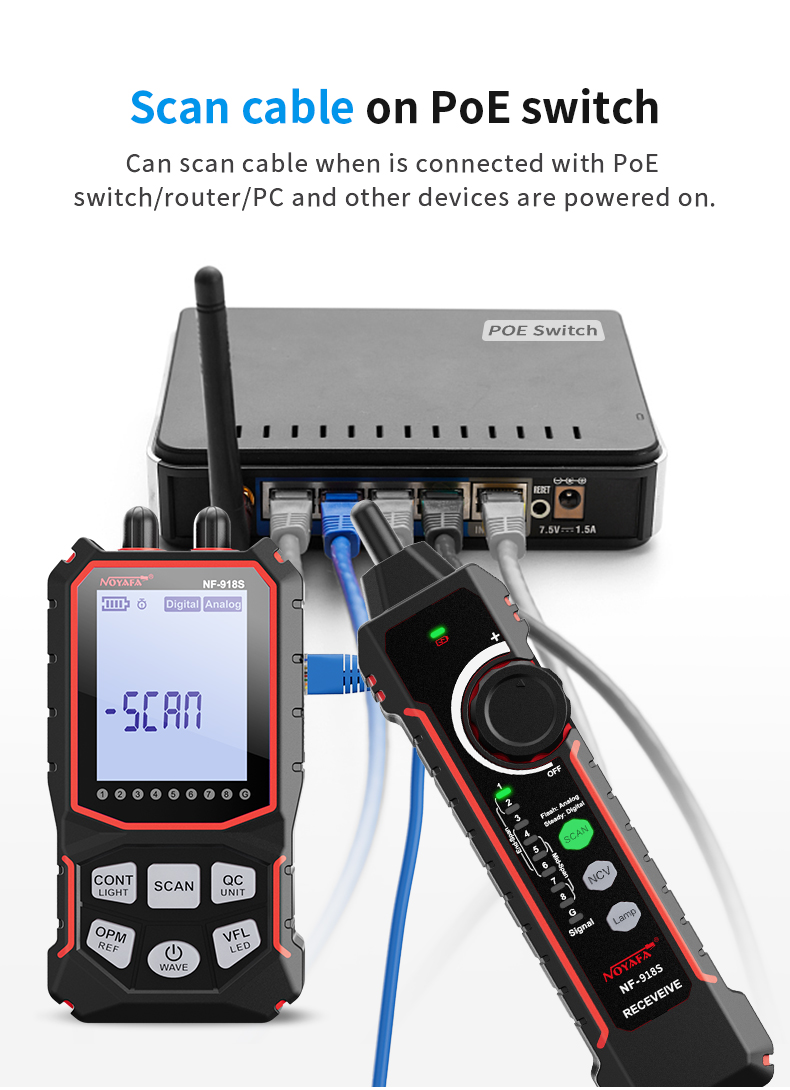

3. Can test the power supply mode of POE switch.
4. Crystal head crimp test functionNF-808 can test network cables or telephone lines.

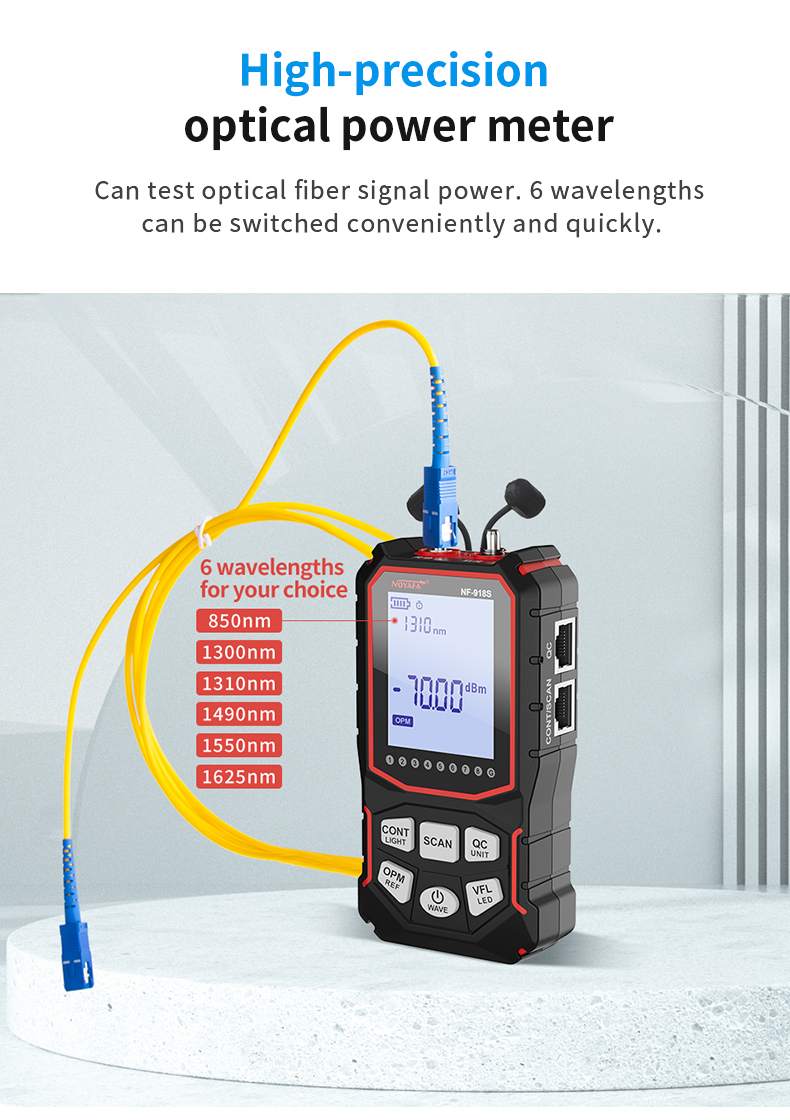

5. Optical Power Meter NF-908S can test optical power and light attenuation value. Wavelength can be switched back and forth: 850/1300/1310/1490/1550/1625nm.

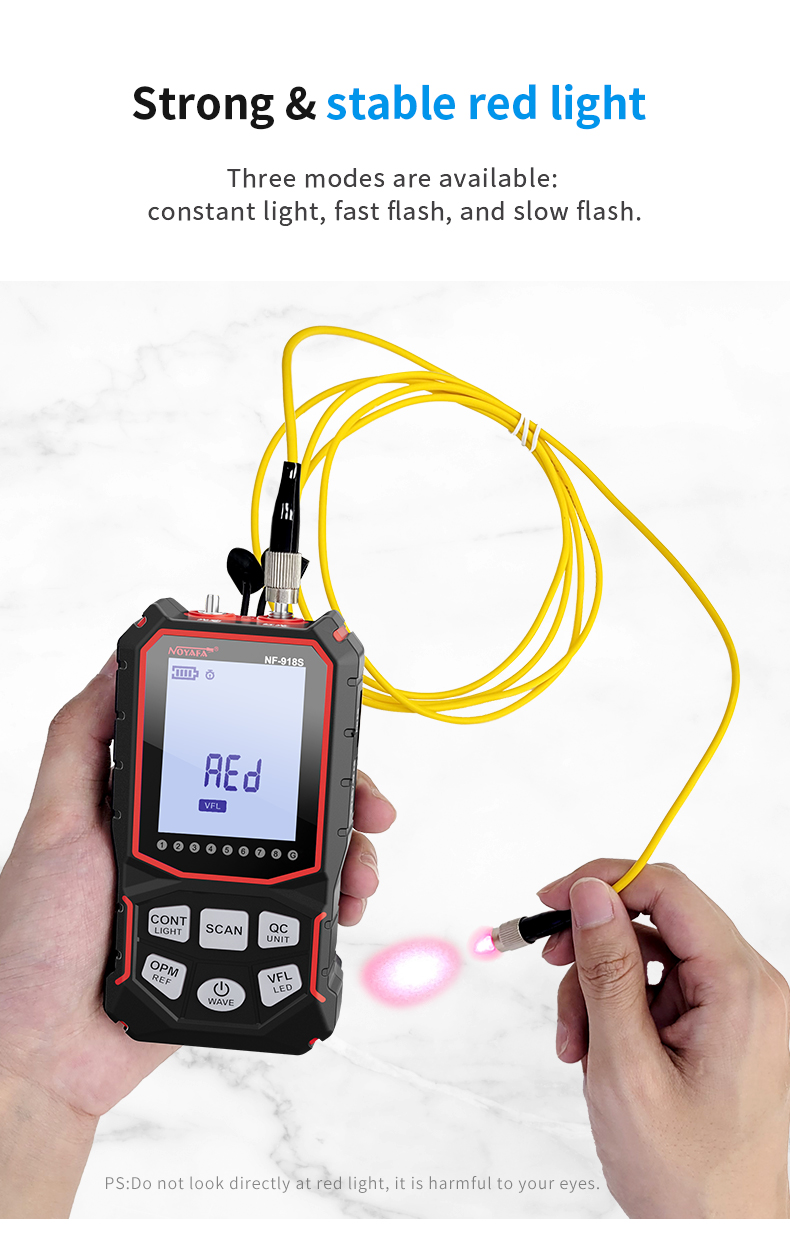

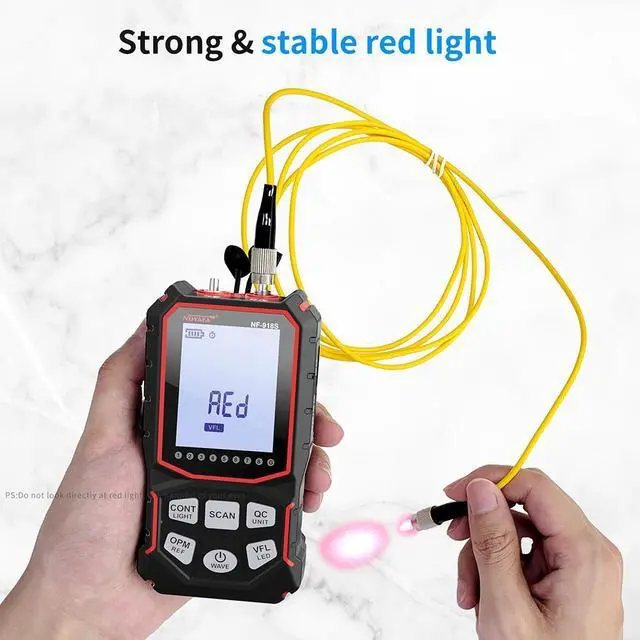

6. Red Light Pen Function

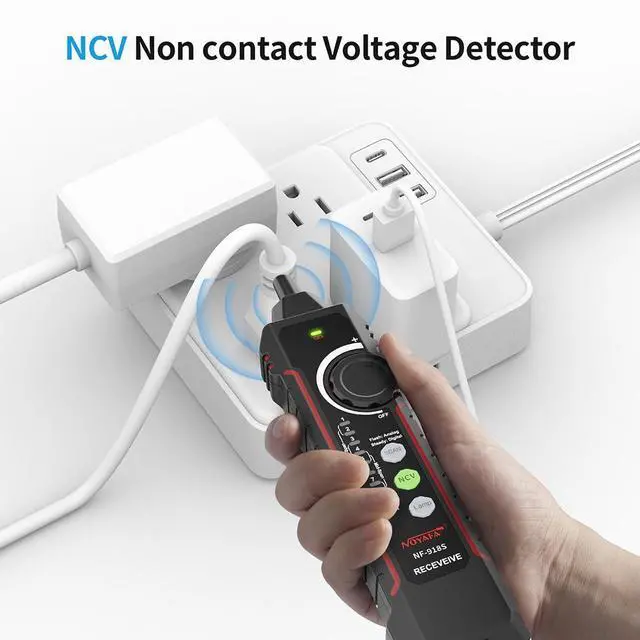

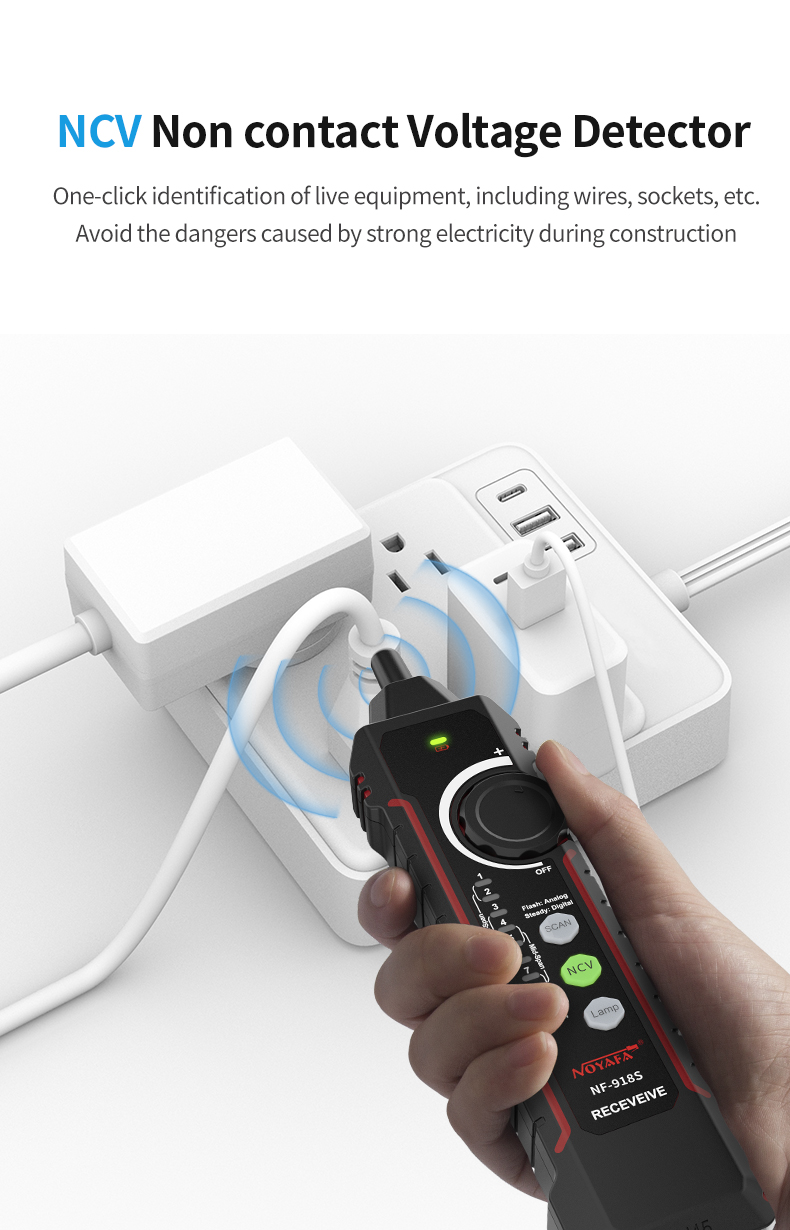

7. NCV Function If there is AC power greater than 40V, the receiver will make a "beep" sound.
8.
Low battery prompt function: When the battery power is low, the receiver power indicator light flashes to prompt, and the transmitter displays battery level via battery icon.

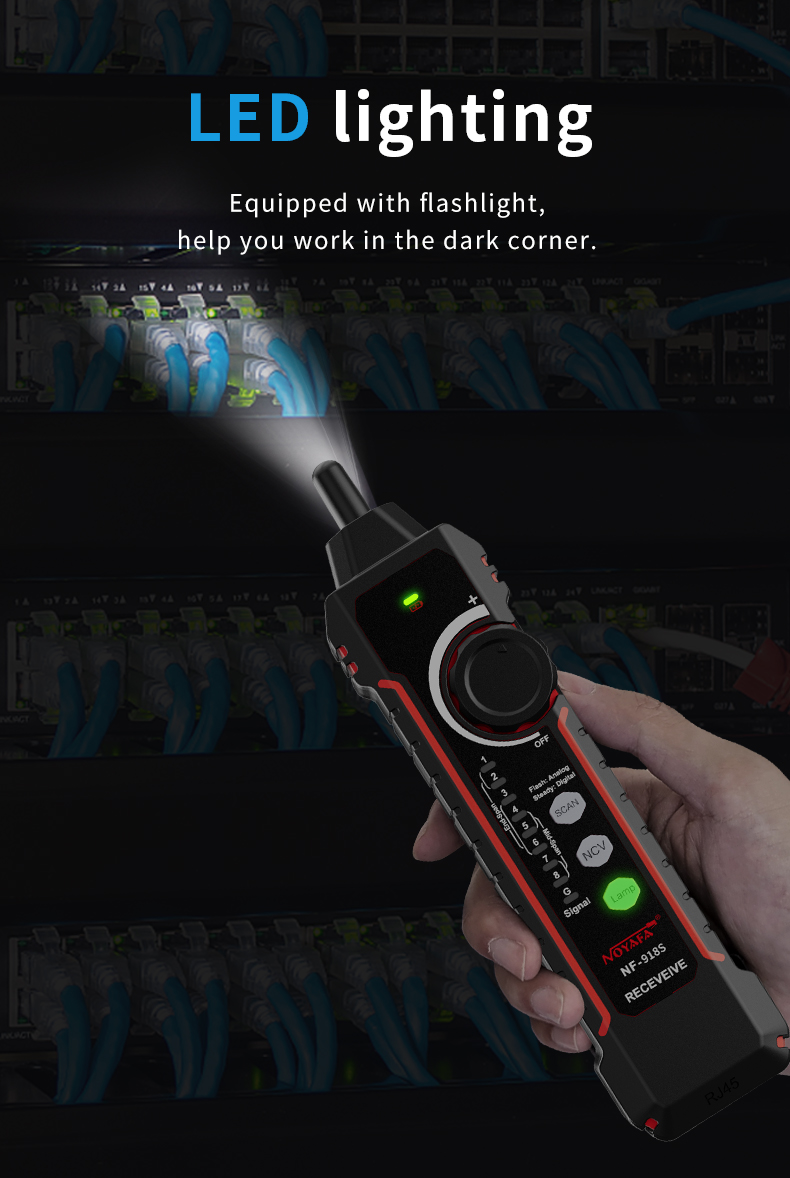

9. Lighting Function, convenient to work in dark environment.
