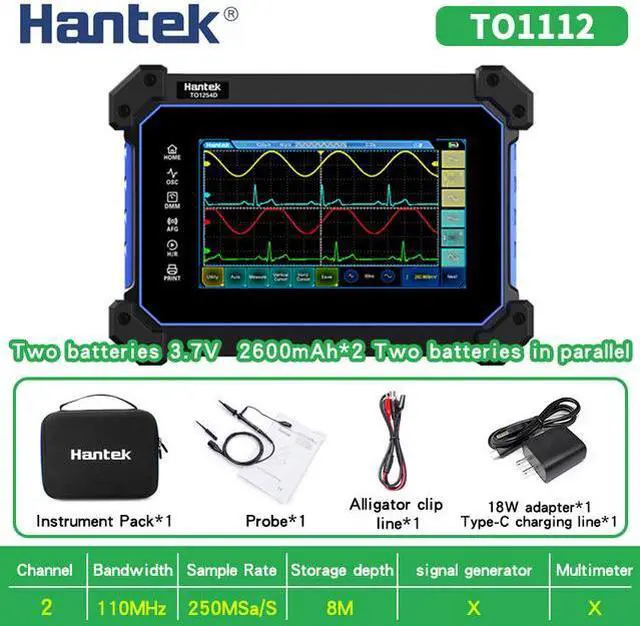

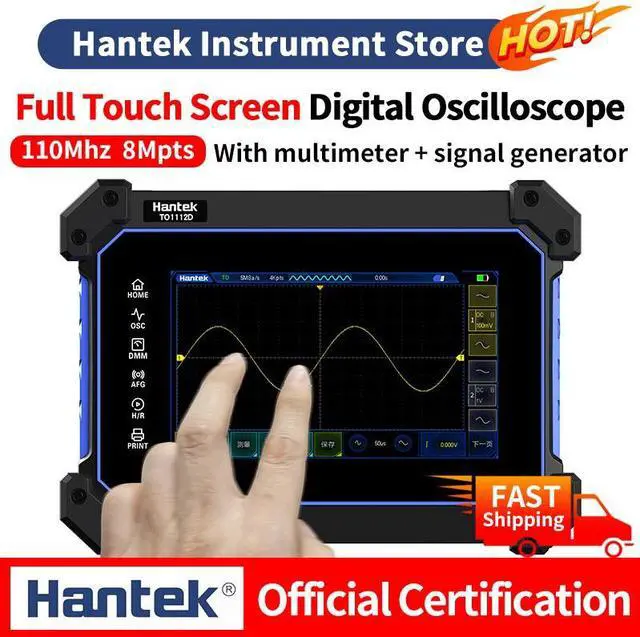

    Hantek Handheld Touch Screen Digital Oscilloscope TO1112 portable 110Mhz 2-channels + Multimeter +Signal Generator

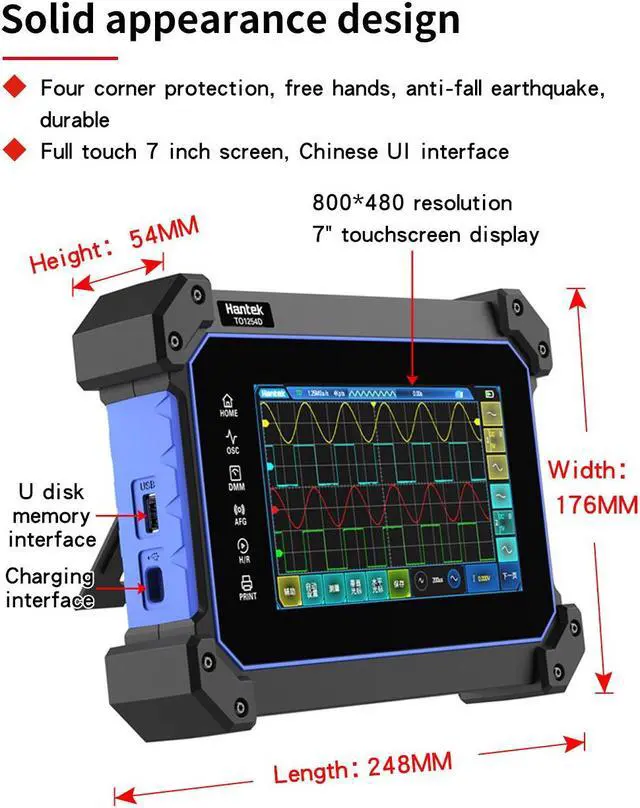

    • 1. Full touch screen control, 7-inch screen 800 * 480

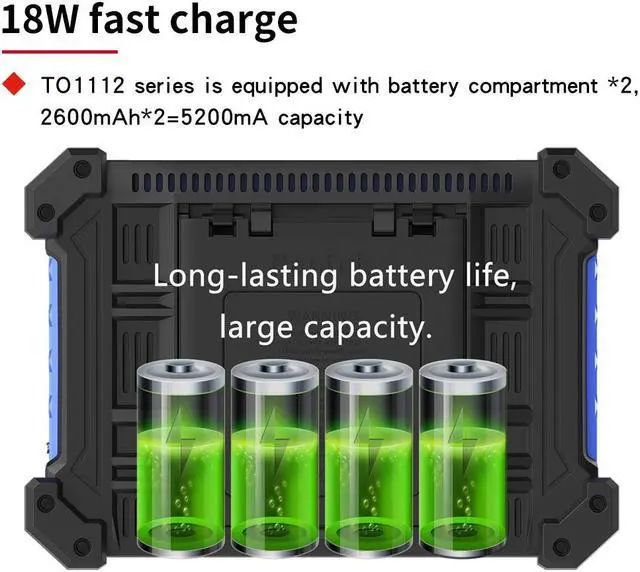

    • 2. Built in 2600mAh battery * two, Type-C fast charging 18W, can be powered by a power bank

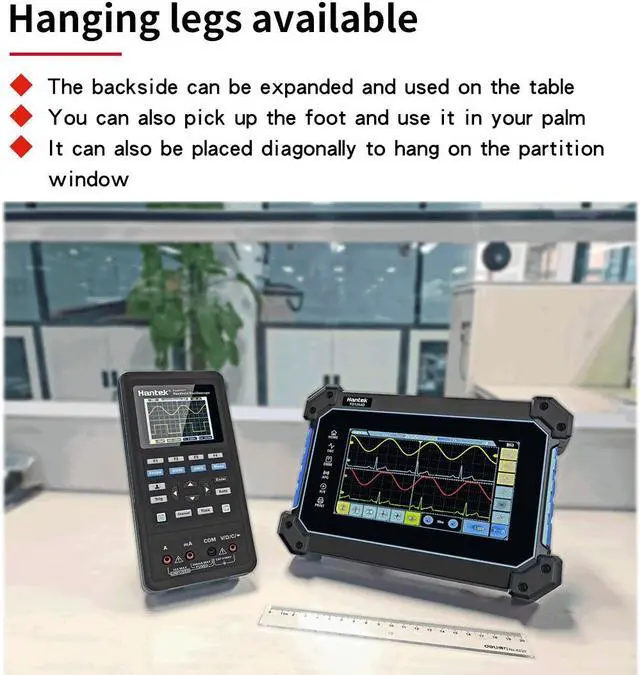

    • 3. Suspended foot design, multi angle adjustment, anti drop and shock-absorbing, portable.
    • 4. One click waveform storage, convenient and fast

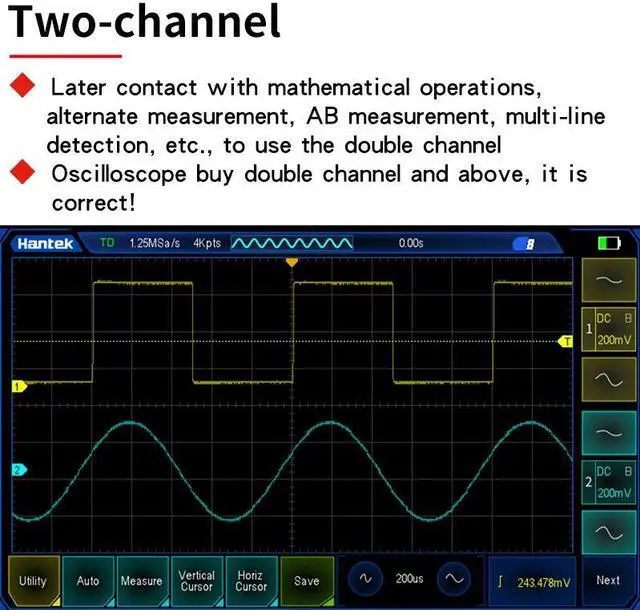

    • 5. Dual channel measurement with a bandwidth of 110MHz
    • 6. Sampling rate 250MSa/S, storage depth 8Mpts
    • 7. Vertical 2mV/div -10V/div, vertical resolution: 8bit
    • 8. Horizontal 2ns/div -100S/div

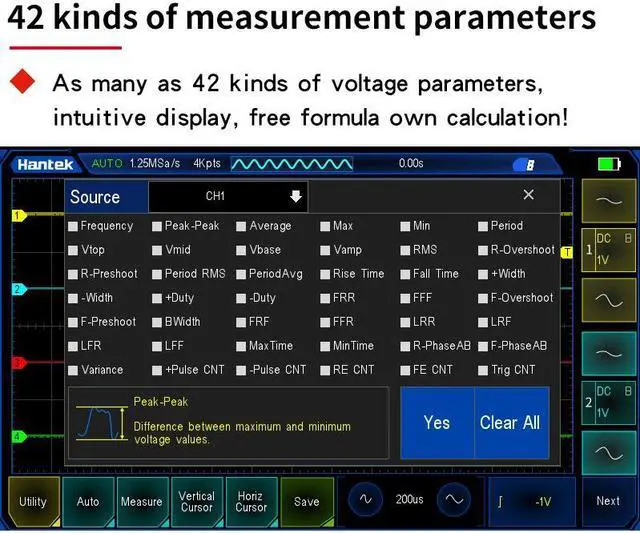

    • 9. 42 voltage measurement parameters can be retrieved, including vertical, horizontal, and other
    • 10. Triggering: single, automatic, edge, pulse, video, slope, timeout
    • 11. Can save various data formats such as settings, waveforms, reference waveforms, CSV, images, etc
    • 12. Function: cursor measurement, mathematical operation, FFT spectrum, X-Y mode, rolling mode, PC upper computer, frequency meter
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    1. Full touch screen control, 7-inch screen 800 * 480


    2. Built in 2600mAh battery * two, Type-C fast charging 18W, can be powered by a power bank


    3. Suspended foot design, multi angle adjustment, anti drop and shock-absorbing, portable.


    4. One click waveform storage, convenient and fast


    5. Dual channel measurement with a bandwidth of 110MHz


    6. Sampling rate 250MSa/S, storage depth 8Mpts


    7. Vertical 2mV/div -10V/div, vertical
    resolution: 8bit


    8. Horizontal 2ns/div -100S/div

    9. 42 voltage measurement parameters can be retrieved, including vertical, horizontal, and other


    10.
    Triggering: single, automatic, edge, pulse, video, slope, timeout


    11. Can save various data formats such as settings, waveforms, reference waveforms, CSV, images, etc


    12.
    Function: cursor measurement, mathematical operation, FFT spectrum, X-Y mode, rolling mode, PC upper computer, frequency meter


    13. Optional multimeter function (TO1112C/TO1112D) with data recording, storage, trend chart, and statistical analysis


    14. Optional 25MHz signal generator (TO1112D)


    15.
    Machine language: English

    ------------------

    There is a model difference table at the top

    There is a detailed product parameter table at the bottom

    You can download product manuals and other materials from the official website link below

    http: //hantek. com/products/detail/18191

    1GSa/S version two channel purchase link

    https: //www. aliexpress. com/item/1005006368448837. html

    1GSa/S version four channel purchase link

    https: //www. aliexpress. com/item/1005006368562752. html
