Original Router 4 Wifi Repeater 2.4G 5GHz 1167Mbps Fiber-optic Full Gigabit Smart Router 128MB MiNet Fast Mi APP Connect

Please refer to the bottom picture for the connection method.Last picture

The easiest way to set up on the pc side

NOTE

1·The original packagingUS plug

2·wifi, Instructions, is the Chinese version, Do not understand,

please  contact meOr please see the details below, the steps

3·When adding wifi, please select Chinese server in mijia settings

FAQ: Does it support English?

A: Its firmware is Chinese originally and can be changed into English via WiFi APP or Mijia APP.

Original Mi WiFi Dual-band Wireless Router 4 comes with the latest 802.11ac WiFi technology which is 3 times faster than wireless N speeds and delivers a combined wireless transfer rate of up to 1167Mbps. With 867Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, the Mi WiFi Dual-band Wireless Router 4 is the choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks. Furthermore, four powerful high-gain external antennas give wider coverage and better performance when lots of devices are connected, making it ideal even for a large home!

Main Features:

Wide coverage, strong signal

Smart device, easy access to the network

802.11n+ac dual-band concurrency

Large Flash, support rich functions

Dual-core processor, faster and more stable

Processor: MT7621A MIPS Dual Core 880MHz

ROM: 128MB SLC Nand Flash

Memory: 128MB DDR3-1200

Cooling Method: Back-mounted aluminum heat sink

Security: WPA-PSK/WPA-PSK2 encryption, wireless access control (black and white)

Operating System: Based on OpenWRT deeply customized MiWiFi ROM

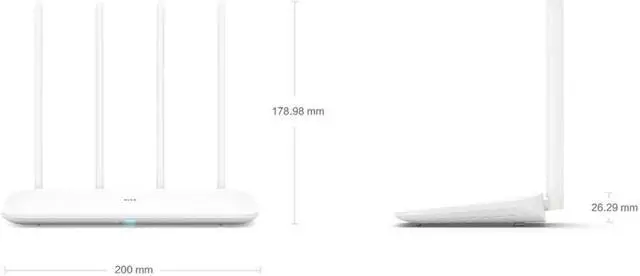

Size: 200 * 134.86 * 178.98mm
