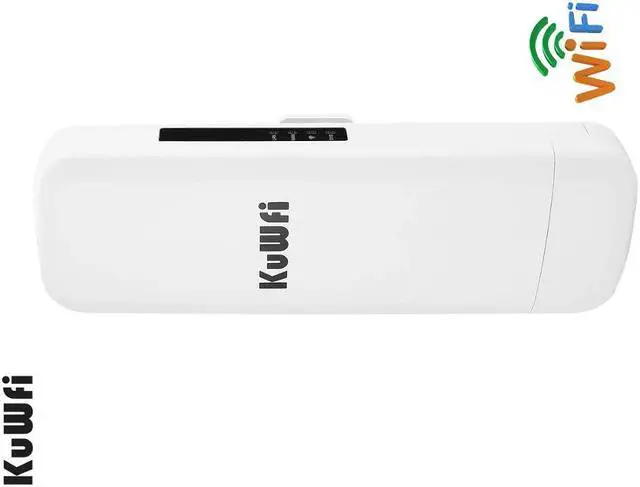

3KM Wireless CPE Router 300Mbps Wireless Outdoor AP Router WIFI Repeater WIFI Extender Access Point AP Bridge Client Router

Please noted:if you want to reach to 500-2000m ,we suggest that you buy 2pcs ,thanks!

1.CPE830D is an 2.4GHz 300Mbps high power outdoor CPE/AP  with LED display to show and configure it Channel, IP address and Signal Strength.

2.Comply with IEEE 802.11b/g/n standard, adopt Qualcomm QCA9531chipset, 14dBi dual polarized high gain antenna, 1000mW/30dBm high power, the transmit/receive wireless distance more than 500- 3000 meters.

3.CPE bridge support Wireless AP, repeater operation mode, simple to establish long range Wi-Fi connection by LED display,  avoid the complex setup program, effective solution for PTP, PTMP application and outdoor long range Wi-Fi coverage application

4.And it support special frequency from 2.312GHz to 2.4835GHz, total 27 channels, embed with Wi-Fi channel analysis tool, it make this outdoor CPE work in the best channel to avoid the Wi-Fi Interference, guarantee the stable wireless connection.

5.CPE-830D with ABS waterproof, dustproof and sunscreen shell, temperature adaptive; Temperature Working: -40°C~55°C,Storage: -40°C to 70°C  Humidity5%~95% (typical)

6.PCB board support ESD protection, Meantime, it support Power over Ethernet, support passive PoE, easy in setup even no power socket nearby, ideal for outdoor use;

Specification:

Hardware:

Working mode

AP/Repeater mode

Wireless

802.11N, 2T2R  300M  MIMO Technology

Memory

64MB DDR2 RAM (128MB available by extra cost)

Flash

16MB

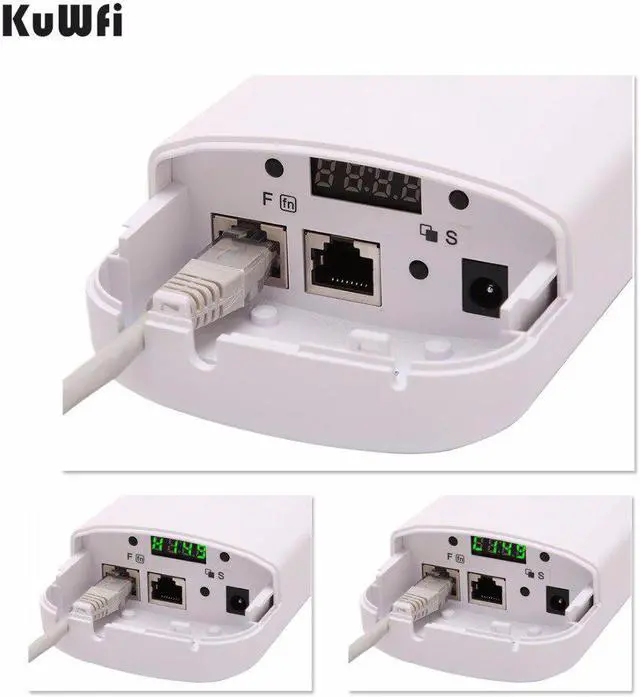

Interface

2 *10/100Mbps RJ45 Port, support 12~24V PoE

1 * Reset Button

1 * DC Injector, 12V/1A

1 * LED display

1 * F(Function) switch button

Antenna

14dBi Panel Antenna

LED Light

64
