Router 300Mbps Access Point With 4 External Antennas Hotspot 7620N CPU WiFi Wireless Router USB Sharing English Version

Note:

Please see below plug type, some countries will send original US Plug, and we will match an (UK / AU) adapter plug for you according to your shipping address.

SIMPLE DESCRIPTION

Hardware

CSW-WR146 used the MT7620N, CPU up to 580Mhz, installed the large capacity DDR2 RAM and the high speed SPI FLASH, provide 5*10/100Mbps Auto-MDI/MDIX port and 1 USB2.0 port, could meet many kinds of wireless applications, much better cost-performance.

Wireless

Support 802.11b/g/n network protocoltransmission rate up to 300Mbps, 4 external antennas, cover a larger area.

SPECIFICATION

Hardware

1) Main CPU: MT7620N/580MHZ

2) RAM: SDRAM 64MB

3) FLASH: SPI 8MB

4) Protocol:  IEEE802.11n/802.11g/802.11b/802.3/802.3u

5) WiFi Rate: Max 300Mbps

6) Work Frequency: 2.4GHZ

7)  Antenna: 4 external antennas

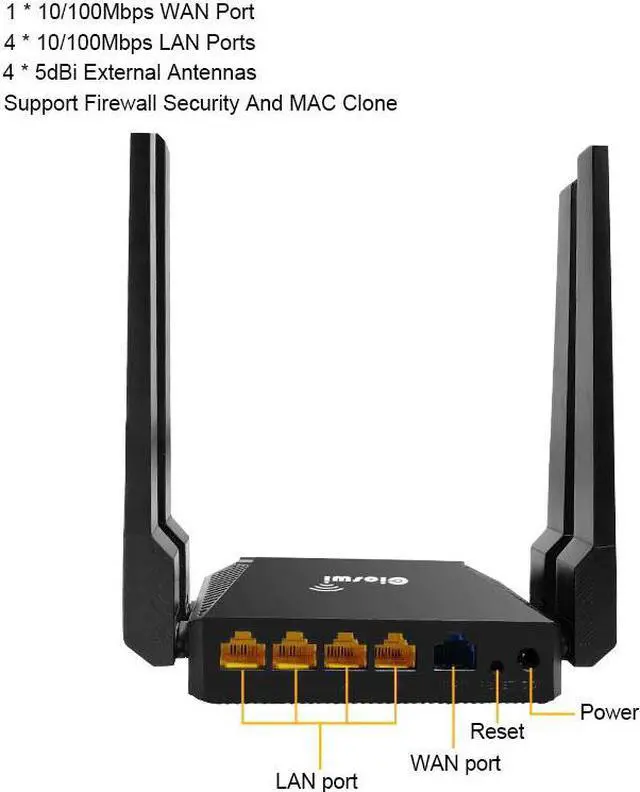

8) Interface: 1x10/100M Auto-MDI/MDIX WAN port; 4x10/100M Auto-MDI/MDIX LAN port; 1xUSB2.0 port

9) LED: power/WLAN/WAN/LAN1/LAN2/LAN3/LAN4

10) Button: Reset

11) Max consumption: < 5W

12) Dimension: 11.5x8.7x2.6 CM

Software

WAN Type: PPPoE/Dynamic IP/Static IP

Work Mode: AP;Router

DHCP: Server;Client;DHCP Client List;Address Reservation

Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ

Firewall Security:  Dos/SPI FirewallIP Address Filter/MAC Address Filter/ Domain FilterIP and MAC Address Binding

DDNS: Support

WEB Style Change: Support

Static Router: Support

System Log: Support

Other Function: Mac clone, NTP Synchronize, Web firmware upgrade

Operating Temperature0 ~ 40

Storage Temperature: -40~ 70

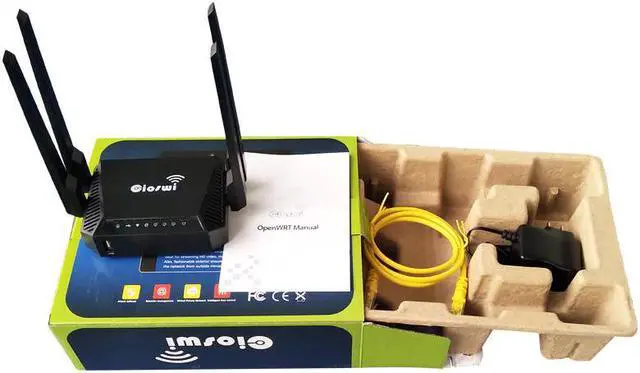

Packaging
