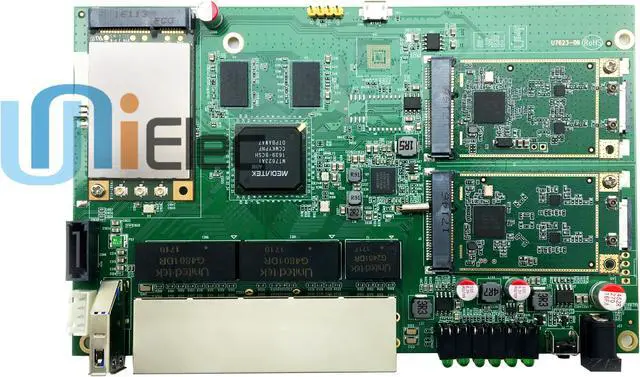

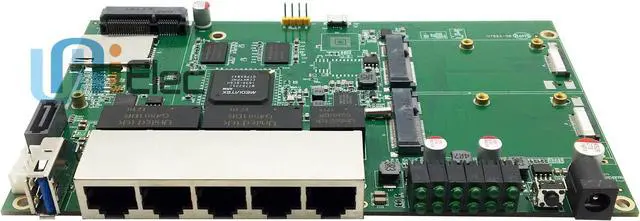

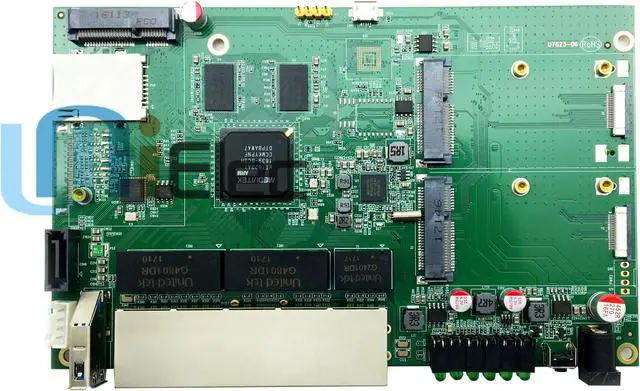

MT7623 Enterprise Router LTE 4G WIFI OpenWrt Wireless MT7612 MT7615 MT7623A Chipset Gigabit PCBA ODM OEM Sim Card Board

U7623-06 CPU integrates a Quad-core ARM® Cortex-A7 MPCoreTM operating up to 1.3GHz and more DRAM bandwidth. The powerful CPU is

suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN, AC (Access Control).For the next generation router, MT7623 Board provides several dedicated

hardware engines to accelerate the NAS,NAT, QoS Samba and VPN Traffic. These accelerators relief the CPU for other upper layer application.

Chipset

CPU: MT7623A  Quad-core ARM® Cortex-A7 (1.3GHz)

System Memory

Default DDR3 32Bit 1600 Mbps 512M Byte (optional 1G/2G Byte)

EMMC

EMMC4.5: Default 8G Byte (max 128G Byte) Support OpenWrt

PCIE

2x Normal PCIE for 11ac or 11n WIFI module

1x PCIE connector for LTE or MSATA module

Interface

5x Gigabit  4*LAN+1WAN(Auto MDI-X)

1x Serial Debug Port 4 Pin Connector1

1x USB3.0 connector

1x SATA3.0 connector

1x 40P*0.5mm FPC for MIPI LCD

Reset Button

Yes

LED

Indicators: Power LED, LAN, LTE,WIFI,2x GPIO Signal Indicator,

DC Power

1x DC Jack Connector: 12V@1A

Power Consumption

9 Watt (Max)

Software

OpenWRT or Linux SDK which includes Uboot, Kernel ,Driver and Tool Chain

Environmental

Temperature: Operating: -10-85°C, Storage: -40ºC to 90ºC

Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 90%

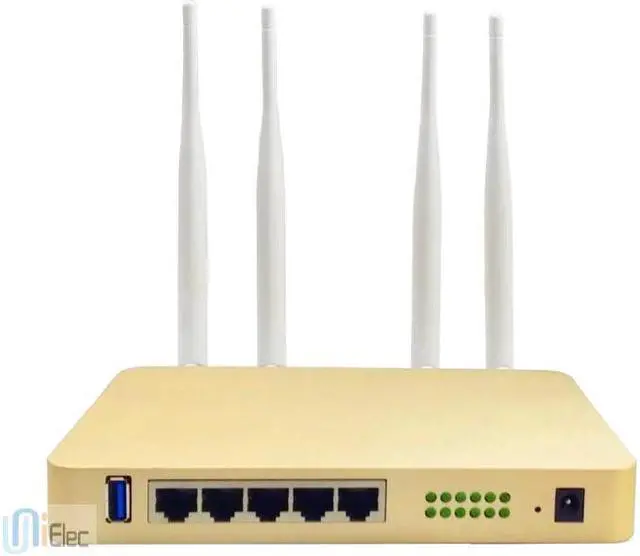

CASE

Material: Aluminium Alloy, Dimensions: 188.5 x 128.5 x 25 mm

Latest open source Openwrt can support this board directly. You can choose our board model in the kernel menu as below picture after you

https://github.com/openwrt/openwrt/commit/4def81f30f2e89eeecc6ec06e3091f1dd6b3c3d9
