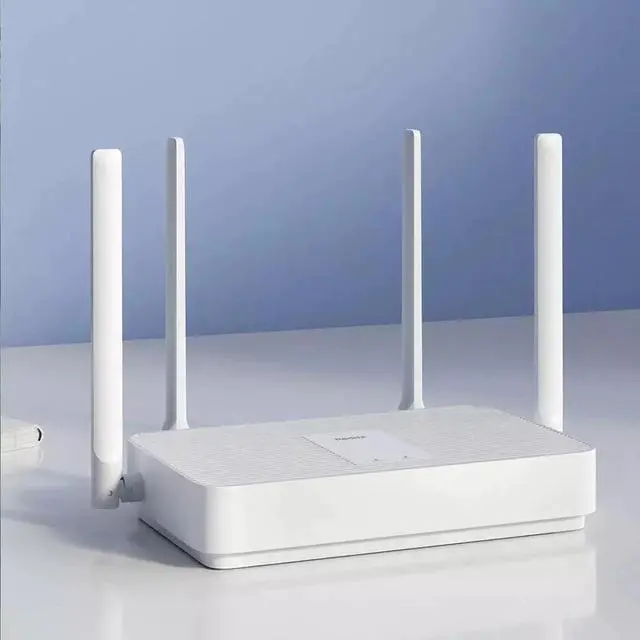

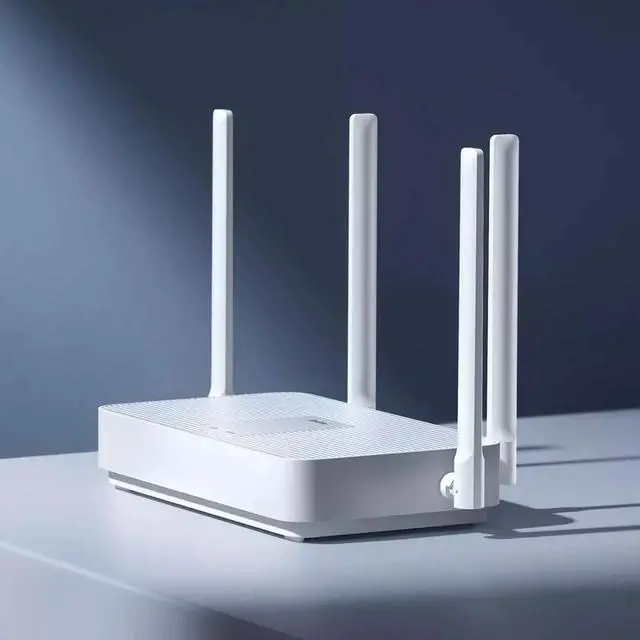

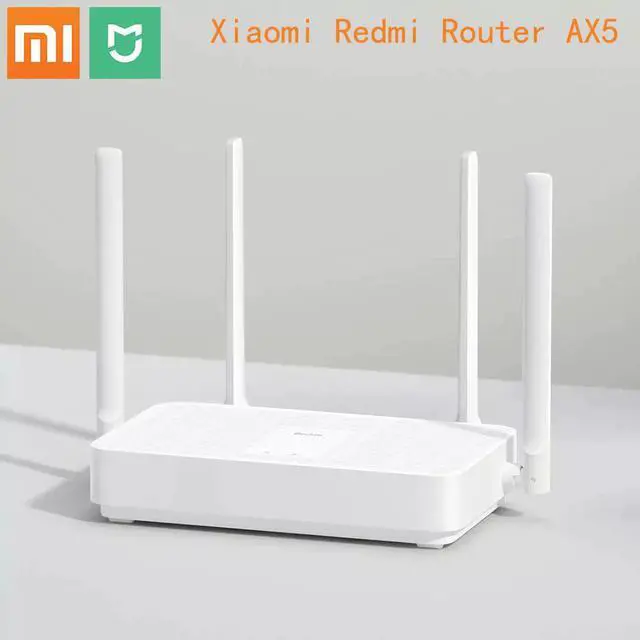

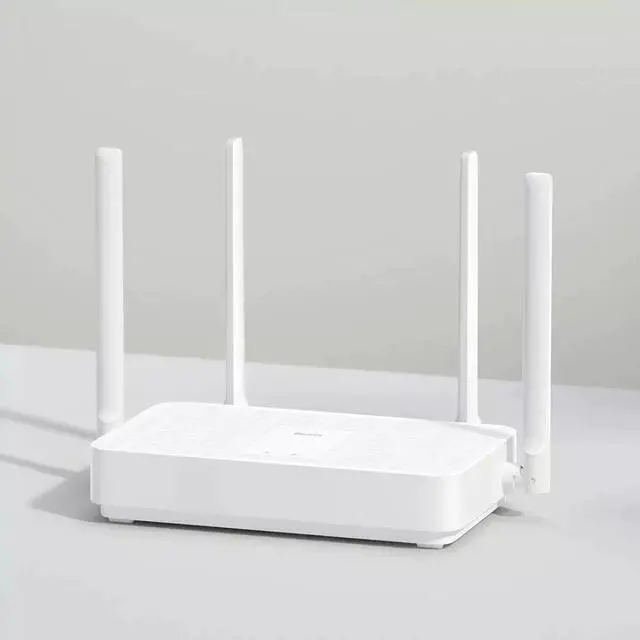

2020 mijia Redmi Router AX5 Wifi 6 Mesh Gigabit 2.4G/5.0GHz Dual-Band Wireless Router Wifi Repeater 4 High Gain Antennas

Please refer to the bottom picture for the connection method.Last picture

The easiest way to set up on the pc side

NOTE

1·The original packagingUS plug

2·wifi, Instructions, is the Chinese version, Do not understand,

please  contact meOr please see the details below, the steps

3·When adding wifi, please select Chinese server in mijia settings

Product name: Redmi Router AX5

Processor: IPQ6000 4-core A53 1.2GHz CPU

Network acceleration engine: single-core 1.5GHz NPU.

ROM: 128MB

Memory: 256MB

2.4G Wi-Fi: 2X2 (supports IEEE 802.11ax protocol up to the theoretical maximum rate of 574Mbps)

5G Wi-Fi: 2X2 (Maximum support IEEE 802.11ax protocol, theoretical maximum rate up to 1 201Mbps)

Product antenna: 4 external antennas

Product cooling: natural cooling

Machine interface:

1 10/1 00/1000M adaptive WAN port (Auto MDIMDIX)

3 10/100/1000M adaptive LAN ports (Auto MDI/MDIX)

LED indicators: 2 (System indicator *1, Intemet indicator *1)

System reset button: 1

Power input interface: 1

Protocol standard:

IEEE 802.1 1a/b/g/n/ac/ax, IEEE 802.3/3u/3ab

Certification standards:

GB/T9254-2008; GB4943.1 -2011

Packing list:

Redmi router AX5  × 1, manual × 1, CN/US adapter × 1.

Qualcomm 5-core chip / 4 independent amplifiers / Fast WiFi 6 / Support Mesh networking

Qualcomm 5-core chip

Home routing, enterprise-class powerful performance

Keep stable online more worry-

4-core 64-bit A53 1.2GHz CPU + single-core 1.5GHz NPU module, computing power increased by 130%*,

Independent network acceleration engine

High-end WiFi6 routing essential
