Hotel Wifi Project 1 Smart Core Gateway AC Router 4 LAN Port POE AC Gateway Routing +4 1200Mbps Gigabit Access Point In wall AP

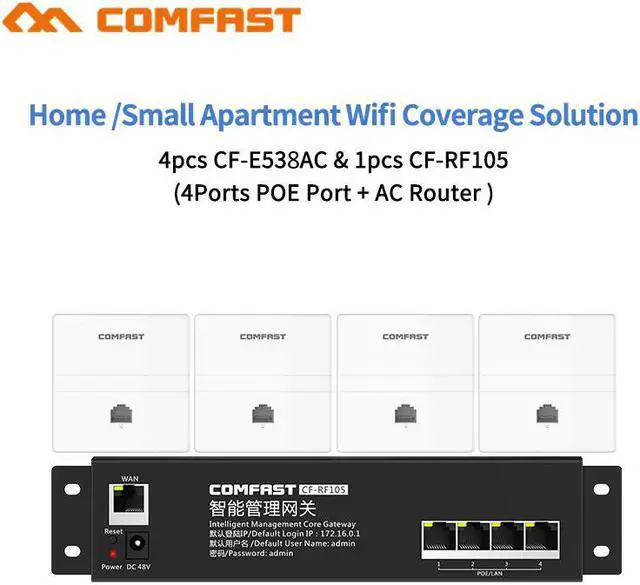

Smart Wifi Home /Apartement /Villa /Coverage Solution 4pcs Wall Access Point AP +1 AC Management Router with Poe Power Supply Core Gateway

CF-RF105 Features:

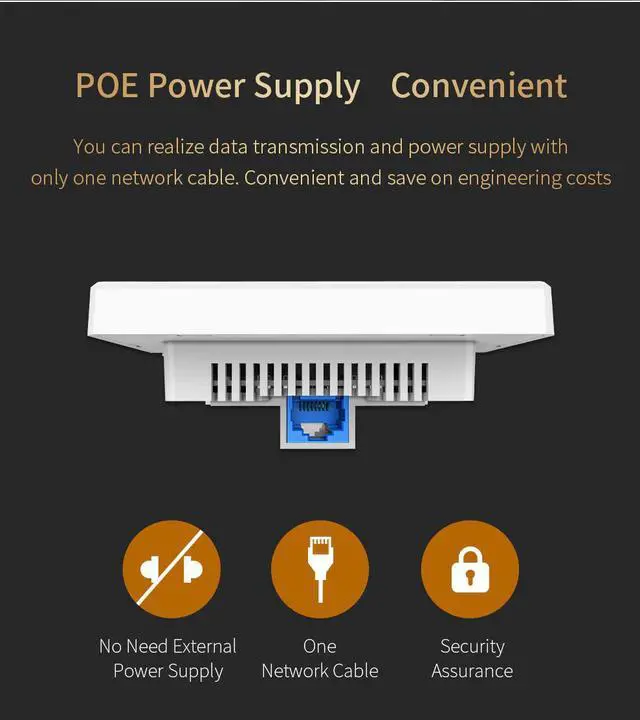

1.4 Port Poe Power Supply ,Easy Network Formation

CF-RG105 with 4* LAN / POE Ports, Use 1 network cable to connected AP, then  can realize both power and date transmission

2.Configure the Watchdog Chip, Automatic Repair

CF-RF105 has a built-in watchdong chip, it can reduce post-equipment maintenance and allow the device to quickly resume normal operation from sudden failures.

3. Intelligent Network Flow Control

Intelligent detection of broadband speed,automatic allocation of bandwidth, automatic prioritization of network ensure netwok smooth

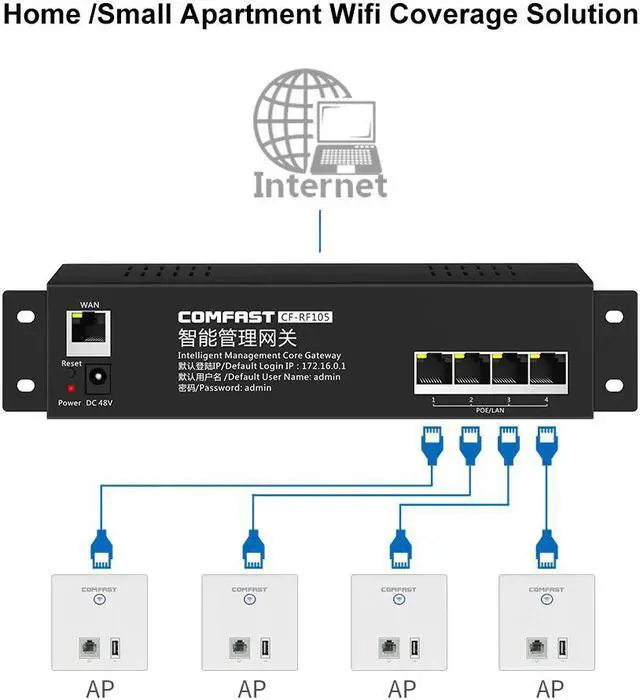

4.Wifi Coverage for Home

Use CF-RF105 to match in wall ap to do network formation, you can achieve fast switching ,fash connecting when the wireless terminal move. Wifi coverage without dead zone

CF-RF105 Specification:

1.QCA9531 Chipset, Configure the Watchdog Chip

2.802.3 Ethernet

3.Confor to 802.11af,802.11at standard

4. 4* LAN Port 10/100Mbps POE interface

5. Support Network cable power supply 1*WAN Port 10/100Mbps 1 *DC power interface (in front)

6. 48V/ 1.25A Power Supply

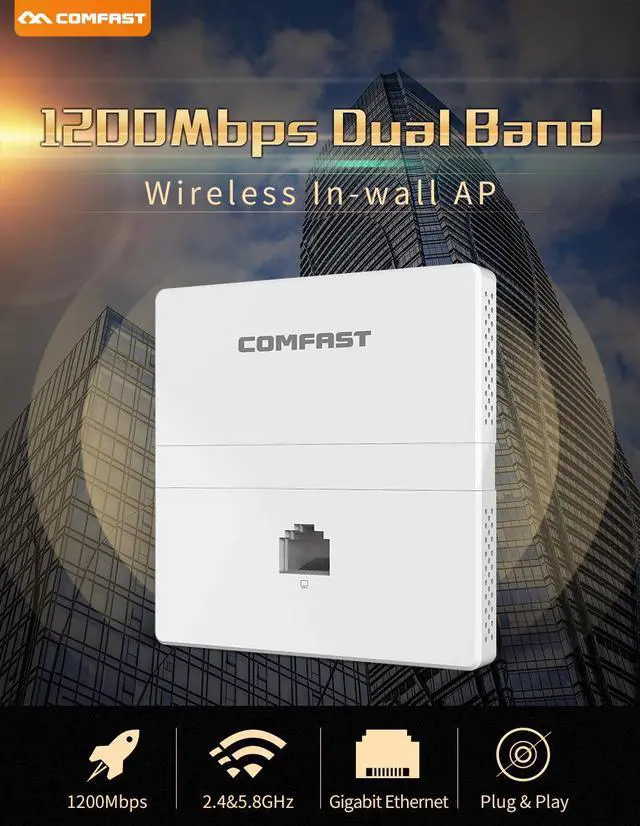

CF-E538AC Specification:

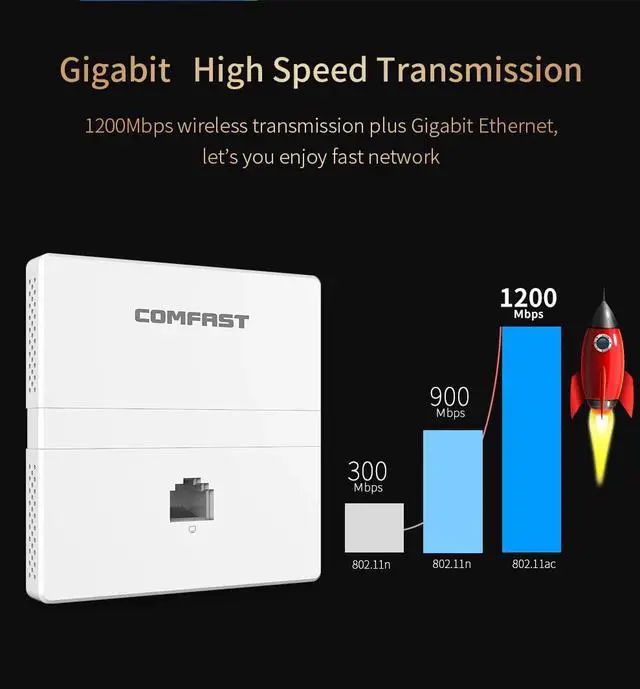

1.Dual band 11AC 1200Mbps

2.Chipset: MT7620DA+MT7612E+RTL8211F;

3.DDR: 64MB; Flash: 8MB;

4.Antenna :Built-in 2*2dBi antennas

5. Transmission Rate; 2.4GHz: 300Mbps  .8GHz: 867Mbps

6.Physical Ports : 1*10/100/1000Mbps RJ45 WAN(Up) port, support 48V POE power supply;

1*10/100/1000Mbps RJ45 LAN port, can access to network;

7.Power Supply: 802.3af/802.3 at POE Power Supply (0-100m);
