Wireless Bridge,CPE-452 Point to Point 5.8G Long Range Outdoor WiFi CPE with 14DBi High-Gain Antenna,24V PoE Adapter,2 LAN Port,for Network and Surveillance Range Extension,2-Pack

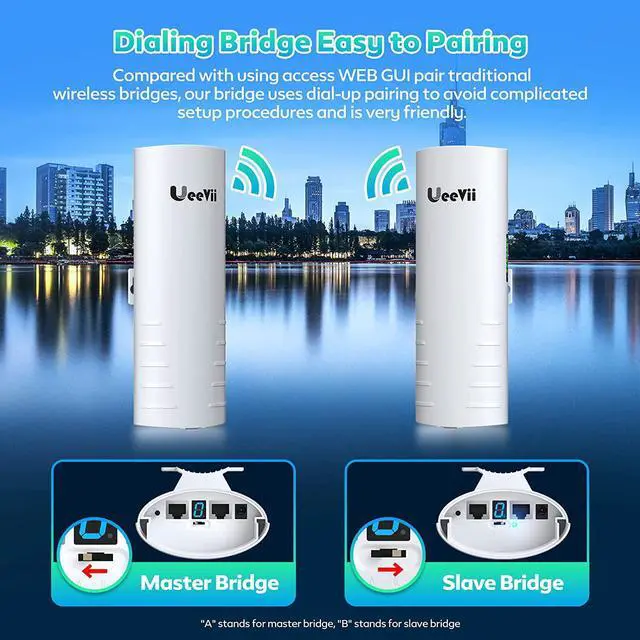

Change the characters of the digital tube at the bottom of the wireless bridge to modify the pairing signal channel. The steady light state indicates that it is working, and the blinking state indicates that it is being set. The lights on the sideshow the power and LAN connection status, and the signal lights indicate the signal strength of the paired 2 bridges.
Point wireless bridge switches the master and slave bridges through the A-B button, A represents the master bridge, and B represents the slave bridge. In point-to-multipoint, take one of the bridges as A, and the other bridges as B, and then set them to the same pairing character to complete the point-to-multipoint pairing.

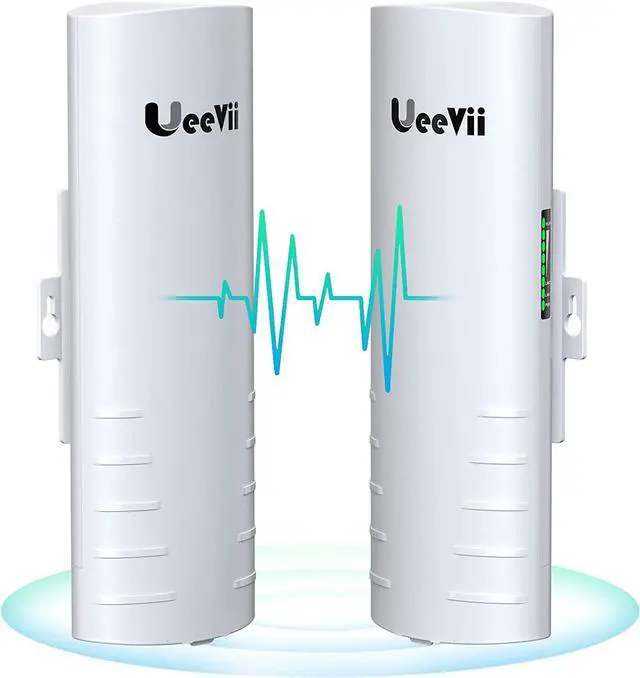

UeeVii CPE-452 is an outdoor high power and 5.8G high-performance wireless bridge, that supports point to point and point to Multi-Point wireless connections. Pairing can be done by dialing without having to access the GUI, making the long-range wireless coverage, data transmission, and wireless monitoring simple and professional, and saving much human work and cost.

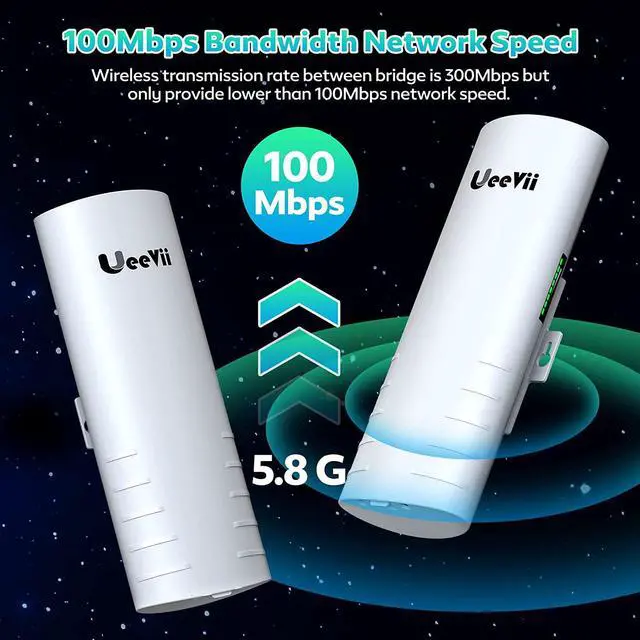

CPE-452 WiFi bridge built-in 14Dbi high-gain antenna enables the transmission rate between 2 wireless bridges to reach 300Mbps, the highest wire network speed that can be achieved max is 100Mbps. To achieve the bridge function, one needs to act as a receiver and the other one as a transmitter.

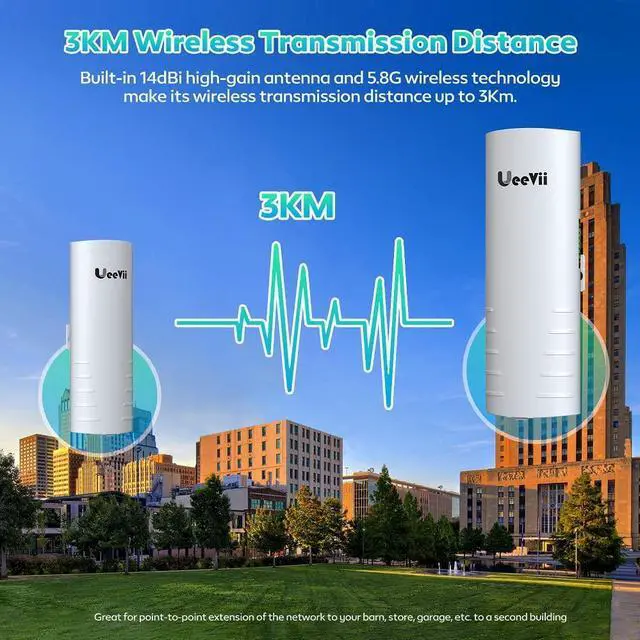

Point to point wireless bridge can automatically power adjustment to adapt to environmental changes, ensuring smooth video regardless of ultra-close distance, transmission distance up to 3km(Barrier-free), actual application distance should be less than 3KM. Trees will not block the transmission speed of the point-to-point internet wireless bridge, suitable for shop warehouses or garages next to your house.

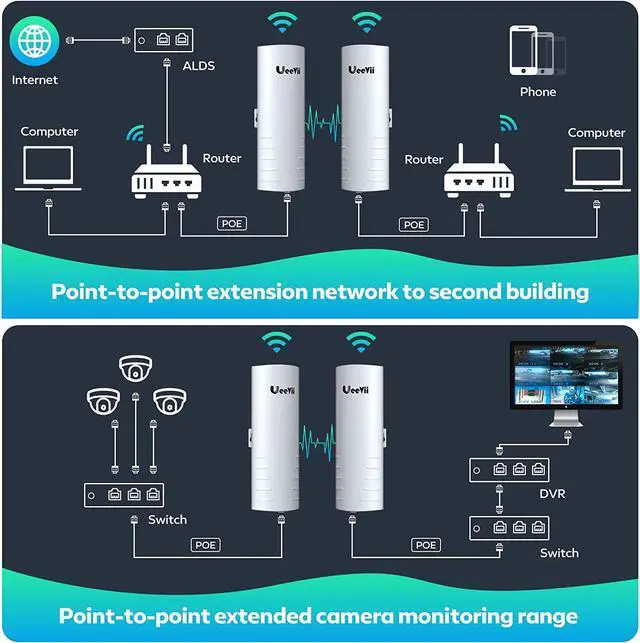

Point-to-point bridge easily helps you expand the network range to the second building(barn, shop, warehouses, garages), or wireless extend the IP camera monitoring range. IP65 Level weatherproof shell that ensures continued operation in harsh outdoor environments, very suitable for outdoor use, with rain, dust, and antifreeze characteristics.
Support PoE power supply (50 meters) power supply, easy to install, and save cost, and compliance with 5.8GH z IEEE 802.11 a, IEEE 802.11 n standard, support CSMA/CA, CSMA/CD, TCP/IP, PPPoE, DHCP, ICMP, NAT protocol.
FCC ID: 2A6EJ-CPE450
