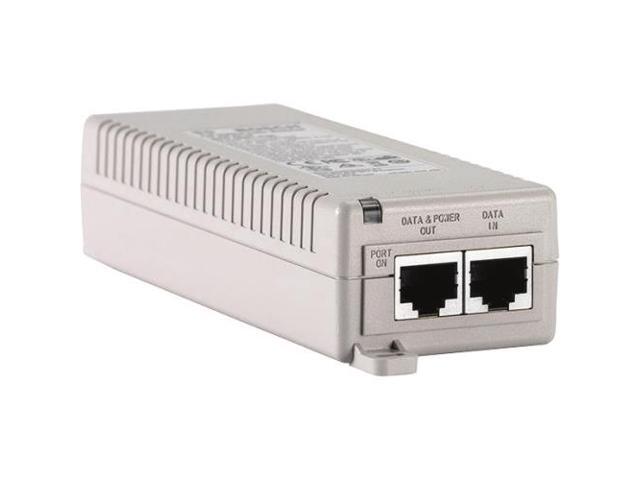

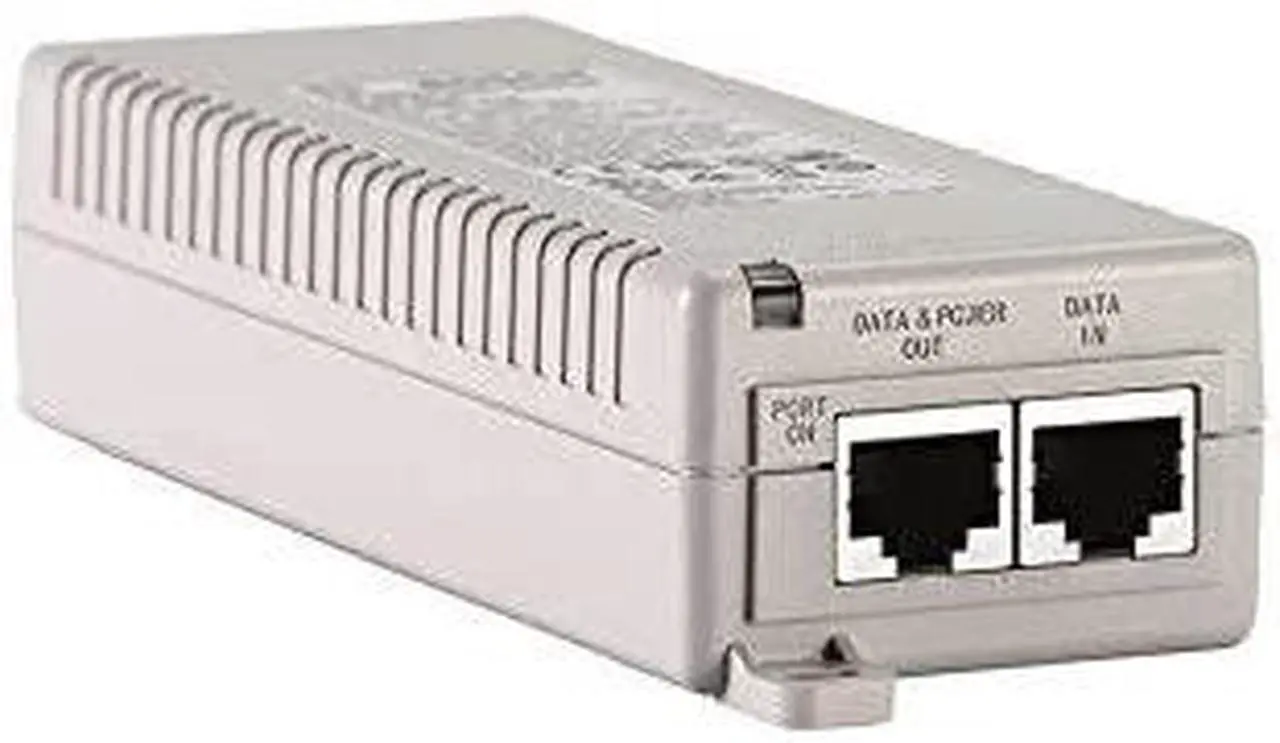

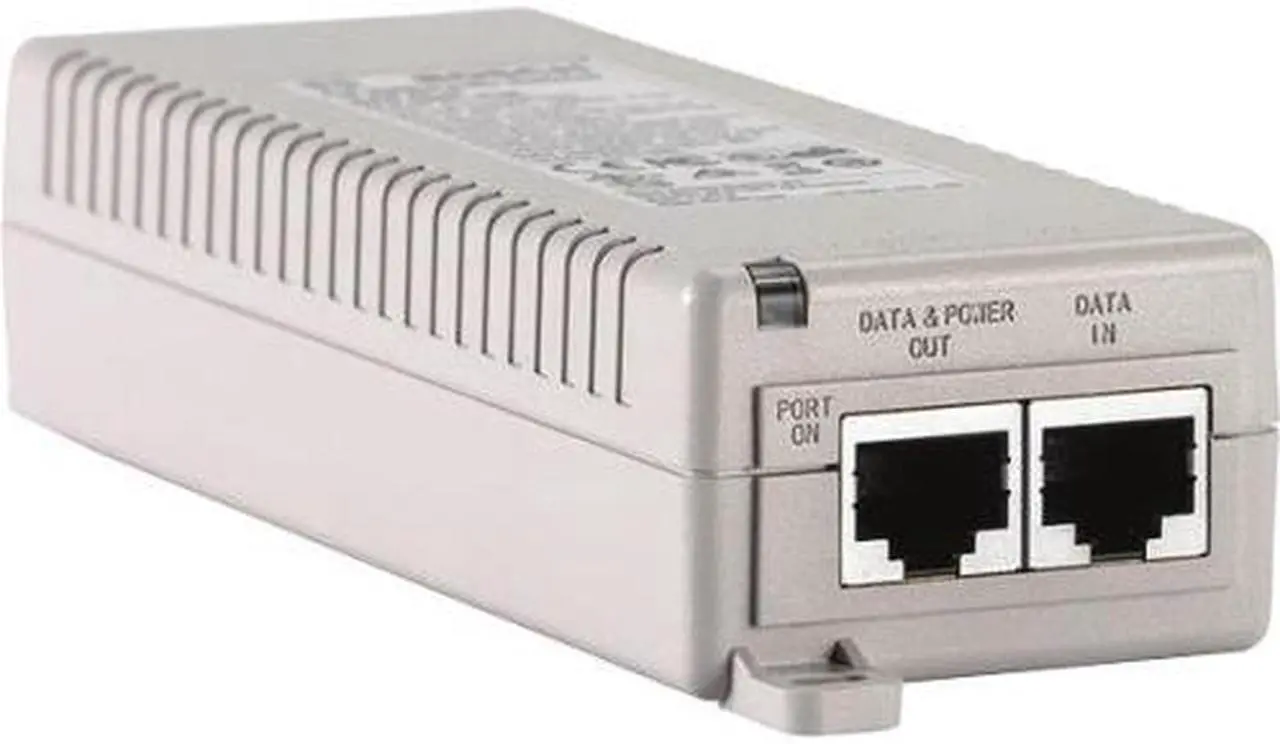

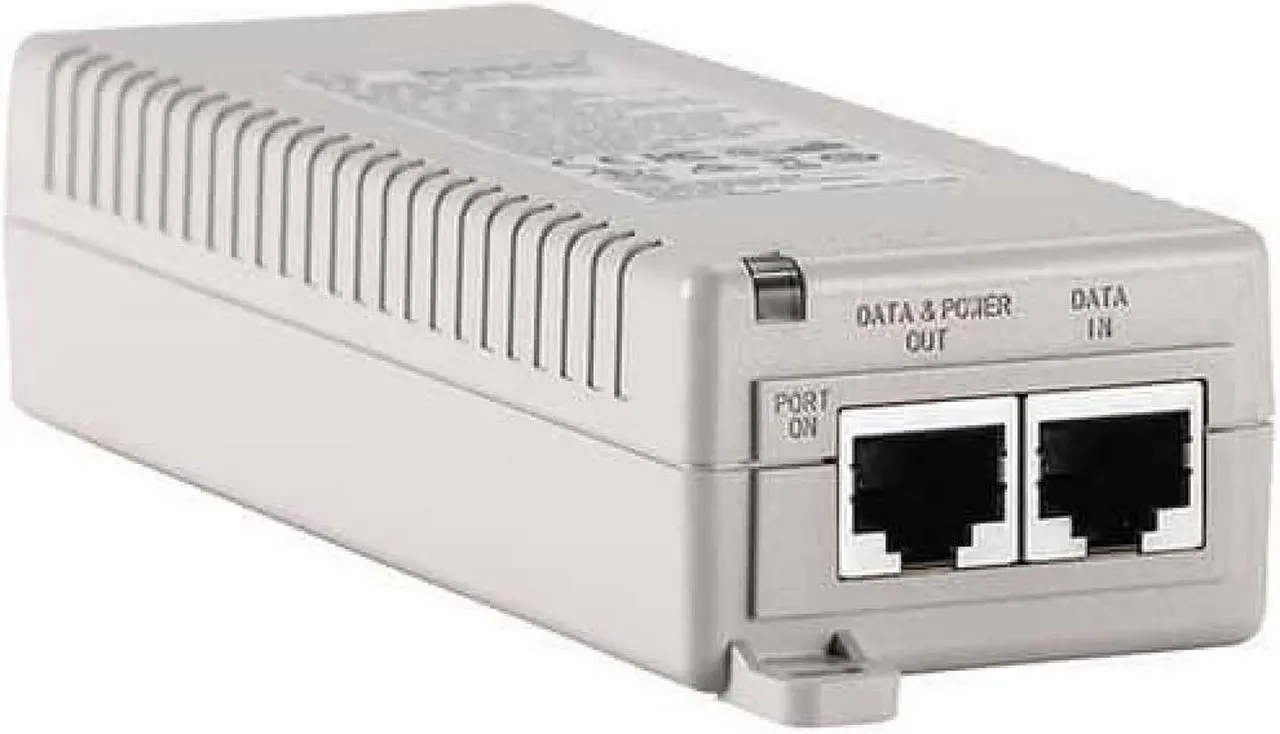

Bosch NPD-5001-POE Midspan PoE Injector

This power injector allows an existing Ethernet infrastructure to be enhanced for use with PoE cameras.

System overview

The NPD-5001-POE is a single-port power injector that supplies one PoE camera with power.

Functions

The injector converts the AC input power to a +48 VDC power supply which is then provided to the cameras via the Ethernet cable. They support up to 10/100/1000 Mbps pass-through data rates. Each injector provides up to 15.4 W per port. The PoE midspan injector unit can be easily mounted on a shelf, wall or ceiling

Features

*
Package Contents:

• NPD-5001-POE Midspan PoE Injector
• Power Cord

* Product Type: PoE Injector
* Product Type: PoE Injector
* Compatibility: PoE Cameras
* Input Voltage: 120 V AC
* Input Voltage: 230 V AC
* Weight (Approximate): 7.05 oz
* Mount Type: Shelf/Wall/Ceiling-mountable
* Network Technology: Gigabit Ethernet
* Certifications & Standards:

• FCC Part 15, Class B
• EN 60950
• EN 55022 class B
• EN 55024
• IEEE 802.3 af

* Form Factor: External
* Length: 5.5"
* Product Model: NPD-5001-POE
* Product Name: NPD-5001-POE Midspan PoE Injector
* Mount Type: Shelf/Wall/Ceiling-mountable
* Brand Name: Bosch
* Output Ports: 1
* Brand Name: Bosch
* Output Ports: 1 Gigabit Ethernet
* Height: 1.3"
* Width: 2.1"
* Environmentally Friendly: Yes
* Environmental Certification: RoHS
* Environmental Certification: WEEE
* Environmental Certification: GS
* Maximum Output Power: 15.40 W
* Maximum Output Voltage: 48 V DC
* Product Type: PoE Injector
* Mount Type: Shelf/Wall/Ceiling-mountable
* Network Technology: Gigabit Ethernet
* Brand Name: Bosch
* Output Ports: 1
