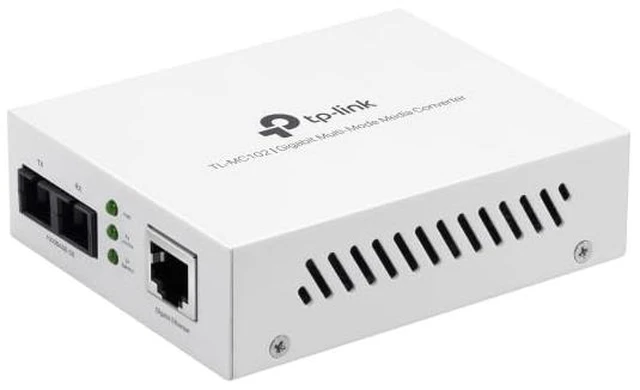

Gigabit Multi-Mode Fiber Media Converter(TL-MC102)
Limited time offer, ends 10/24 By Dazan Technology
- Designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa; Auto-negotiation of Half-Duplex / Full-Duplex transfer mode; Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port; Extends fiber distance up to 550m (1,800feet) using 50/125um Multi-Mode Fiber, 220m(720 feet) using 62.5/125um Multi-Mode Fiber; Easy-to-view LED indicators provide status to monitor network activity easily; External power supply. Wave Length: 850nm. Max Power Consumption: 1.66W.; Complies with IEEE 802.3ab and IEEE 802.3z
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
TL-MC102 is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE 802.3 ab 1000Base-T and IEEE 802.3 z 1000Base-SX standards, TL-MC102 is designed for use with multi-mode fiber cable utilizing the SC-Type connector. TL-MC102 supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs.
TL-MC102 will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
TL-MC102 will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
