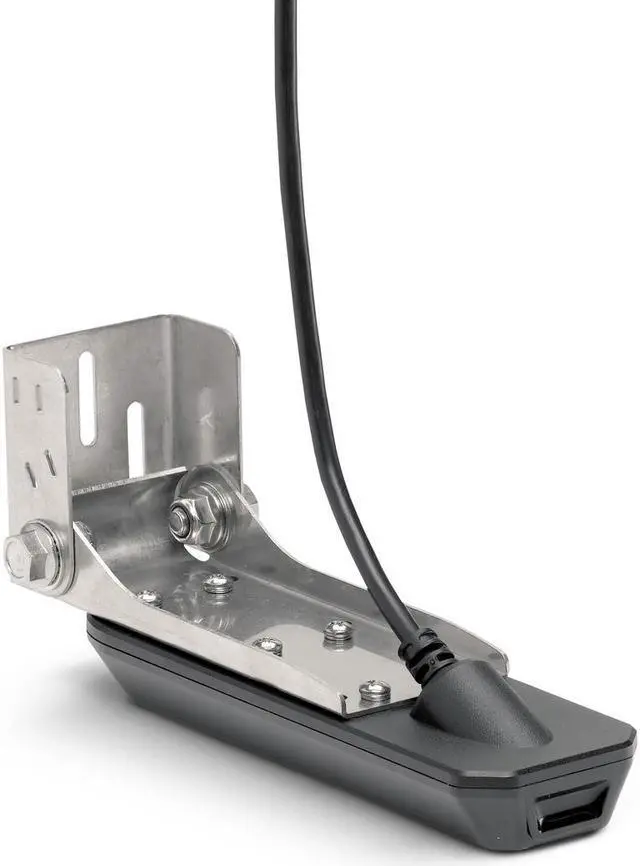

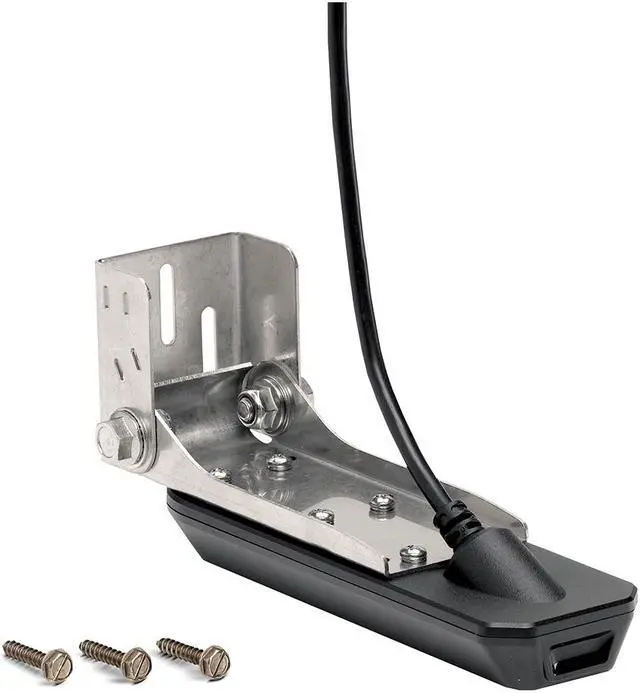

HUMMINBIRD XM-9-HW-MDI-T TRANSOM MOUNT WITH TEMP
Humminbird XM-9-HW-MDI-TModel: 710280-1This accessory is compatible with the following
Humminbird products: HELIX 8 G3N Series MEGA DI and MEGA SI+, HELIX 9 G3N Series MEGA DI and MEGA SI+, HELIX 10 G3N Series MEGA DI and MEGA SI+, HELIX 12 G3N Series MEGA DI and MEGA SI+.
Dual Spectrum CHIRP Frequencies:
Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHzDual
Spectrum CHIRP Max Depth: 1200ft (365m) Down Imaging Frequencies -
Max Depth:
455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA
DI+: 1075-1150 kHz - 200ft (61m) MEGA Down Imaging Transom Mount Transducer supports MEGA Imaging/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20 cable. SpecificationsMount TypeTransomSonar TypeMEGA Imaging, Dual SpectrumCurrent ModelsHELIX 8, HELIX 9, HELIX 10, HELIX 12WARNING Cancer and Reproductive Harm - www. P65Warnings. ca. gov.
Humminbird XM-9-HW-MDI-TModel: 710280-1This accessory is compatible with the following
Humminbird products: HELIX 8 G3N Series MEGA DI and MEGA SI+, HELIX 9 G3N Series MEGA DI and MEGA SI+, HELIX 10 G3N Series MEGA DI and MEGA SI+, HELIX 12 G3N Series MEGA DI and MEGA SI+.
Dual Spectrum CHIRP Frequencies:
Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHzDual
Spectrum CHIRP Max Depth: 1200ft (365m) Down Imaging Frequencies -
Max Depth:
455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA
DI+: 1075-1150 kHz - 200ft (61m) MEGA Down Imaging Transom Mount Transducer supports MEGA Imaging/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20 cable. SpecificationsMount TypeTransomSonar TypeMEGA Imaging, Dual SpectrumCurrent ModelsHELIX 8, HELIX 9, HELIX 10, HELIX 12WARNING Cancer and Reproductive Harm - www. P65Warnings. ca. gov.
