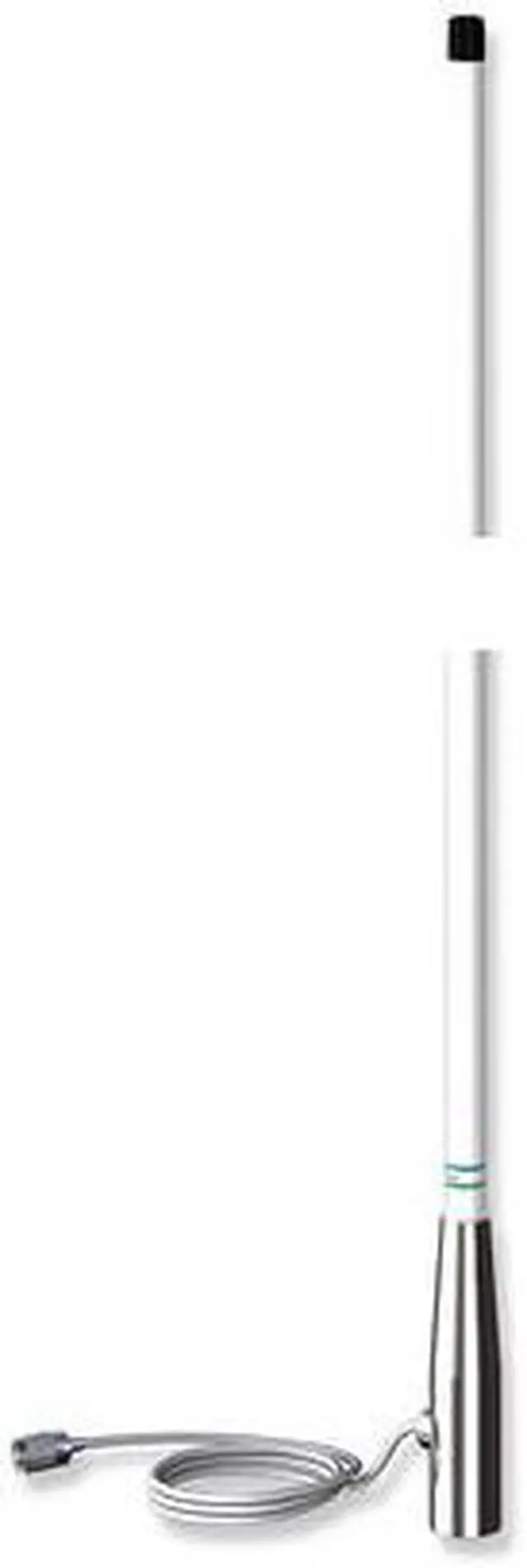

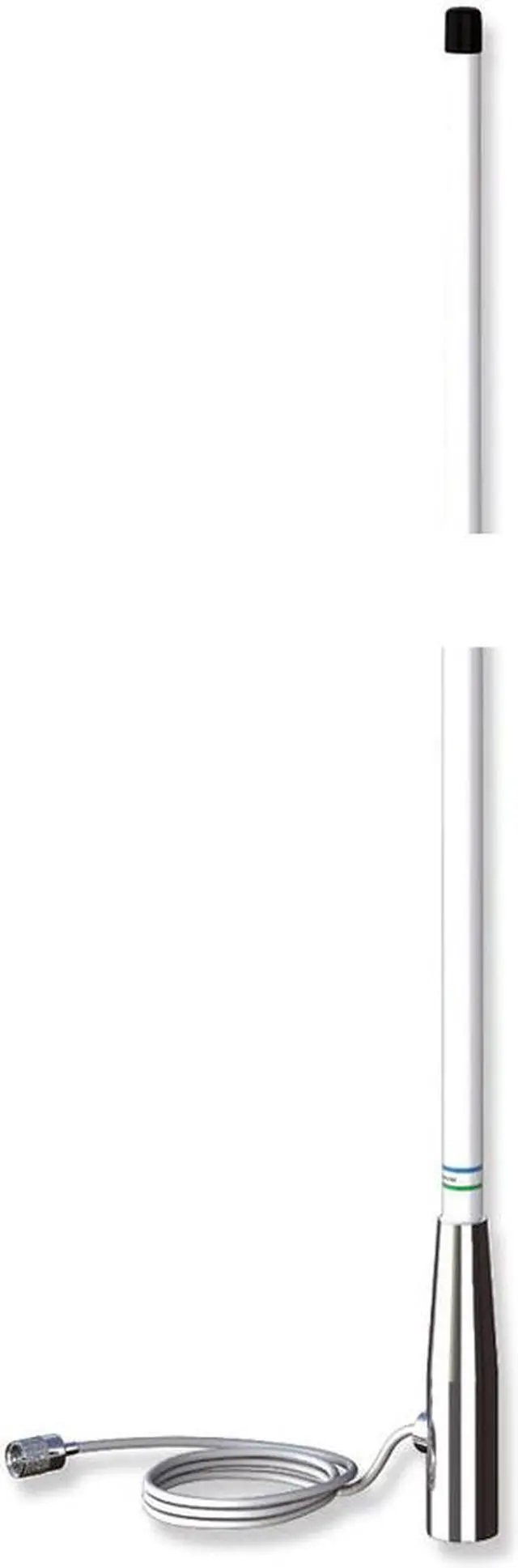

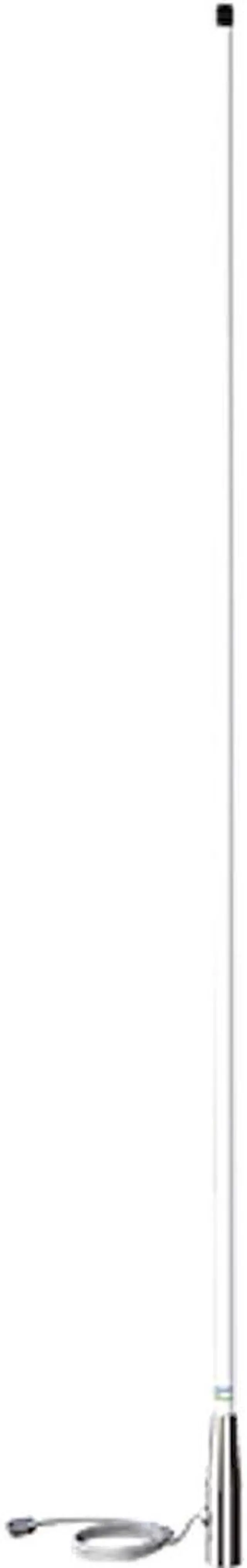

Style 396-1 VHF 3dBCenter-fed 1/2-wave coaxial sleeve
Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels. Brass and copper elements Chrome-plated brass ferrule with standard 1&qout; -14 thread Includes 15' RG-58 cable and a PL-259 connector
Suggested mount: Style 4187 Ratchet Mount One section
Technical Specifications:
Frequency: VHF Marine band
Bandwidth: (within
2.0: 1
SWR): 5
MHzSWR:
1.5: 1 at 156.8
MHzImpedance (Ohms):
50Gain: 3 dBMax
Input (Watts): 50DC
Ground:
NOTermination: 15' RG-58 cable
Height (feet):
5Polarization: Vertical
Radiation pattern: Omni-directional
Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels. Brass and copper elements Chrome-plated brass ferrule with standard 1&qout; -14 thread Includes 15' RG-58 cable and a PL-259 connector
Suggested mount: Style 4187 Ratchet Mount One section
Technical Specifications:
Frequency: VHF Marine band
Bandwidth: (within
2.0: 1
SWR): 5
MHzSWR:
1.5: 1 at 156.8
MHzImpedance (Ohms):
50Gain: 3 dBMax
Input (Watts): 50DC
Ground:
NOTermination: 15' RG-58 cable
Height (feet):
5Polarization: Vertical
Radiation pattern: Omni-directional
