HUBBELL WIRING DEVICE-KELLEMS HBL530C7W Watertight Pin & Sleeve Connector, 30

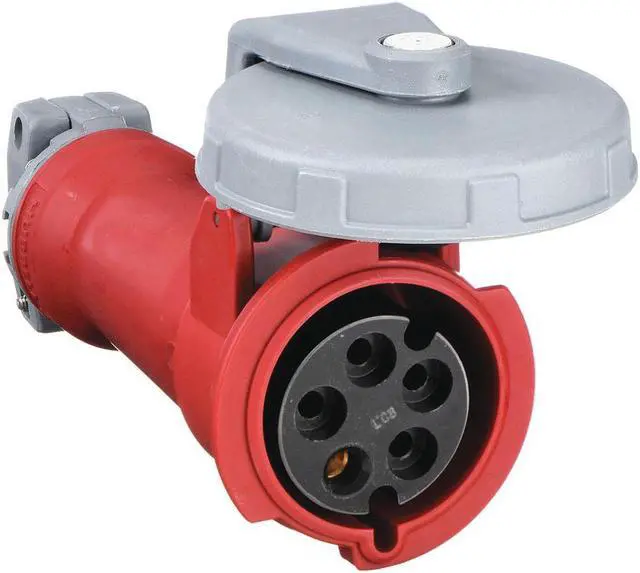

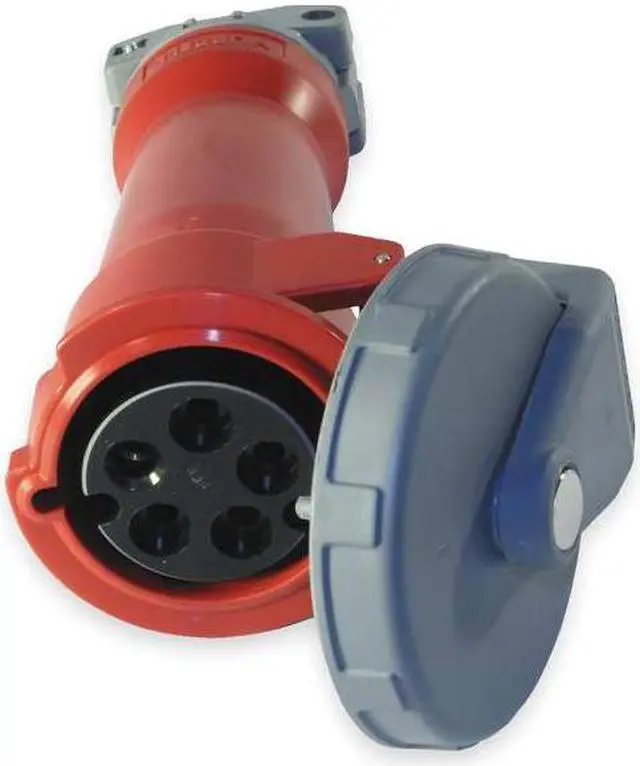

The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated for use in industrial settings and specified current/voltage levels. Rated for 30 amps and 277/480V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, with materials selected for durability under typical operating conditions. It accommodates 5-wire grounding with screw terminal connectivity and is compatible with the HBL Heavy Duty series.

Key Features of the HUBBELL IEC Pin and Sleeve Connector:

• Current/Voltage Rating: Rated for 30 A at 277/480V AC three-phase power


• Body Material: Constructed from Zytel 801 nylon for durability


• Environmental Protection: Watertight design with IP68/IP69K ingress protection ratings


• Cord Grip: External cord grip is intended to reduce strain on conductors during installation and use


• Wire Accommodation: Accepts #12 AWG to #8 AWG wire sizes; supports up to five wires (4 poles + ground)


• Connection Type: Pressure terminal screws accommodate wire connection as specified by manufacturer instructions


• Color Coding: Red housing allows easy voltage identification


• Cover Feature: Self-closing gasketed cover is constructed from materials selected for corrosion resistance; covers internal components when closed


• Temperature Range: Operates between -40°C (without impact) up to +75°C continuous use


• Standards Compliance: CSA Certified LR280C; UL Classified to IEC 60309-1/-2; UL E146033 listed device
