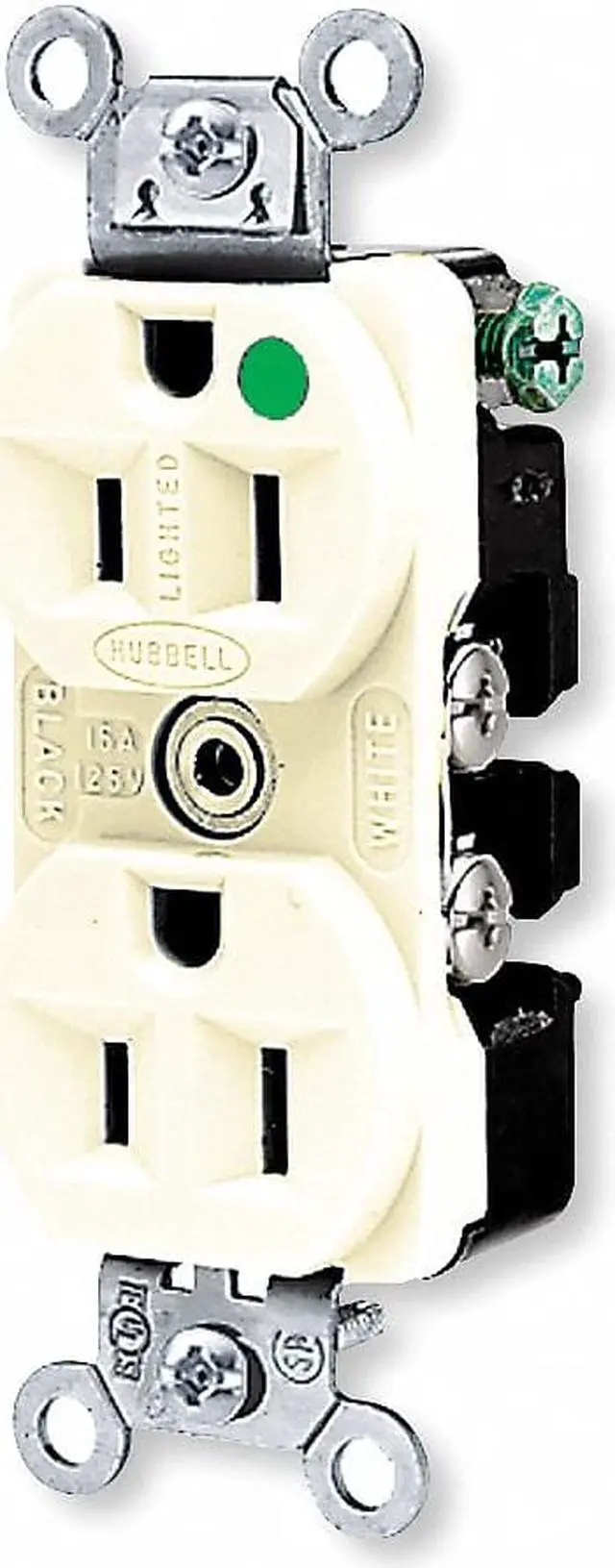

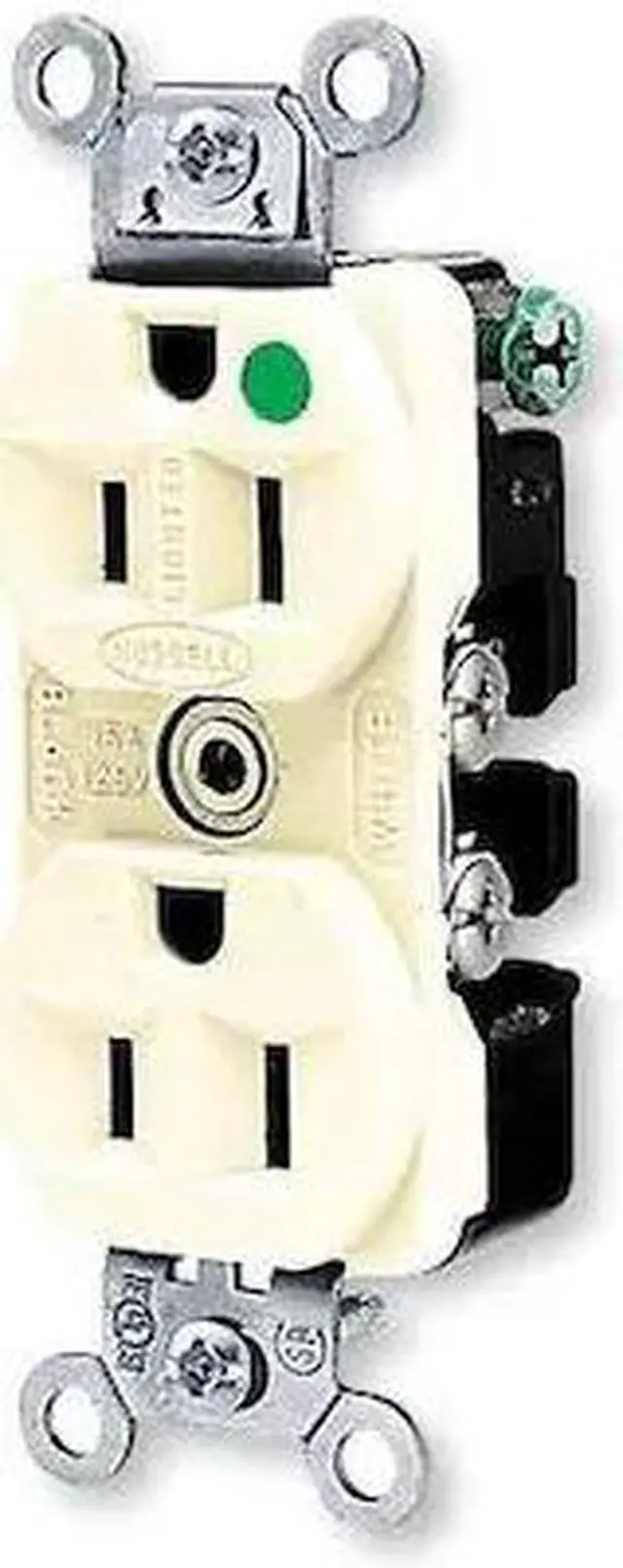

HUBBELL WIRING DEVICE-KELLEMS HBL8200ILI Duplex Straight Blade Receptacle,

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a traditional duplex outlet rated as hospital grade; suitable for use in demanding environments. It features a compact, impact-resistant polycarbonate housing and is rated for indoor use in dry locations. The receptacle supports both back and side wiring with screw terminals, accommodating #14 to #10 AWG copper wire. Meets UL requirements for hospital grade devices, it includes an illuminated face with two LEDs and a four-point grounding system.

Key Features of the HUBBELL 15A Duplex Receptacle:

• Amperage/Voltage: Rated for 15 A at 125 VAC


• NEMA Configuration: 5-15R (2-pole, 3-wire)


• Wiring Method: Back and side wired screw terminals; accepts #14#10 AWG copper wire


• Material: Impact-resistant polycarbonate housing; nickel-plated brass contacts


• Grounding: Four-point grounding system


• Illumination: Entire face illuminated by two LEDs for visibility


• Operating Temperature Range: -40°C to +75°C (without impact)


• Dielectric Strength: Withstands minimum of 2,000V


• Certifications/Standards: CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6; UL Listed to UL498 File E2186
