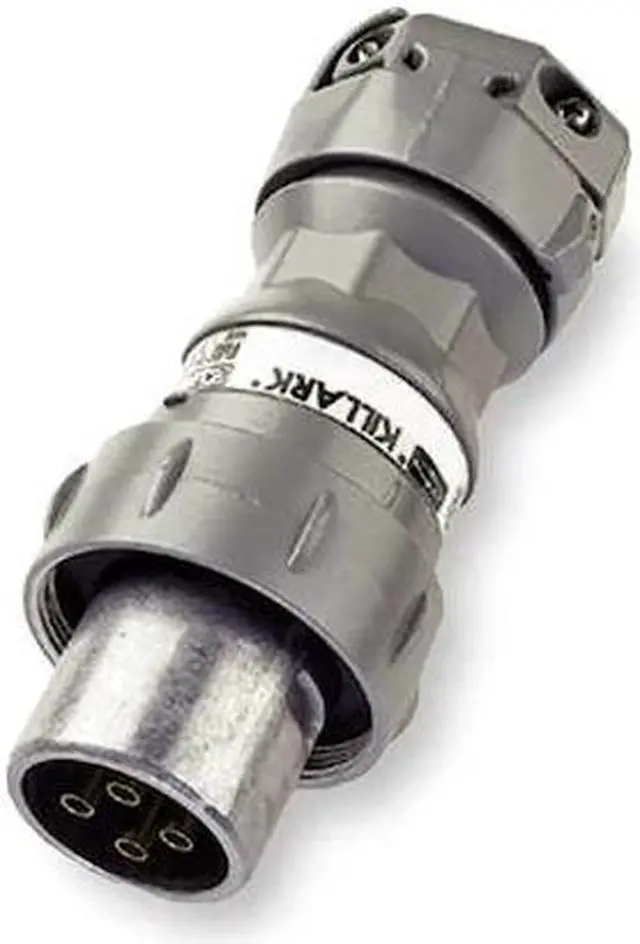

HUBBELL KILLARK VP3475 Pin & Slve Plug, 30A, 4P, 4W, 600VAC/250VDC

The HUBBELL Pin & Sleeve Plug, 30A, 4P, 4W is an electrical connector rated for industrial environments. This plug features an octagonal body style for a secure grip during connection and disconnection. It is rated for up to 30 amps and supports both 600V AC and 250V DC applications with four poles and four wires. The unit is constructed from copper-free aluminum with a baked powder epoxy/polyester finish, with a finish intended for use in wet, cold, hazardous, corrosive, or marine locations.

Key Features of the HUBBELL Pin & Sleeve Plug:

• Amperage/Voltage: Rated for 30 A at 600V AC / 250V DC


• Poles/Wires: Four poles and four wires (grounded)


• NEMA Enclosure Rating: Type 4X when used with VersaMate receptacle and locking ring tightened


• Hazardous Location Specification: Suitable for Class I, Divisions 1 & 2; Groups A-D


• Body Design: Octagonal shape facilitates grip during handling


• Cable Compatibility: Accepts wire sizes from #10 AWG to #6 AWG; suitable for Type P marine cable


• Wire Connection Type: Screw terminals with gripper ribs designed to clamp conductors


• Material/Finish: Copper-free aluminum housing with electrostatically applied epoxy powder coating


• Straight Connection Orientation; shrouded design (Style I)


• Chemical Resistance/Frequency Range: Rated for use in corrosive areas; frequency rating of 50-400 Hz


• Standards Compliance: CSA Certified LR111846; UL E10757 listed
