Surface Dock Triple Displays, 11-in-1 Surface Docking Station with HDMI+VGA+Ethernet for Microsoft Surface Pro 10/9/8/X/7/6/5/4/3, Surface Laptop 5/4/3/2/1, Surface Laptop Go 3/2/1, Surface Book 3/2/1

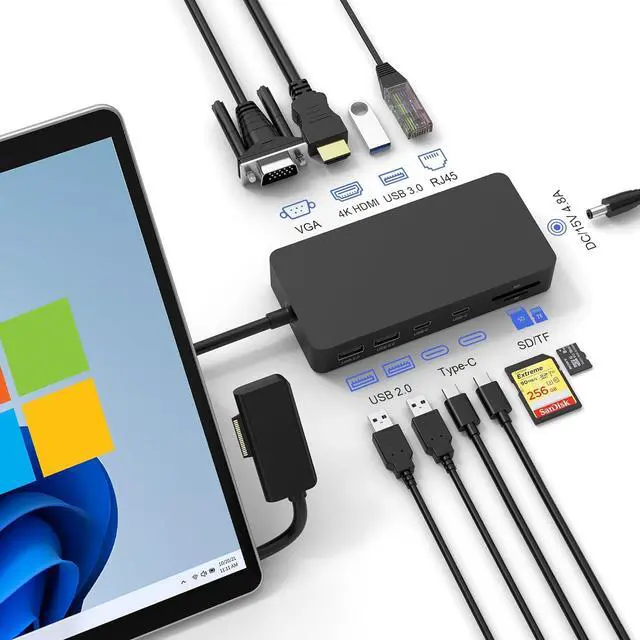

- 11-IN-1 MICROSOFT SURFACE DOCK: Plug and play. Equipped with Surface Connection technology, simply plug in the Surface magnetic connect cable to charge your device and access external monitors, a keyboard, mouse, and more. This Microsoft Surface docking station with 4K@30Hz HDMI port, 1080P@60Hz VGA port, 100Mbps RJ45 port, 2x Type-C 5Gbps data port, 3x USB A Ports, SD/TF Micro SD card slot and DC Power Port.
- ULTRA HD 4K OUTPUT & TRIPLE DISPLAYS: This Surface docking station only Windows System support MST and SST (Mirror & Extend Mode). Surface Triple Displays (Surface+HDMI+VAG) boost your efficiency 3 times. When only HDMI is connected, HDMI video output supports up to 4K/60HZ, support for mirroring, expanding modes. Note: 1.All resolution will be 1080P@60HZ if VGA is connected. 2.HDMI displays the SAME content as VGA.

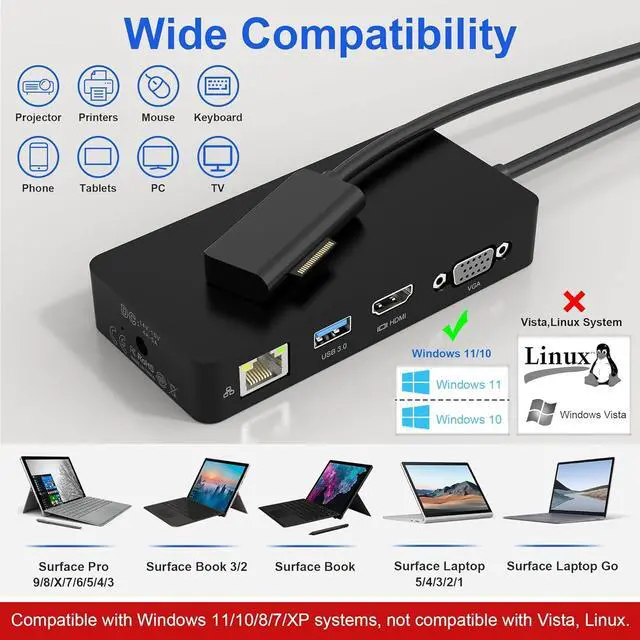

- COMPATIBILITY: Compatible with Microsoft Surface Pro 10/9/8/X/7/6/5/4/2017, Microsoft Surface Laptop 5/4/3/2/1, Microsoft Surface Laptop Go 3/2/1, Microsoft
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Streamline the way you work and connect. New Surface Dock 11-in-1 instantly transforms your Surface into a desktop PC with all the next-gen ports you need. Simply plug in the Surface Connect cable to charge your device and access external monitors, a keyboard, mouse, Etherent and more. Surface Dock was built to maximize efficiency.
What You Will Get
1*Surface Docking Station
1*Power Adapter and Power Cord
1*User Manual
Size:
Surface Dock: 4.96 x 2.36 x 0.87 inches
AC Power Cord: 4 FT

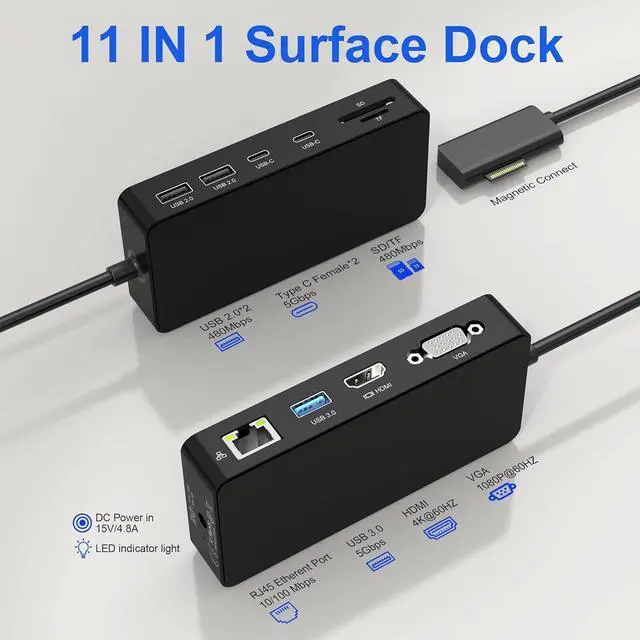

1 * 4K HDMI Port (3840 x 2160@30Hz)
1 * 1080P VGA port (1920 x 1080@60Hz

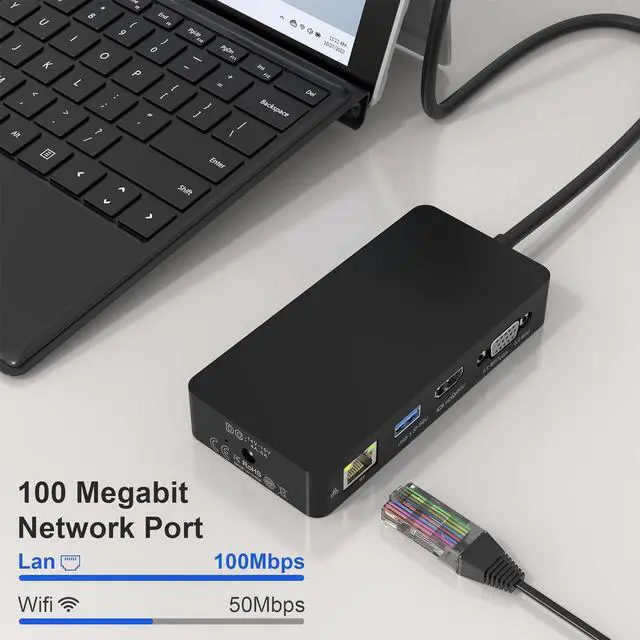

1 * RJ45 Ethernet LAN Port (100Mb/s)

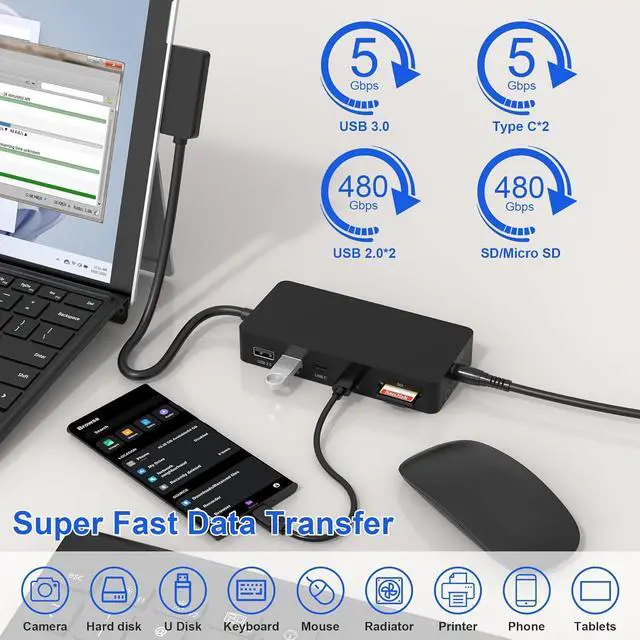

2 * Type-C Ports (5Gbps)
1 * USB A 3.0 Port (5Gbps)
2 * USB A 2.0 Ports (480Mbps)
1 * SD Card Slot (480Mbps)
1 * TF Card Slot (480Mbps)

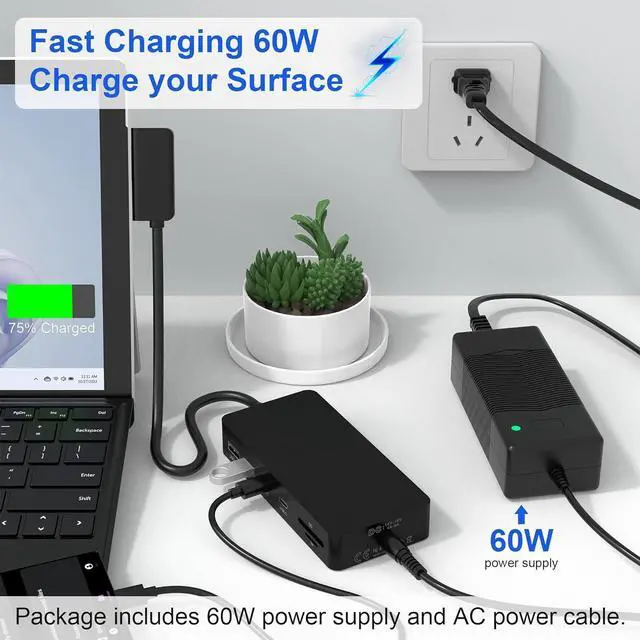

1 * DC Power Port (60W)

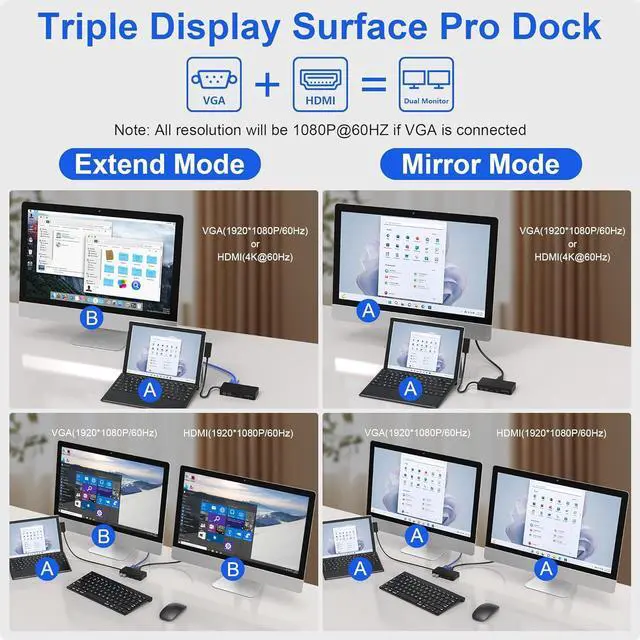

Support Mirror Mode &Extend Mode
When using only one HDMI connection, the output resolution is 4K@ 60Hz.
When using HDMI +VGA connections, the output resolution is to 1080P@ 60Hz.
HDMI+VGA (extended mode), supports two 1080P extensions. HDMI displays the same content as VGA.
Please set the copy and expand options of the monitor correctly and make sure that only surface is selected (you can also press Win+P shortcut key).
Temperature Protection
Short Circuit Protection
Over Power Protection
Over-Current Protection
Over-Voltage Protection
Our product not support use with surface protective case. If you use a protective case, it may cause magnetic connector to not be inserted.
Please check if the magnetic connector is connected correctly, we do not support reverse insertion. Please check the product image for the correct connection. If the magnetic connector is inserted incorrectly, it only have charging function, the other peripherals connected to the Surface pro docking station cannot be recognized.
When you connect the magnetic connector to your surface, please check is the indicator light on the magnetic connector light up, If the indicator light not light up, it will can't be use normally.
