Yottamaster 40Gbps USB C Docking Station Compatible with Thunderbolt 3, 15 in 1 USB C Dock for Dual 4K Display, DisplayPort, 65W PD Charging, S/PDIF, 6 USB, Gigabit Ethernet, SD/TF [DS02]

65W Laptop Charging & 40Gbps Transfer & Multi-functional Port!

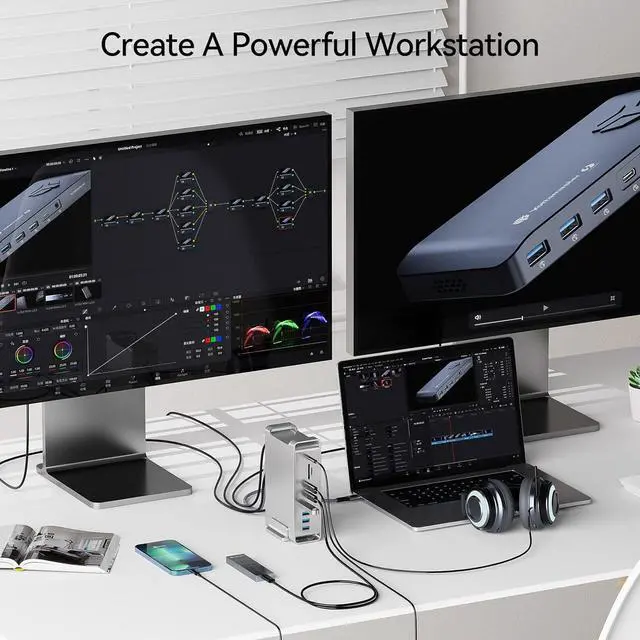

Thunderbolt 3 dock Dual Monitor
Can extend dual 4k@60Hz displays via the Thunderbolt 3 port (OUT) and DisplayPort.
Can extend single display[8K@30Hz (7680x4320) / 5K@60Hz (5120x2880) UHD] via the Thunderbolt 3 port (OUT) or DisplayPort.

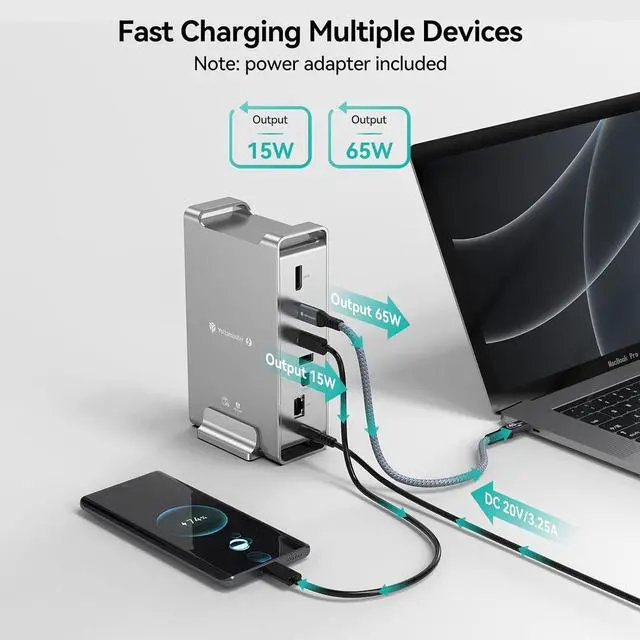

Fast Charging Multi Devices
The Thunderbolt 3 port (IN) can charge a Tablet or Ultrabook at up to 65W.
The Thunderbolt 3 port (OUT) supports 15W charging, so you can charge your other devices such as your smartphone or tablet.

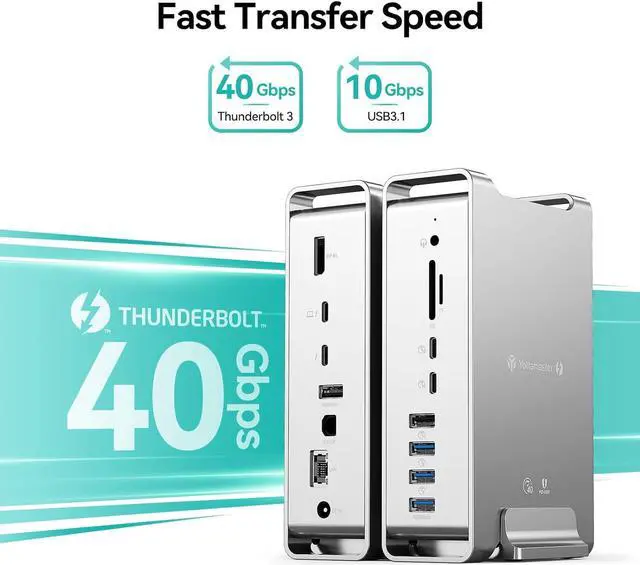

Thunderbolt 3 & USB 3.2 GEN2 - Ultra Fast
The Thunderbolt 3 dock dual monitor supports 40Gbps data transfer.
It also equipped with USB 3.1 Gen2 Type-C x 2. USB 3.1 Gen2 Type-A x 1, USB 3.1 Gen1 Type-A x 2, to easily connect high-performance USB-A/USB-C devices such as ultra-fast NVMe SSDs.
2 USB2.0 Type-A port to connect your legacy peripherals.
Perfect Dock for Your Mac
An USB C docking station that made of high quality aluminum alloy - will be perfectly compatible with Mac Devices.

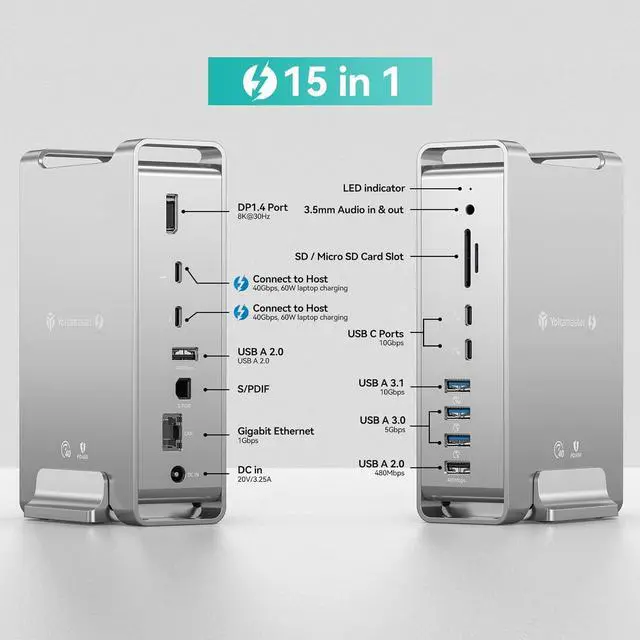

1 X DP port DP1.4 4K @ 60Hz
1 X Thunderbolt 3 port (IN) 40Gbps, PD60W charging(For connecting to the host)
1 X Thunderbolt 3 port (OUT) 40Gbps, PD15W charging
1 X S/PDIF Experience amazing sound which do not receive any RFI or EMI signal disturbances.
2 X USB-A USB2.0 480Mbps
2 X USB-C USB3.2 10Gbps
1 X Gigabit Ethernet 10/100/1000 BASE-TX Auto MDI / MDI-X, 1000Mbps
1 X DC IN 20V 3.25A power input
SD & TF slot SD2.0
1 X USB-A USB3.1 Gen1 5Gbps
1 X USB-A USB3.1 Gen1 10Gbps
1 X Audio in & out 3.5mm stereo audio output & MIC input
Important NOTE:
When DP to HDMI cable/adapter is used for DP port, the DP to HDMI cable/adapter must support 4K@60Hz. If the DP to HDMI cable/adapter only supports 4K@30Hz, the external display will be black.
Please remember to connect the power adapter to power the docking station first, and then connect other devices and monitors to the thunderbolt 3 dock.
The SD & TF slot is located at the top front of the usb c docking station, making it convenient to read and write the SD & TF card removed from the camera.
Note: SD and TF slots cannot be read and written at the same time.
You can enjoy high-speed Internet even at hotels and accommodations that have only a wired LAN environment.
The 3.5mm audio jack features both stereo and microphone functionality. Can connect earphones, headphone with microphone, speakers, etc.

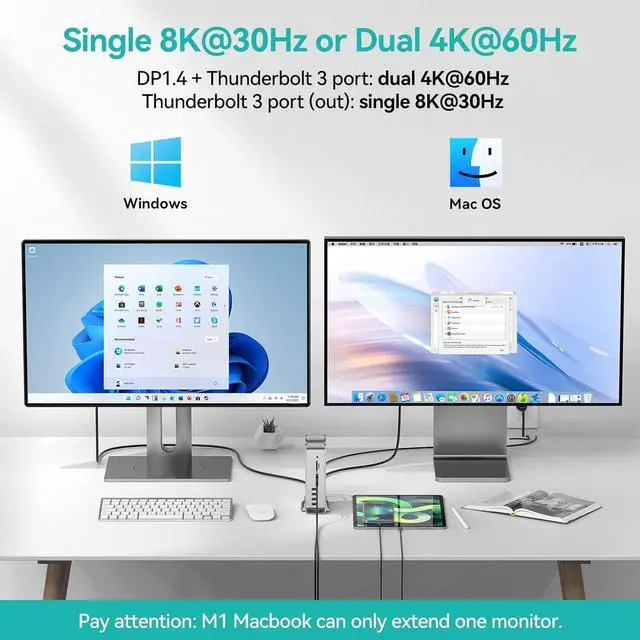

Media Display Information
Can extend single display[8K@30Hz (7680x4320) / 5K@60Hz (5120x2880) UHD] via the Thunderbolt 3 port (OUT) or DisplayPort.
Can extend dual 4k@60Hz displays via the Thunderbolt 3 port (OUT) and DisplayPort.
Host Requirements
Make sure that your laptop supports DisplayPort 1.4.
Make sure that the device you are using supports USB Power Delivery.
This product does not support simultaneous connection to two monitors of Macbook Air / Pro 2020 equipped with M1 chip.
Supported Operating Systems
Windows 10 and later
Mac os
Product Information
Size: 100 * 48 * 168mm, Weight: 800g, Color: Silver, Material: Aluminum a
