Our story begins with a desire to make your journeys not just well-lit, but also heartwarming. Obeaming was founded on the belief that lighting should create an atmosphere of warmth and coziness, transforming your RV or yacht into a home away from home.
Technical Specifications

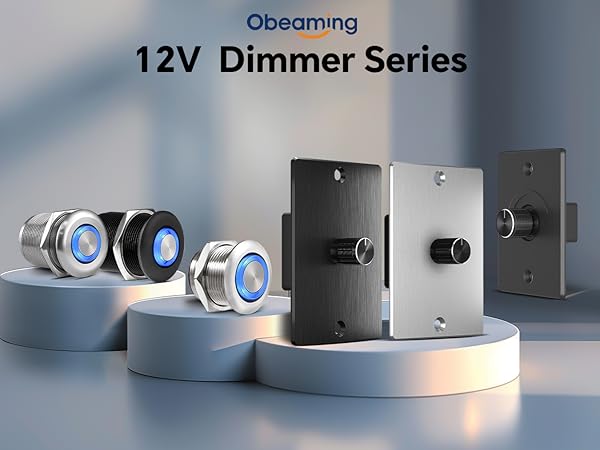

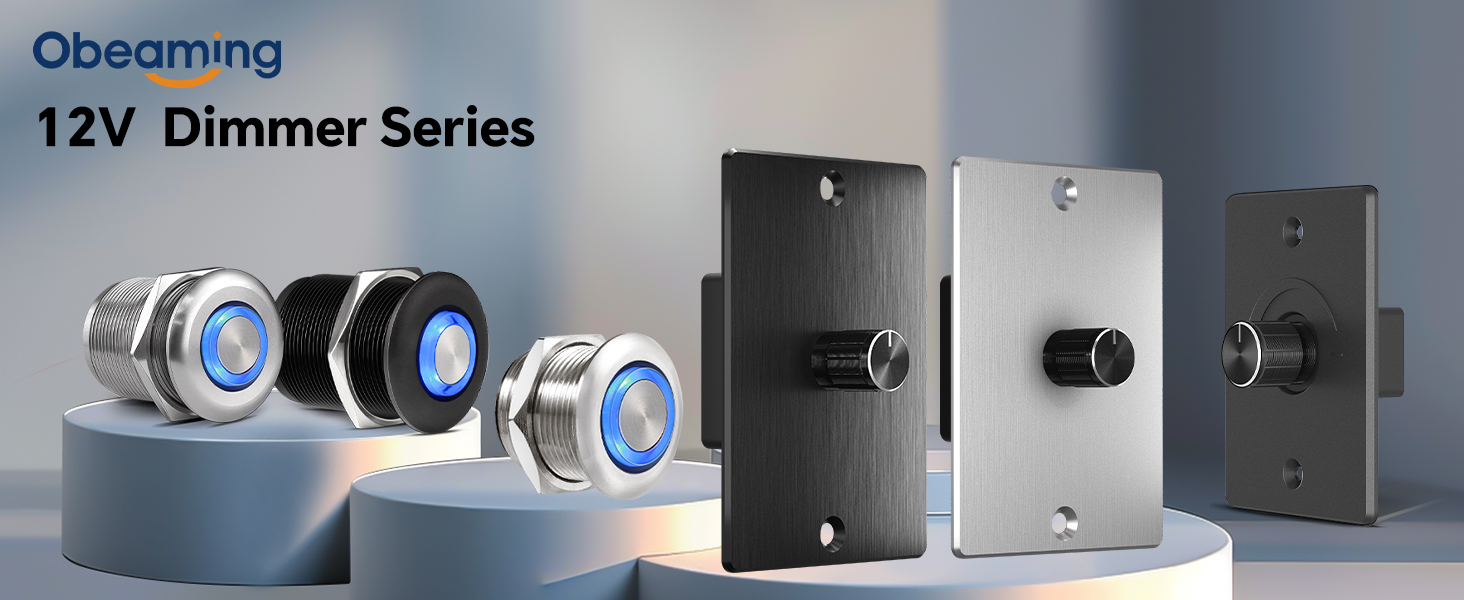

Obeaming provide different styles 12V dimmer switch
 Aluminum 12V Dimmer 6A |  12V Dimmer 5A |  12V LS Dimmer 15A Black |  12V HS Rotary Dimmer 4A |  12V LS Rotary Dimmer 6A | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Voltage | DC 12V-24V | DC 12V-24V | DC 12V-24V | DC 12V-24V | DC 12V-24V |
Materials | All-Aluminum | ABS + Copper + Aluminum panel | ABS + Copper + Aluminum panel | ABS + Copper | ABS + Copper |
Installation | Recessed Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
Rated Current | 6A | 5A | 15A | 4A | 6A |
Size | 1"(L) x 7/8"(W) x 1"(H) | 13/16”(L)x15/16" (W)x1-1/2”(H) | 2-1/2"(L)x1-5/8”(W)x3-1/2" (H) | 13/16”(L)x15/16" (W)x1-1/2”(H) | 13/16”(L)x15/16" (W)x1-1/2”(H) |
Wattage | 72W | 60W | 180W | 50W | 72W |
Switch Type | Push Switch | Rotary Knob | Push Switch + Rotary Knob | Rotary Knob | Rotary Knob |

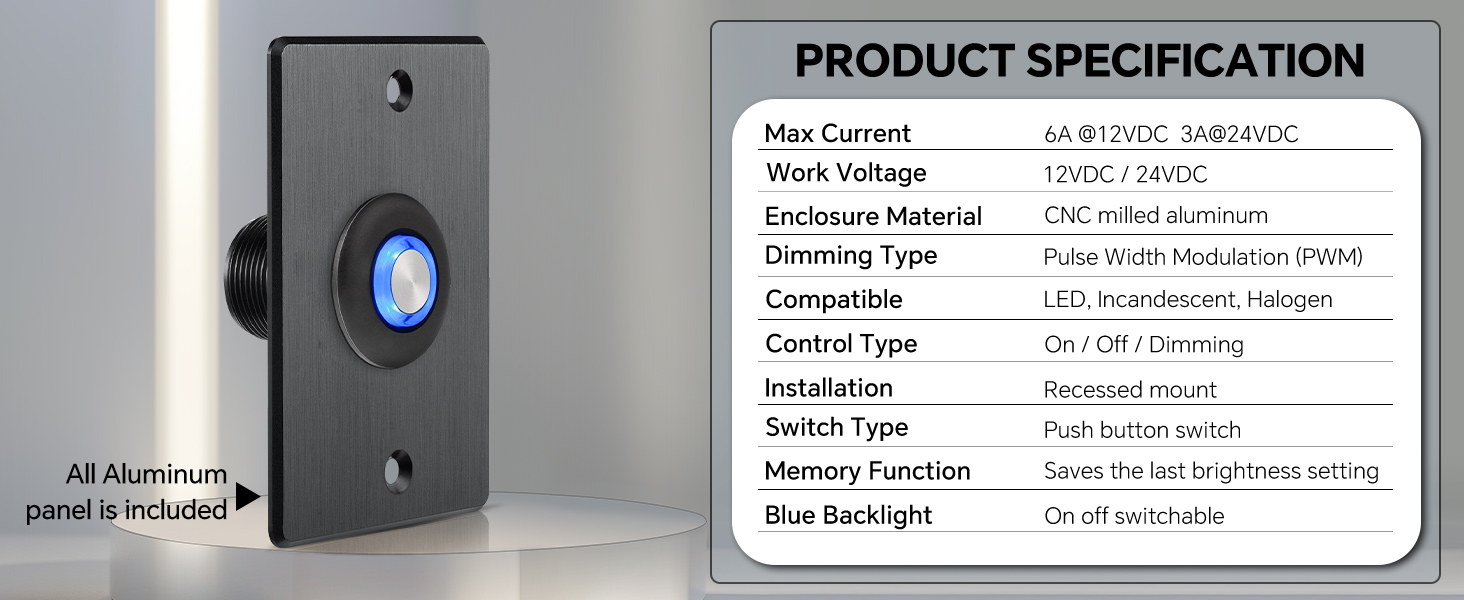

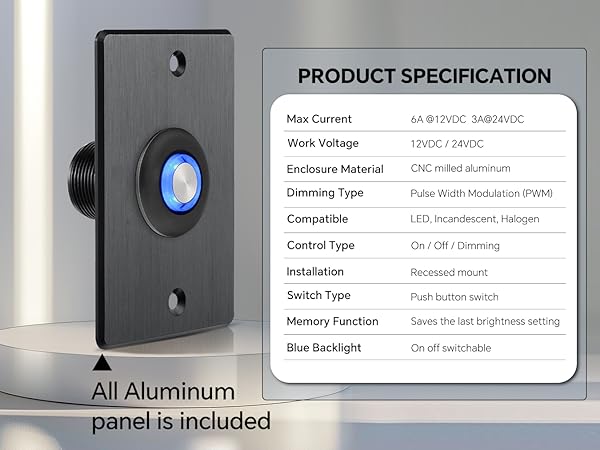

Technical Specifications

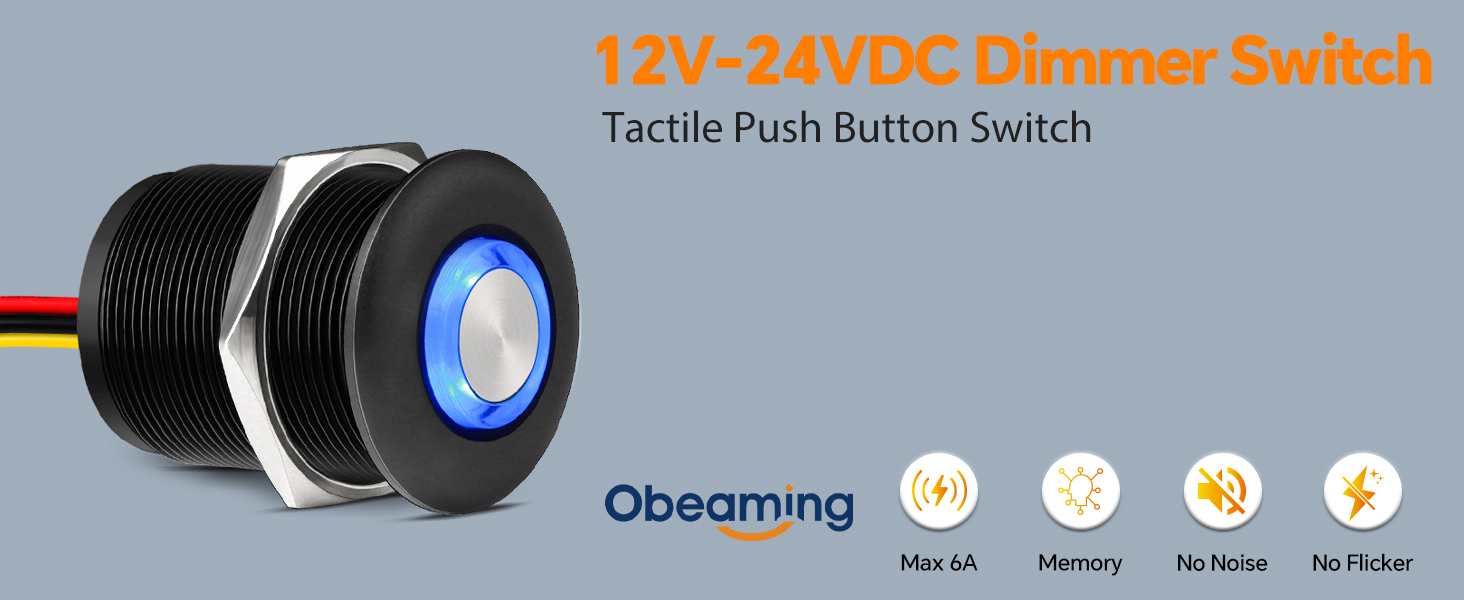

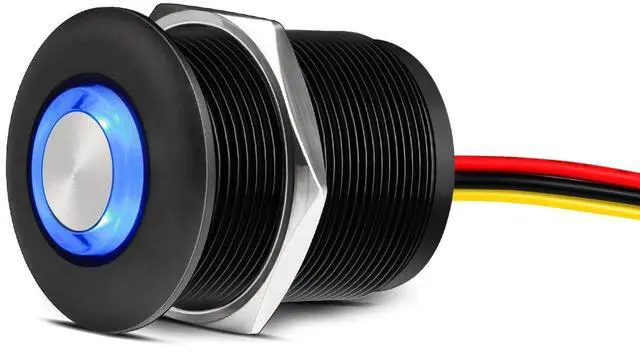

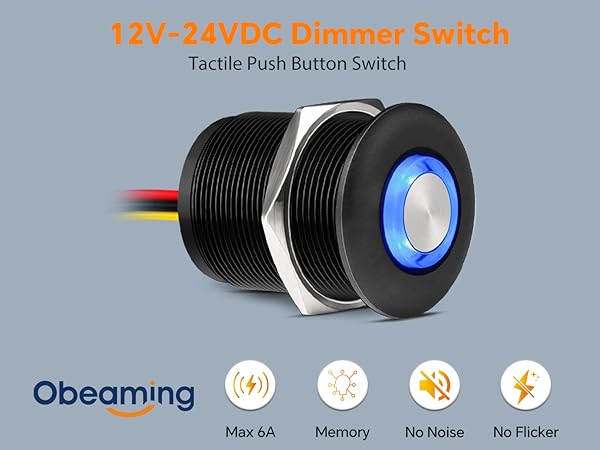

| Brand | Obeaming |
|---|---|
| Working Voltage | DC12V-24V |
| Max Rated Current | 6 Amps at 12V system | 3 Amps at 24V system |
| Max Wattage | 72W |

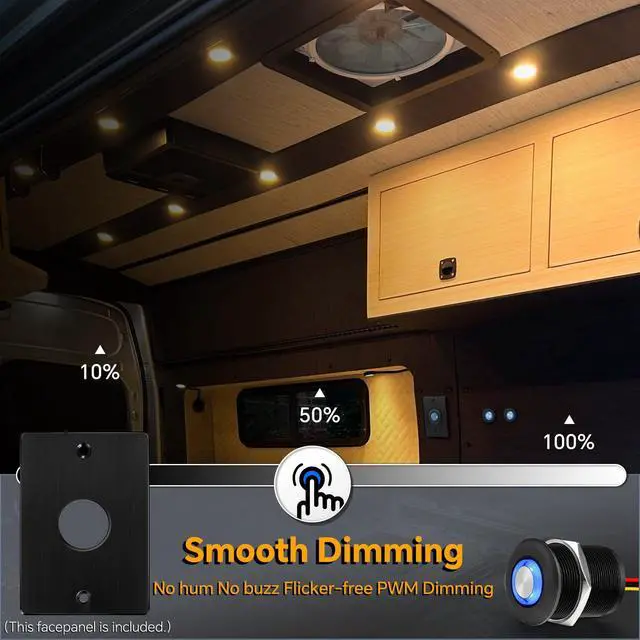

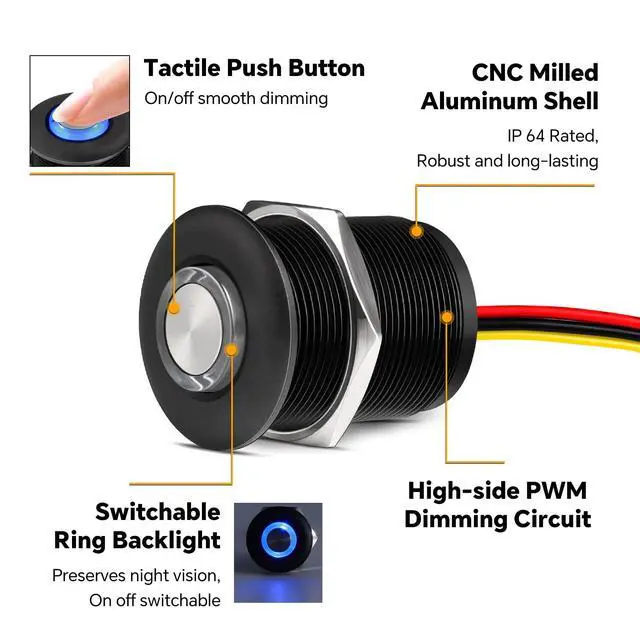

| Dimmer Type | Pulse Width Modulation (PWM) |

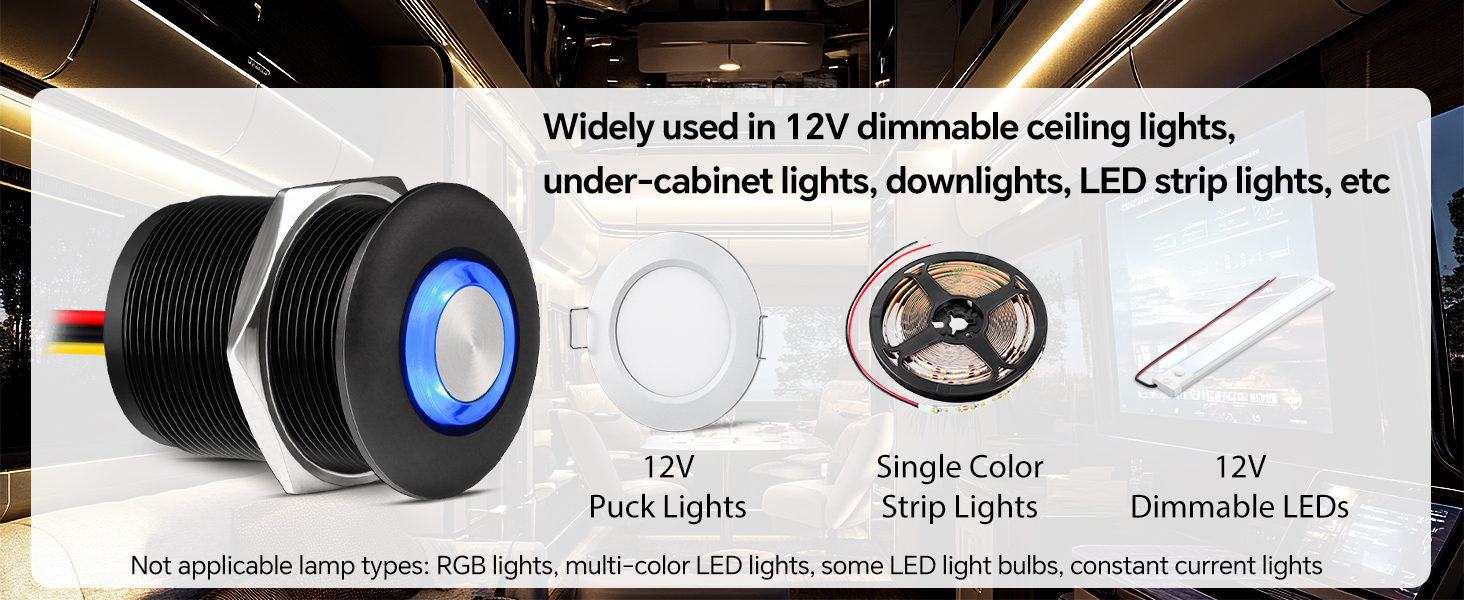

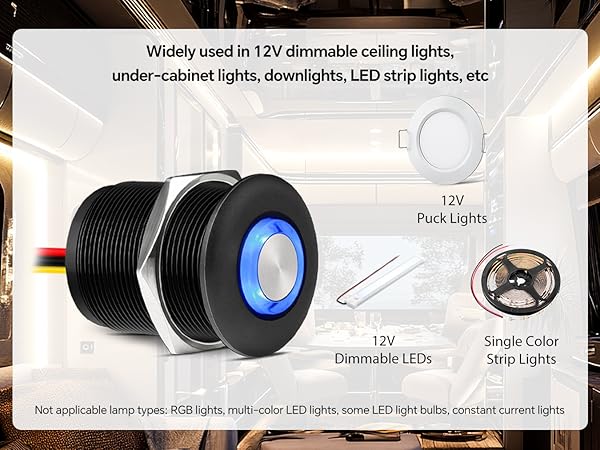

| Compatible | LED lights, incandescent, halogen |

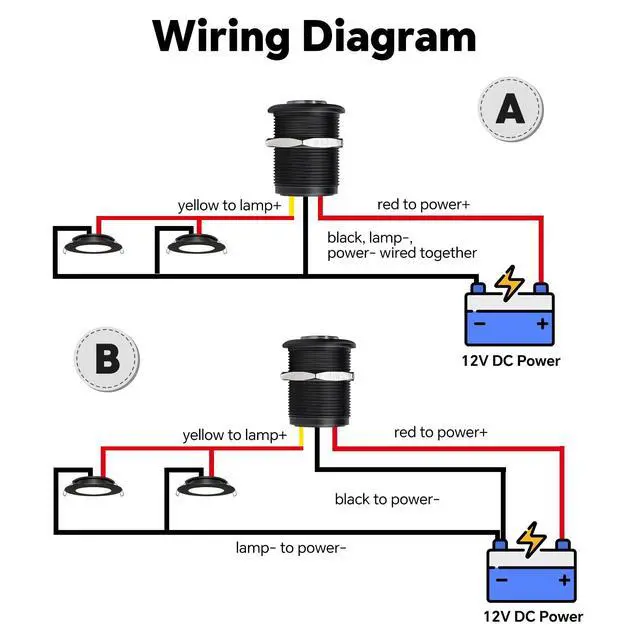

| Wiring | 4-wires (need wiring power negative and light fixture negative ) |

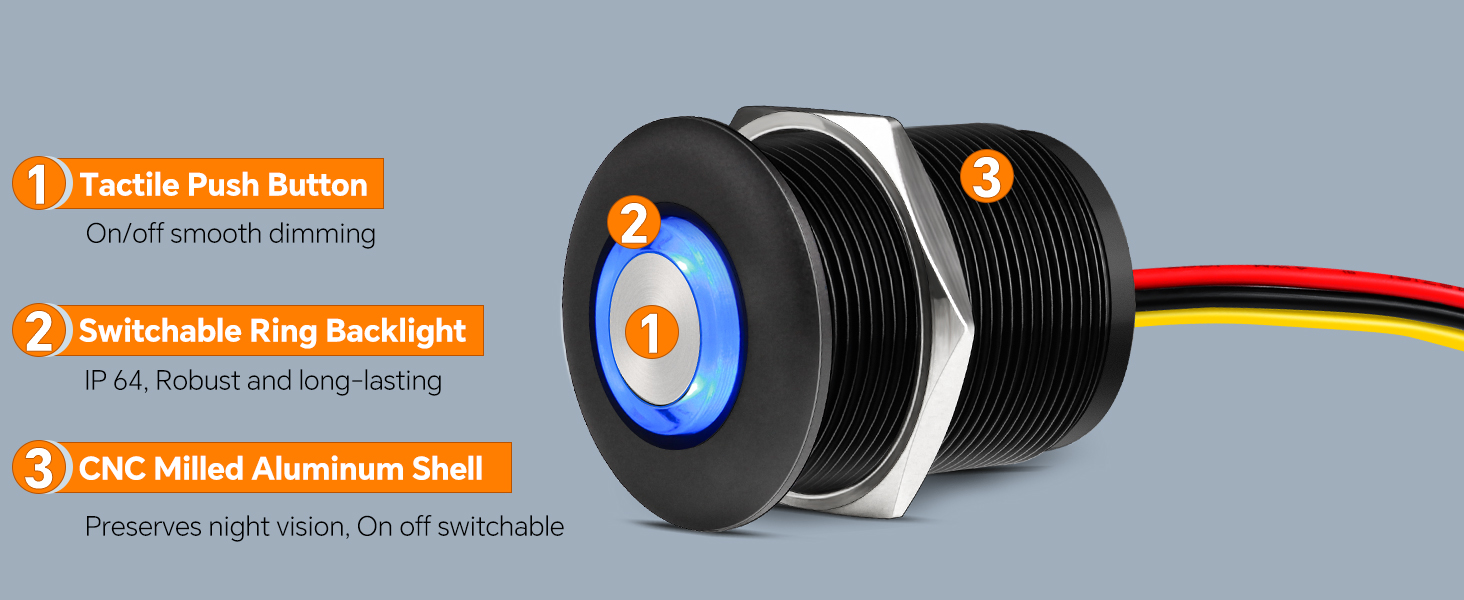

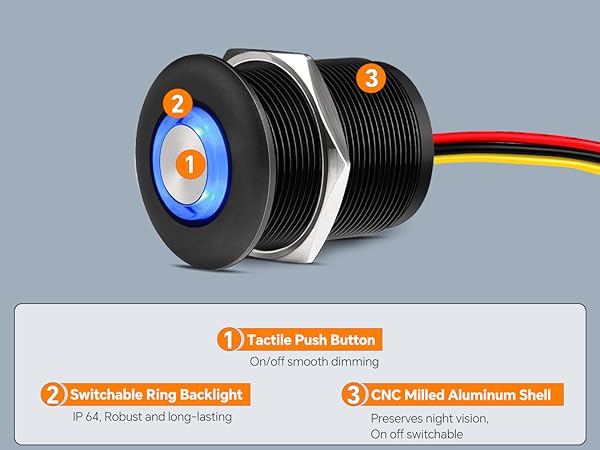

| Switch Type | Push Button Switch |

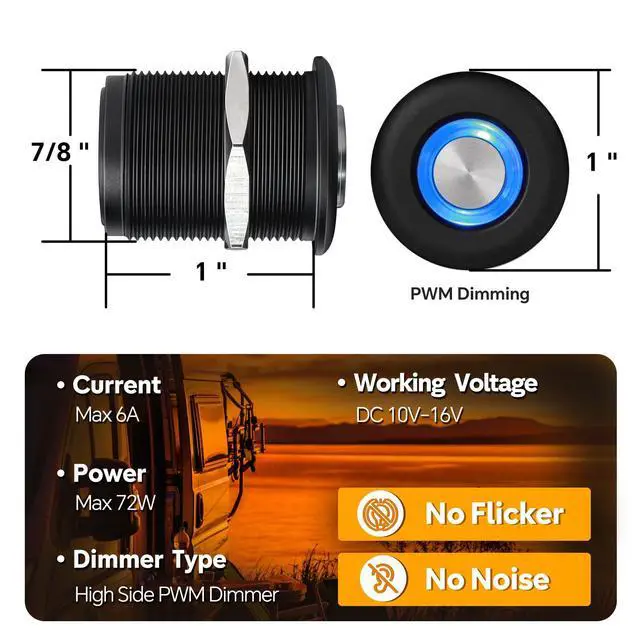

| Size | 1"(L) x 7/8"(W) x 1"(H) |
| Memory Function | Saves the last brightness setting |
| Blue Backlight | On off switchable |

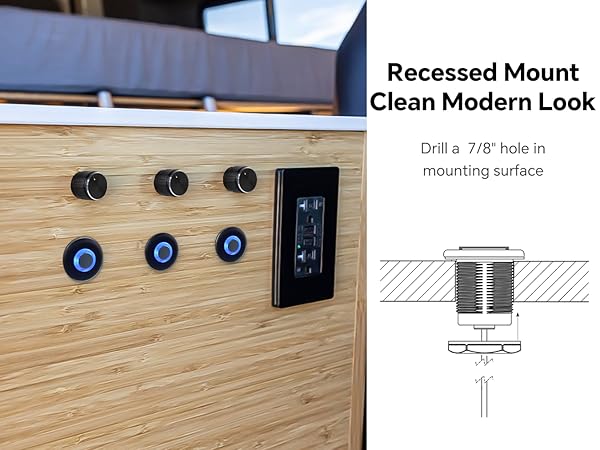

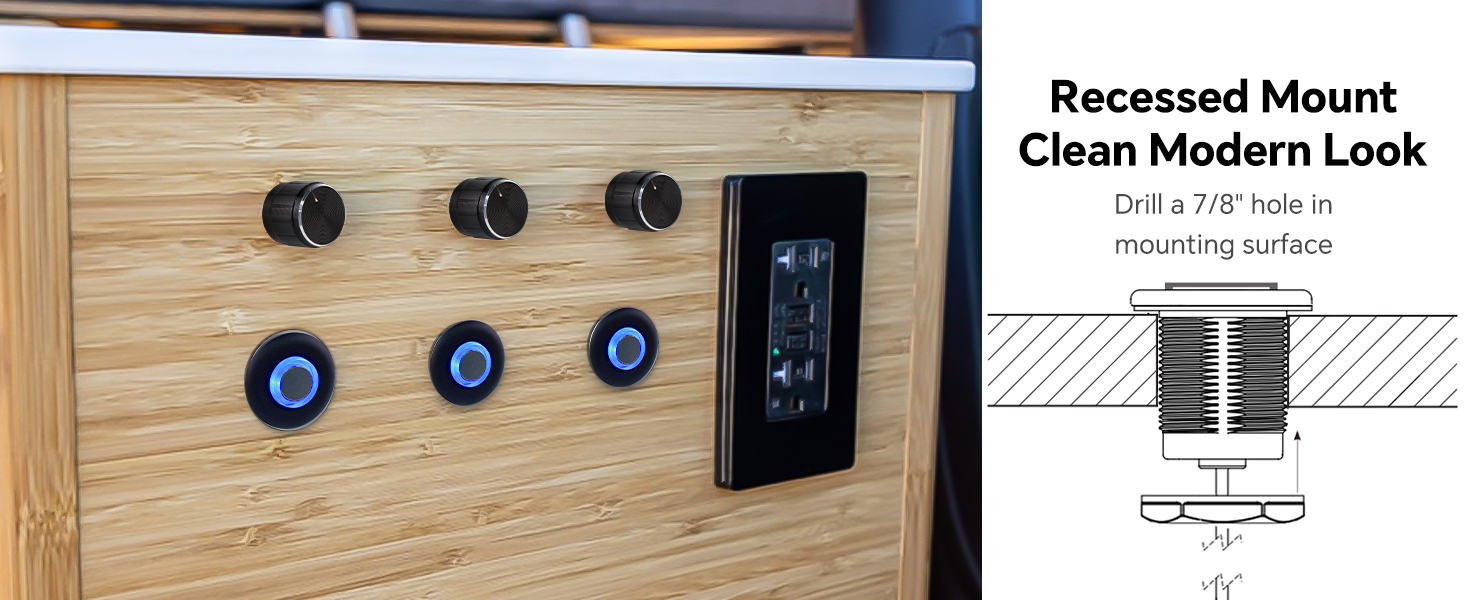

| Installation | Recessed Mount |
Obeaming provide different styles 12V dimmer switch
Aluminum 12V Dimmer 6A |  12V Dimmer 5A | 12V LS Dimmer 15A Black | 12V HS Rotary Dimmer 4A | 12V LS Rotary Dimmer 6A |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| Voltage | ||||
| DC 12V-24V | DC 12V-24V | DC 12V-24V | DC 12V-24V | DC 12V-24V |
| Materials | ||||
| All-Aluminum | ABS + Copper + Aluminum panel | ABS + Copper + Aluminum panel | ABS + Copper | ABS + Copper |
| Installation | ||||
| Recessed Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Rated Current | ||||
| 6A | 5A | 15A | 4A | 6A |
| Size | ||||
| 1"(L) x 7/8"(W) x 1"(H) | 13/16”(L)x15/16" (W)x1-1/2”(H) | 2-1/2"(L)x1-5/8”(W)x3-1/2" (H) | 13/16”(L)x15/16" (W)x1-1/2”(H) | 13/16”(L)x15/16" (W)x1-1/2”(H) |
| Wattage | ||||
| 72W | 60W | 180W | 50W | 72W |
| Switch Type | ||||
| Push Switch | Rotary Knob | Push Switch + Rotary Knob | Rotary Knob | Rotary Knob |
