10MM 4-Pin Led Strip Connectors Kits - DIY Project Essential
Before purchase, please confirm that your led strip lights are 4-pin with 10mm width, if you are not sure , please contact JACKYLED Online Service with pictures or check with strip light supplier to get the width & pins

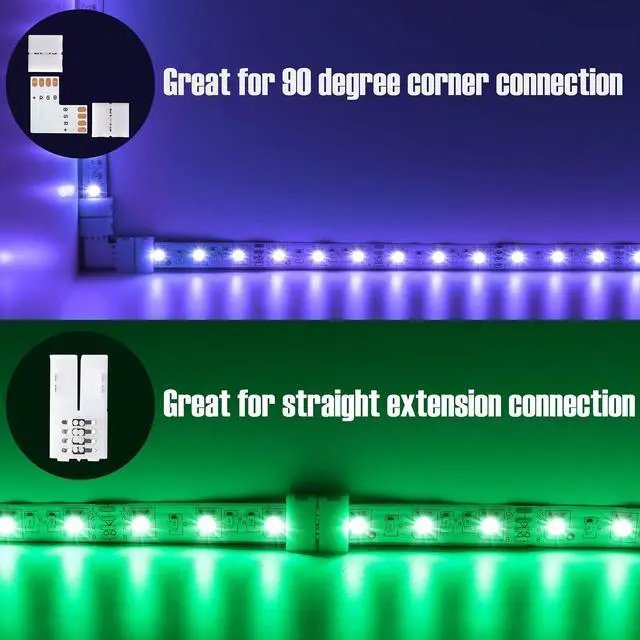

Two ways to connect
Why choose JACKYLED LED Connectors?
The connector set for RGB LED light strips comes with easy-clasp connector clips and 90 degrees L shape PCB boards. You can connect with light strips directly without any tools or welding operations. The unwired design ensures a gapless layout when you need to turn your LED strips around corners. Compatible with both ordinary and waterproof 4-pin light strips.

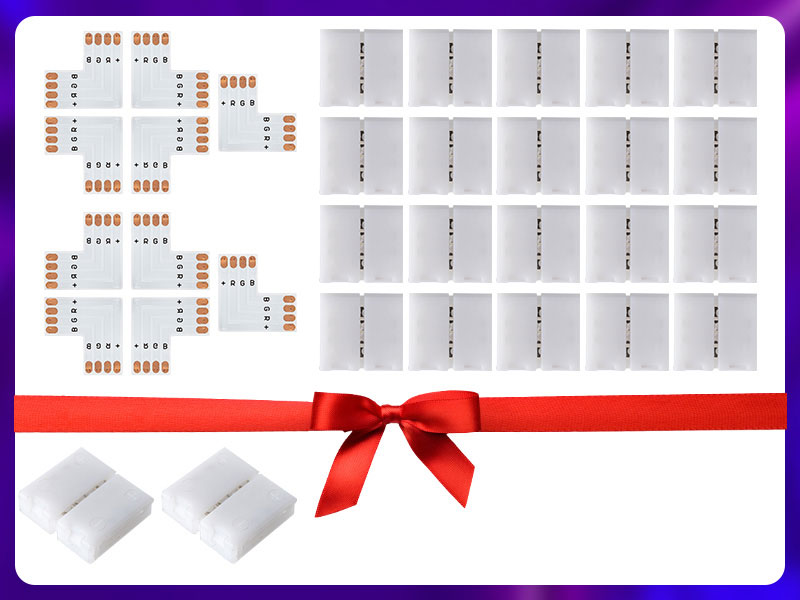

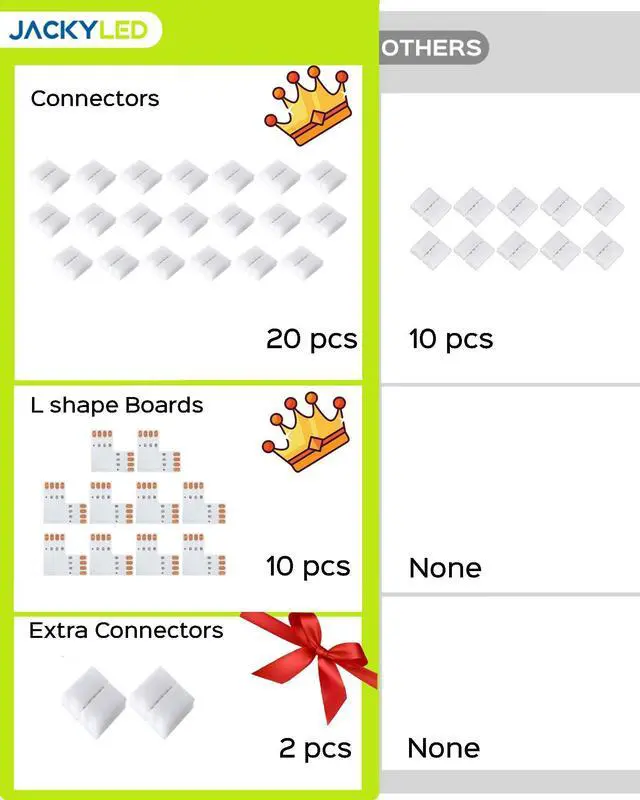

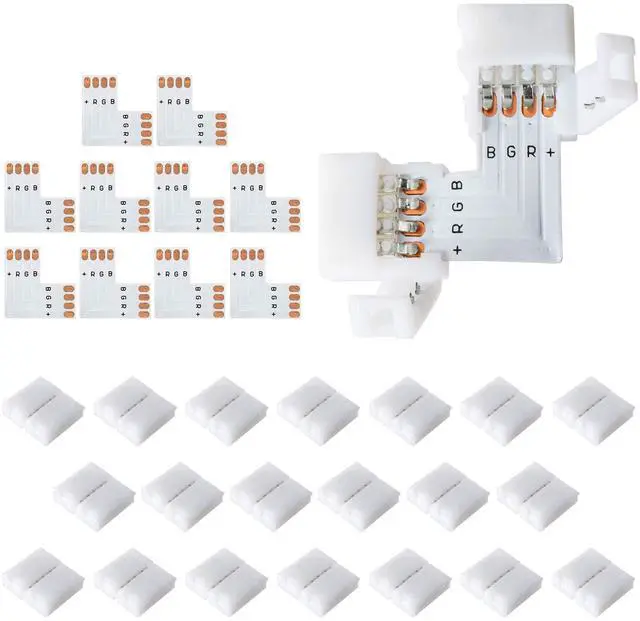

Package Includes:

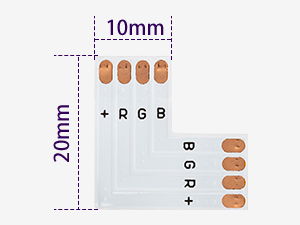

10 pcs L shape RGB sheets --For corner connection
22 pcs 4-pin connector clips --For direct connection with led strips
10pcs L shape RGB sheets
Thoughtful and considerate to ensure the smooth progress of your DIY project
ONLY compitiable with 10 mm 4 Pin Strip Lights, Not 8mm, 2pin, 3 pin

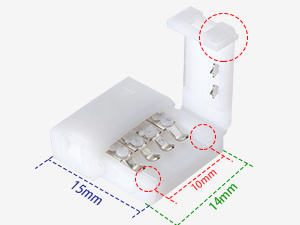

22 pcs 4-pin connector clips
Cost-effectiveness price with enough quantity to clip with long LED strips
ONLY compitiable with 10 mm 4 Pin Strip Lights, Not 8mm, 2pin, 3 pin

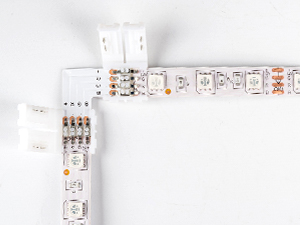

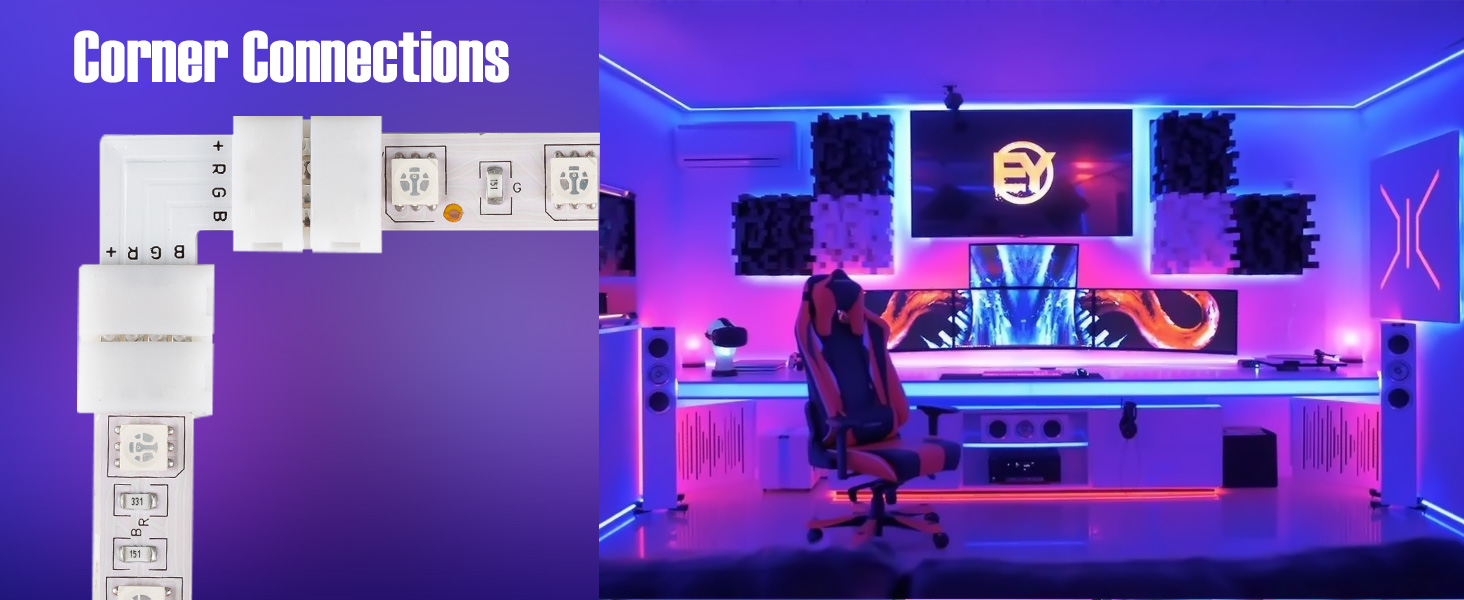

Corner Connections
2 clips with 1 L shape sheet, perfect combination to connect with cornner area of wall, bed, shelf, gaming table etc

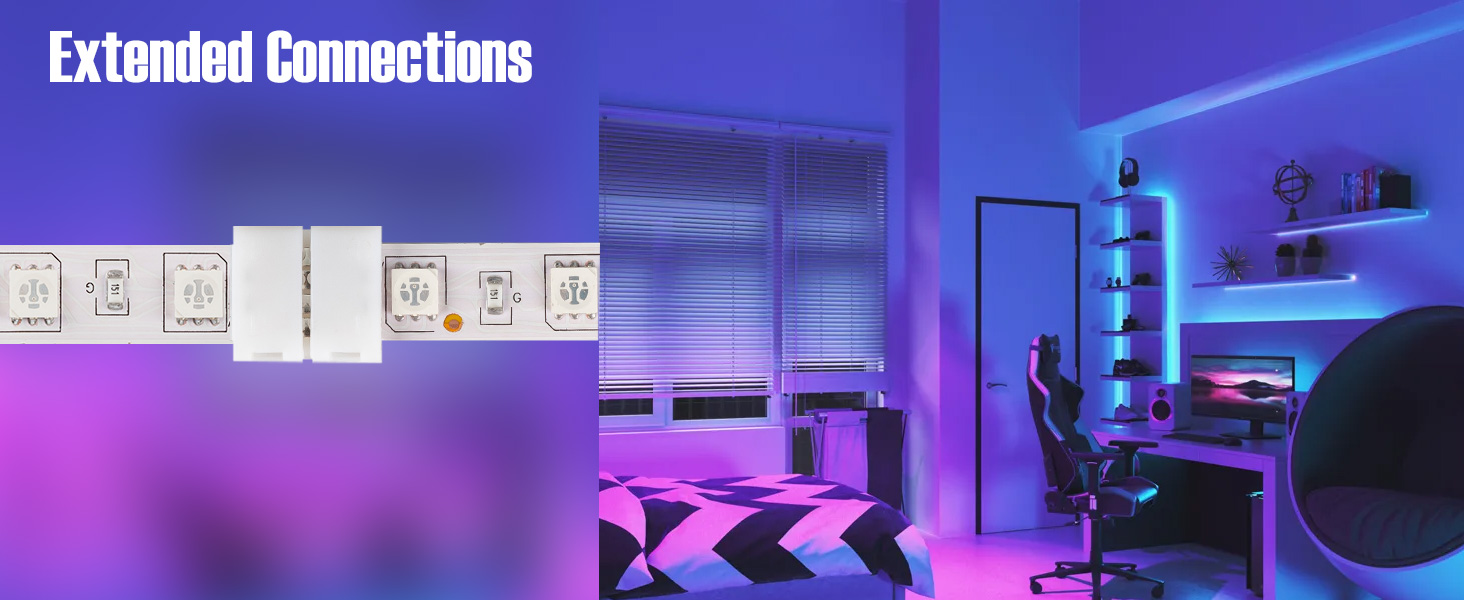

Extended Connections

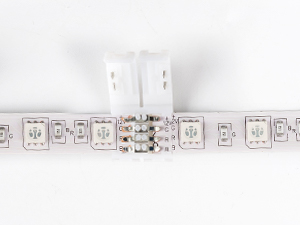

2 clips to connect LED light strips directly, perfect to create charming atmosphere

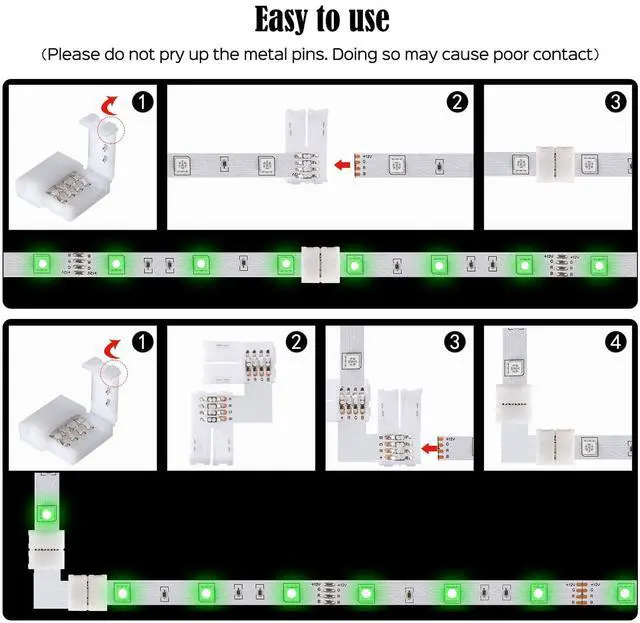

Installation Instructions:
1.Open the clip on the side
2.Slid the 10mm 4pin LED light strip inside the clip underneath the contact prongs, if not 10mm 4 pin, it can't insert sucessfully
3.Make sure the side of the strip aligns with the "+ -" polarity, Then, close the wire clip
The connectors mark +RGB, while my light strips are BRG+. Are they gonna work?
Yes, it doesn't matter in what order the connectors are labelled, because the connection matches light-to-light, not light-to-connector. In this case, to get them to work just make sure the BGR+ of the light strip on both sides are aligned.

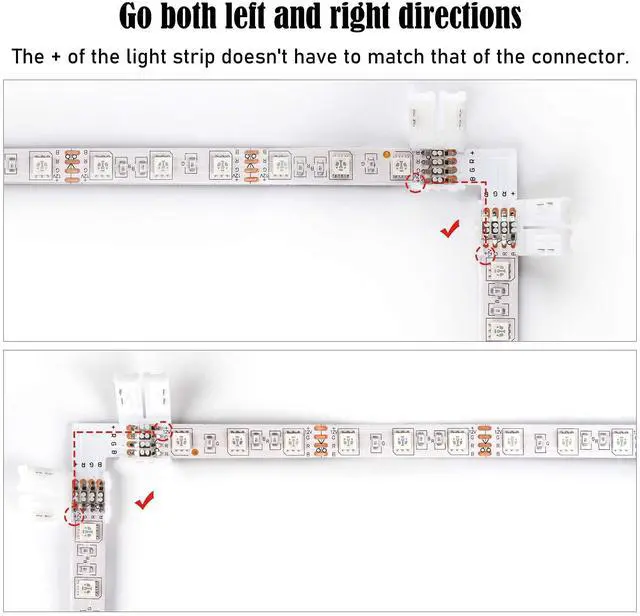

Do the connectors only go one direction (right/left)?
No, they go both left and right angles. If the RGB+ of the connector don't line up with the strip's when turning a certain angle, just disregard the order difference. Just make sure the RGB+ of one strip match the other strip's.

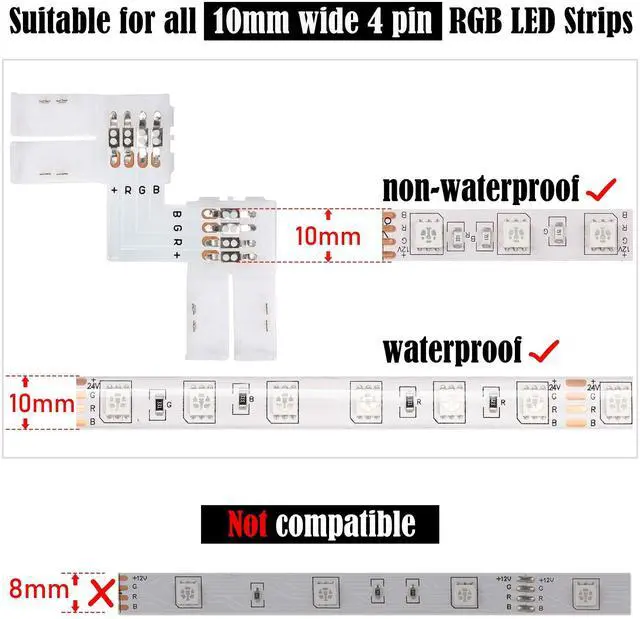

What light strips will work with these connectors?
The connectors only work with 4-pin 10mm (0.39inch) 3528 or 5050 RGB LED light strips. Please notice that 2-pin, 3-pin, 5-pin, 6-pin, or 8mm light strips are NOT compatible.
Will this work with waterproof light strips?
Yes, before connecting, please peel off 1/2 inch of both the silicone coating over the strip and the adhesive at its back around the four copper polarities.
