$1,436.96
Meet Your Seller

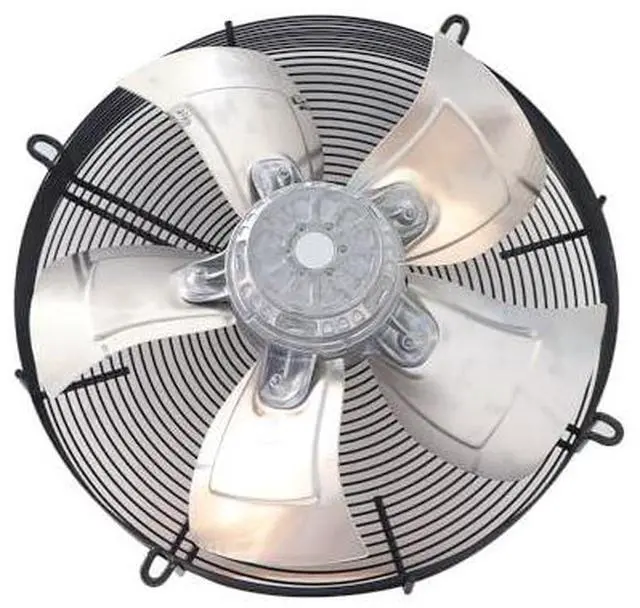

S4D500-AD03-01 Ebm Papst Fan 400/480VAC 0.95/1.86A Axial Cooling Fan Condenser
- Model: S4D500-AD03-01; Brand: Ebm Papst; Type: Axial Fan; Motor: M4D110-GF
- Parameter: Nominal voltage: 400/480VAC; Frequency: 50/60Hz; Speed: 1035/1570RPM(min-1); Power consumption: 550/1220W; Current draw: 0.95/1.86A; Max. back pressure: 84/160Pa; Min. ambient temperature / Max. ambient temperature: -40/ +80; Weight: 13.4kg; Size: 500mm; Motor size: 110; Rotor surface: Cast in aluminum; Terminal box material: PP plastic; Blade material: Sheet aluminum; Guard grille material: Steel, coated with black plastic (RAL 9005); Number of blades: 5; Degree of protection: IP54; Insulation class: F; Motor bearing: Ball bearing
- Condition: Brand new and in perfect package
- Other information: Captain Fan specializes in the sale of ventilation and heat dissipation products and industry control accessories.
- Other application: All units fully tested. Our products are widely used in industries including ventilation, air conditioning, refrigeration, heating, electrical automation, frequency
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: S4D500-AD03-01;
Brand: Ebm Papst;
Type: Axial
Fan;
Motor: M4D110-GF;
Nominal voltage: 400/480VAC;
Frequency: 50/60Hz;

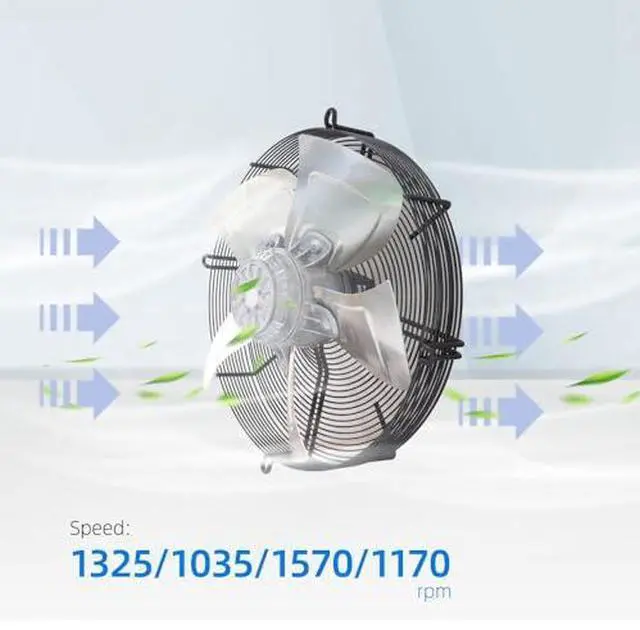

Speed: 1035/1570RPM(min-1);
Power consumption: 550/1220W;
Current draw: 0.95 / 1.86A; Max.
back pressure: 84/160Pa; Min. ambient temperature / Max.
ambient temperature: -40/ +80;
Weight: 13.4 kg;

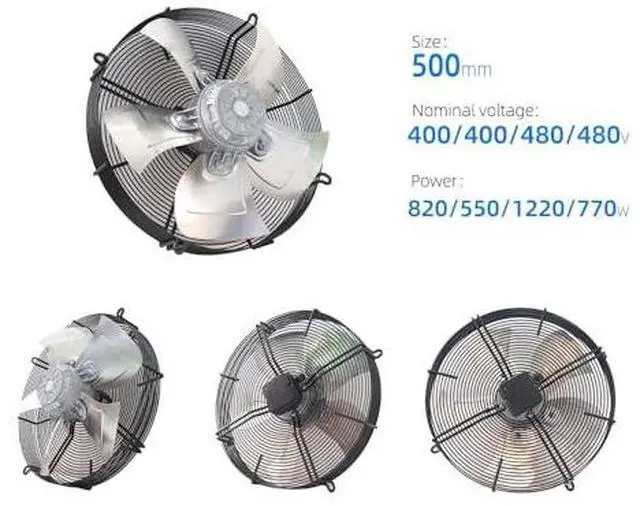

Size: 500mm;
Motor size: 110;

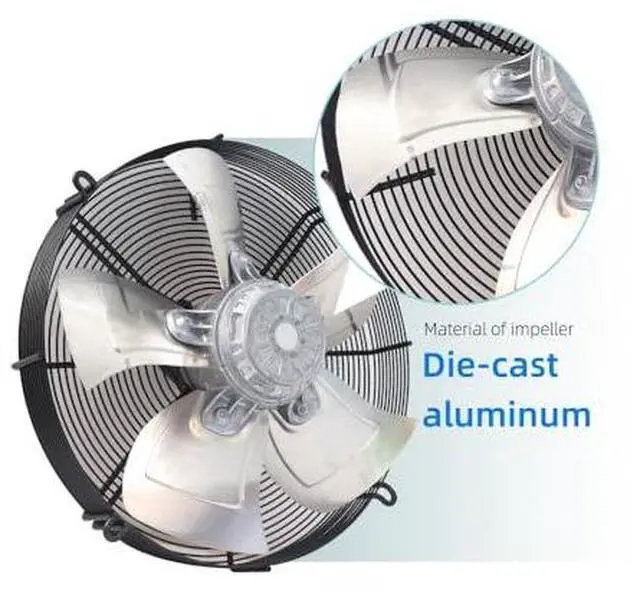

Rotor surface: Cast in aluminum;

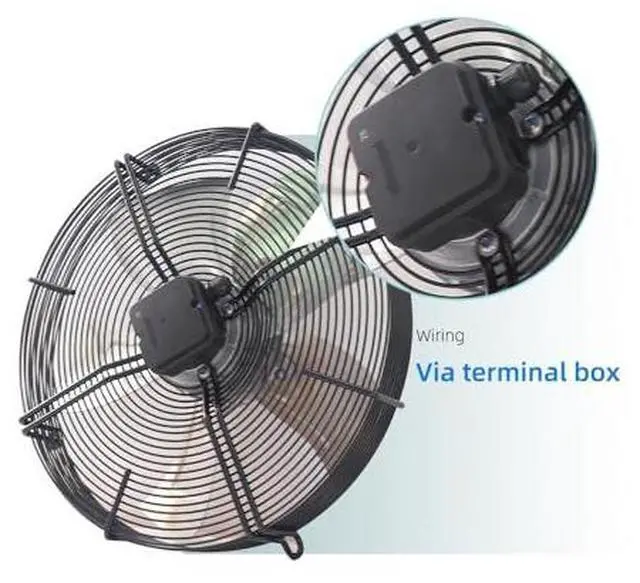

Terminal box material: PP plastic;
Blade material: Sheet aluminum;
Guard grille material: Steel, coated with black plastic (RAL 9005);
Number of blades: 5;
Degree of protection: IP54;
Insulation class: F;
Motor bearing: Ball bearing; Captain Fan specializes in the sale of ventilation and heat dissipation products and industry control accessories. Our products are widely used in industries including ventilation, air conditioning, refrigeration, heating, electrical automation, frequency variator (inverter), rail transit, air purification, new energy, etc. All units fully tested All the products we supply are definitely new, genuine and affordable. Please feel free to contact us for specifications or product images
Brand: Ebm Papst;
Type: Axial
Fan;
Motor: M4D110-GF;
Nominal voltage: 400/480VAC;
Frequency: 50/60Hz;
Speed: 1035/1570RPM(min-1);
Power consumption: 550/1220W;
Current draw: 0.95 / 1.86A; Max.
back pressure: 84/160Pa; Min. ambient temperature / Max.
ambient temperature: -40/ +80;
Weight: 13.4 kg;
Size: 500mm;
Motor size: 110;
Rotor surface: Cast in aluminum;
Terminal box material: PP plastic;
Blade material: Sheet aluminum;
Guard grille material: Steel, coated with black plastic (RAL 9005);
Number of blades: 5;
Degree of protection: IP54;
Insulation class: F;
Motor bearing: Ball bearing; Captain Fan specializes in the sale of ventilation and heat dissipation products and industry control accessories. Our products are widely used in industries including ventilation, air conditioning, refrigeration, heating, electrical automation, frequency variator (inverter), rail transit, air purification, new energy, etc. All units fully tested All the products we supply are definitely new, genuine and affordable. Please feel free to contact us for specifications or product images
