Digital LCD Computer PC Power Supply Tester Checker 20/24 Pin SATA HDD ATX BTX Meter Power Supply Tester Checker Power Measuring

CPU Power Connector: 8 pin
Package: Yes
Interface Type: 20 + 4Pin
Application: Desktop, Server
Model Number: IV
Output: see below
Input Voltage: 220v
Modular: Non-Modular 80
PLUS Certification: Other
Certification Origin: Mainland
China Certification: NONE Digital LCD Computer PC Power Supply Tester Checker 20/24 pin SATA HDD ATX BTX Meter Power Supply Tester Checker Power Measuring Digital LCD

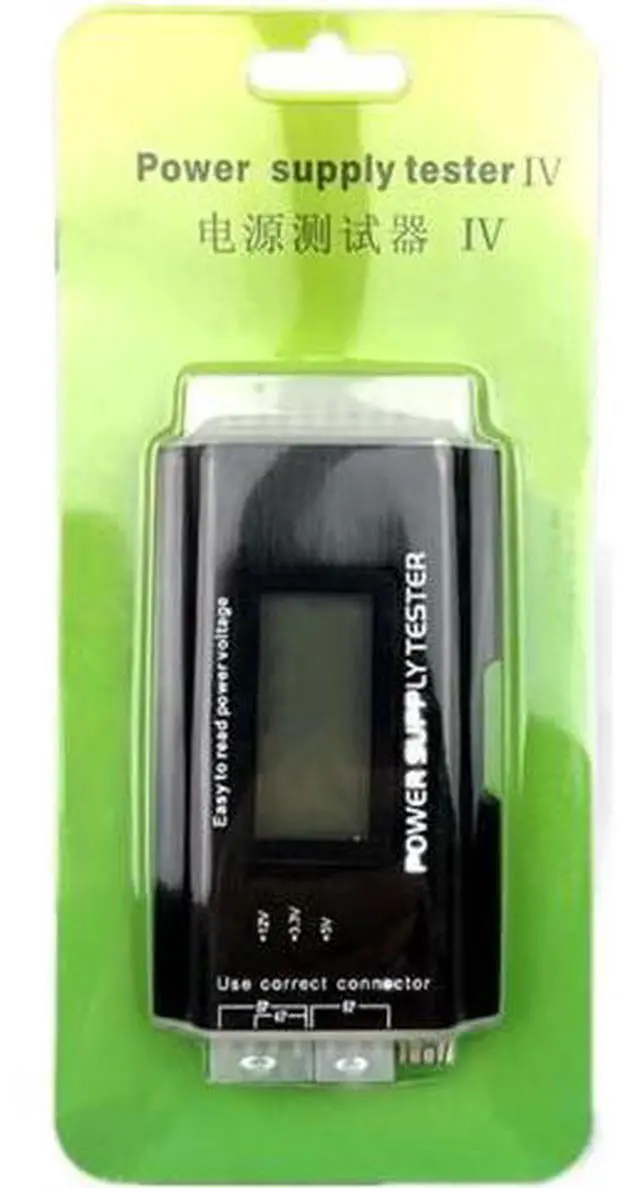

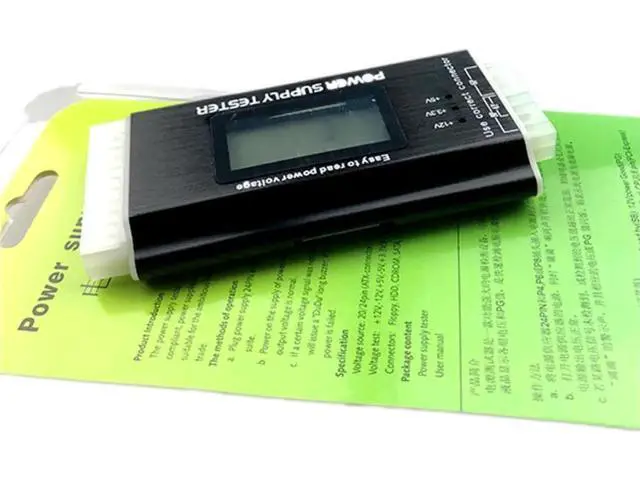

Power Supply Tester Description: The item is a LCD power supply tester. It can test your power supply and avoid damage to your expensive computer equipment with this power supply tester. The device is suitable for the ambitious hobby user, as well as for a quick functional check in a specialized trade.
Features: Housing
material: plastic LCD indicate the status of voltage. The power supply tester is a robust voltage tester for
PC-power supplies: ATX, BTX, and ITX compliant power supplies can be tested. Simple and easy to use, no batteries are needed. Connect to the power supply's 20-pin Molex connector. Equipped with + 3.3V, +5V, +VSB, -5V, -12V and +12V leads for monitoring voltage output.
Operation:
1. Plug power supply 24 PIN and P4, P6 or P8 into the corresponding jack of the power test suite.
2. Power on the supply of power, will hear "DuDu" ring, if no flicker then the power supply output voltage is normal.
3. If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a "DuDu" long buzzer; if the corresponding voltage value or PG flicker too, then the power is failed.
Specification: Support 24Pin, ATX 20Pin interface Support SATA interface Support 8Pin, 4Pin interface Support PCI-E graphics 6Pin interface Support the floppy disk interface Support ATE hard disk interface
Test voltage: 3.3V, -12V, 12V1, 12V2 + 5 VSB, + 5V, and PG time
Size: 126 x 64 x 18.5 mm/ 4.96 x 2.51 x 0.72 inch approx
Package: 1*power supply tester IV
