Dual Monitor KVM Switch 2 Monitors 2 Computers, 2 Port 4K@60Hz HDMI KVM Switch Share 2 Monitor, Audio Mic Port and 3 USB Ports Support Extended and Copy Mode, PC Monitor Keyboard Mouse Switcher

Dual Monitor HDMI Switch for 2 Computers This HDMI KVM switch 2 port allows you Using only 1 set of keyboard, mouse to control 2 computer devices and 2 monitors. Furthermore two computers can share 3 USB 2.0 peripheral devices. s. It's a great accessory for a family, office or other workplace.

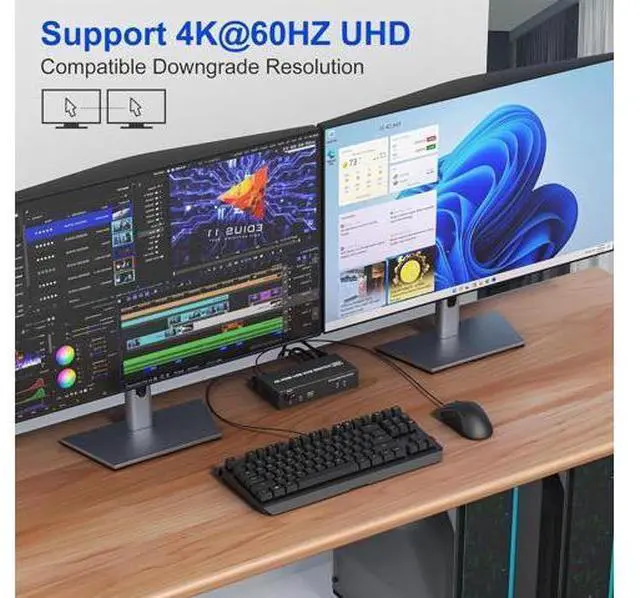

Features: Share one set of keyboard, mouse and dual monitors between 2 computers or laptops; Dual monitors output support up to 4K@60Hz for extended, mirrored or spliced display;

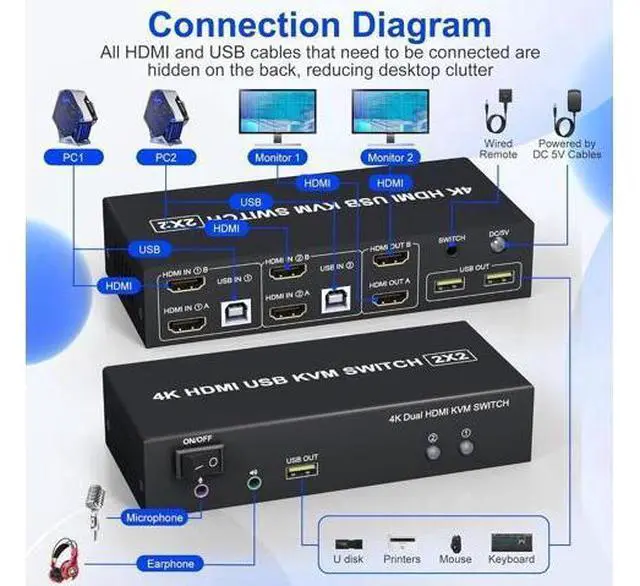

Switching modes: Buttons on the front panel and wired remote; With extra 3 USB 2.0 and Audio Microphone output; The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered. Connection Steps & Notes
1. Insert the adapter into the KVM;
2. Plug the HDMI cable into the KVM and monitor; (Output) 3. 1). Connect PC1 Firstly (Input) Use 1 HD-MI cable to connect the "HDMI IN 1 A" input interface and PC1 HDMI A output interface, Use 1 HD-MI cable to connect the "HDMI IN1 B" input interface and PC1 HDMI B output interface. Use 1 "USB-a to USB-b" USB cable to connect the "USB IN 1" input interface and PC1 USB interface. 2)Then, Connect PC2 according to the connection steps of PC1.
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 HDMI+USB cable) connect to the KVM.
2. If the input USB ports are not connected or connected incorrectly, the output USB device will not be recognized.
3.

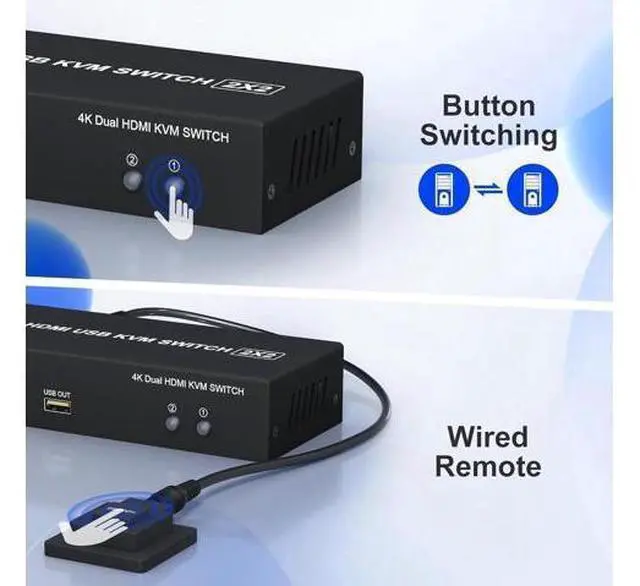

Note: HDMI cables are not included Supports Button Switch You can easily and quickly switch between computers with the push of a button on the control panel. Support wired remote control A push-button controlled switch extension cable is included for easy switching without having to get up when using it. Supports separate audio and microphone output HDMI KVM comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5 mm earpiece device, and a 3.5 mm microphone interface, which can be inserted into a 3-segment microphone. 3 USB 2.0 ports With 3 USB 2.0 hubs, transfer rate of up to 480 Mbps. Sharing devices as keyboard mouse scanners, printers, flash drives etc. 2 Display Modes Extended Display Mirrored Display 1)Extended mode can output 2 different screens and mirror mode can output 2 identical screens.
Note: If your graphics card has a splicing screen function, you can use the splicing screen mode. 2) The requirement for this KVM to achieve a 2-screen display is that each PC you connect to has the capability to support a 2 screen display. This has nothing to do with KVM. 4K HD Resolution Support 3D 4K@60Hz, 1440P@60HZ and backward compatible with lower resolutions. [KVM Switch Dual Monitor 2 In 2 Out] This dual monitor KVM Switch is for you to control 2 PCs using one set of keyboard, mouse and single or dual monitors to make your work space tidy and efficient. Supports copy mode and extended mode.

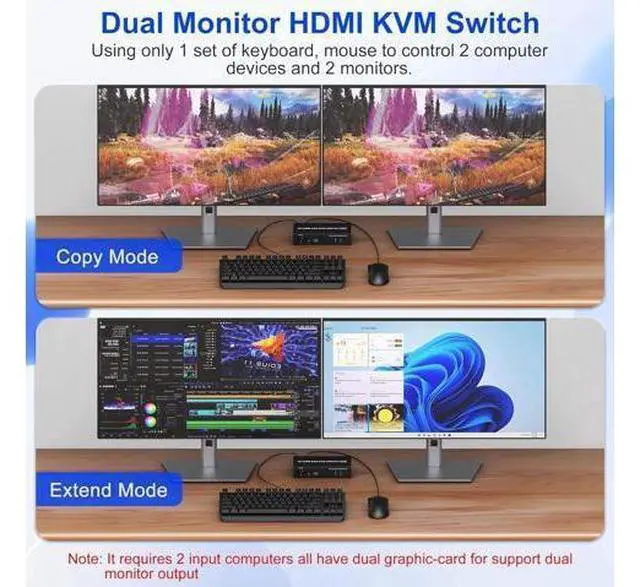

Copy Mode: both computers display the same screen, Extended

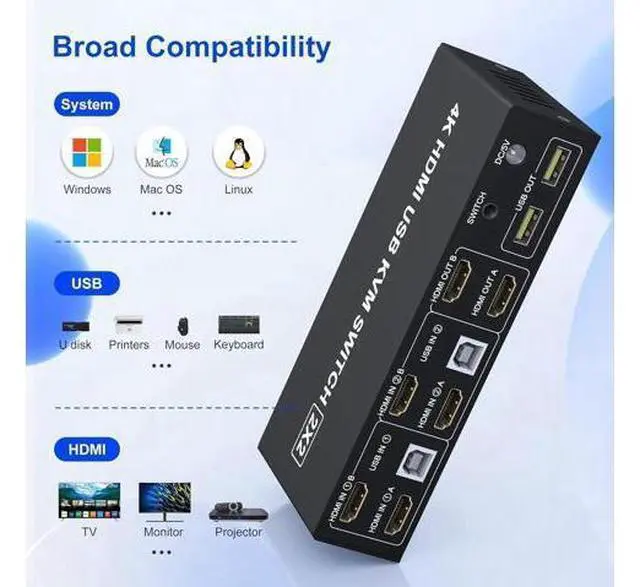

Mode: both computers display different screens. [Support 4K Resolution and Audio & MIC] Supports up to 4K@60Hz. Also supports separate audio and microphone output. [With 3 USB 2.0 Ports] with extra USB 2.0 port for sharing USB printers, wireless and gaming keyboard mouse. The upgraded design hides the messy cables at the back, leaving a USB 2.0 port on the front for inserting a USB flash drive. [Convenient Switching Modes and Wide Compatibility]You can switch computers using the buttons on the panel or the wired remote control (supplied). Easy switching without delay. LED indicate the active computer. Widely compatible with Windows/Vista/XP/Mac OS/Linux and Unix operating systems.
