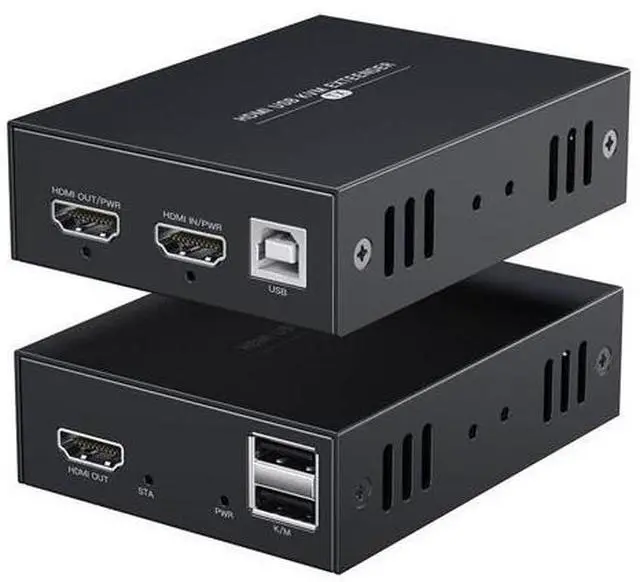

HDMI KVM USB Extender 1080P Over Cat5e/6 Ethernet Cable 50m (164ft) for Mouse and Keyboard Control Remote Signals
Limited time offer, ends 06/20 By PixelCore
- TRANSMIT AUDIO/VIDEO LOSSLESSLY : Send HDMI signal to remote monitor as smooth as direct connection. Support 1080P FHD and 3D video, compliant with HDMI 1.3.; HDMI OVER ETHERNET : Transmit up to 50m/164ft by Cat6/7 cable, 40m/130ft by Cat5e cable. For better audio&video quality and longer transmission distance, we recommend Cat6 or Cat7.; SIMPLER CONNECTION : Power over cable, only one power adapter is needed to get the device running completely.; USB&KVM: On the receiver side, can connect the mouse and keyboard to control the remote computer on the transmitter side.; APPLICATION : Stable signal connection scheme. Suitable for home security system, camera monitoring, conference hall broadcasting, restaurant projection and more
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

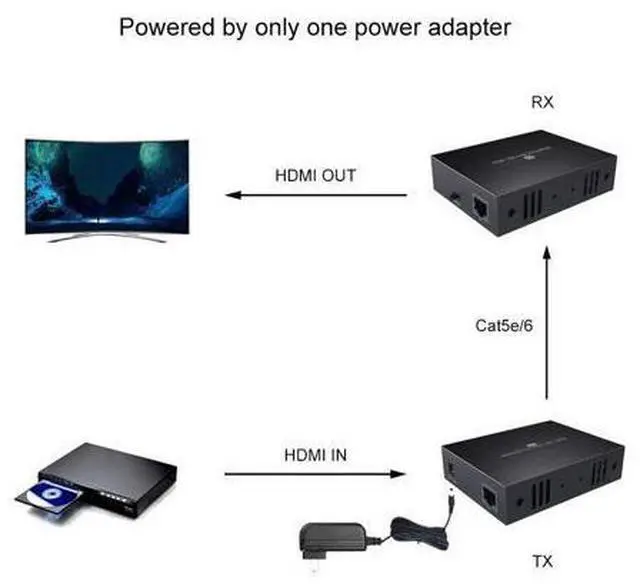

HDMI EXTENDER WITH KVM Change the mode of audio and video signals for longer distance transmission, HDMI IN --- CAT X --- HDMI OUT.
1. Video * Standards---HDMI 1.3 * Maximum pixel clock---165MHz * Maximum data rate--- 6.75G bps * Resolution---1920X1080@60Hz * Connector---HDMI-A * Impedance---100O
2. Ethernet * Interface---RJ45 * Transmission distance---CAT6---50m/164ft; CAT5E---40m/130ft; CAT5-30m/100ft 3. USB * Interface protocol---USB 1.1 * Interface type ---
PC: USB-B;
KVM: USB-A * Signal type --- Digital signal
4. Others *
Power supply--- Input: 110~220V;
Output: 12V/1A * Power dissipation---MAX 3W *
Temperature---Operating: -5 ~ +70 *
Humidity---Operating: 5% ~ 90% * Dimension---94*71*26 mm
5. Packing list * HDMI transmitter---1 pcs * HDMI receiver---1 pcs * USB-B Cable---1 pcs * Power adapter---1 pcs * User manual---1 pcs
Specifications
:1. Video * Standards---HDMI 1.3 * Maximum pixel clock---165MHz * Maximum data rate--- 6.75G bps * Resolution---1920X1080@60Hz * Connector---HDMI-A * Impedance---100O
2. Ethernet * Interface---RJ45 * Transmission distance---CAT6---50m/164ft; CAT5E---40m/130ft; CAT5-30m/100ft 3. USB * Interface protocol---USB 1.1 * Interface type ---
PC: USB-B;
KVM: USB-A * Signal type --- Digital signal
4. Others *
Power supply--- Input: 110~220V;
Output: 12V/1A * Power dissipation---MAX 3W *
Temperature---Operating: -5 ~ +70 *
Humidity---Operating: 5% ~ 90% * Dimension---94*71*26 mm
5. Packing list * HDMI transmitter---1 pcs * HDMI receiver---1 pcs * USB-B Cable---1 pcs * Power adapter---1 pcs * User manual---1 pcs
