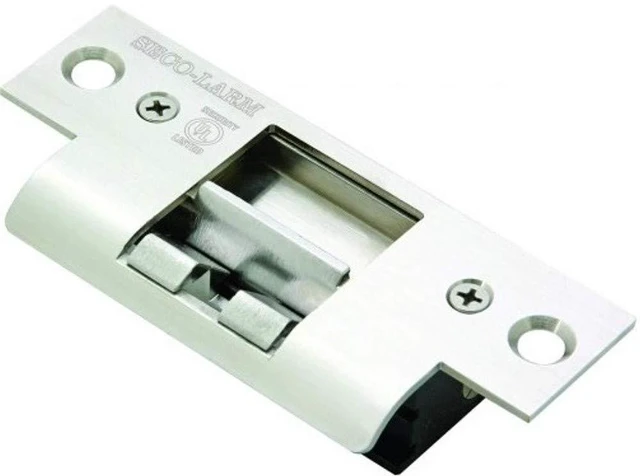

Seco-Larm SD-995C-D3Q No Cut Door Strike, Field-Selectable for Fail Safe or Fail-Secure Operation, 1500 lbs. (680Kg) Static Strength, Suitable for Office-Type Applications, Non-Polarized Connection

Seco-Larm SD-995C-D3Q No Cut Door Strike, Field-selectable for Fail Safe or Fail-secure Operation, 1500 lbs. (680Kg) Static Strength, Suitable for Office-type Applications, Non-polarized Connection The SECO-LARM Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. Combine with an optional SECO-LARM digital keypad for keyless high security. Key Features Field-selectable for fail safe or fail-secure operation Can be used with virtually any cylindrical door locking system Can use with an optional digital keypad Suitable for office-type applications Reversible non-handed design fits either right hand or left-handed doors Shallow design for use with most metal doors Powered by a solenoid, not a buzzer coil Static strength 1, 500 lbs.

(680Kg) Stainless-steel keeper for strength and long life Non-polarized connection Tested to 100, 000 cycles (UL Tested) No horizontal or vertical adjustment

Specifications

Operating Voltage: 12/24
VDC Operation: Fail-secure or Fail-safe
Current Draw: 300mA@12VDC, 150nA@24VDC
Static Strength: 1, 500 lbs.
(680kg) Dynamic strength: 70-ft-lbs. ( 9.68 m-kgs)
Operating Temperature: 32°F~120°F (0°~49°C)
Dimensions: 4-7/8"x1-1/4"x1-1/16" (124x32x 27.5 mm)
