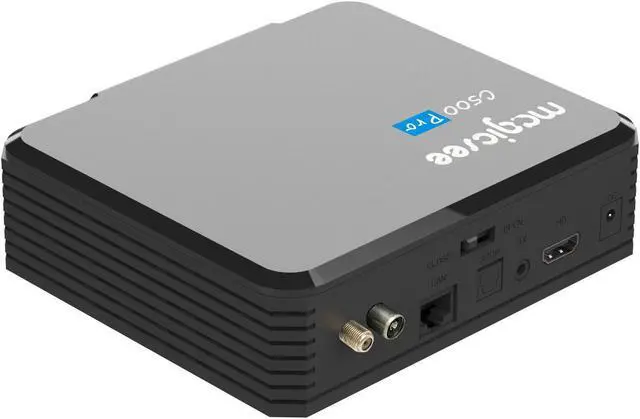

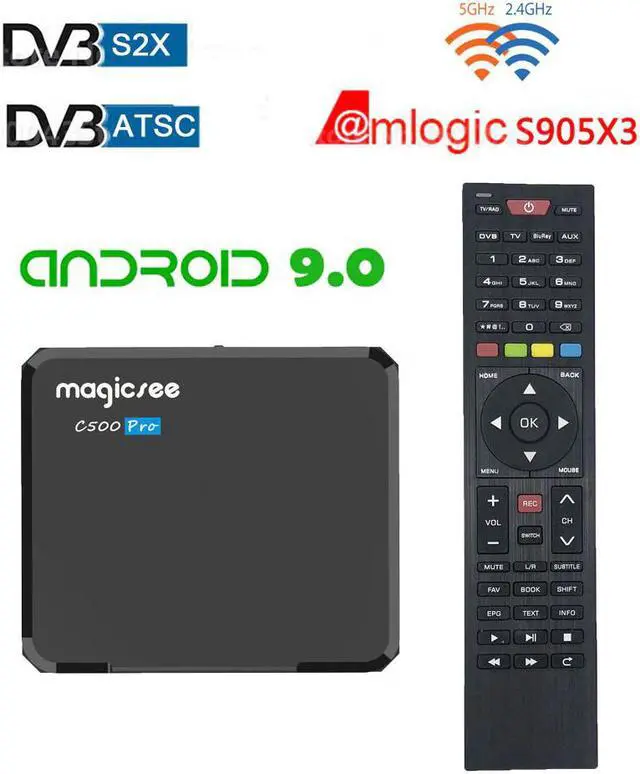

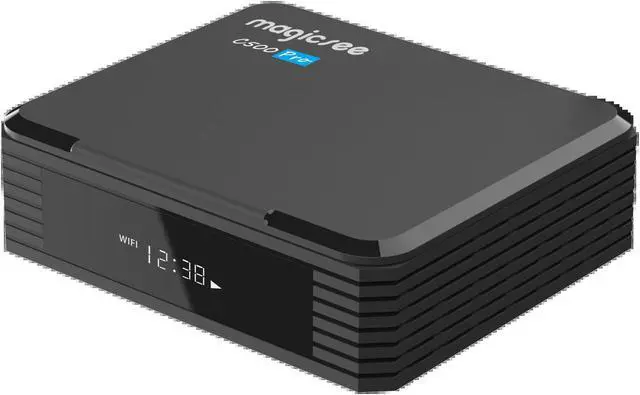

c500 Pro s905x3 Android Tv Box Digital Satellite Receiver DVB-S2X/ATSC DVB Android 4k tvbox For Mexico / USA / Canada

OS

Android 9.0

CPU

Amlogic S905X3 Quad core ARM Cortex-A55

GPU

Mali-G31 MP2

Language

Chinese, English, Germany, Thai, French,,Italian,Spanish....

RAM

DDR4   2GB / 4GB (Optional)

ROM

eMMC  16GB / 32GB (Optional)

Video

VP9 Profile-2 up to 4Kx2K@60fps

H.265 HEVC [email protected] up to 4Kx2K@60fps

AVS2-P2 Profile up to 4Kx2K@60fps

H.264 AVC @L5.1 up to 4Kx2K@30fps

Wireless

Wi-Fi

2.4GHz/5GHz  IEEE 802.11a/b/g/n/ac   2*2MIMO

BT

BT4.2

Ethernet

100M

SATA

Support 2.5" HDD & SSD

LED Indicator

Support

Digital tube display

Support

I/O

USB port

1*USB2.0 OTG + 1*USB3.0

SPDIF digital audio

1

HD

HD 2.1 *1

A/V OUT

1

ETHERNET

1

Power Supply

12V1.5A DC

TF  card slot

For Micro card (TF card) *1

DVB-ATSC

DVB-T2 system standardETSIEN 302 755

Support MPLP

Demodulation: QPSK,16QAM,64QAM or 256QAM

Forward error correction rate 1/2,2/3,3/4,3/5,5/6

Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128

Bandwith: 6MHz

Input Frange range:   57~861 MHz

Input Signal level: -83 dBm to  -5 dBm (average power)

ANT. Connector:IEC TYPE, female

DVB-S2X/S2

ETSI EN 302-307-1 V1.4.1 (Part 1: DVB-S2 and Part 2: DVB-S2X)

ETSI EN 300-421 V1.1.2 (DVB-S)

Normal (64800 bits) FECFRAME supported (DVB-S2X/S2)

Symbol Rates: QPSK,8PSK,16PSK,32PSK,64PSK

Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates

Adapter

1
