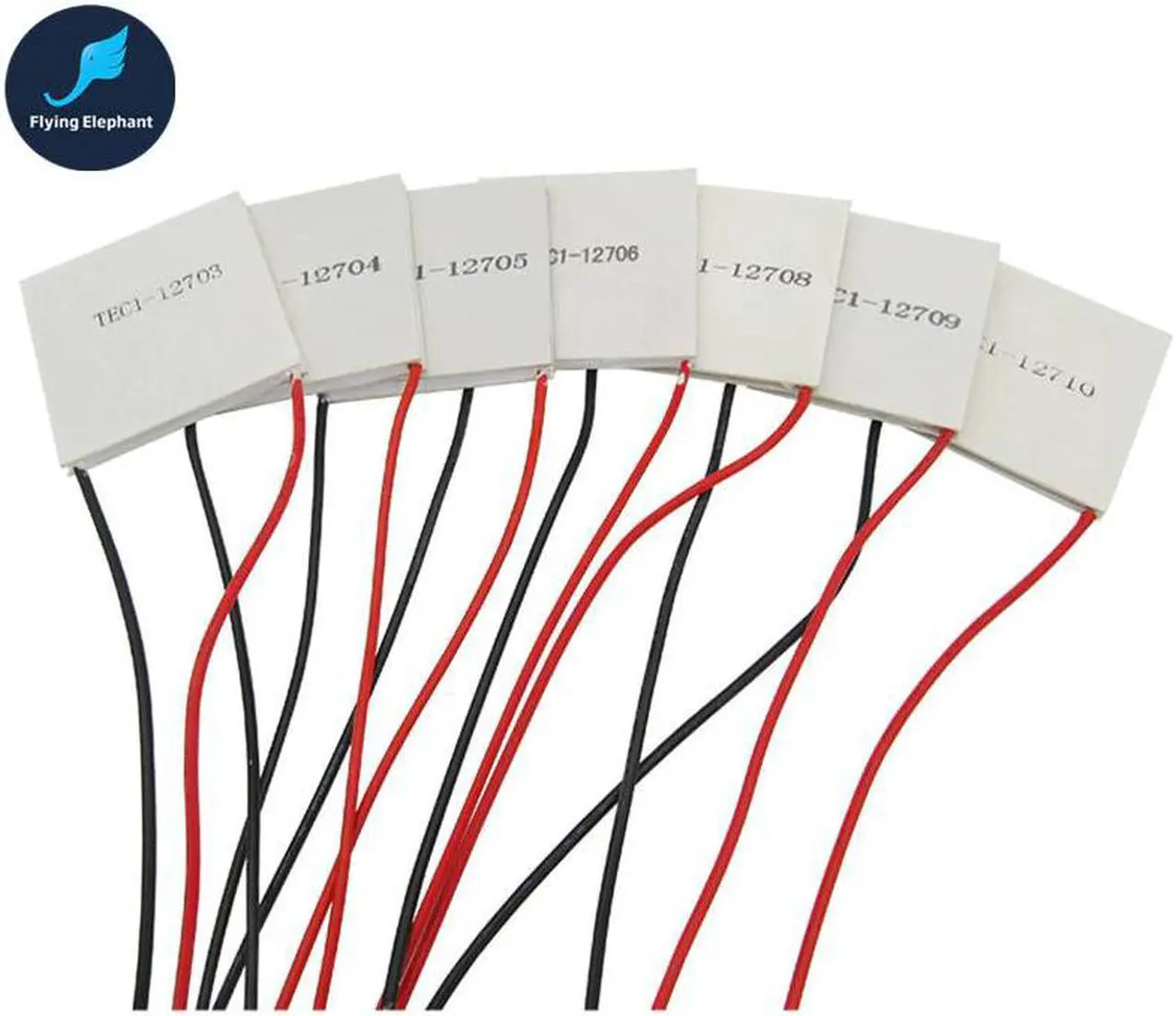

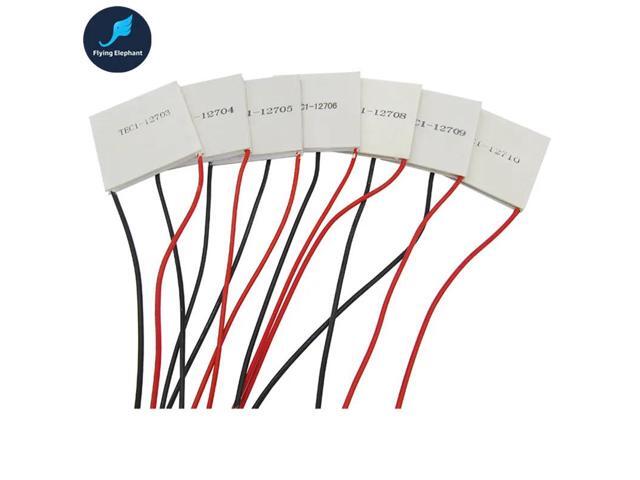

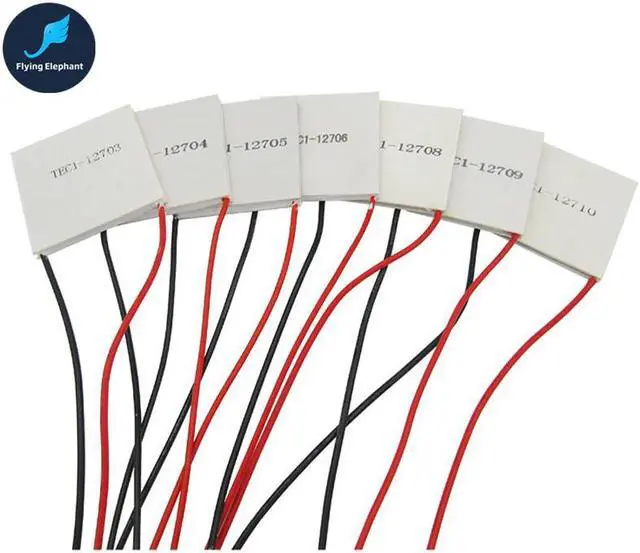

Cooler 40*40mm module For CPU&GPU water cooling block TEC1-12703 12704 12705 12706 12708 12709 12710

The  Cooler works better if used with the water block.

Product Deatails

Features:

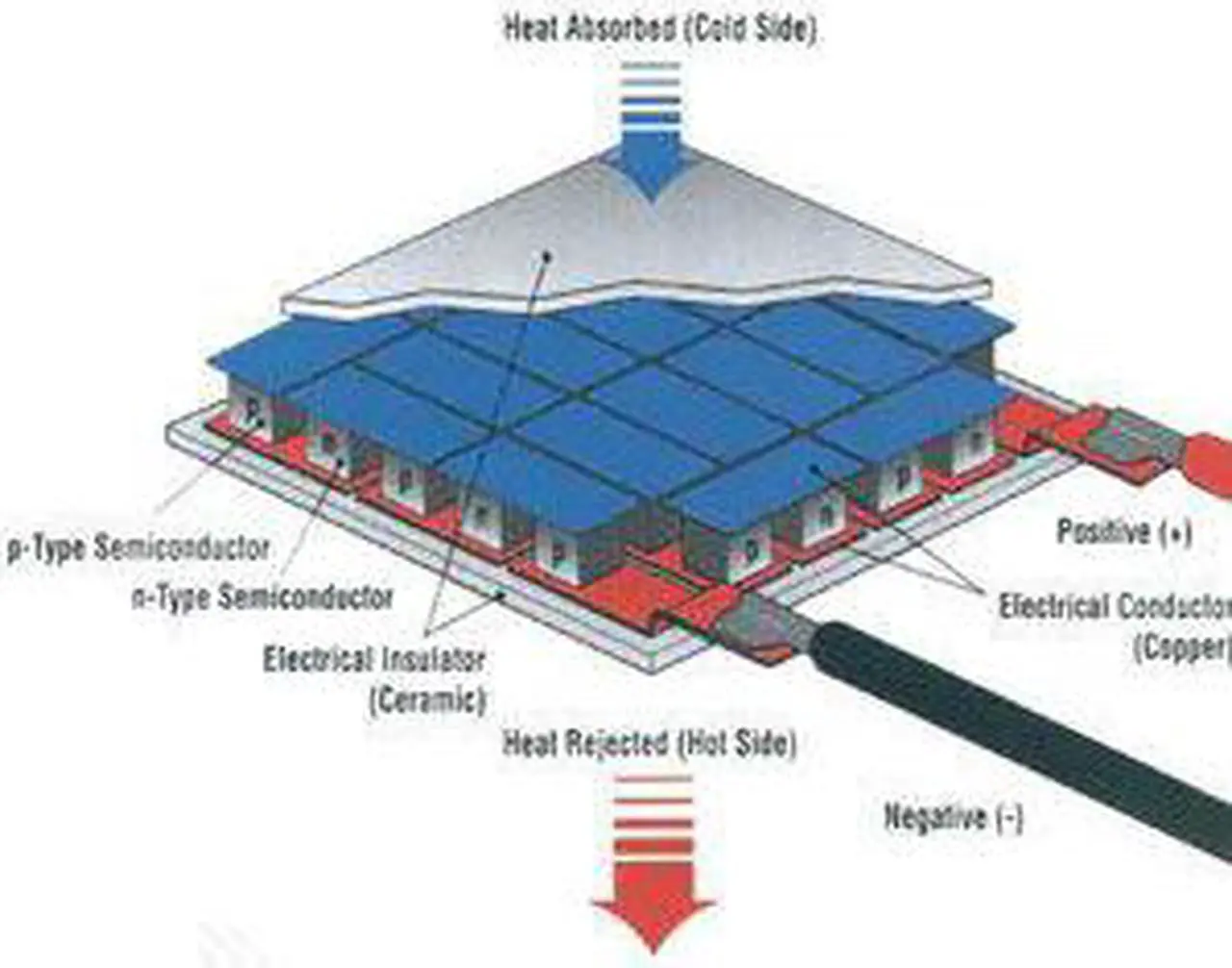

1. One side is cooling, the other side is heating

2. 68 C degrees temperature difference between the hot and cold sides (as long as the hot surface temperature is keeping below 68 degrees, cold temperature can be controlled from 0 to -68 C degrees or lower)

Chip: TEC1-12703

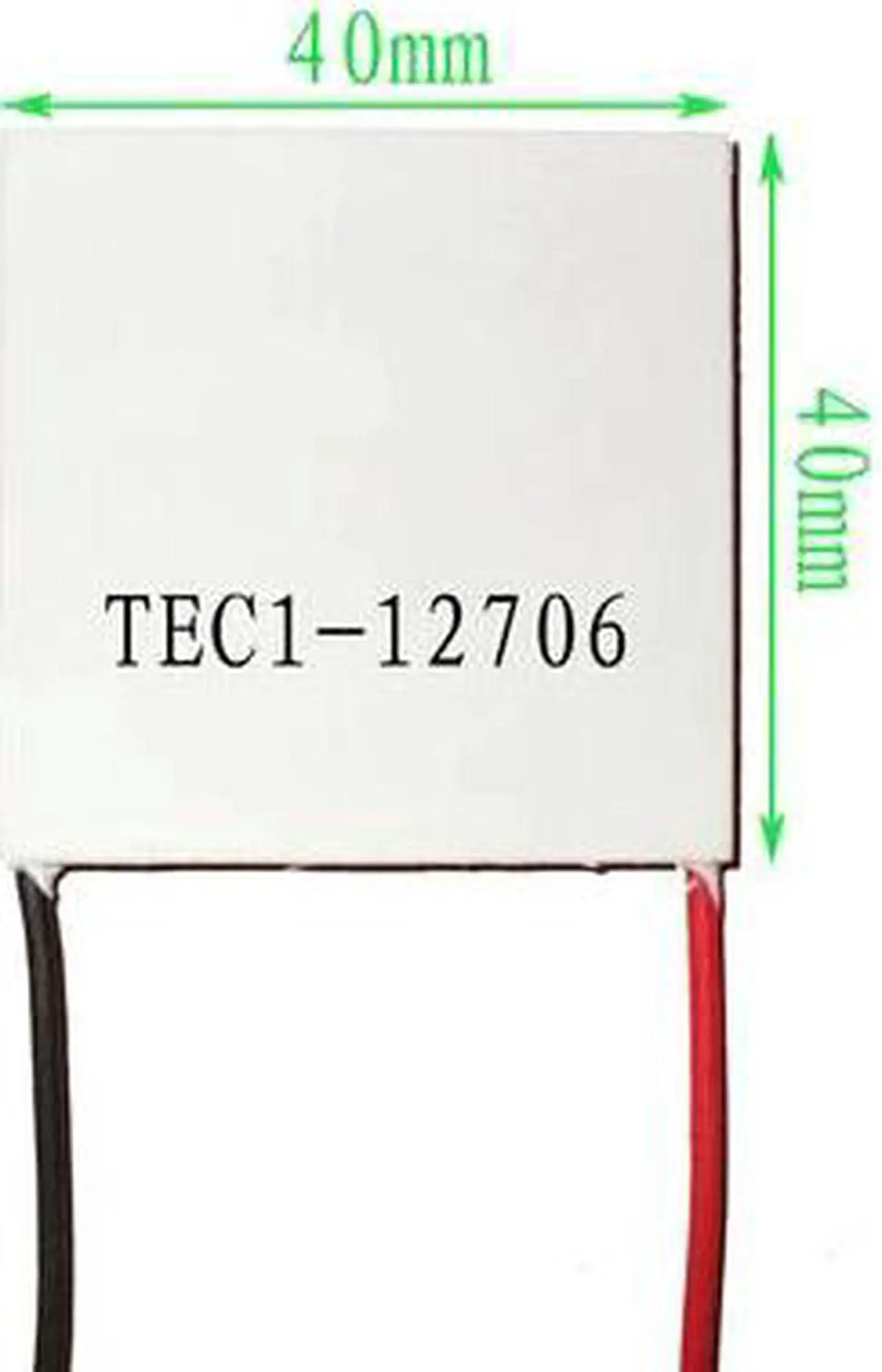

Dimension: 40 * 40 127 * 4.0 mm + / - 0.1 components logarithmic

Wire specifications: 310 mm + / - 5 mm long lead the RV standard tin wire single head 5 mm

Internal resistance value: 4.0 ~ 4.3 (23 + / - 1 degree, environment temperature 1 KHZ Ac test)

Maximum temperature difference: delta Tmax (Qc = 0) above 60 degree.

Working current: Imax = 12 (rated voltage startup)

Rated voltage: DC12V (Vmax: 15.5 V)

Cooling power: Qcmax 27 w

The assembly pressure: 85 n/cm2

Working conditions: temperature range and 55 degree~ 83 degree (high environmental temperature drop directly affect the cooling efficiency)

Encapsulation process: standard around 704 silicone rubber seal

Packing: bubble box packing, storing conditions  10 degree to 40 degree ambient temperature

Storage conditions: - 40 ~ 60degree

Chip: TEC1-12704

Dimension: 40 * 40 127 * 4.2 mm components logarithmic

Wire specifications: 100 + / - 5 mm long RV lead wire single head 5 mm tin plating

Internal resistance value: 3.0 ~ 3.3 (23 + / - 1degree, environment temperature 1 KHZ Ac test)

Maximum temperature difference: delta Tmax (Qc = 0) above 60degree

Working current: Imax = 12 (rated voltage startup)

Rated voltage: DC12V (Vmax: 15.5 V)

Cooling power: Qcmax 36 w

Notes:
