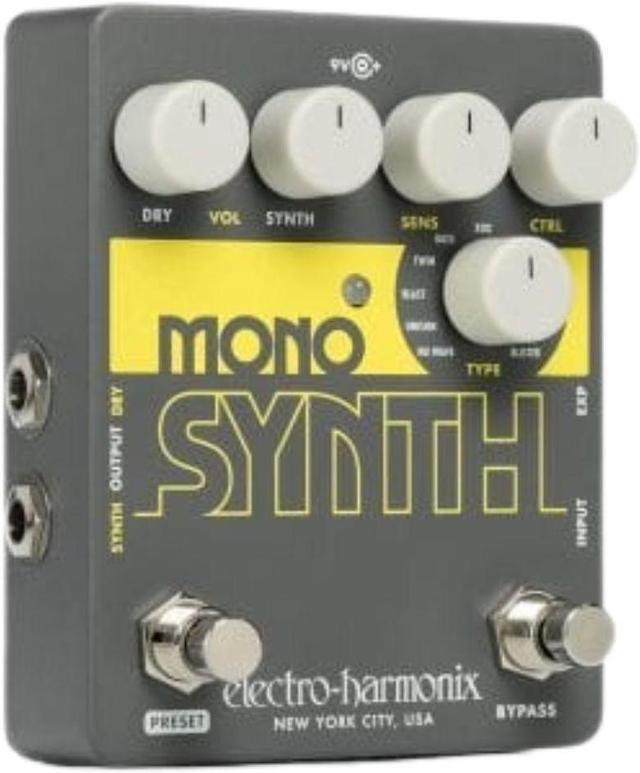

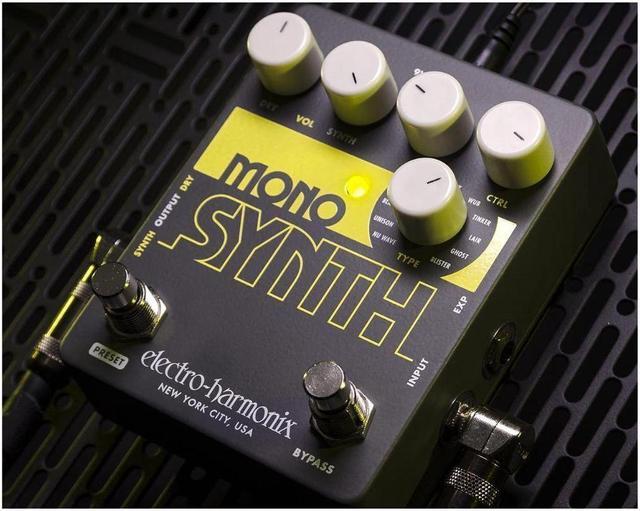

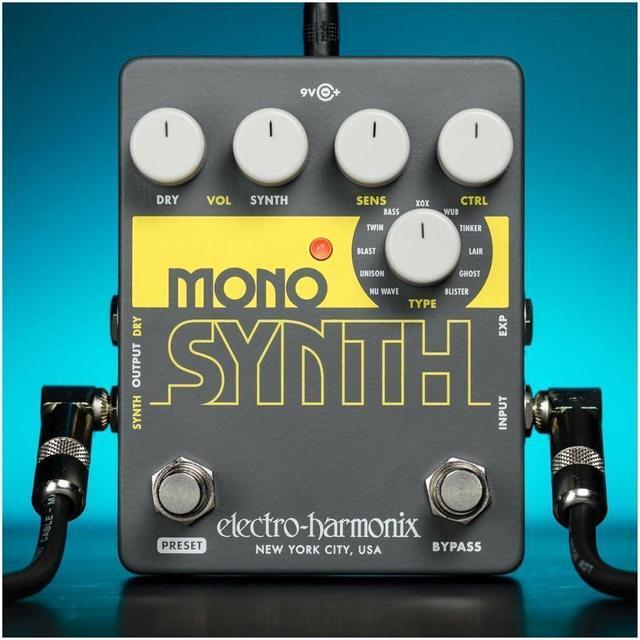

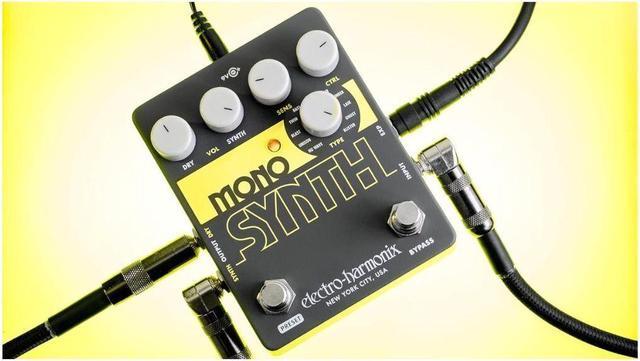

Electro Harmonix Guitar Mono Synth Effects Pedal Includes Power Supply

Transform
your guitar into eleven great sounding synthesizers. The EHX Mono Synth
transforms your guitar into eleven great sounding synthesizers from vintage
synth emulations to fat, stacked voices to soaring lead sounds and more. The Electro
Harmonix Guitar Mono Synth Effects Pedal is designed to work on guitar without
any modifications, special pickups or MIDI implementation. Its intuitive layout
makes it easy to use and easy to dial in cool sounds quickly. The pedals DRY
dial adjusts the dry guitar volume at the Synth Output while SYNTH controls the
volume of the synthesizer sound at the Synth Output. Used together they let you
create just the right mix. The SENS control, short for sensitivity, adjusts how
playing dynamics trigger the synthesizer and allows you to fine-tune the
pedals response to your guitar and playing style. With the CTRL knob you can
adjust a key parameter for each of the eleven synth types. It varies depending
on the preset and provides extra tweakability for customizing your sound.
Theres also an EXP input which lets you control an entirely different
parameter in real-time with an expression pedal. Using the built-in Preset
footswitch, a user customizable preset for each of the eleven synth sounds can
be created, saved and recalled. The factory presets are also easy to restore
should you wish to.

Dry Volume Knob

Controls the
volume of the untreated bass signal present at the Synth Output jack.

Synth Volume Knob

Controls the
overall volume of the synthesizer sound at the Synth Output jack.

SENS Knob

Adjusts the
gain of the input signal before the signal hits the Mono Synths trigger block.

Control Knob

Controls a
specific parameter for each synth type.

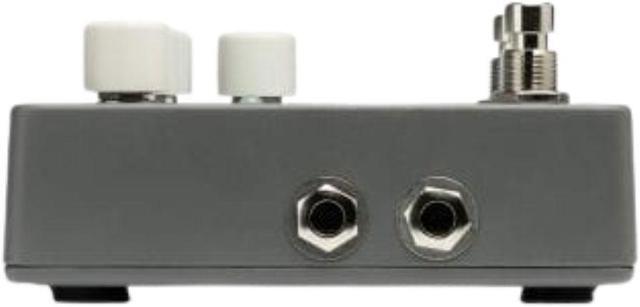

Dry Output Jack

The dry output
jack produces the signal present at the input jack.

Synth Output Jack

Produces the
mix set by the DRY and SYNTH volume controls.

Type Knob

Selects the
effect type.

Expression Jack

Accepts a
TRS cable from a standard passive expression pedal or control voltage on TS
cable.

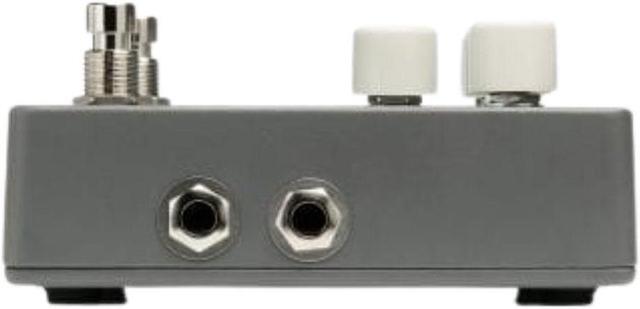

Input Jack

Plug your
instrument or the output of effects pedal into this 1/4-inch jack.
