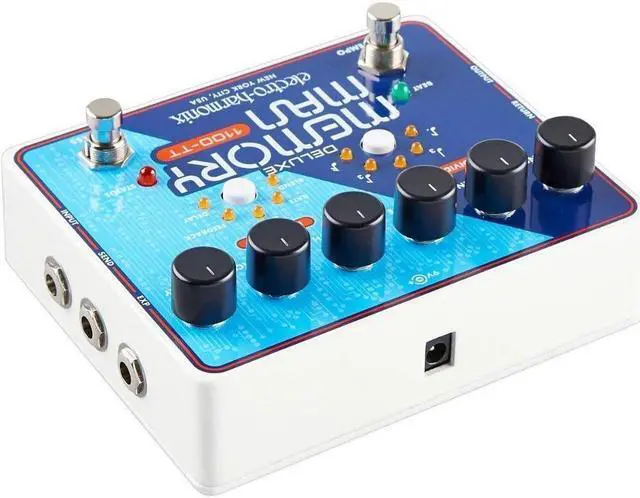

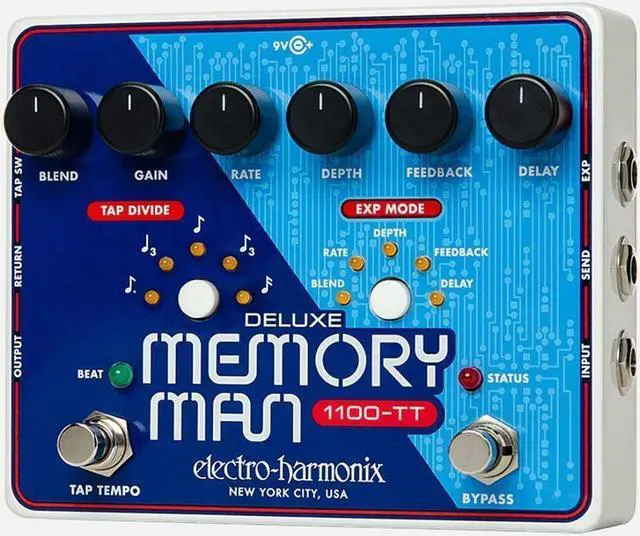

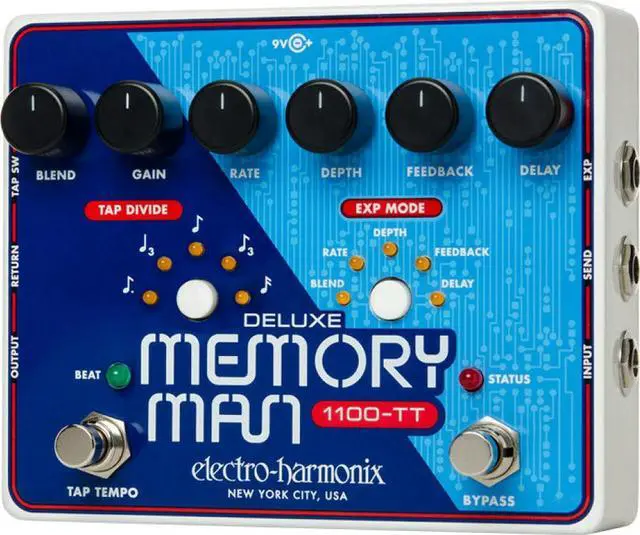

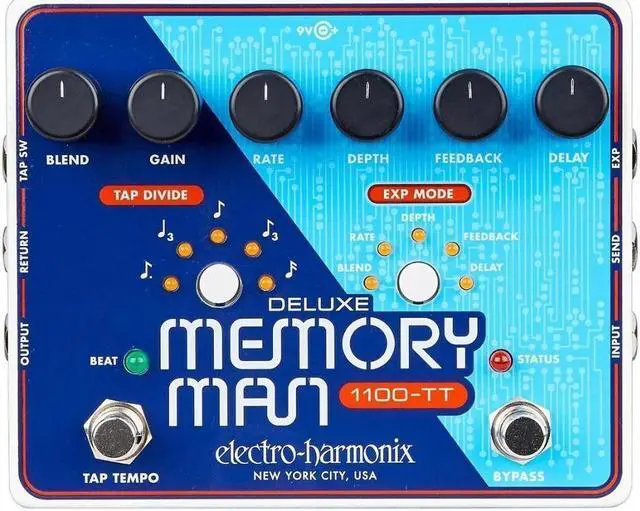

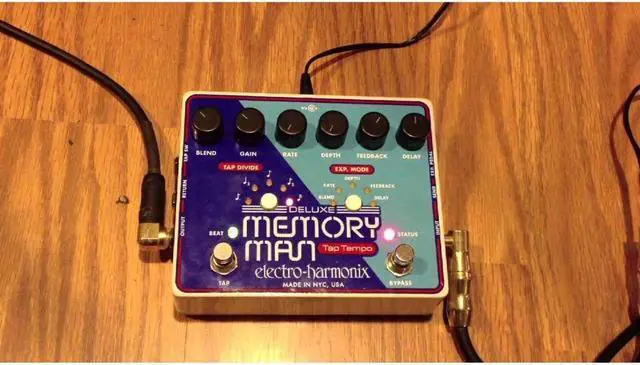

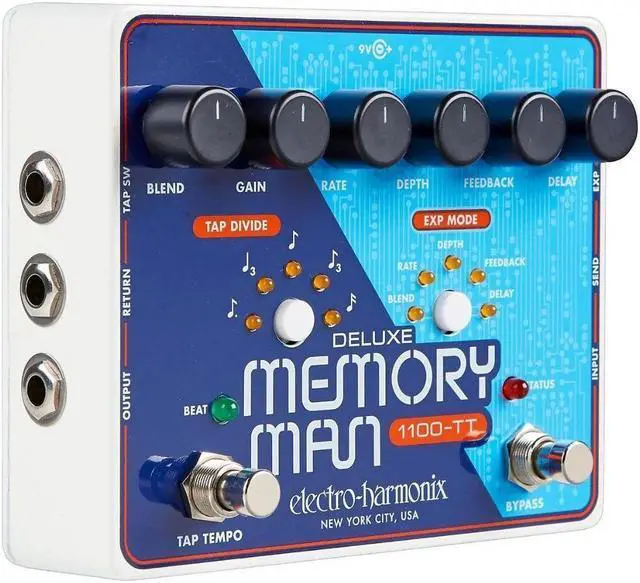

Electro-Harmonix Deluxe Memory Man 1100-TT Analog Delay with Tap Tempo Guitar Pedal

The Electro-Harmonix Deluxe Memory Man 1100-TT Analog Delay
with Tap Tempo Guitar Pedal features expression control and an effects loop.
For decades, the Deluxe Memory Man has been the industry bottom line for sweet
organic delay and modulation. Prized by serious musicians, the Deluxe Memory
Man became the definition of attitude and character that still leads the way to
analog perfection.

Ultimate Delay Control

Electro-Harmonix has created the ultimate Deluxe Memory Man equipped with
Tap Tempo, 1100mS of maximum delay time, Expression Control, and an Effects
Loop. Adding Tap Tempo ensures that you will always be in sync with the groove,
wherever your performance takes you, while five Tap Divide subdivisions deliver
rhythmic variation. The Expression Pedal Input provides real-time control over
Blend, Rate, Depth, Feedback, and Delay. The Effects Loop lets you insert
effects into your wet signal without changing your dry signal, making the EHX
Deluxe Memory Man 1100-TT the most powerful analog delay ever designed.

Blend Knob

The Blend knob is a wet or dry control allowing you to vary the mix between
direct and delayed signals at the Output jack of the 1100-TT.

Gain Knob

Sets the input gain for the 1100-TT.

Rate Knob

The Rate knobs main function is to set the rate or speed of modulation.

Depth Knob

Sets the amount of modulation that is applied to the delay time.

Feedback Knob

Controls the amount of signal that is circulated from the output of the
delay block to its input.

Delay Knob

Sets the delay time from 52 to 1100ms.

Input Jack

Connect the output of your instrument or other effects pedal to the
1/4-inch Input jack.

Send Jack

Connect this jack to the input of another effects pedal or chain of effects
pedals to insert an effects loop before the 1100-TTs delay block.

EXP Pedal Jack

Enables the musician to control any of the five available expression modes
with an optional expression pedal or control voltage.

Tap SW Jack

Allows the musician to input the tap tempo from an external momentary
switch.

Return Jack

Connect this jack to the output of another effects pedal or chain of
effects pedals to insert an effects loop before the 1100-TTs delay block.

Output Jack

Connect the output of the 1100-TT to the input of an amplifier or another
effects pedal.

TAP Divide Button and LEDs

This button cycles through the six possible settings for TAP DIVIDE.

EXP Mode Button and LEDs

The EXP Mode button cycles through the six available expression modes -
BLEND, RATE, DEPTH, FEEDBACK, DELAY and OFF.

Bypass Footswitch and Status LED

The Bypass FSW is used to toggle the 1100-TT between effect mode and true
bypass mode. The red Status LED will light up when in effect mode and turn off
in bypass.

TAP Footswitch

The TAP FSW is used to tap in the delay time.
