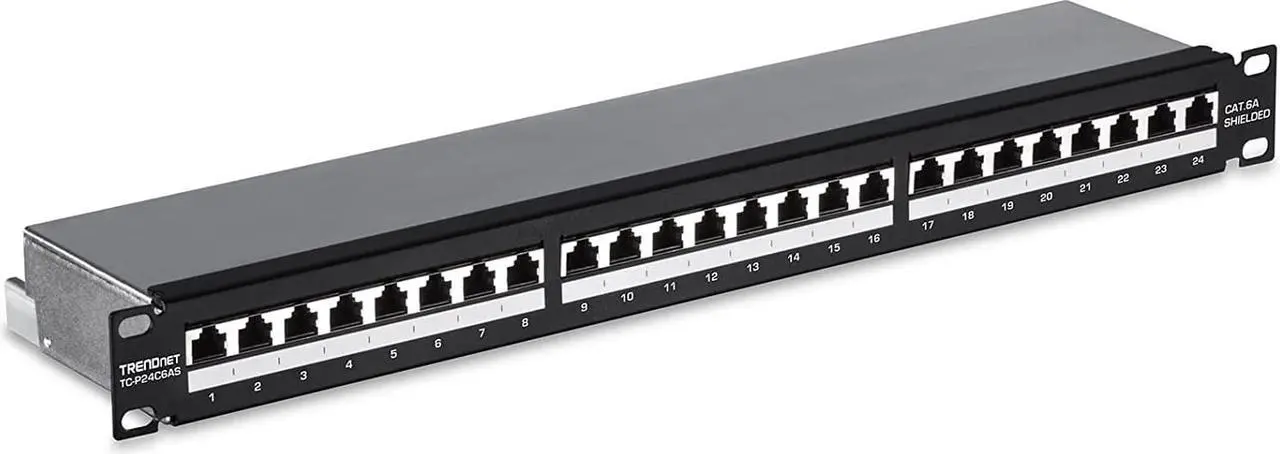

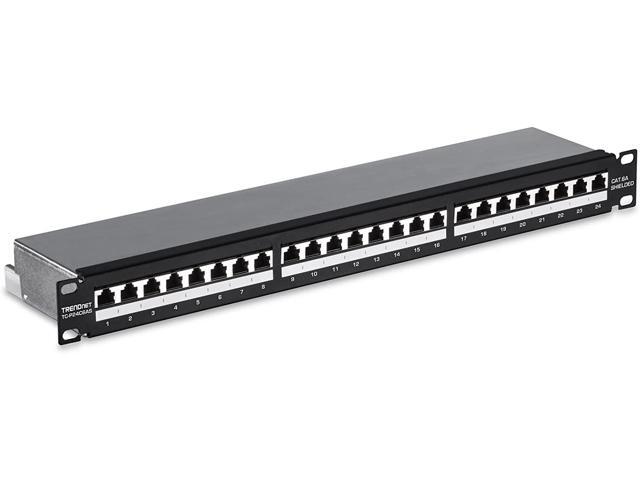

    TRENDnet 24-Port Cat6A Shielded Patch Panel, 1U 19" Metal Housing, 10G Ready, Cat5e,Cat6,Cat6A Compatible, Cable Management, Color-Coded Labeling for T568A and T568B Wiring, Black, TC-P24C6AS

    • Brand TRENDnet
    • Connector Type RJ45
    • Cable Type Ethernet
    • Compatible Devices Tablet
    • Color Black
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Gigabit-ready rackmount 24-port 1U patch panel. The Cat6A patch panels deliver a steady connection to copper Gigabit & 10G switches
    Compatible with Cat5e, Cat6 and Cat6A cabling

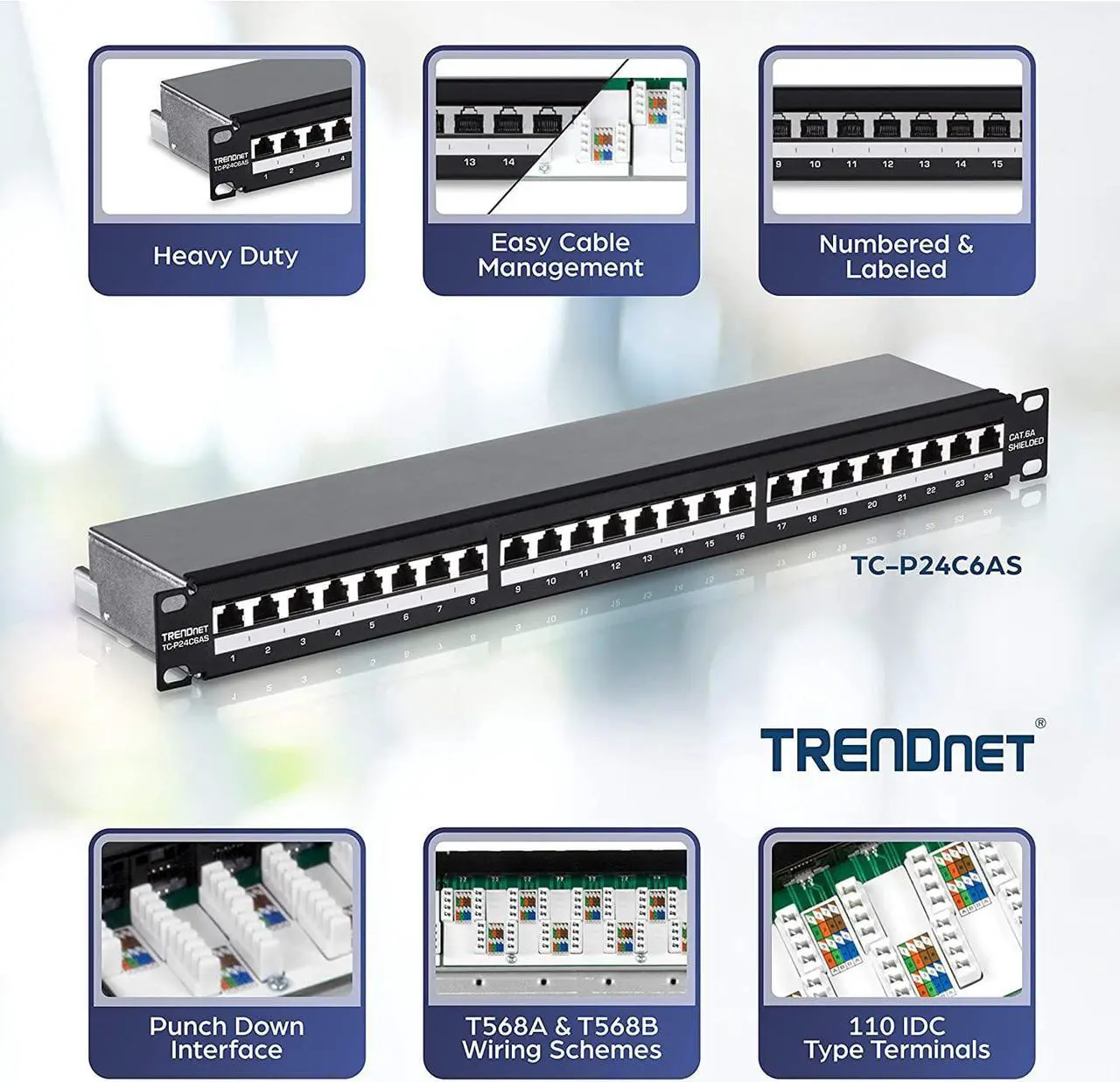

    Color-coded labeling for T568A and T568B wiring schemes
    Supports ANSI/EIA/TIA 568-B. 2-1 and ISO/IEC
    11801. Also supports ANSI/EIA/TIA 310-D, EN50173-1, and ULE157358 listed

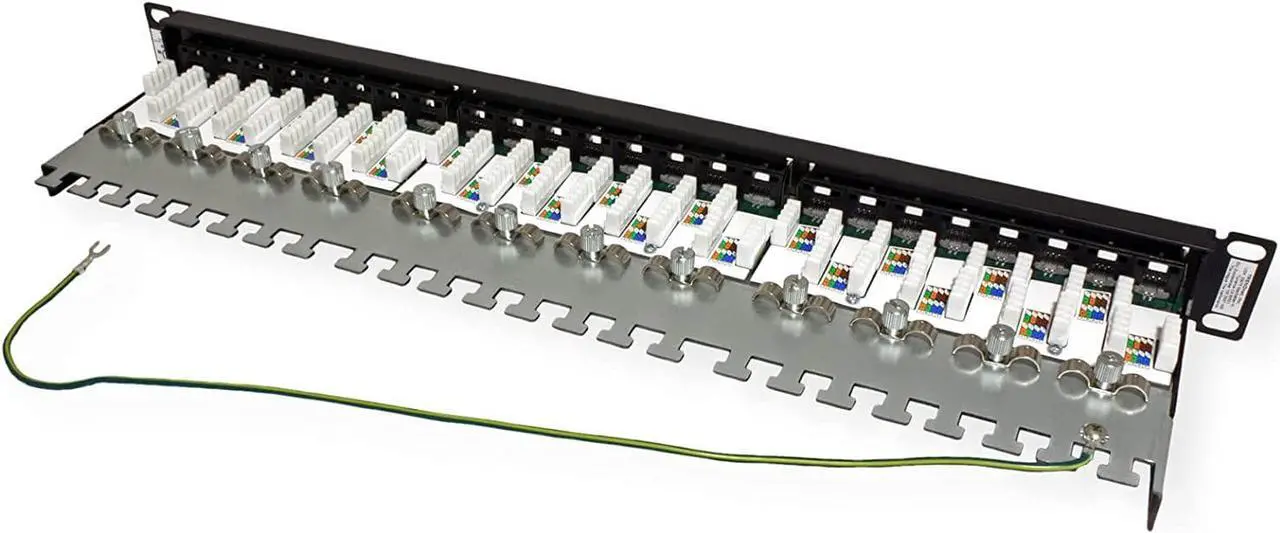

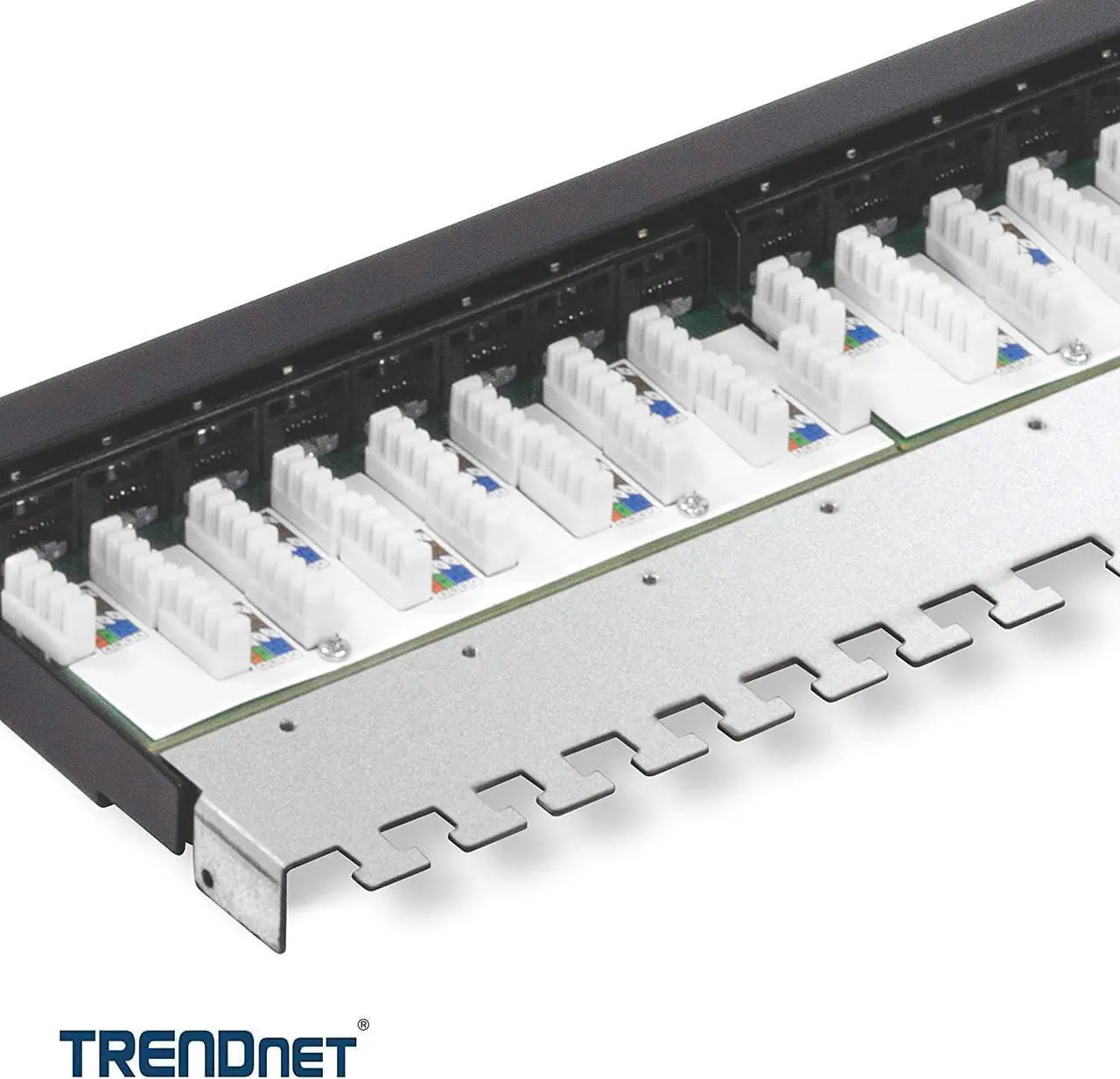

    110D IDC Type terminal blocks (use a 110 or Krone Type tool). use with the TREND net TC-PDT punch down tool (sold separately)
    Compatible devices: Tablet

    Overview

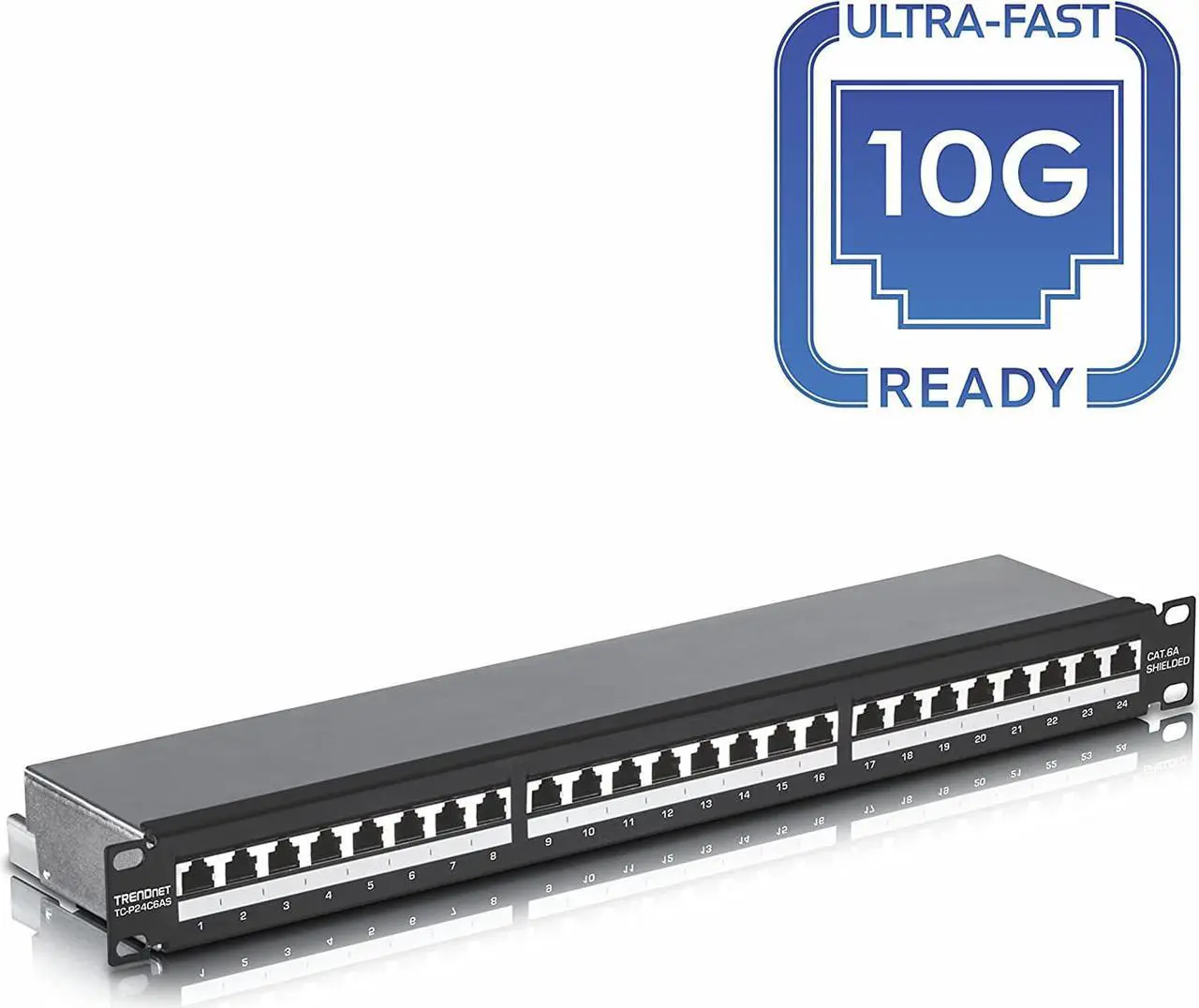

    Cat6a Performance
    Cat6a cabling allows performance of up to 10Gbps speeds over Cat6a Ethernet cables

    Shielded Housing Design

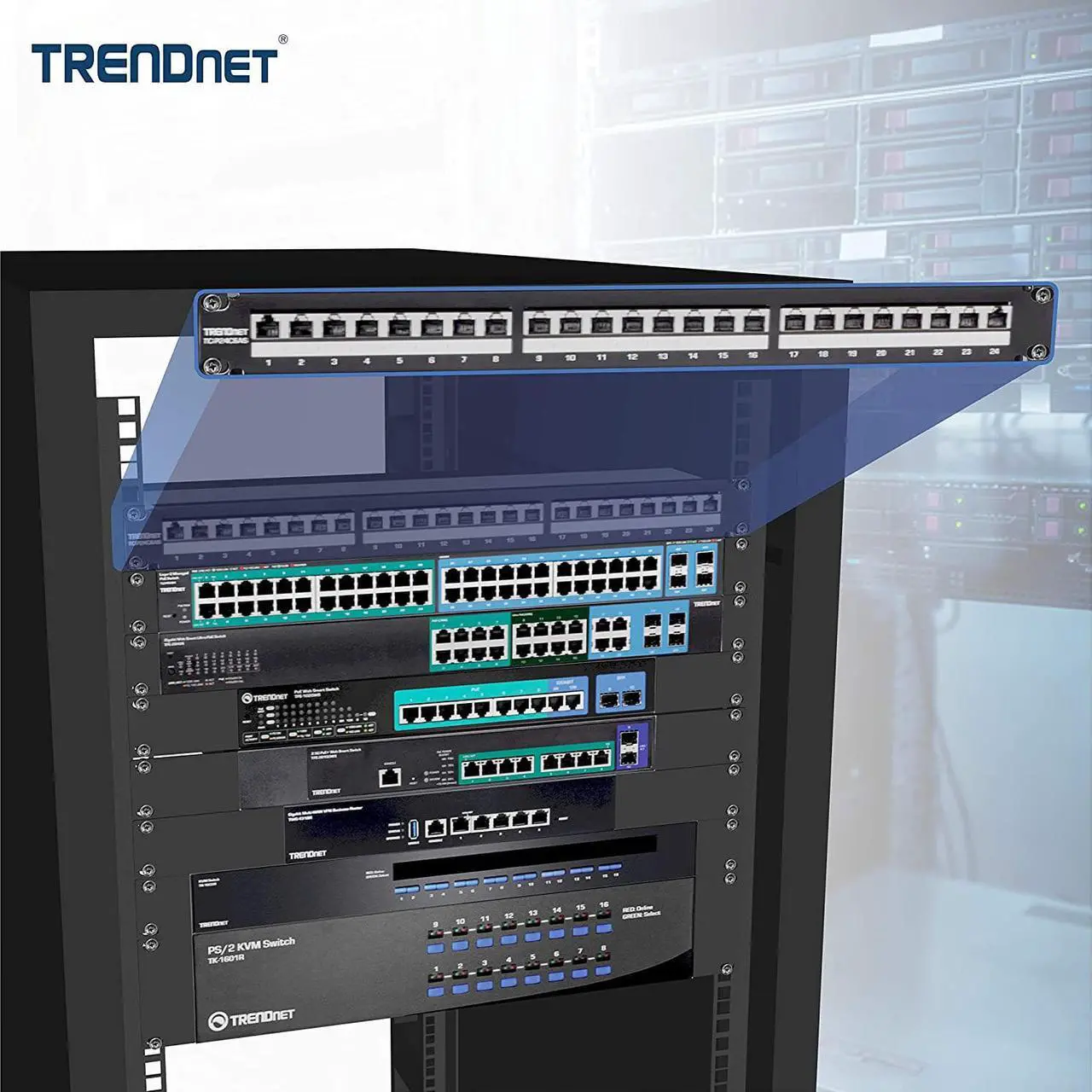

    19" 1U sturdy metal rackmount housing design protects against EMI/RFI noise for a more stable connection

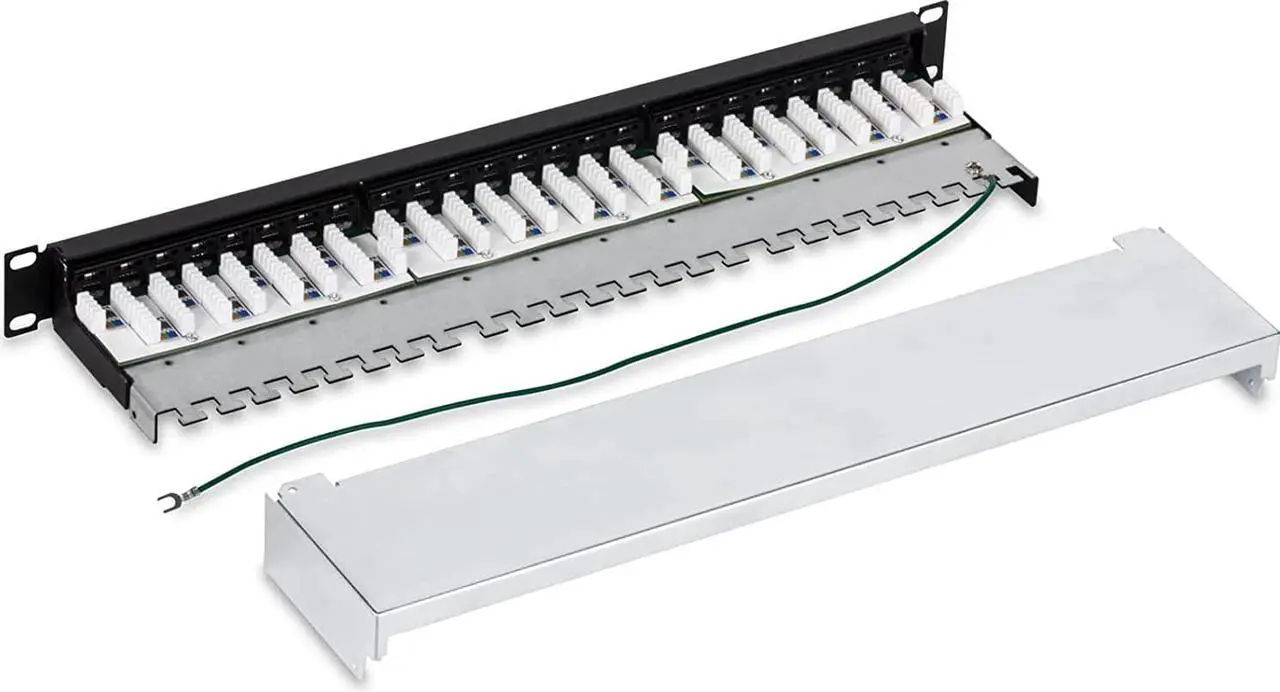

    Cable Management
    Integrated cable management cover plate with convenient cable separation for better organization and reduced cable clutter


    Technical

    Specifications


    Standards ANSI/ TIA/ EIA-568-B. 2-1 ANSI/ TIA/ EIA-310-D EN50173- 1: 2002
    ISO/ IEC 11801 2nd edition: 2002
    Interface 24 x Gigabit T568A/T568B wiring cards for Krone 110 termination 90° angle type Compatible with 22 to 26 AWG solid wires 50 micron shielded gold plated jack connectors
    Electrical Specification Dielectric Withstand Voltage: 1000V DC Current rating: 1.5A at 68° F
    Mechanical Specification Contact force 99.2 g ( 3.5 oz. )
    Plug retention force: 13.3 kg (30 lb. ) 110/
    Krone IDC insertion force: min. 4.5 kg ( 9.9 lb. ) 110/
    Krone IDC retention force: min. 0.5 kg ( 1.1 lb. )
    Operating Temperature -25° 50° C (-13° 122° F)
    Operating Humidity Max. 90% non-condensing
    Dimensions 1U design 440 x 105 x 40mm ( 17.3 x 4.1 x 1.6 in. )
    Certifications UL
