Tri-Band AX210 wifi Card for PC Wi-Fi 6E AX210NGW NGFF M.2 2230 wifi 160MHz 2x2 MU-MIMO AX210 Wifi Bluetooth5.2 Internal Network Card Wireless 802.11ax wifi Adapter for Windows 10/11(64bit) Only

M. 2 2230 specification and supports both 802.11 ac and 802.11 ax (Wi-Fi 6 and Wi-Fi 6E) protocols. M. 2 will fit laptops or desktop motherboards with M. 2 WiFi modules. The new wireless network card will support high-bandwidth and low-latency applications, such as high-definition video streaming, virtual and augmented reality, and connected IoT devices, which are the main requirements in the enterprise and home sectors.

AX210 adopts the M. 2 2230 specification, which can replace other wireless network cards with the same specification as an upgrade, and this AX210 wifi card supports Bluetooth 5.2. The AX210NGW WiFi 6E card, the biggest change is the newly added 6GHz frequency band, and it is backward compatible with 2.4GH z 5GHz, 6GHz, can work in the 2.4GH z 5GHz, 6GHz three frequency bands at the same time.

DUAL BAND AX210NGW WIFI CARD WI-FI 6E AX210NGW NGFF M. 2 2230 160MHZ 2X2 MU-MIMO TRI-BAND AX210 WIFI BLUETOOTH 5.2 CARD WIRELESS NETWORK 802.11AX ADAPTER FOR LAPTOP PC WINDOWS 10 WINDOWS 11
image for this item
WiFi 6E AX210NGW

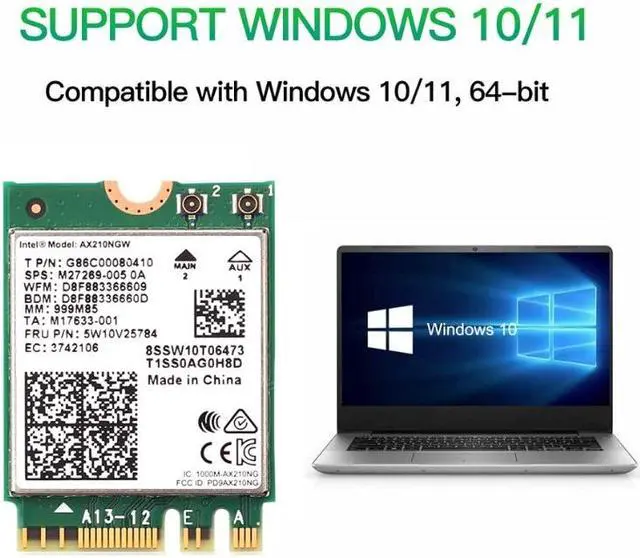

Supported Operating Systems

Windows 10*64bit

Windows 11*64bit

image for this item

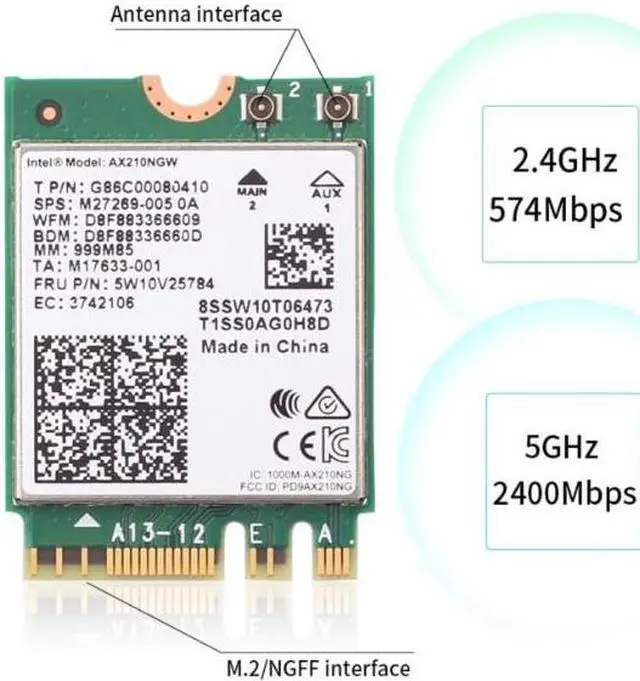

Tri-Band Transmission Rate
Greater Network Flexibility
Faster Speed Reduced Latency
Wi-Fi 6E Tri Band 2x2 160MHz

6Ghz up to 2400Mbps

5GHz up to 2400Mbps

2.4GH z up to 574Mbps



image for this item
Bluetooth 5.2 Technology
WiFi 6E AX210NGW M. 2 WiFi card also has Bluetooth 5.2 function, a more stable and lower power Bluetooth protocol. You can use this connection to manage your mobile phone, connect keyboard, mouse and wireless headphones.

image for this item
MU-MIMO Technology
MU-MIMO enables the AX210 to serve multiple devices simultaneously. Say goodbye to bandwidth congestion and lag as you experience a more efficient network built for more users and more devices.

image for this item

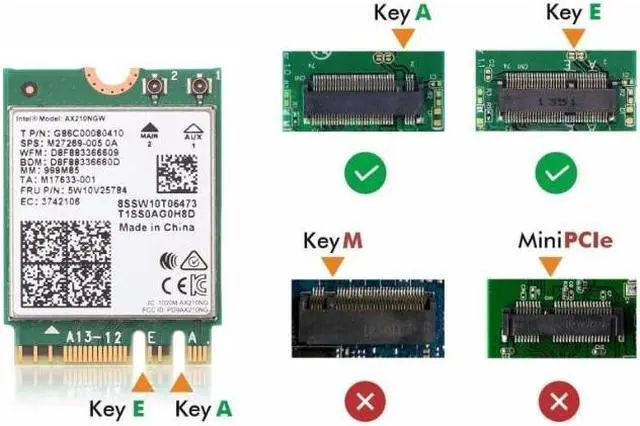

Standard NGFF M. 2 Key A or E Slot
Compatible with any Laptop with standard NGFF M. 2 Key A or Key E slot. All the Laptops with AX200NGW, 9260NGW, 8265NGW, 7265NGW wifi module can be replaced with this AX210 module.



Not Compatible with NGFF CNV
Io or CNV
Io2 slot. Some laptops use AC9560or AC9642 with NGFF CNV
Io, can't be replaced.



Not Compatible with Mini PCIe slot. Some old laptops use AC7260 with Mini PCle connector, can't be replaced.

image for this item
image for this item
Maximize speed, latency, and reliability benefits of Wi-Fi 6 across new radio frequencies free from legacy device interference
Specification:
Model: AX210NGW
Interface: NGFF M. 2
TX/RX Streams: 2x2
Wi-Fi CERTIFIED: Wi-Fi 6E
Compliance: FIPS, FISMA
Bluetooth Version: 5.2
Integrated Bluetooth: Yes
Board Form Facto: M. 2 2230
Supported Operating Systems: Windows 11, 64-bit*, Windows 10, 64-bit*
MU-MIMO: Yes
Supported Under vPro Technology: Yes
Orthogonal Frequency-Division Multiple Access (OFDMA): Yes

Package Include:
1 x AX210NGW M. 2 wifi card
1 x Plastic clip
1 x Screwdriver
