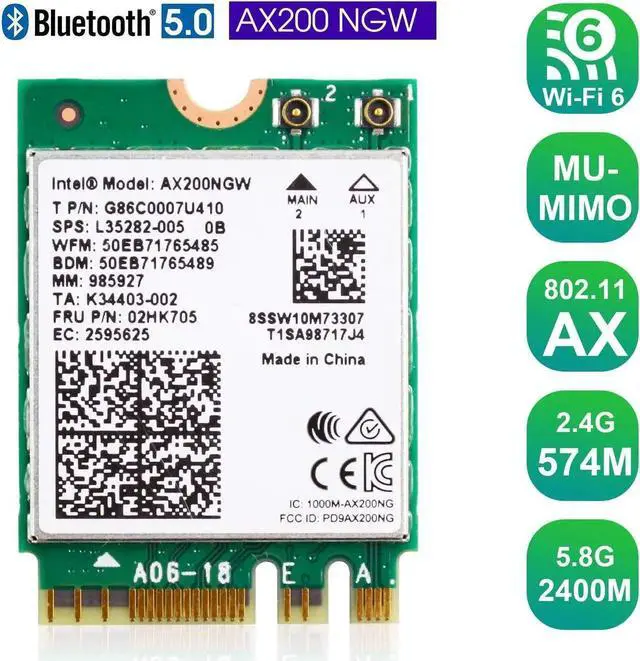

Dual Band Wireless AX200NGW 2.4Gbps 802.11ax Wireless Intel Wi-Fi 6 Bluetooth 5.0 M.2 NGFF WiFi Wlan Card MU-MIMO

Features:

Support Windows 10 64bit (not for other system)

1. Install this module to your laptop with an M.2 connector or desktop with an M.2 slot printed with "WiFi" logo.

2. Download the driver online.

3. Double-Click "WiFi_21.10.1_Driver64_Win10.exe".

4. If you are using bluetooth 5.0, please download the bluetooth driver "BT_21.10.1_64_Win10.exe", then Install it.

Specification

Standard: 802.11 b/g/n/ac/ax Dual band

Security: WPA/WPA2/WPA3

Antenna: ipex4(Antenna not included)

Wi-Fi Performance: 2.4Gbps(5G)+574Mbps(2.4G), 160MHz

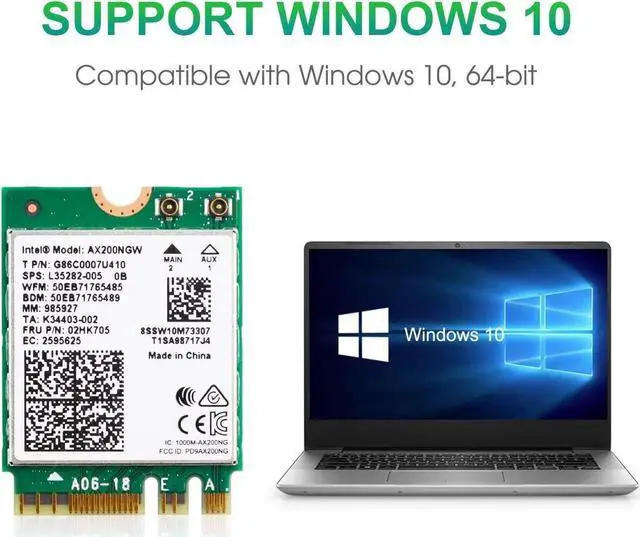

Support Systems: Windows10 64-bit

Interface: M.2 2230

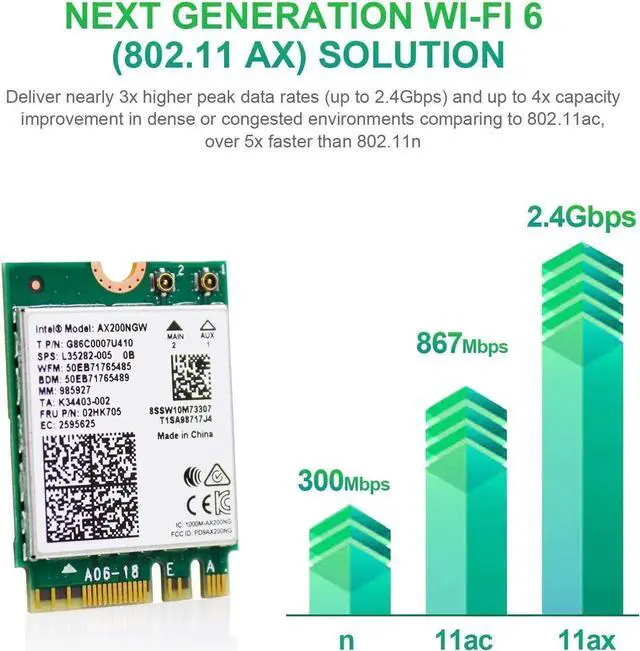

Faster & Efficiency 11ax vs 11ac

Speed:

5G: 2.4Gbps vs 867Mbps

2.4G: 574Mbps vs 300Mbps

Power Dissipation: 40% power saving

Warning

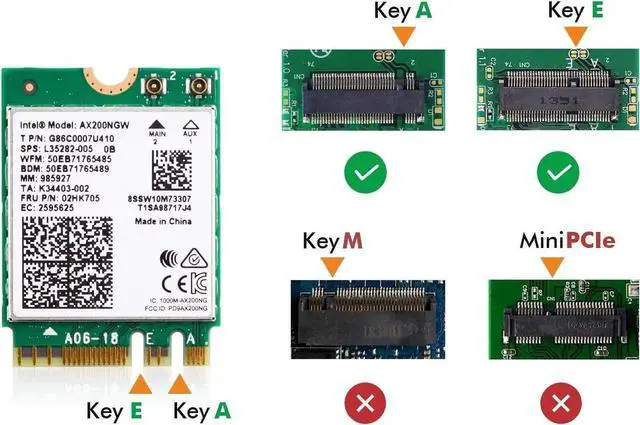

1). Should be used in Laptops with an M.2 slot ( Key A or E ) or desktop with an M.2 slot printed with ""WiFi"" logo.

2). Use ONLY on Intel based systems that are running Win10 64-bit. Do not use on a motherboard contains an Intel 9560 CNVi part.

3). ONLY For 4th Generation / 5th Generation / 7th Generation / 8th Generation INTEL Processor LENOVO/THINKPAD is only available on 6th generation / 7th generation INTEL processors.

Package Included:

1 x AX200NGW
