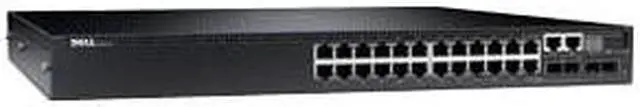

Dell 210-ASNC Managed L3 Switch 24XEthernet 2X10 Gigabit SFP+ Ports.

DELL 210-ASNC Networking N2024 - Switch - 24 Ports - Managed -
Rack-mountable:

Key Features:


Device Type: Switch - 24 Ports - L2+ - Managed - Stackable

Enclosure Type: Rack-mountable 1u

Subtype: Gigabit Ethernet

Ports: 24 X 10/100/1000 + 2 X 10 Gigabit Sfp+

Performance: Switching
Fabric Bandwidth: 172
Gbps ¦ Forwarding Performance: 128 Mpps ¦ Stacking Bandwidth: 84 Gbps

Capacity: Virtual
Interfaces (vlans): 4096
¦ Arp Entries: 1024
¦ Ndp Entries: 400
¦ Priority Queues Per Port: 8
¦ Ipv4 Routes (static): 256
¦ Ipv6 Routes (static): 128
¦ Ipv4 Routes (dynamic): 256
¦ Vlan Routing Interfaces: 256
¦ Acl: 100
¦ Max Acl Rules System-wide: 2048
¦ Maximum Rules Per Acl: 1023 ¦ Maximum Acl Rules Per Interface (ipv4)
Ingress Rules: 1024 ¦ Maximum Acl Rules Per Interface (ipv4)
Egress Rules: 512 ¦ Maximum Acl Rules Per Interface (ipv6)
Ingress Rules: 512 ¦ Maximum Acl Rules Per Interface (ipv6)
Egress Rules: 256 ¦ Maximum Vlan Interfaces With Acls Applied: 24
¦ Maximum Aggregation Groups: 128 ¦ Maximum Dynamic Ports Per Switch Stack: 144 ¦ Maximum Member Ports Per Lag: 8

Mac Address Table Size: 8192 Entries

Routing Protocol: Rip-1, Rip-2, Igmpv2, Igmp, Igmpv3, Static Ipv4 Routing, Static Ipv6 Routing

Remote Management Protocol: Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Tftp

Encryption Algorithm: Md5, Aes, Ssl, Tls

Authentication Method: Secure Shell (ssh), Radius, Tacacs+

Features: Flow Control, Auto-negotiation, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Broadcast Storm Control, Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Per-vlan Spanning Tree Plus (pvst+), Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Management Information Base (mib), Dynamic Vlan Support (gvrp), Dual Firmware Images, Neighbor Discovery Protocol (ndp), Redundant Fans, Protocol-based Vlans Support, Multi-chassis Link Aggregation Group (mlag)

Compliant Standards: Ieee 802.2, Ieee 802.3, Ieee 802.3 u, Ieee 802.3 z, Ieee 802.1 d, Ieee 802.1 q, Ieee 802.3 ab, Ieee 802.1 p, Ieee 802.3 x, Ieee 802.3 ad (lacp), Ieee 802.1 w, Ieee 802.1 x, Ieee 802.3 ae, Ieee 802.3 ac, Ieee 802.1 s, Ieee 802.1 v, Ieee 802.1 ab (lldp), Ieee 802.3 az

Ram: 1 Gb

Flash Memory: 256 Mb

Expansion / Connectivity:
Interfaces: 24 X Gigabit Lan - Rj-45 ¦ 2 X 10gbit Lan - Sfp+ ¦ 1 X Serial (rs-232) - Rj-45 - Management ¦ 1 X Usb - Type A ¦ 2 X Network Stack Device

Power:
Power Device: Internal Power Supply
Installed Qty: 1
Power Provided: 100 Watt
Power Consumption Operational: 42.9 Watt
Features: Redundant Power System (rps) Connector

Condition: Refurbished.
Availability: In Stock.
Our Warranty: 30 Days.
