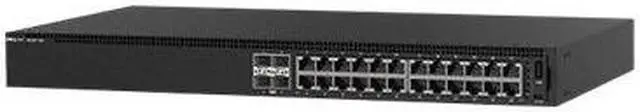

Dell 210-ASNH EMC Networking N1124T-ON 24 ports Managed Switch

DELL 210-ASNH Emc Networking N1124t-on - Switch - 24 Ports - Managed - Rack-mountable

Key Features:


Device Type: Switch - 24 Ports - Managed - Stackable

Enclosure Type: Rack-mountable 1u

Subtype: Gigabit Ethernet

Ports: 24 X 10/100/1000 + 4 X 10 Gigabit Sfp+

Performance: Switching
Fabric Bandwidth: 128 Gbps Forwarding Performance: 96 Mpps

Capacity: Mac
Addresses: 16000
Aggregated Links (dynamic): 144
Lag Groups: 64
Queues Per Port: 8
Vlans Supported: 512
Arp Entries: 2048
Ndp Entries: 400
Max Acl Rules System-wide: 4000
Acl: 100 Maximum Acl Rules Per Interface (ipv4)
Ingress Rules: 1023 Maximum Acl Rules Per Interface (ipv4)
Egress Rules: 1023 Maximum Acl Rules Per Interface (ipv6)
Ingress Rules: 1021 Maximum Acl Rules Per Interface (ipv6)
Egress Rules: 253

Mac Address Table Size: 16000 Entries

Routing Protocol: Igmpv2, Igmp, Igmpv3

Remote Management Protocol: Snmp 2, Snmp, Rmon, Telnet, Http, Tftp, Ssh-2

Encryption Algorithm: Aes, Ssl, Tls 1.0

Authentication Method: Radius, Tacacs+, Ldap

Features: Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support

Compliant Standards: Ieee 802.2, Ieee 802.3, Ieee 802.3 u, Ieee 802.3 z, Ieee 802.1 d, Ieee 802.1 q, Ieee 802.3 ab, Ieee 802.1 p, Ieee 802.3 x, Ieee 802.3 ad (lacp), Ieee 802.1 w, Ieee 802.1 x, Ieee 802.3 ae, Ieee 802.3 ac, Ieee 802.1 s, Ieee 802.1 v, Ansi/tia-1057, Ieee 802.1 ab (lldp), Ieee 802.3 az, Ieee 802.3 ax

Ram: 1 Gb

Flash Memory: 1 Gb

Expansion / Connectivity:
Interfaces:

24 X Gigabit Lan Rj-45

4 X 10gbit Lan Sfp+

1 X Usb Type A

1 X Micro-usb

Power:

Power Device: Internal Power Supply

Installed Qty: 1

Power Provided: 40 Watt
