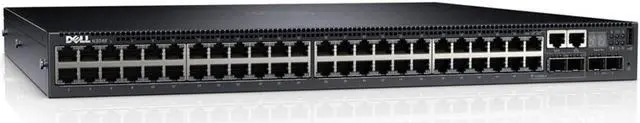

Dell H4JYY Networking N2048P Managed L3 Switch 48 PoE+ Ethernet Ports

DELL H4JYY Networking N2048p Managed L3 Switch - 48 Poe+ Ethernet Ports & 2 10-gigabit Sfp+ Ports.

Key Features:


Device Type: Switch - 48 Ports - L2+ - Managed - Stackable

Enclosure Type: Rack-mountable 1u

Subtype: Gigabit Ethernet

Ports: 48 X 10/100/1000 + 2 X 10 Gigabit Sfp+

Power Over Ethernet (poe): Poe+

Performance: Switching
Fabric Bandwidth: 220 Gbps, Forwarding
Performance: 164 Mpps, Stacking Bandwidth: 84 Gbps

Capacity: Virtual
Interfaces (vlans): 4096, Arp
Entries: 1024, Ndp
Entries: 400, Priority
Queues Per Port: 8, Ipv4
Routes (static): 256, Ipv6
Routes (static): 128, Ipv4
Routes (dynamic): 256, Vlan
Routing Interfaces: 256, Acl: 100, Max
Acl Rules System-wide: 2048, Maximum
Rules Per Acl: 1023, Maximum Acl Rules Per Interface (ipv4)
Ingress Rules: 1024, Maximum Acl Rules Per Interface (ipv4)
Egress Rules: 512, Maximum Acl Rules Per Interface (ipv6)
Ingress Rules: 512, Maximum Acl Rules Per Interface (ipv6)
Egress Rules: 256, Maximum Vlan Interfaces With Acls Applied: 24, Maximum
Aggregation Groups: 128, Maximum Dynamic Ports Per Switch Stack: 144, Maximum Member Ports Per Lag: 8

Mac Address Table Size: 8192 Entries

Routing Protocol: Rip-1, Rip-2, Static Ipv4 Routing, Static Ipv6 Routing

Remote Management Protocol: Telnet, Tftp

Features: Flow Control, Auto-negotiation, Vlan Support, Port Mirroring, Diffserv Support, Broadcast Storm Control, Ipv6 Support, Access Control List (acl) Support, Front To Back Airflow, Ipv4 Support, Energy Efficient Ethernet, Management Information Base (mib), Dual Firmware Images, Neighbor Discovery Protocol (ndp), Redundant Fans
