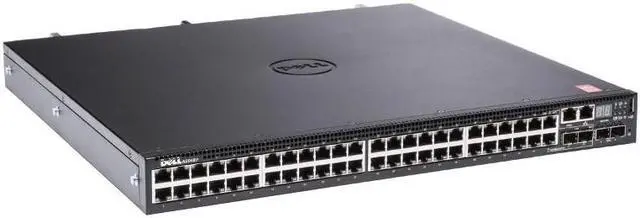

Dell RGC0T Networking N3048P Managed L3 Switch 48X10Gigabit SFP+ Ports

DELL RGC0T Networking N3048p Switch 48 Ports L3 Managed Switch With Single Power Supply And With Rail.

Key Features:


Device Type: Switch - 48 Ports - L3 - Managed - Stackable

Enclosure Type: Rack-mountable 1u

Subtype: Gigabit Ethernet

Ports: 48 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X Combo 1000base-t

Power Over Ethernet (poe): Poe+

Performance: Switching
Fabric Bandwidth: 260
Gbps Forwarding Performance: 193 Mbps Stacking Bandwidth: 84 Gbps

Capacity: Mac
Addresses: 16384
Ipv4 Routes (static): 1024
Ipv6 Routes (static): 1024
Ipv4 Routes (dynamic): 8160
Ipv6 Routes (dynamic): 4096
Maximum Member Ports Per Lag: 8 Maximum Dynamic Ports Per Switch Stack: 144
Lag Groups: 128
Ospf Routes: 8160
Rip Routes: 512
Ecmp Next Hops Per Route: 4
Ecmp Groups: 64
Vlan Routing Interfaces: 128
Vlans Supported: 4094
Multicast Entries (ipv4): 512
Multicast Entries (ipv6): 256
Arp Entries: 6144
Ndp Entries: 400
Acl: 100
Maximum Rules Per Acl: 1023
Max Acl Rules System-wide: 4096 Maximum Acl Rules Per Interface (ipv4)
Egress Rules: 1024 Maximum Acl Rules Per Interface (ipv4)
Ingress Rules: 3072 Maximum Acl Rules Per Interface (ipv6)
Egress Rules: 512 Maximum Acl Rules Per Interface (ipv6)
Ingress Rules: 1021 Maximum Vlan Interfaces With Acls Applied: 24

Mac Address Table Size: 16k Entries

Routing Protocol: Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld

Remote Management Protocol: Snmp 2, Snmp, Rmon, Http, Ssh

Features: Flow Control, Layer 3 Switching, Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Load Balancing, Port Mirroring, Stackable, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Port Forwarding, Stp Root Guard, Lldp Support, Link Aggregation Control Protocol (lacp), Per-vlan Rapid Spanning Tree (pvrst), Energy Efficient Ethernet, Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Tagged Vlan, Generic Vlan Registration Protocol (gvrp), Redundant Fans, Protocol-based Vlans Support

Compliant Standards: Ieee 802.2, Ieee 802.3, Ieee 802.3 u, Ieee 802.3 z, Ieee 802.1 d, Ieee 802.1 q, Ieee 802.3 ab, Ieee 802.1 p, Ieee 802.3 x, Ieee 802.3 ad (lacp), Ieee 802.1 w, Ieee 802.1 x, Ieee 802.3 ae, Ieee 802.3 ac, Ieee 802.1 s, Ieee 802.1 v, Ieee 802.1 ag, Ieee 802.1 ab (lldp), Ieee 802.3 az


Power: Single Power Supply Installed
