$3,791.00
Ships from Hong Kong.
Meet Your Seller

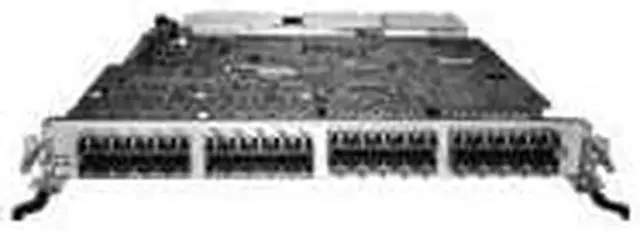

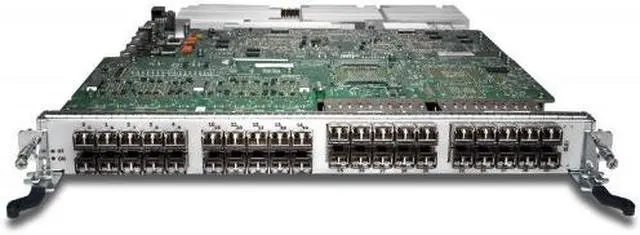

Juniper Networks Expansion Module Ethernet Line Card Switch (40 port, 1GbE/10GbE SFP/SFP+, For EX 8208; 8216, EX8200-40XS)
- Supports approximately 960 Mpps of Layer 2 and Layer 3 IPv4 and IPv6 traffic in the EX8208, and more than 1900 Mbps in the EX8216.
- The packet processor ASIC also supports generic routing encapsulation (GRE) tunneling and two-label MPLS in hardware at line rate.
- Total buffer size : 1 MB per port group and 512 MB per port group within the PFE.
- Data rate : 80 Gbps; Fabric connection : 160 Gbps (320 Gbps full duplex).
- Requires SFP/SFP+ Transceivers/Optical Modules (sold separately).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
General InformationManufacturer: Juniper Networks, IncManufacturer
Part Number: EX8200-40XSManufacturer
Website Address:
http: //www. juniper.
netBrand Name: JuniperProduct
Model: EX8200-40XSProduct
Name: EX8200-40XS
Line CardMarketing Information: The Juniper Networks EX8200-40XS line card delivers a high-density oversubscribed 10 GbE solution for data center end-of-row and middle-of-row server access, as well as for blade switch and top-of-rack aggregation deployments. The EX8200-40XS is optimized for data center networks migrating from GbE to 10 GbE server interfaces where simultaneous line-rate performance is not required on all ports, cost-effectively meeting escalating bandwidth demands. Installed in the Juniper Networks EX8200 line of Ethernet switches, the EX8200-40XS also provides a high-density, flexible option for network storage, core/distribution, and campus aggregation applications.
Product Type: Service
ModuleTechnical InformationApplication/Usage: Wide Area NetworkOptical NetworkI/O ExpansionsNumber of Total
Expansion Slots: 40Expansion
Slot Type: SFP+Physical
CharacteristicsHeight: 1.6"W
idth: 14.4"D
epth: 20.5"W
eight (Approximate): 15.30
lbMiscellaneousCompatibility: EX8200 Line of Ethernet Switches
Part Number: EX8200-40XSManufacturer
Website Address:
http: //www. juniper.
netBrand Name: JuniperProduct
Model: EX8200-40XSProduct
Name: EX8200-40XS
Line CardMarketing Information: The Juniper Networks EX8200-40XS line card delivers a high-density oversubscribed 10 GbE solution for data center end-of-row and middle-of-row server access, as well as for blade switch and top-of-rack aggregation deployments. The EX8200-40XS is optimized for data center networks migrating from GbE to 10 GbE server interfaces where simultaneous line-rate performance is not required on all ports, cost-effectively meeting escalating bandwidth demands. Installed in the Juniper Networks EX8200 line of Ethernet switches, the EX8200-40XS also provides a high-density, flexible option for network storage, core/distribution, and campus aggregation applications.
Product Type: Service
ModuleTechnical InformationApplication/Usage: Wide Area NetworkOptical NetworkI/O ExpansionsNumber of Total
Expansion Slots: 40Expansion
Slot Type: SFP+Physical
CharacteristicsHeight: 1.6"W
idth: 14.4"D
epth: 20.5"W
eight (Approximate): 15.30
lbMiscellaneousCompatibility: EX8200 Line of Ethernet Switches
