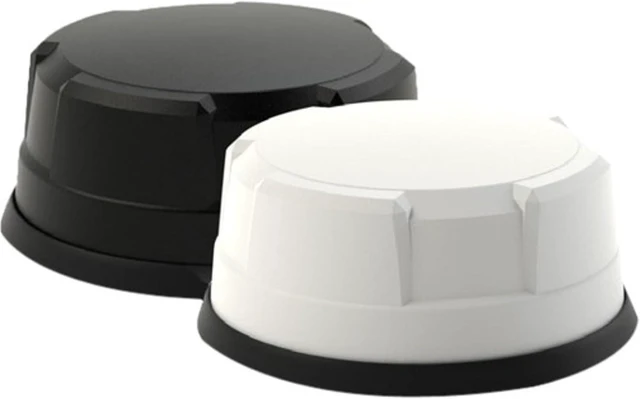

Sierra Wireless Airlink 6-in-1 5G Dome Antenna - 2 x LTE/5G, 3 x Wi-Fi, GNNS - SMA - 15ft - Bolt Mount - Black
- Frequency Range cellular 617-960/1710-6000 MHz, Wi-Fi 2.4/4.9-6GHz, GPS/GNSS 1562-1612MHz
- Peak gain: Isotropic cellular 617-960MHz 5dBi 1710-3800MHz 9dBi 4900-6000MHz 10dBi Wi-Fi 2.4/4.9-6.0GHz 8/10dBi
- Operational Bands cellular 2G/3G/4G LTE/5G NR Sub6 Wi-Fi 2.4/5.0GHz Wi-Fi
- Mounting Type Bolt Mount Mounting Hole 19mm (3/4)
- Cell / LTE Cables Type C32 Length 5m (16ft) Termination SMA Plug GPS Cable Type CS29 Length 5m (16ft) Termination SMA Plug Wi-Fi Cables Type CS32 Length 5m (16ft) Termination RP-SMA Plug
- The 6-in-1 Dome has been tested and certified to operate with AirLink LTE routers and gateways
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
It has a low profile design that contains six isolated high performance antenna elements in a single housing for optimal coverage; two ultra-wideband elements spanning 617-960/1710-6000MHz support MiMo at LTE and 5G NR frequencies; a high performance (advanced filtering) GNSS antenna with an integrated 26dB gain LNA, and three dualband 2.4/5GHz Wi-Fi elements that provide 3x3 MiMo Wi-Fi.
The antenna is ground plane independent, and maintains a high level of performance even when mounted on a non-metallic surface.
