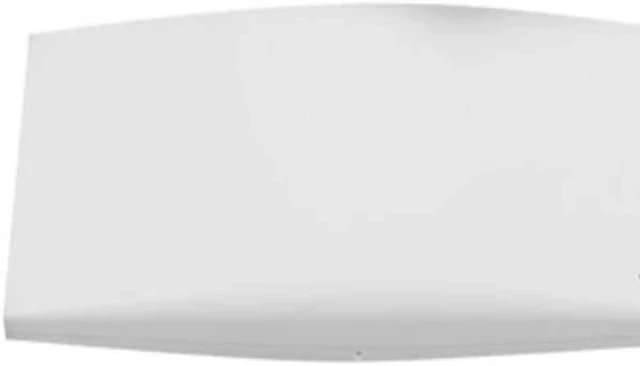

MR46-HW
- 4x4:4 MU-MIMO 802.11ax
- 2.98* Gbps dual-radio aggregate frame rate
- 24x7 real-time WIDS/WIPS and spectrum analytics via dedicated third radio
- Integrated Bluetooth Low Energy beacon
- Integrated scanning radio
- Enhanced transmit power and receive sensitivity
- Integrated enterprise security and guest access
- Application-aware traffic shaping
- Optimized for voice and video
- Self-configuring, plug-and-play deployment
- Sleek design blends into office environments
- Full-time Wi-Fi location tracking via dedicated third radio
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Category
Radios
2.4 GHz 802.11 b/g/n/ax client access radio
5 GHz 802.11 a/n/ac/ax client access radio
2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and scanning support
Concurrent operation of all four radios
Supported frequency bands (country-specific restrictions apply):
2.401 - 2.484 GHz
5.150 - 5.250 GHz (UNII-1)
5.250 - 5.350 GHZ (UNII-2A)
5.490 - 5.730 GHz (UNII-2C)
5.735 - 5.825 GHz (UNII-3)
Antenna
Internal antenna ( 5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
802.11 ax, 802.11 ac Wave 2 and 802.11 n Capabilities
DL-OFDMA**, UL-OFDMA**, TWT support**, BSS coloring**
4 x 4 multiple input, multiple output (MIMO) with four spatial streams
SU-MIMO, UL MU-MIMO**, and DL MU-MIMO support
Maximal ratio combining (MRC) & beamforming
20 and 40 MHz channels ( 802.11 n); 20, 40, and 80 MHz channels ( 802.11 ac Wave 2); 20, 40 and 80 MHz channels ( 802.11 ax)
Up to 1024-QAM on both 2.4 GHz and 5 GHz bands
Packet aggregation
** Feature is automatically enabled via firmware update to MR 27+
Power
Power over Ethernet: 42.5 - 57 V ( 802.3 at compliant)
Alternative: 12 V DC input
Power consumption: 30W max ( 802.3 at required)
Power over Ethernet injector and DC adapter sold separately
Note: Actual power consumption may vary depending on the AP usage.
Interfaces
1x 100/1, 000/ 2.5G BASE-T Ethernet (RJ45)
1x DC power connector ( 5.5 mm x 2.5 mm, center positive)
Mounting
All standard mounting hardware included
Desktop, ceiling, and wall mount capable
Ceiling tile rail (9/16, 15/16 or 1 12 flush or recessed rails), assorted cable junction boxes
Bubble level on mounting cradle for accurate horizontal wall mounting
Physical Security
Two security screw options (included) ( 13.5 mm long, 2.5 mm diameter, 5 mm head)
Kensington lock hard point
Concealed mount plate with anti-tamper cable bay
Environment
Operating altitude: Up to 40, 000 feet (12, 192 meters)
Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity: 5% to 95% non-condensing
Reliability
Mean time between failure (MTBF): 1, 406, 652 hrs at +25°C operating temperature
Physical Dimensions
12.05 x 5.06 x 1.74 ( 30.6 cm x 12.84 cm x 4.43 cm), not including desk mount feet or mount plate
Weight: 28.22 oz (800 g)
Specifications
Radios
2.4 GHz 802.11 b/g/n/ax client access radio
5 GHz 802.11 a/n/ac/ax client access radio
2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and scanning support
Concurrent operation of all four radios
Supported frequency bands (country-specific restrictions apply):
2.401 - 2.484 GHz
5.150 - 5.250 GHz (UNII-1)
5.250 - 5.350 GHZ (UNII-2A)
5.490 - 5.730 GHz (UNII-2C)
5.735 - 5.825 GHz (UNII-3)
Antenna
Internal antenna ( 5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
802.11 ax, 802.11 ac Wave 2 and 802.11 n Capabilities
DL-OFDMA**, UL-OFDMA**, TWT support**, BSS coloring**
4 x 4 multiple input, multiple output (MIMO) with four spatial streams
SU-MIMO, UL MU-MIMO**, and DL MU-MIMO support
Maximal ratio combining (MRC) & beamforming
20 and 40 MHz channels ( 802.11 n); 20, 40, and 80 MHz channels ( 802.11 ac Wave 2); 20, 40 and 80 MHz channels ( 802.11 ax)
Up to 1024-QAM on both 2.4 GHz and 5 GHz bands
Packet aggregation
** Feature is automatically enabled via firmware update to MR 27+
Power
Power over Ethernet: 42.5 - 57 V ( 802.3 at compliant)
Alternative: 12 V DC input
Power consumption: 30W max ( 802.3 at required)
Power over Ethernet injector and DC adapter sold separately
Note: Actual power consumption may vary depending on the AP usage.
Interfaces
1x 100/1, 000/ 2.5G BASE-T Ethernet (RJ45)
1x DC power connector ( 5.5 mm x 2.5 mm, center positive)
Mounting
All standard mounting hardware included
Desktop, ceiling, and wall mount capable
Ceiling tile rail (9/16, 15/16 or 1 12 flush or recessed rails), assorted cable junction boxes
Bubble level on mounting cradle for accurate horizontal wall mounting
Physical Security
Two security screw options (included) ( 13.5 mm long, 2.5 mm diameter, 5 mm head)
Kensington lock hard point
Concealed mount plate with anti-tamper cable bay
Environment
Operating altitude: Up to 40, 000 feet (12, 192 meters)
Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity: 5% to 95% non-condensing
Reliability
Mean time between failure (MTBF): 1, 406, 652 hrs at +25°C operating temperature
Physical Dimensions
12.05 x 5.06 x 1.74 ( 30.6 cm x 12.84 cm x 4.43 cm), not including desk mount feet or mount plate
Weight: 28.22 oz (800 g)
